Model: ASEL AO Series
Size: 12mm Width
Height: -
Angle: ~40x90°,~50x95°,~60x100°,~175x100°,Asy15°,DA40°
Material: PMMA
Transmittance: >90%
LED Type: 2835/3030LED
Lighting Applications: Linear Lighting, Office lighting
1. The ASEL AO extruded linear lens ensures continuous lighting without gaps. We cut to your exact length with angles ranging from 40x90° to 175x100°. This series adapts to various profile dimensions or supports custom optical design.
2. These extruded linear optical lenses are perfect for warehouse aisles or retail shelves. Available in varying widths and heights to match your specific LED board.
3. ASEL AO features varying housing sizes and beams like 50x95° or 60x100°. We produce these extruded optics in any length required for your project.

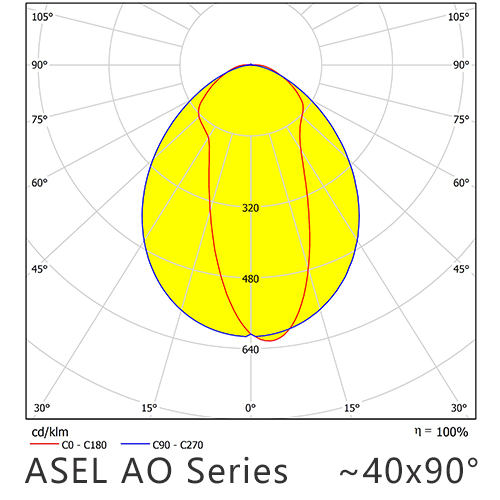

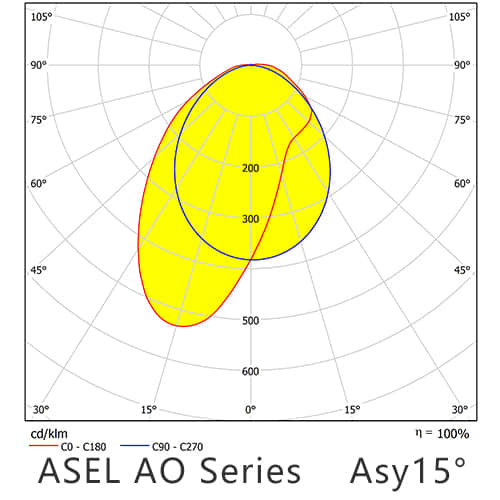

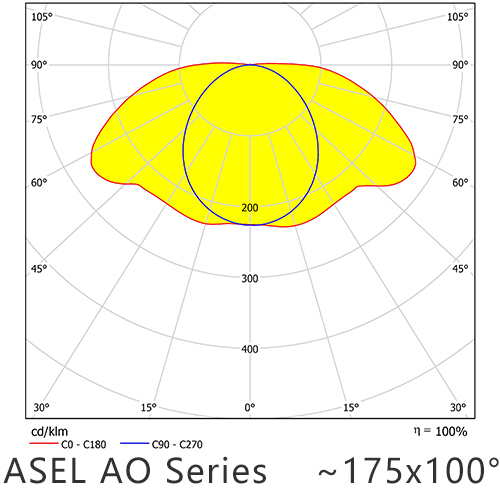

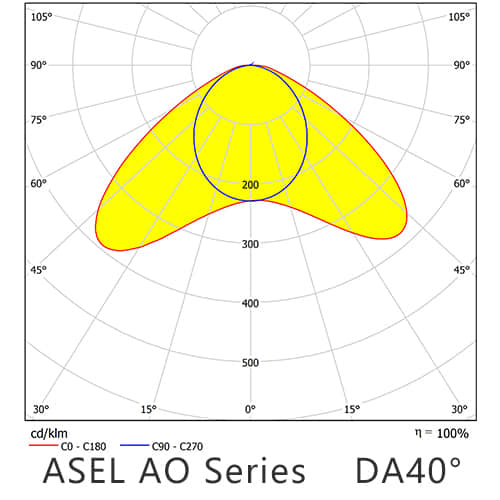

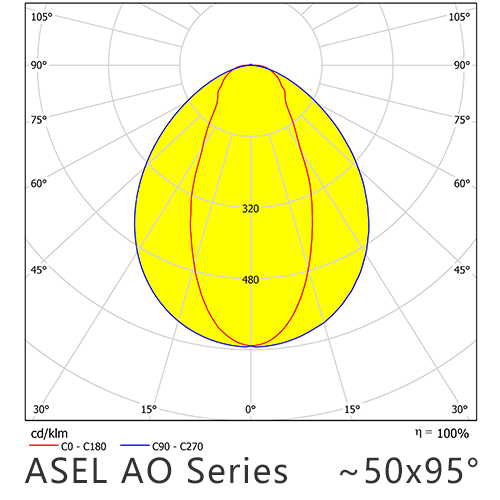

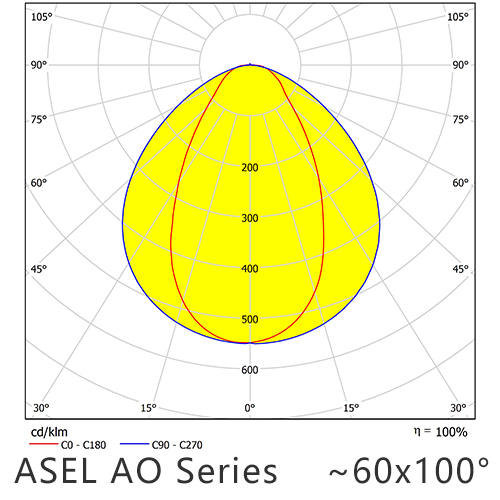

Distribution
Specifications
| Model: | ASEL AO Series |
| Size: | 12mm Width |
| Height: | - |
| Angle: | ~40x90°,~50x95°,~60x100°,~175x100°,Asy15°,DA40° |
| Material： | PMMA |
| Transmittance： | 90% |
| LED Applications | 2835/3030LED |
| Lighting applications | Linear Lighting, Office lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

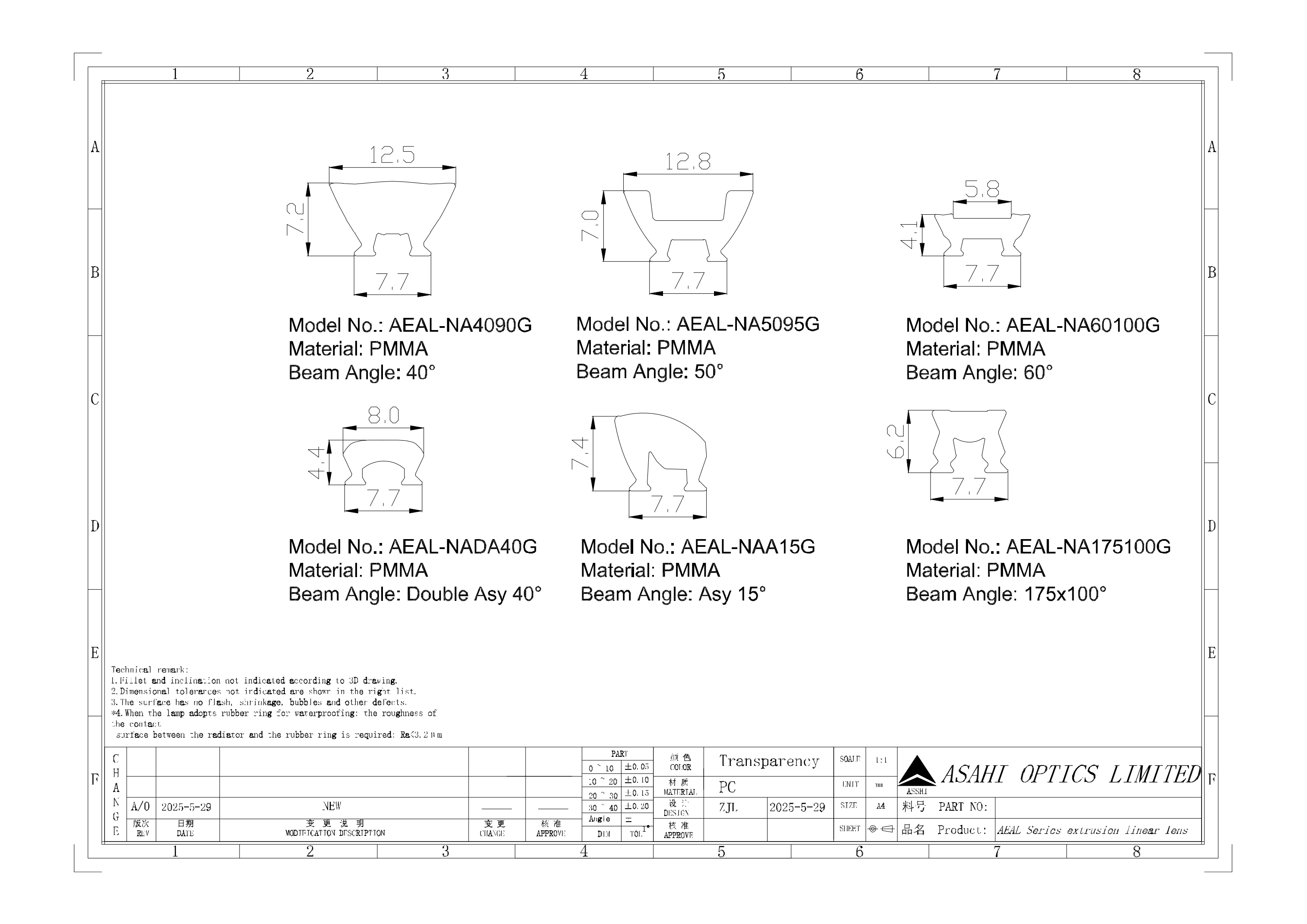

ASEL AO Series Extrusion linear lens Drawing.dwg
ASEL AO Series Extrusion linear lens Drawing.pdf
ASEL AO Series mounting clips drawing.dwg
ASEL AO Series ASEL AO4090G.IES
ASEL AO Series ASEL AO5095G.IES
ASEL AO Series ASEL AO60100G.IES
ASEL AO Series ASEL AO175100G.IES
ASEL AO Series ASEL AOA15G.IES
ASEL AO Series ASEL AODA40G.IES
