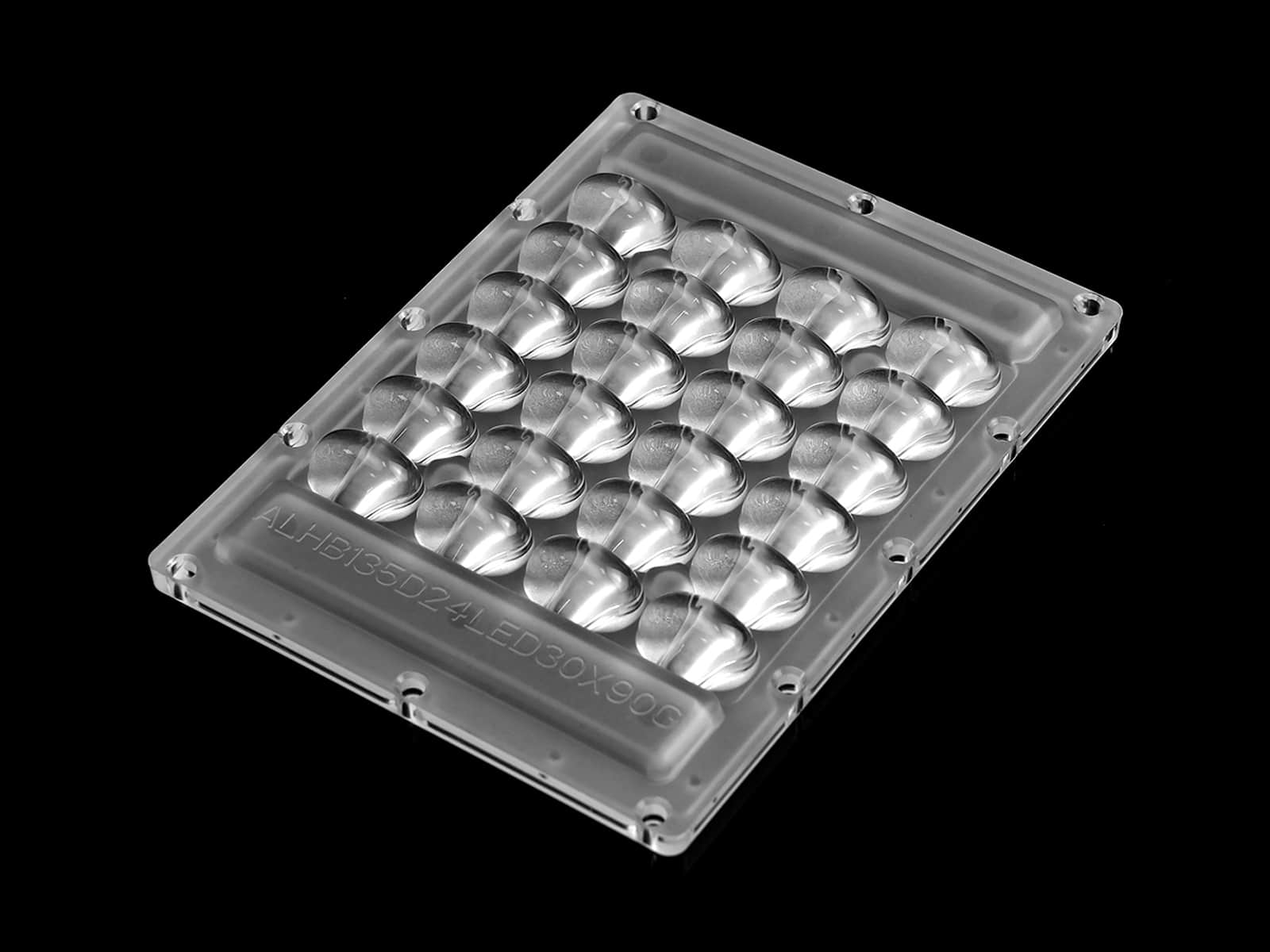

Model: ALHB135D24LED3090G
Diameter: 135x100mm
Height: 7.95mm
Angle: 30X90°
Material: PC
Transmittance: >90%
LED Type: 5050LED

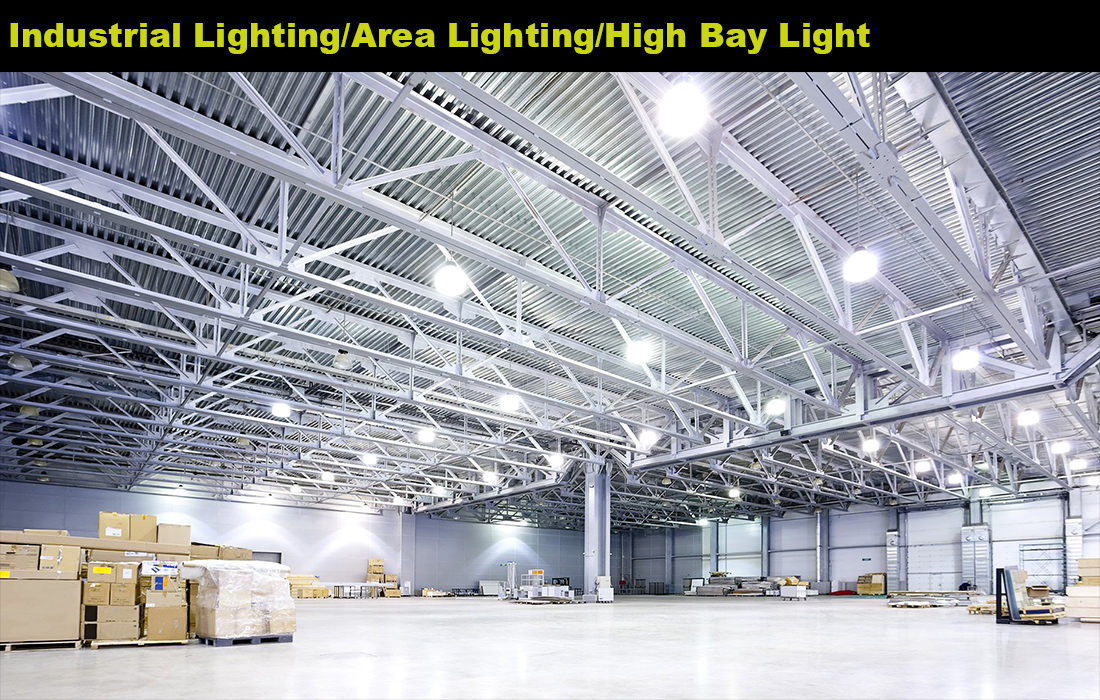

Lighting Applications: High bay, Linear lens
1. 4x6 with 30x90° beam angle, this lens is well-suited for illuminating the side of pedestrian walkways or paths, providing both safety and guidance effects.
2. The specific beam angle ensures focused illumination along the walkway, enhancing visibility and security.
3. This lens can be adapted to accommodate various brands of 5050 LEDs,provides flexibility and options for customers, allowing them to choose LED sources from different manufacturers

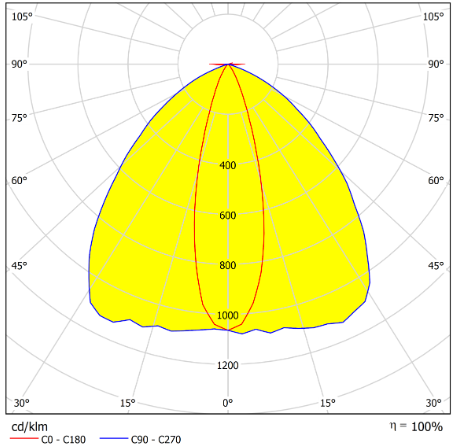

Distribution

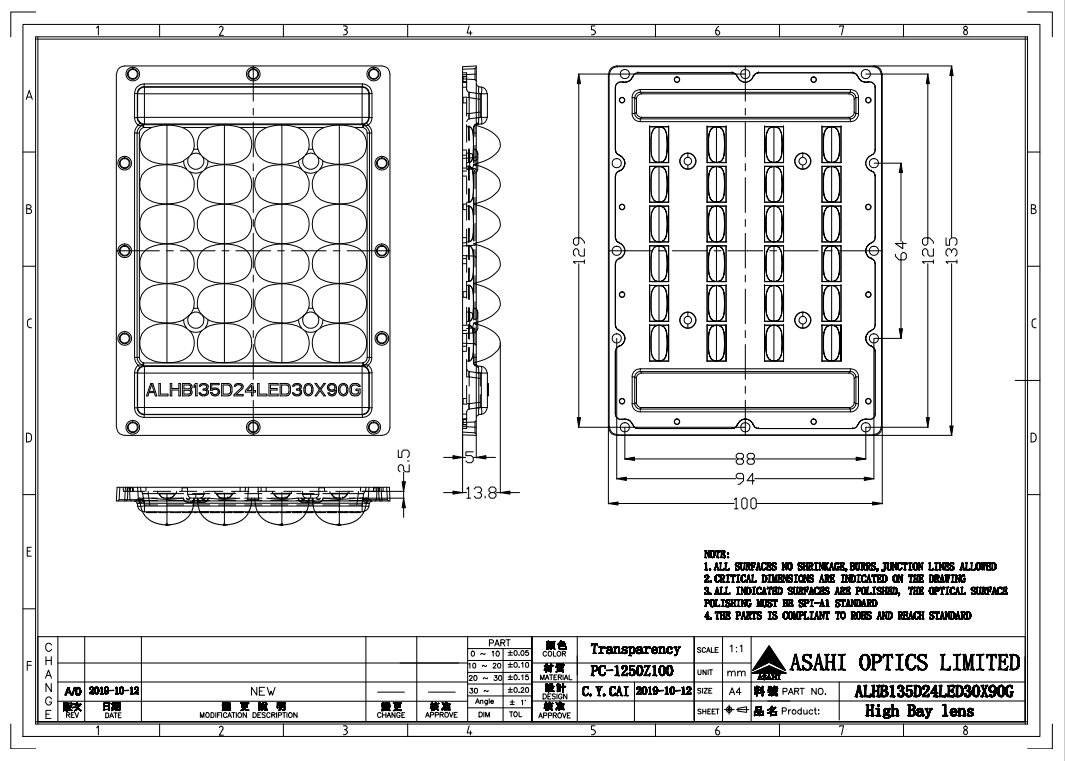

Specifications
| Model: | ALHB135D24LED3090G |
| Diameter: | 135x100mm |
| Height: | 13.80mm |
| Angle: | 30X90° |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 5050LED |
| Lighting applications | High bay, Linear lens |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
