Automotive Turn signal lights optics

Turn signal lights communicate a driver’s intention to turn or change lanes to other road users. For this signal to be recognized quickly, the emitted light must remain visible across the required viewing directions and under different ambient conditions. A bright LED alone cannot provide a controlled automotive signal. Its light must be collected and distributed by a suitable optical system.

Automotive turn signal optics may include individual lenses, lens arrays, reflectors, light guides, diffusers and micro-structured optical surfaces. These components determine the luminous intensity distribution, illuminated appearance, viewing-angle coverage and separation from adjacent lighting functions.

Asahi Optics develops optical components for different automotive lighting applications. This page explains the main optical problems in static and sequential LED turn signals, the influence of the lens on signal performance and the technical information needed to evaluate an existing optic or develop a dedicated solution.

What Are Turn Signal Light Optics?

Turn signal light optics are the components that collect, redirect or diffuse light from the source to produce the intended direction-indicator signal. In an LED system, these optics may be positioned directly above each LED, integrated into a multi-LED array or combined with reflectors and light guides.

The optical element should be distinguished from the LED, electronic flasher and outer lamp cover:

• The LED produces the light.
• The driver and control electronics determine when the source is switched on and off.
• The internal lens, reflector or light guide controls how the light is distributed.
• The outer cover protects the lamp and can further affect transmission and refraction.

A lens does not independently determine the flashing frequency or create the activation sequence of a dynamic indicator. However, the optical design determines whether each illuminated segment is clear, uniform and visible in the intended directions during the flashing cycle.

The performance of an automotive turn signal lens cannot be described adequately by total lumens or a single beam angle. Direction indicators are signal lamps, so their luminous intensity in different horizontal and vertical directions is a more meaningful design parameter.

Where Are Automotive Turn Signal Lights Used?

Front Turn Signal Lights

Front turn signal lights may be integrated into the headlamp assembly or installed as separate lamps. Their position, orientation and available optical area depend on the front-end design of the vehicle.

When a direction indicator is close to a daytime running lamp, position lamp or headlamp, the optical system must maintain a clearly identifiable signal. Internal shields, separate optical chambers and controlled surface distributions may be used to limit light leakage between functions.

Front indicator optics must also work through the outer headlamp cover. Its curvature, material and surface geometry can change the finished light distribution, so the cover should be included in simulation and prototype testing.

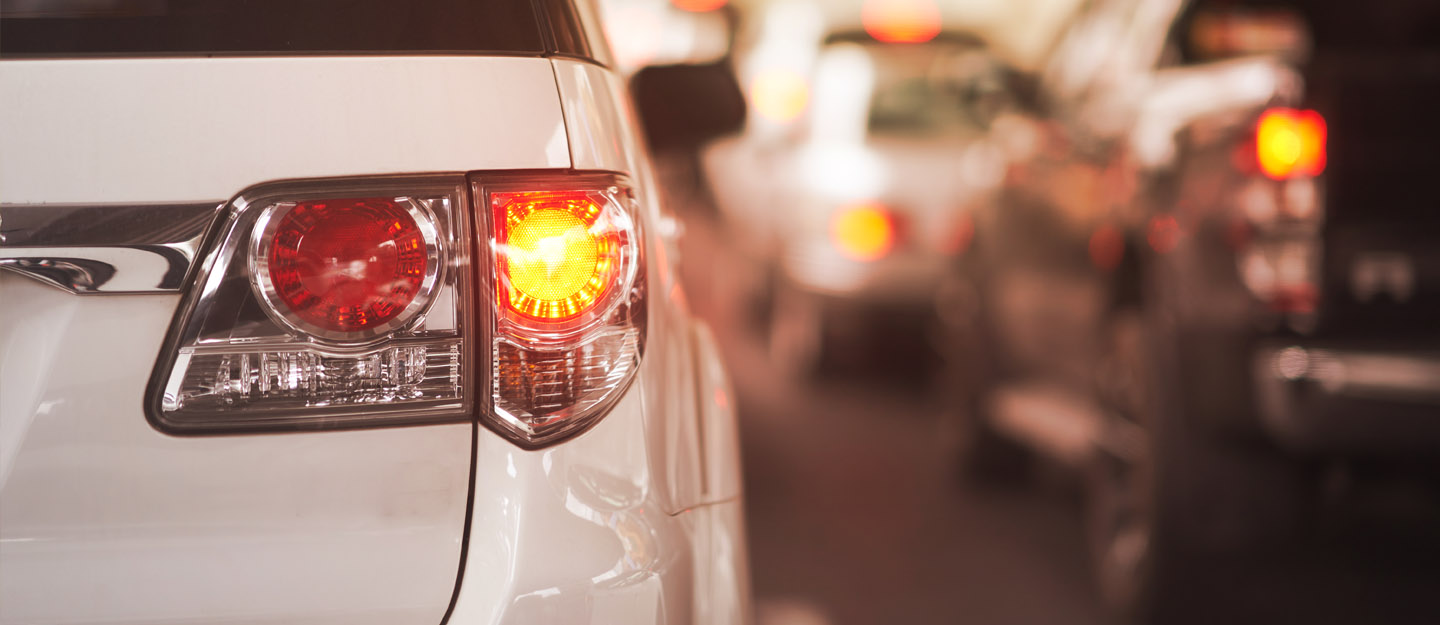

Rear Turn Signals

A rear direction indicator is commonly integrated into a rear combination lamp containing position, stop, reversing or rear-fog functions. Each function must remain visually distinguishable, even though multiple optical systems share the same housing and outer cover.

The indicator may use an amber source behind a clear optical path, a different permitted source-and-cover combination or another solution defined by the project requirements. Optical partitions and controlled distributions help prevent the indicator signal from illuminating neighboring regions.

Requirements for the other functions inside the assembly are discussed on Asahi’s automotive taillight optics page. The present page focuses specifically on the direction-indicator signal.

Side-Mirror and Side-Repeater Turn Signals

Side turn signal lights can be installed in the vehicle body, fender or exterior mirror. A side-mirror indicator often has limited optical depth, a narrow illuminated window and a strongly curved exterior surface.

These packaging conditions can make it difficult to capture enough light and distribute it toward the required observation directions. A compact side mirror turn signal lens or light guide may be used to transport light from one or more LEDs to an elongated output area.

The following features should be evaluated together:

• LED position and entrance coupling
• Available optical depth
• Mirror housing and cover geometry
• Required sideward distribution
• Visibility of individual LED images
• Assembly and positioning tolerances

What Problems Must Turn Signal Optics Solve?

Visibility Across the Required Viewing Angles

A car turn signal is observed from changing positions. Vehicles may approach from the side, travel at different heights or move through a curve. A signal that appears bright only along its optical axis may become difficult to see outside that narrow direction.

The turn signal light distribution must therefore be controlled across the intended horizontal and vertical field. A freeform lens, reflector or micro-prismatic surface can redirect different portions of the LED output toward selected angular zones.

Distribution depends on:

• The LED radiation pattern and emitting-area size
• The LED-to-optic working distance
• The curvature and microstructure of the optical surfaces
• Obstruction from bezels, shields and decorative parts
• Refraction and absorption through the outer cover
• The installed orientation of the complete lamp

A nominal beam angle cannot represent all these characteristics. Photometric data showing candela values over the required angular field provides a more useful basis for evaluation.

Daytime Recognition Without Uncontrolled Intensity

Strong ambient light can reduce the apparent contrast between an illuminated indicator and its surroundings. The system must create a recognizable signal without relying only on increased electrical power.

Optical efficiency is particularly important for daytime visibility. Useful light should be directed toward the required observation zones instead of being lost inside the housing or emitted into directions that do not contribute to signal performance.

A very bright local hotspot does not necessarily produce a better indicator. It may exist together with insufficient intensity at other relevant angles or create an uneven appearance. The objective is a controlled distribution that supports recognition across the specified field.

Uniform Illumination Without Visible LED Hotspots

LEDs are discrete light sources. When several LEDs are installed behind a clear surface, individual bright points and dark gaps may remain visible. Whether this is acceptable depends on the intended styling. A pixel-like design may deliberately show separate sources, while a continuous indicator should minimize visible discontinuities.

Turn signal light uniformity can be improved through:

• Individual optical cells that expand each LED image
• Overlapping distributions from a lens array
• Light guides with controlled extraction features
• Diffusing or micro-structured surfaces
• Reflective mixing chambers
• Suitable LED spacing and optical working distance

Increasing diffusion can hide hotspots, but excessive diffusion may reduce useful luminous intensity. The optical design should achieve the required appearance with an appropriate balance between uniformity and efficiency.

Optical Separation From Adjacent Lamp Functions

Turn signals are often positioned beside other vehicle-lighting functions. At the front, an indicator may be adjacent to a daytime running or position lamp. At the rear, it may share a housing with tail, stop, reversing and rear-fog lamps.

Uncontrolled internal reflection can make an inactive area appear partially illuminated. This turn signal optical crosstalk may weaken the boundary between functions or introduce unwanted color into a neighboring region.

Possible control methods include:

• Opaque partitions between optical chambers
• Dedicated entrance and extraction regions in a light guide
• Absorptive or low-reflectance internal surfaces
• Controlled clearances between optical components
• Lens surfaces that limit light toward adjacent functions
• Careful treatment of gaps around holders and bezels

Crosstalk should be checked with each function operating separately and in the combinations required by the complete lamp. Physical prototypes are important because small mechanical gaps and real material finishes may create reflections that are absent from a simplified optical model.

Maintaining the Intended Signal Color

The finished signal color depends on the source spectrum and every material in the light path. An amber LED may be used with a clear lens and cover, while other projects may use different source-and-filter arrangements permitted by their target requirements.

Colored and smoked materials absorb selected wavelengths and reduce part of the transmitted light. Their effect should be included in optical simulation and physical measurement rather than treated only as a styling choice.

Color performance may also be affected by:

• LED wavelength and production variation
• LED operating current and temperature
• Material transmission spectrum
• Colorant concentration and molded thickness
• Surface coating or decorative treatment
• Light reflected from neighboring components

For an amber LED turn signal lens, the optical material and texture should preserve the required signal appearance while distributing sufficient intensity into the target directions.

Common Optical Architectures for LED Turn Signal Lights

Direct-View LED Lens Arrays

A direct-view system places an optical cell above each LED. Multiple cells may be molded into a single lens array to simplify positioning and assembly.

This architecture can produce a clearly segmented visual pattern or overlap the output from adjacent LEDs to create a more continuous illuminated surface. Its performance depends on LED pitch, optical aperture, working distance and the angular distribution of each cell.

Potential advantages include:

• Direct control over each LED distribution
• Compatibility with compact PCB layouts
• Clear separation between dynamic segments
• Possibility of integrating locating and mounting features

Potential challenges include visible source variation, seams between neighboring distributions and sensitivity to LED-to-lens displacement.

Reflector and Lens Systems

A reflector can collect light emitted toward the sides of an LED and redirect it toward the required signal area. A front lens may then spread or shape the reflected output.

Segmented reflector surfaces can assign different regions of the source to different observation angles. This can provide useful distribution control over a relatively large apparent surface, but the LED must remain accurately positioned relative to the reflector.

The design should consider source obstruction, reflector surface accuracy, dark gaps between segments and secondary reflections from the housing and outer cover.

Light-Guide Turn Signal Optics

A light guide transports LED light from an entrance surface to one or more output regions. Internal extraction features redirect part of the guided light toward the viewer, enabling a narrow or curved illuminated signature.

A turn signal light guide is useful when the LED cannot be positioned directly behind the visible output area or when styling requires a continuous line. Its performance depends on efficient source coupling and controlled light extraction along the path.

Important design factors include:

• LED emitting area and radiation pattern
• Entrance shape and coupling gap
• Guide cross-section and bend radius
• Material absorption over the optical path
• Extraction-feature density and orientation
• Losses near mounting features and tight curves
• Brightness at the entrance and far end

For a static indicator, the guide may be illuminated as one continuous area. For a sequential system, the light path must support separate controllable zones without allowing one active segment to illuminate the next segment prematurely.

Diffusers and Micro-Optical Surfaces

Diffusing surfaces can reduce visible LED images, while controlled micro-optical features can direct light toward specific angular regions. Examples may include micro-prisms, pillow optics, Fresnel features and freeform patterns.

A random diffuser spreads light broadly but may sacrifice intensity in useful directions. A designed micro-optical surface can provide more selective control, although it introduces additional tooling and molding requirements.

The selected surface should be evaluated for:

• Angular intensity distribution
• Uniformity and LED-image visibility
• Transmission and backscatter
• Appearance when the lamp is switched off
• Tool manufacturability
• Replication consistency in production

Sequential Turn Signals and Dynamic Optical Design

How Sequential Turn Signals Work

Sequential turn signals use several independently controlled light-emitting sections. During each flash, the sections are activated in a predetermined sequence to produce an outward-moving visual signal.

The control electronics determine the activation order and timing. The optical system determines the shape, brightness, boundary and viewing-angle coverage of each section. Both parts must work together; a lens cannot independently create a sequential signal.

A typical dynamic system may contain:

• Multiple LED channels or modules
• Electronic control and timing logic
• Separate lens cells or light-guide extraction zones
• Optical partitions between sections
• A common outer cover and housing

The optical concept should be developed around the required number of segments and the intended direction of progression. Adding sequential control to a lens designed for a static signal may produce overlapping or poorly defined sections.

Keeping Each Illuminated Segment Consistent

Each segment of a dynamic indicator should contribute a clear and consistent portion of the signal. Large differences in brightness, width or shape can make the progression appear irregular.

Segment consistency is influenced by:

• LED output and current
• Optical efficiency of each segment
• Distance between the LED and optical feature
• Light-guide path length
• Extraction density
• Outer-cover curvature
• PCB and assembly tolerances

For a long light-guide system, the optical features may need to vary along the path to compensate for changing light availability. Using the same extraction pattern everywhere can result in a bright entrance and a dim far end.

Preventing Light Leakage Between Segments

When one segment is active, the neighboring inactive region should not appear fully illuminated before its scheduled activation. Light leakage can blur the progression and reduce the clarity of the dynamic signal.

Dynamic turn signal optics may use separate chambers, controlled light-guide boundaries, opaque separators or lens geometries that restrict lateral ray travel. Reflective housing surfaces and small gaps around the optic also require attention because they can carry light into inactive areas.

The system should be observed from different horizontal and vertical positions. Two segments that appear separate on the reference axis may overlap when viewed from the side due to parallax, outer-cover refraction or broad optical distributions.

Validating the Complete Sequential Signal

A sequential indicator must be evaluated in its actual flashing mode. Static images of each segment cannot confirm whether the complete progression satisfies the intended visual and photometric behavior.

Validation should consider:

• Activation order and progression direction
• Time relationship between segments
• Continuity of the signal during the ON cycle
• Photometric performance during relevant operating states
• Segment separation and optical crosstalk
• Appearance from different observation angles
• Behavior at applicable voltage and temperature conditions

Regulatory conditions for sequential activation depend on the lamp category, intended market and applicable version of the requirements. These conditions should be confirmed before the optical segmentation and control strategy are finalized.

How the Lens Affects Turn Signal Performance

Luminous Intensity Distribution

The optical surface directs different rays from the LED toward selected viewing directions. A lens may broaden the source distribution, redirect light asymmetrically or divide the output among several angular zones.

Two turn signal lenses with similar dimensions can produce very different photometric results. One may create a high central intensity with rapid side falloff, while another provides a wider distribution with a lower peak. The suitable choice depends on the complete lamp target rather than a generic preference for the brightest beam.

Apparent Surface and Uniformity

The apparent surface is the visible light-emitting area of the signal under the defined observation conditions. Lens geometry, diffusion, LED spacing and internal structures affect whether the surface appears continuous, segmented or irregular.

Uniformity should be evaluated according to the intended design. A continuous light bar should minimize unintended dark zones, while a dynamic indicator should preserve clear but visually balanced segments.

Calibrated luminance images or controlled-exposure photographs can help compare visible uniformity. Automatic camera exposure should not be used to compare absolute brightness between prototypes because the camera may independently adjust each image.

Optical Efficiency

High material transmittance alone does not guarantee an efficient signal. Light can be lost through surface reflection, absorption, obstruction, imperfect coupling and emission outside the useful angular field.

An efficient optical system directs an appropriate proportion of the LED output into the required photometric zones. This can reduce the current needed to reach the target, although thermal and electrical performance must still be evaluated in the complete lamp.

LED-to-Lens Alignment

The LED emitting surface must remain at the position assumed in the optical design. Lateral displacement, height variation or angular tilt may shift the distribution, reduce peak intensity or make one portion of the signal appear brighter than another.

Alignment is affected by:

• LED package tolerances
• PCB flatness and thickness
• Solder-height variation
• Lens-holder dimensions
• Locating pins and mounting features
• Housing assembly tolerances
• Thermal expansion

Optical datums should be defined between the LED, PCB and lens. A general dimensional claim cannot replace a tolerance analysis based on the sensitivity of the actual optical system.

Effect of the Outer Cover and Housing

The outer cover can refract, attenuate or scatter the light leaving the internal optic. A curved cover may shift the distribution differently across the lamp, particularly when the indicator extends around the corner of the vehicle.

Internal bezels, decorative surfaces and metallic finishes may block or reflect part of the output. These components should be included in the optical model when they interact with the active light path.

Final photometric testing should use a production-representative assembly containing the intended cover, housing, materials and mounting positions.

Turn Signal Optical Parameters to Define

The correct optic cannot be selected from lens dimensions alone. The following project inputs should be defined before an existing component is evaluated or a new optical design begins.

Photometric and Regulatory Considerations

Turn signal photometric testing evaluates the complete lamp over the required horizontal and vertical directions. The relevant test conditions depend on the indicator category, vehicle type, intended installation and target market.

For projects applying UNECE regulations, UN Regulation No. 148 for Light-Signalling Devices includes direction indicator lamps and other vehicle signalling functions. Its provisions also address applicable conditions for sequential activation. The project should use the relevant regulation series and amendments accepted by its target market.

For vehicles intended for the United States, the complete lamp should be evaluated against 49 CFR §571.108, FMVSS No. 108, together with the applicable referenced requirements and test procedures.

A validation plan may include:

• Luminous intensity at the specified points or zones
• Signal color
• Flashing and sequential operating conditions
• Effective light-emitting area where applicable
• Interaction with combined lighting functions
• Performance through the production outer cover
• Electrical and environmental operating conditions

An isolated optical lens should not be described as independently compliant with ECE, SAE, FMVSS or complete-vehicle requirements. Compliance conclusions must be based on the finished lamp or applicable system tested under the specified conditions.

Material and Manufacturing Considerations

PC and PMMA Optical Components

PMMA and polycarbonate can both be considered for transparent automotive optical parts. The correct choice depends on the component position, temperature, impact exposure, UV conditions, part geometry and production requirements.

PMMA can provide high optical clarity and useful weathering properties in appropriate grades. Polycarbonate can provide greater impact resistance and higher temperature capability in suitable applications. Additives, pigments, coatings and molding conditions may change the behavior of either material.

Material selection should consider:

• Optical transmission and refractive index
• Transmission at the signal wavelengths
• Operating and peak temperatures
• Impact and vibration exposure
• UV and humidity conditions
• Chemical compatibility
• Wall thickness and molding feasibility
• Appearance in both lit and unlit states

Molding Micro-Optical Features

Micro-prisms, diffusion textures and extraction features must be reproduced consistently by the mold. Feature dimensions, draft, tool finish and material flow can affect the measured optical result.

The design-for-molding review should consider:

• Replication of small optical structures
• Tool-polish requirements
• Gate and weld-line locations
• Parting lines and ejector positions
• Wall-thickness transitions
• Shrinkage and warpage
• Flow marks, bubbles and internal stress

Visible optical areas should be protected from manufacturing features that could interrupt the light pattern. Optical and tooling requirements should therefore be reviewed before the production mold is finalized.

Production Consistency

Prototype performance must be transferable to production. Changes in LED output, material properties, molding conditions and assembly position may affect the distribution and appearance of the finished lamp.

Production evaluation can compare:

• Key photometric values
• Signal color
• Illuminated uniformity
• Segment boundaries in sequential systems
• Dimensional and visual condition of optical surfaces
• Alignment between the LED and optic

The inspection plan should be based on the actual component and lamp requirements rather than a universal tolerance or generic quality claim.

Information Needed for a Turn Signal Optics Project

LED and PCB Data

Different LEDs can produce different optical results even when their package dimensions appear similar. Please provide:

• LED manufacturer and exact part number
• LED datasheet and package drawing
• Emitting-area dimensions and optical center
• Color or spectral information
• Operating current and expected temperature
• PCB drawing or 3D file
• LED coordinates, orientation and spacing

Optical and Regulatory Target

The project should identify:

• Front, rear or side turn signal position
• Static or sequential operation
• Target market and indicator category
• Photometric table or customer distribution target
• Required signal color
• Desired illuminated appearance
• Reference lamp images or measurement data

A styling image can communicate the desired appearance, but numerical photometric targets are needed to evaluate signal performance.

Mechanical Package

Useful mechanical inputs include:

• Available 3D optical envelope
• LED-to-optic distance
• Outer-cover and housing geometry
• Lens or light-guide mounting method
• Optical axis and reference datums
• Material and appearance restrictions
• Project stage and expected production volume

Automotive Turn Signal Optical Solutions from Asahi Optics

Existing Turn Signal Lens Evaluation

Asahi Optics supplies automotive lighting optics for several vehicle-lighting functions, including turn signal applications. An existing lens may offer a practical starting point when its LED compatibility, dimensions and distribution are close to the project requirements.

For an initial evaluation, Asahi reviews the LED model, PCB arrangement, available optical space, signal position and target distribution. The selected component should then be tested with the intended LED and a representative lamp assembly.

Results obtained from a different source, PCB or outer cover cannot confirm the performance of the customer’s finished design.

Dedicated Static or Sequential Optical Development

A dedicated design may be required when the project has a unique illuminated shape, restricted package, curved light guide, unusual LED arrangement or sequential segmentation that cannot be achieved with an existing component.

Asahi can evaluate these requirements through its custom optical lens design process. Depending on the application, the solution may use individual lenses, a multi-LED array, a reflector, a light guide, a diffuser or several coordinated optical elements.

The development scope may include source modeling, optical simulation, mechanical coordination, design-for-molding review and prototype evaluation. Final lamp performance should be confirmed using production-representative parts and the applicable photometric test method.

Design the Turn Signal as a Complete Optical System

Reliable turn signal lights depend on the interaction between the LED, PCB, optic, control electronics, housing and outer cover. Optimizing one component in isolation cannot guarantee the required distribution, color, uniformity or sequential behavior.

The project should begin with the signal position, target market, LED source, photometric requirements and available package. Static and dynamic concepts can then be simulated and verified through representative prototypes before production tooling is finalized.

To request an existing turn signal lens recommendation or discuss a dedicated optical project, please contact Asahi Optics with the LED part number, PCB layout, static or sequential operating mode, target market, photometric requirements and available 3D space. These inputs allow the optical team to assess compatibility and recommend an appropriate next step.
