Headlight Optics

Headlight optics transform the concentrated output of an LED into a controlled beam that helps drivers detect the road, lane boundaries, pedestrians and potential obstacles. In an automotive headlamp, producing more light is only part of the task. That light must also reach the required areas without creating excessive glare for oncoming traffic.

The final beam pattern depends on the complete optical system, including the LED emitting surface, primary optic, secondary lens or reflector, cutoff structure, PCB position and mechanical housing. Small changes in the position or geometry of any of these components can alter the hotspot, cutoff line and overall light distribution.

Asahi Optics develops optical components for different automotive lighting applications. This page explains the main functions of automotive headlamp optics, the differences between common optical architectures and the technical information required when selecting an existing lens or developing a new optical solution.

What Are Headlight Optics?

Automotive headlamp optics are the optical elements used to collect, redirect and distribute light from a vehicle headlamp source. Depending on the headlamp architecture, the optical system may include a molded lens, reflector, light shield, light guide or a combination of these components.

For LED systems, it is important to distinguish the internal optical lens from the transparent outer cover of the headlamp assembly. The outer cover protects the internal components and contributes to the appearance of the vehicle. The internal LED optic performs the main beam-forming function.

The light emitted by a high-power LED is generally too broad to be used directly as a road-illumination beam. A correctly designed LED headlight lens redistributes this light into selected directions. Its job may include:

• Producing a controlled low-beam pattern with a defined upper boundary
• Concentrating light into a long-range high-beam hotspot
• Providing sufficient horizontal spread near the vehicle
• Reducing stray light in glare-sensitive areas
• Supporting multiple beam functions within a compact optical module
• Separating or shaping individual segments in a matrix LED system

A headlight lens should therefore not be evaluated only by its nominal beam angle. The intensity at different test points, the shape of the hotspot, the cutoff quality and the transition between bright and dark zones are more useful indicators of actual headlamp performance.

What Problems Must Automotive Headlight Optics Solve?

Providing Road Visibility Without Excessive Glare

A headlamp must balance two requirements that can work against each other: forward visibility for the driver and glare control for other road users. Increasing the peak intensity may extend the apparent lighting distance, but uncontrolled light above the intended beam region can make the headlamp uncomfortable or unsafe for oncoming drivers.

Effective headlight glare control begins with the optical design. The lens or reflector must place useful light on the road while limiting intensity in glare-sensitive directions. LED position, optical surface accuracy, shielding geometry and module aiming all contribute to this balance.

This means a bright LED cannot compensate for an unsuitable optical distribution. A lower-output system with well-controlled optics may provide more useful road illumination than a higher-output system that wastes light or produces a poorly positioned hotspot.

Creating a Controlled Low-Beam Cutoff

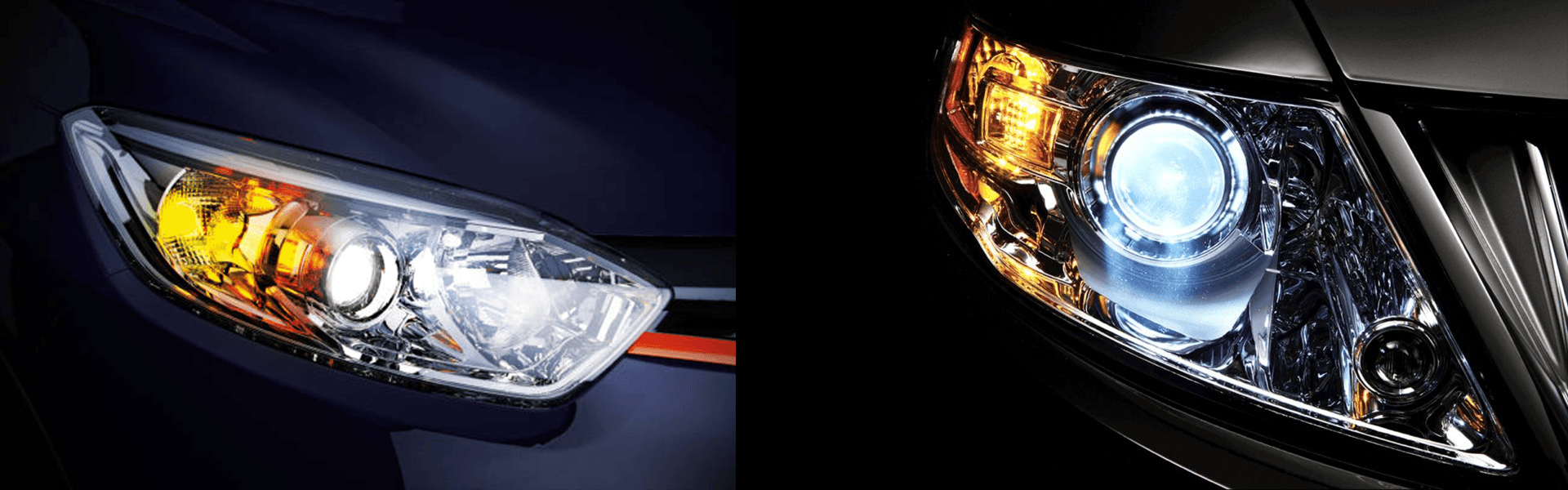

The low beam is intended to illuminate the road ahead while limiting light toward approaching traffic. Its most recognizable optical feature is the cutoff: a transition between the illuminated region below and the controlled region above.

In a projector system, the cutoff may be formed by a shield and imaged through a projection lens. In reflector-based systems, individual reflective surfaces can distribute different portions of light to create the required beam. In both cases, the low-beam optical design must consider much more than the visible cutoff line.

The complete pattern should provide:

• A stable cutoff in the required position
• Useful illumination in the forward road area
• Adequate lateral spread for road edges and nearby hazards
• A controlled transition without distracting artifacts
• Limited light in regions associated with oncoming-driver glare

Cutoff sharpness is influenced by the LED emitting surface, focal position, projection lens, shield geometry and manufacturing tolerances. An extremely sharp visual cutoff is not automatically evidence of a compliant or effective low beam; the entire photometric distribution must be evaluated.

Concentrating High Beam for Distance Illumination

A high beam places more light farther along the driving direction. Its design normally requires a concentrated central region, but it should not be reduced to a single “narrow beam” value. The hotspot width, vertical distribution, surrounding fill light and optical efficiency all affect real driving visibility.

An automotive high beam lens must collect enough LED output and direct it toward the target region without creating severe rings, dark gaps or uncontrolled side lobes. The correct result depends on the relationship between the LED source size and the optical system. A small emitting surface can support a more concentrated image, while a larger or multi-die source may create a wider hotspot or visible structure in the projected pattern.

The designer must also account for thermal and electrical operating conditions. Photometric performance should be assessed at realistic LED current and temperature rather than inferred only from room-temperature LED datasheet values.

Maintaining Performance Within a Compact Headlamp Package

Automotive styling and vehicle packaging often restrict the space available for the headlamp module. The optics must share this space with the PCB, heat sink, driver, adjustment mechanism, structural supports and decorative parts.

A compact optic is useful only when it can still meet the required light distribution. Reducing the lens diameter or optical working distance may affect collection efficiency, beam control and sensitivity to alignment errors. The available package should therefore be defined before an optic is selected.

Important spatial inputs include:

• Maximum lens diameter, height and depth
• Distance from the LED emitting surface to the optical reference surface
• PCB thickness and LED package height
• Clearance for holders, screws and adjustment structures
• Available space for heat management
• Permitted visual appearance of the optical surface

Common Automotive Headlight Optical Architectures

Reflector-Based Headlight Optics

A reflector-based headlamp uses shaped reflective surfaces to collect and redirect light. The reflector may contain multiple optical segments, with each segment contributing to a selected part of the final beam.

This architecture can provide a relatively direct optical path and a large illuminated appearance. However, the LED must be accurately positioned relative to the reflector. An offset or tilted source can shift the pattern, change its symmetry and increase stray light.

Key development concerns include reflector surface accuracy, source obscuration, dark regions between optical segments and the visibility of individual LED images. The outer cover and decorative components must also be checked because they may intercept or redirect light after it leaves the reflector.

Projector Headlight Optics

Projector headlight optics commonly combine a light-collecting element, a cutoff shield and a projection lens. The shield defines part of the low-beam boundary, while the front lens projects the optical image toward the road.

A projector architecture can provide precise beam control in a compact module, but its performance is sensitive to the relative positions of the LED, reflector or condenser, shield and projection lens. Changing the projection lens without redesigning the rest of the system can affect cutoff focus, beam width and chromatic fringes.

When selecting a projector optic, the following characteristics should be evaluated together:

• Effective focal length and optical working distance
• Lens diameter and clear aperture
• Cutoff imaging quality
• Horizontal and vertical beam magnification
• Surface geometry and optical efficiency
• Sensitivity to LED and shield displacement

Projector optics may be used for low beam, high beam or a combined high-low beam module. In a combined system, a movable shield or another switching mechanism may change the beam function, while the primary optical components remain in the same package.

Matrix LED and Adaptive Driving Beam Optics

Matrix LED systems use independently controlled LEDs or light-emitting segments. An adaptive driving beam optical system can modify selected parts of the high-beam pattern in response to detected vehicles and road conditions.

The optic must maintain sufficient separation between controlled regions. Excessive optical crosstalk can allow light from an active segment to enter an area that should remain dimmed. Segment edge quality, stray light, source pitch and manufacturing alignment are therefore especially important.

Adaptive lighting is not created by the lens alone. It requires an integrated system containing sensors, control electronics, software, LED arrays and appropriate optics. The U.S. National Highway Traffic Safety Administration describes adaptive driving beam technology as actively modifying headlamp beams to provide additional illumination while controlling glare toward other vehicles in its official FMVSS No. 108 adaptive driving beam final rule.

How the Lens Affects LED Headlight Performance

Beam Shape and Intensity Distribution

The optical surfaces of a lens determine where light from different areas of the LED is directed. A freeform surface may distribute portions of the source toward different road zones, while an imaging surface may project the LED, shield or an intermediate optical image.

The resulting automotive headlight beam pattern may include several functional regions:

• A central hotspot for forward visibility
• Horizontal spread for road and shoulder coverage
• A controlled upper boundary for glare management
• Transition zones that connect high- and lower-intensity regions
• Additional illumination for signs, curves or nearby road areas where required

Two lenses described with the same beam angle can produce very different intensity distributions. One may create a concentrated hotspot with rapid falloff, while another provides a wider central region and smoother transition. For automotive projects, candela distribution and photometric measurements are more meaningful than a beam-angle label alone.

LED-to-Lens Position and Optical Tolerance

Accurate alignment between the LED and lens is essential. The emitting surface should be positioned at the optical location assumed in the design. Lateral displacement, height variation or angular tilt may produce visible changes in the beam.

Possible effects include:

• A shifted or distorted hotspot
• An uneven or tilted cutoff line
• Different distributions from the left and right headlamps
• Reduced peak intensity
• Increased stray light or colored edge artifacts

Alignment is influenced by the LED package tolerance, PCB manufacturing, solder thickness, lens holder, locating pins and module assembly. The optical drawing should therefore define reliable datums instead of relying only on the external edge of the lens.

During development, tolerance analysis can be used to identify which dimensions have the greatest effect on the beam. These sensitive dimensions can then receive appropriate mechanical controls without applying unnecessarily tight tolerances to every part.

Optical Efficiency and Stray Light Control

Material transmittance is one component of efficiency, but it does not describe the complete optical result. Light can also be lost through surface reflection, absorption, obstruction by mechanical parts and rays that leave the system in unusable directions.

An efficient automotive headlamp lens should place a high proportion of collected light within useful regions of the target beam. A lens with high total transmission can still perform poorly if its distribution sends too much light outside the required photometric zones.

Stray light should be checked throughout the module rather than only on the isolated lens. Reflective housing surfaces, bright mechanical edges, gaps around a shield and the outer headlamp cover can create secondary images or glare. Optical simulation should therefore be followed by measurement of the assembled prototype.

Material, Temperature and Long-Term Stability

Optical material selection depends on temperature, impact exposure, surface requirements, geometry and manufacturing conditions. PMMA can offer high optical clarity and good weathering characteristics, while polycarbonate can provide greater impact resistance and higher temperature capability in suitable grades. The correct choice depends on the position of the optic and its operating environment.

The local temperature around an internal lens may be affected by LED power, heat-sink design, airflow and proximity to other components. Temperature can change material dimensions and refractive behavior, while prolonged exposure may influence optical appearance and mechanical performance.

Material selection should consider:

• Optical transmission at the relevant wavelengths
• Expected continuous and peak operating temperatures
• Impact and vibration requirements
• UV and environmental exposure
• Dimensional stability
• Injection molding feasibility and surface quality

The internal optical lens should not be treated as the component responsible for the complete headlamp’s water and dust protection. Sealing performance depends on the assembled housing, outer cover, vents, gaskets and interfaces.

Low Beam, High Beam and Combined Optical Modules

Different headlamp functions require different light distributions. Selecting the optic according to a generic beam-angle description can lead to an unsuitable prototype. The functional target should be defined first.

A combined high-low beam headlight lens can reduce the number of separate modules, but it introduces additional optical and mechanical interactions. The high- and low-beam functions should be evaluated independently and in all switching conditions. A change that improves one function may reduce performance in another region of the pattern.

Photometric and Regulatory Considerations

Automotive headlight requirements vary according to the intended market, headlamp function, vehicle category and applicable regulatory framework. The optical specification should therefore identify the target market at the beginning of development.

For markets applying UNECE vehicle regulations, UN Regulation No. 149 for Road Illumination Devices provides approval provisions for relevant lamps and road-illumination systems. Requirements related to the installation of lighting and light-signalling devices on the vehicle are addressed separately under UN Regulation No. 48. For the United States, applicable projects should be evaluated against FMVSS No. 108 and the relevant test procedures.

A lens supplier should not claim that an isolated optical component is independently compliant with a complete headlamp regulation. Approval and certification are based on the finished device or vehicle system under specified test conditions.

Typical photometric development includes:

1. Defining the required beam function and target market
2. Converting regulatory and customer requirements into an optical target
3. Simulating the LED, lens, reflector, shield and relevant housing geometry
4. Producing optical and mechanical prototypes
5. Measuring the assembled module with suitable photometric equipment
6. Comparing intensities at the required points and zones
7. Checking performance under realistic electrical and thermal conditions
8. Adjusting the optical or mechanical design before production tooling

Photometric testing may reveal problems that are difficult to identify from a wall projection alone. A visually attractive beam can still miss a required intensity point, exceed a maximum in a glare-sensitive zone or change significantly when the module reaches operating temperature.

How to Select Headlight Optics for an Automotive Project

The most reliable selection begins with the LED, required beam and mechanical package. Sending only the desired lens diameter or a photograph of a beam is usually insufficient for an accurate recommendation.

LED and Electrical Information

The LED is part of the optical system. Different LED packages can have different emitting-surface dimensions, die structures, phosphor areas and dome geometries, even when their external package sizes are similar.

Please provide:

• LED manufacturer and exact part number
• LED package drawing and optical center
• Emitting-surface or light-emitting-area dimensions
• Nominal luminous flux and operating current
• Color temperature or wavelength requirements
• Expected junction or board temperature

If the LED has not been finalized, candidate models can be compared during the optical evaluation. However, changing the source after the lens design has been completed may alter the beam pattern and require further optimization.

Target Beam and Market Requirements

The project should identify whether the optic is intended for low beam, high beam, a combined module or an adaptive system. It should also specify the target market and the applicable driving side because these decisions affect the required distribution.

Useful inputs include:

• Target photometric table or regulatory reference
• Existing beam pattern or benchmark measurement
• Required peak intensity and target position
• Desired horizontal and vertical coverage
• Low-beam cutoff orientation and traffic direction
• Acceptable appearance of the projected pattern

When no complete photometric target is available, the intended function and reference lamp should still be defined. This allows the optical team to determine whether an existing lens is suitable for an initial prototype or whether a dedicated design is more realistic.

Mechanical and Environmental Constraints

Optical selection must be coordinated with the mechanical package. A lens that produces the desired pattern in an isolated simulation may not fit the available module or remain aligned after assembly.

Recommended mechanical information includes:

• PCB drawing with LED coordinates and orientation
• 3D files for the available optical and mechanical space
• Maximum lens envelope and required optical axis
• Lens mounting and positioning method
• Housing, shield and reflector geometry
• Working-temperature and material requirements
• Expected vibration, impact and environmental conditions
• Tooling, appearance and production-volume considerations

The lens, holder and PCB should use compatible positioning references. This helps prevent tolerance accumulation between the LED emitting surface and optical element.

Prototype and Measurement Requirements

An existing optic can often be used to establish a fast proof of concept, but it should be tested with the intended LED and representative module structure. For a new design, optical prototypes or trial tooling can be used to compare simulation with measured performance before full-scale production.

The evaluation should record more than whether the lamp appears bright. Useful results include a complete intensity distribution, test-point values, beam images at controlled exposure, electrical conditions, thermal state and module aiming position. These records make design revisions more reliable.

Automotive Headlight Optical Solutions from Asahi Optics

Asahi Optics offers automotive lighting optics for several vehicle-lighting functions. For headlamp projects, the most relevant starting points are high-low beam optics and dedicated high-beam optics.

Automotive High-Low Beam Headlight Lens

A high-low beam optical solution is intended for projects that need to integrate more than one forward-lighting function within a limited module space. The actual performance depends on the LED source, optical layout, shield or switching structure and positioning accuracy.

This type of lens may be considered when the project requires:

• A compact module for both low- and high-beam operation
• Controlled imaging of a cutoff structure
• Consistent alignment between multiple beam functions
• An optical package coordinated with a dedicated holder and PCB

Before recommending an existing high-low beam optic, Asahi reviews the LED model, available working distance, lens envelope and target distribution. A physical sample should then be tested in the customer’s representative assembly.

Automotive High Beam Lens

A dedicated high-beam lens is designed to concentrate useful light toward the forward road region. Suitable applications may include separate high-beam modules or auxiliary forward-lighting modules, subject to the applicable system requirements.

The required lens cannot be selected only according to wattage. LED source size, optical distance, lens aperture and target hotspot all influence the result. A larger lens may collect more light, while the source and surface design determine how that light is distributed.

For an initial recommendation, customers can provide the LED datasheet, PCB layout, available lens space and a target beam image or photometric requirement. Asahi can compare these inputs with existing automotive optics before determining whether a new optical surface is necessary.

When a Dedicated Optical Design Is Required

An existing lens is usually the fastest route for concept validation when the LED and mechanical conditions are compatible. A dedicated design may be more appropriate when the project has a unique package, specific photometric target, restricted focal distance or appearance requirement that available optics cannot satisfy.

In that case, Asahi can evaluate the project through its optical lens design and development service. The process may include source modeling, optical simulation, mechanical coordination, prototype evaluation and injection-mold development. The scope should be defined according to the actual headlamp project rather than a generic beam-angle request.

Develop Headlight Optics Around the Complete Lighting System

Reliable headlight optics are developed as part of a complete system. The LED, lens, reflector, cutoff mechanism, PCB, heat sink, housing and control electronics all affect the final beam. Optimizing one component in isolation cannot guarantee the required road-lighting performance.

The most effective development sequence starts with the intended beam function, target market and available module space. Optical simulation can then establish a feasible design, while prototype measurement verifies the actual distribution and identifies alignment, thermal or stray-light issues before production.

To request an existing lens recommendation or discuss an automotive headlamp project, please contact Asahi Optics with the LED part number, PCB drawing, target beam requirements, available optical space and expected production stage. This information allows the optical team to evaluate compatibility and recommend the most practical next step.
