Horticulture lighting

Horticulture lighting is used to provide supplemental or primary light for crops grown in controlled environments, including commercial greenhouses, vertical farms, indoor plant factories, and multi-layer growing racks. For these systems, light output alone is not enough. The lighting fixture must distribute photons evenly across the plant canopy, reduce wasted light outside the growing area, and fit the physical limits of the cultivation environment.

A horticulture luminaire combines LED sources, thermal management, driver control, PCB layout, housing, and secondary optics. The optical lens helps transform raw LED output into a controlled distribution that matches the crop bed, grow rack, or plant row. Properly selected LED lenses help horticulture fixture manufacturers improve canopy coverage while maintaining a practical fixture size and installation layout.

Asahi Optics develops optical components for horticulture LED lighting projects that require wide top-lighting distributions, controlled directional beams, high-density LED arrays, and consistent optical performance across multi-bar fixtures.

What Is Horticulture Lighting?

Horticulture lighting refers to lighting systems designed for plant cultivation rather than general room illumination. These systems may supplement sunlight in a greenhouse or serve as the primary light source in indoor farms and vertical growing facilities.

Commercial horticulture luminaires are commonly used in:

• Greenhouse supplemental lighting systems
• Indoor vertical farms with multi-layer racks
• Plant factories and controlled-environment agriculture facilities
• Propagation rooms and seedling production areas
• Research chambers and controlled crop trials
• Top-lighting, interlighting, and side-lighting fixtures

This application is different from consumer grow lights sold for home gardening. Commercial horticulture grow lights are designed around crop rows, canopy dimensions, fixture spacing, mounting distance, environmental conditions, and measurable light distribution across larger cultivation areas.

Why Light Distribution Matters in Horticulture LED Lighting

Plants receive light over a physical growing area rather than at a single point. A fixture may have high photon output, but poor distribution can still create excessive intensity directly below the LED bar and insufficient light at the edge of the canopy. The result may be an uneven PPFD map across the growing surface.

A horticulture light lens helps control how LED output reaches the canopy. It can widen the distribution for close-mounted fixtures, concentrate light for greater mounting distances, or shape the beam to fit a long plant row or a defined cultivation bed.

The optical lens contributes to:

• Plant canopy coverage
• PPFD distribution uniformity
• Beam overlap between neighboring LED bars
• Reduction of localized hotspots
• Light spill control outside crop rows and growing beds
• More effective use of fixture output within the cultivation area

The lens does not independently determine the horticulture light spectrum, crop recipe, PPF, or target PPFD. These are primarily influenced by the LED spectrum, LED current, number of LEDs, fixture power, mounting arrangement, crop type, and cultivation strategy. The role of the optics is to direct the light produced by the LED system into a useful distribution at the target canopy.

Common Horticulture Lighting Configurations

Greenhouse Supplemental Lighting

Greenhouse fixtures provide supplemental light when daylight is insufficient or inconsistent. The optical challenge is to direct light toward the crop canopy while reducing unnecessary output toward greenhouse structures, walkways, roof members, and side walls.

Greenhouse top-lighting fixtures are often installed at greater heights than vertical-farm fixtures. Their optics must be selected according to the mounting height, crop-row width, truss layout, fixture spacing, and desired coverage area. A wider beam may improve area coverage, while a more controlled distribution can help deliver output to the crop rows more efficiently.

For greenhouse projects, the final horticulture light distribution should be evaluated using the complete luminaire and installation layout. This includes the fixture aiming direction, row spacing, natural-light conditions, and potential shadows from greenhouse structures.

Vertical Farming and Multi-Layer Racks

Vertical farms commonly place LED bars close to the plant canopy because the distance between growing layers is limited. This compact structure makes canopy uniformity especially important. A narrow beam at a short mounting distance can create intense light directly below the LED array while leaving the canopy edge under-illuminated.

A wide and symmetrical distribution can help light from adjacent LEDs overlap earlier, creating a more continuous light field across the shelf. The goal is not simply to make the beam as wide as possible. The beam must match the growing-bed width, LED-bar pitch, canopy distance, and required PPFD distribution.

The 120-in-1 horticultural module shown in Asahi's outdoor multi-lens module collection is designed for high-density 2835 and 3030 LED arrangements. Its 110° symmetrical distribution can be considered for close-proximity top-lighting systems where a wide overlap between adjacent optical units is required.

Indoor Plant Factories and Controlled-Environment Agriculture

Indoor plant factories usually require a repeatable lighting layout across multiple cultivation zones. Fixture mounting height, plant-bed dimensions, shelf width, and the gap between fixtures all affect the final PPFD distribution.

In these environments, a consistent optical platform can help manufacturers maintain similar light patterns from one growing rack to another. The lens design should support the LED board structure and mechanical assembly while allowing the lighting designer to model the full farm layout accurately.

Interlighting and Side-Lighting Systems

Interlighting systems place the luminaire within or alongside the crop structure rather than above it. These fixtures may be used when lower leaves, side surfaces, or dense plant rows require additional directional light.

Side-lighting optics require controlled distribution because the fixture is closer to leaves, stems, and surrounding equipment. The beam should be directed toward the intended plant area while reducing light sent toward aisles, workers, support structures, or adjacent rows.

Lighting Problems That Horticulture Optics Help Solve

Hotspots Directly Below the LED Bar

A hotspot appears when light is too concentrated in a small area beneath the fixture. This may occur when the beam is too narrow for the mounting distance, when LED spacing is too wide for the selected lens, or when adjacent optical units do not overlap sufficiently.

A hotspot does not automatically mean the lens is incorrect. The LED drive current, spectrum, canopy distance, fixture position, and cultivation method also affect the result. However, optics play an important role in shaping the distribution and reducing unnecessary intensity variation across the growing surface.

Low Light at Canopy Edges

When the center of a grow bed is bright but the edge receives much less light, the problem may be related to insufficient beam width, excessive fixture spacing, or a mismatch between the optical pattern and bed geometry.

The solution may involve a wider lens, a different LED-bar position, a change in fixture spacing, or a different optical arrangement. The best approach is to compare the full canopy map rather than assessing only the peak measurement below the center of the luminaire.

Uneven PPFD Between Fixtures

In a multi-fixture installation, the light distribution from each luminaire must overlap with the next fixture at the target canopy plane. If fixture spacing is too large for the selected distribution, dark bands can appear between plant rows or growing beds.

Conversely, excessive overlap can create unnecessarily high intensity in the center of the layout. A suitable horticulture lighting optics design supports a predictable overlap pattern that can be validated through PPFD mapping, photometric testing, or simulation of the complete lighting system.

Light Spill into Aisles and Non-Growing Areas

Light that reaches walkways, walls, support frames, or other non-growing surfaces does not contribute directly to crop illumination. In large facilities, unnecessary spill can reduce the effective use of fixture output and make the lighting layout more difficult to optimize.

Beam shape, fixture orientation, mounting height, and lens selection can all reduce this spill. For long plant rows or narrow cultivation zones, an elongated or directional beam may be more appropriate than a broad circular distribution.

Limited Vertical Clearance

Multi-layer racks often have limited clearance between the fixture and plant canopy. The optical module must fit within a slim luminaire structure while still providing sufficient beam overlap. Lens height, LED board thickness, holder design, heat sink clearance, and front-cover space must be considered together.

A wide distribution may be useful for a close canopy, but the final choice should account for the actual growing-bed width and the position of neighboring fixtures. Optical selection should always be based on the complete physical layout rather than an isolated beam-angle number.

How a Horticulture Light Lens Affects Canopy Coverage

Beam Angle and Mounting Distance

Beam angle does not directly define canopy coverage on its own. The same 110° lens will create a much wider light field at a 60 cm mounting distance than at a 30 cm mounting distance. The installation height, target plane, and fixture spacing determine how the nominal distribution performs in practice.

For this reason, a horticulture fixture should be evaluated at its planned canopy distance. A lens that performs well in a greenhouse top-lighting simulation may not be suitable for a close-mounted vertical farm shelf without adjusting the fixture layout.

Overlap Between LED Modules

Multi-LED horticulture fixtures use repeated optical units across a long LED board or bar. The individual distributions need to overlap at the canopy plane to avoid visible LED points, bright lines, and dark gaps.

A high-density integrated lens can simplify this relationship by placing many optical units in one mechanical module. Instead of aligning many separate lenses individually, the manufacturer can use one integrated array designed around the LED pitch and overall board geometry.

Symmetric and Directional Light Distribution

Symmetric wide beams are commonly used for top-lighting over plant beds and vertical-farm shelves. They provide coverage on both sides of the LED bar and can support earlier overlap between neighboring LEDs.

Directional, oval, or asymmetric distributions may be useful when the growing area is long and narrow, when the fixture is installed near an edge, or when light needs to be directed away from aisles and service zones. The correct distribution depends on the crop layout and fixture orientation.

Lens-to-LED Alignment and Mechanical Tolerance

A lens must be positioned accurately over the LED array. Changes in LED center position, PCB hole location, lens height, or holder tolerance can alter the beam direction and affect canopy uniformity.

Important mechanical considerations include:

• LED package and emitting-area dimensions
• LED pitch and number of LEDs per board
• PCB mounting holes and component clearance
• Lens locating pins, clips, screws, or holder features
• Lens-to-LED distance
• Housing height and front-cover clearance
• Gaskets, sealing methods, and moisture protection requirements

Key Parameters for Selecting Horticulture Lighting Optics

Before recommending an existing horticulture lens, the following project details should be reviewed:

Selecting Optics by Horticulture Fixture Type

Wide-Distribution Top-Lighting Bars

Top-lighting bars are commonly used above plant beds and vertical-farm shelves. When the fixture is mounted close to the canopy, a wide distribution can help the output from adjacent LEDs blend early and cover the full bed width more evenly.

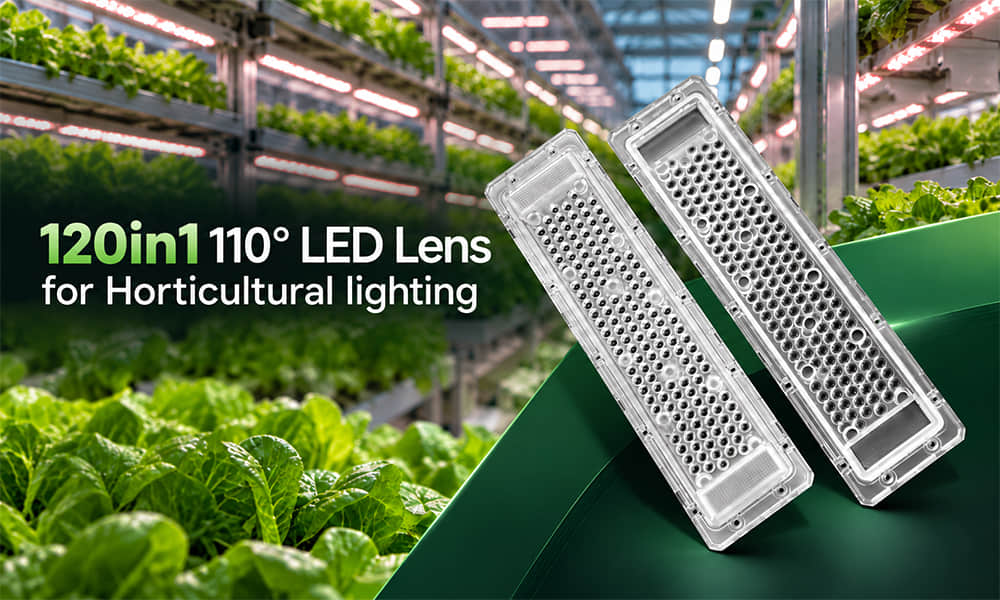

The 120-in-1 horticultural lens platform is intended for high-density LED bars using 2835 or 3030 LEDs. The public catalog lists the AJHB320D120LED110G version with a 110° beam angle in a 320.87 × 79.83 mm format. The final product model, PCB compatibility, and mechanical drawing should be confirmed against the current project datasheet before production.

Greenhouse Supplemental Light Bars

Greenhouse supplemental-lighting bars may be installed further from the crop canopy. In these projects, the optics must be selected according to greenhouse height, truss structure, crop-row width, and the spacing between fixtures.

A medium or wide distribution may be appropriate when a broad cultivation area needs coverage, while more controlled optics can be useful when the fixture must deliver light to a defined row or reduce output outside the growing zone. The final result should be checked in the planned greenhouse geometry.

High-Density Multi-LED Horticulture Modules

Integrated multi-LED lenses can reduce the number of individual optical parts used in a horticulture fixture. This can simplify lens placement, improve repeatability across the LED board, and support a compact luminaire structure.

Asahi’s recent 120-in-1 horticultural lens series release explains the use of a wide 110° distribution for high-density LED top-lighting applications. This type of module is particularly relevant when the fixture must operate close to the canopy and maintain consistent coverage across a multi-layer growing rack.

When an Existing Horticulture Lens Does Not Match the Fixture

An existing optic may not match every horticulture fixture. Additional optical evaluation may be needed when the LED pitch is non-standard, the PCB hole pattern cannot match the available module, the fixture has restricted internal height, or the growing area requires a special rectangular or directional beam.

Other situations include a PPFD map with excessive hotspots, insufficient canopy-edge coverage, or unwanted light spill into aisles and adjacent growing zones. In these cases, the LED datasheet, PCB drawing, fixture dimensions, canopy distance, and target PPFD layout should be reviewed together.

If an existing module cannot meet the optical and mechanical requirements, Asahi can review the project through its custom LED lens development service . The first objective is always to identify a suitable existing optical platform before a new development path is considered.

Request an Existing Horticulture Lighting Lens Recommendation

To request an existing horticulture lighting optics recommendation, please provide:

• LED manufacturer, model, and datasheet
• LED quantity, pitch, and PCB layout
• Fixture or light-bar drawing and available internal dimensions
• Distance between the fixture and the plant canopy
• Growing-bed, rack, or crop-row dimensions
• Fixture spacing and mounting arrangement
• Target PPFD and uniformity requirements
• Required beam pattern or reference light-distribution image
• Existing PPFD map, IES file, or simulation result if available
• Humidity, spraying, cleaning, temperature, and sealing requirements

With these inputs, Asahi can compare suitable existing horticulture light lenses and recommend a practical starting point for fixture development, prototype testing, and full lighting-layout validation.
