In the competitive landscape of professional sports, lighting is far more than a utility—it is a critical infrastructure component that dictates the safety of athletes, the clarity of high-definition broadcasts, and the overall experience of spectators. Achieving elite-level illumination requires moving beyond raw power and focusing on optical precision.
Our 96LEDs Stadium Lens series is engineered to meet these rigorous demands. Designed as a high-density, modular solution, this series allows luminaire manufacturers to bridge the gap between standard LED output and the complex photometric requirements of modern sporting venues. Whether the goal is to illuminate a FIFA-standard football pitch or a local community tennis court, our optics provide the "surgical" light control necessary for success.
Traditional lighting approaches often rely on high-wattage lamps with basic reflectors, a method that is increasingly obsolete in the era of high-efficacy LEDs. In a stadium environment, where mounting heights typically range from 15 to 50 meters, the lack of precision optics leads to three catastrophic failures: excessive light spill, poor center-field intensity, and debilitating glare.
LED chips naturally emit light in a wide, 120-degree Lambertian distribution. Without secondary optics, this light scatters, losing intensity before it ever reaches the playing surface. For high-mast applications, "Far-Throw" capability is essential. Our 96LEDs optics utilize Freeform TIR (Total Internal Reflection) technology to harness every lumen. By narrowing the beam into precise 10° or 20° angles, we can project high-intensity light over massive distances, ensuring that the center of the field is as brightly lit as the areas directly beneath the poles.
In sports like football, rugby, or tennis, athletes must track fast-moving objects across vast areas. If a lighting system creates "hot spots" and "dark zones," it produces a strobe-like effect that impairs depth perception and increases the risk of injury.
Precision optics allow for Beam Overlapping Strategies. By combining different beam angles within a single luminaire or across a pole array, we can "stitch" light patterns together. This ensures that the horizontal and vertical uniformity ratios (U1U1 and U2U2) meet international competition standards, providing a seamless visual stage for both players and high-speed 4K cameras.
Perhaps the greatest challenge in urban stadium design is Light Trespass. Many venues are located near residential zones where sky glow and light spill are strictly regulated. Generic "public mold" lenses often lack a sharp cutoff, allowing light to bleed into the eyes of spectators or into neighboring bedroom windows.
Our professional stadium optics feature advanced Asymmetric distributions. These designs allow for a "flat" light throw, pushing light forward onto the pitch while abruptly cutting off the beam at the perimeter. This not only protects the visual comfort of the athletes—allowing them to look up for a high ball without being blinded—but also ensures compliance with "Dark Sky" initiatives and local environmental ordinances.
In the modern lighting industry, the transition from a design concept to a market-ready luminaire requires a balance of high-performance output and manufacturing efficiency. The 96LEDs Stadium Lens series is strategically engineered to serve as the high-density "engine" of professional floodlights. By moving away from individualized, low-power components toward an integrated modular platform, we empower luminaire OEMs to simplify their structural designs without sacrificing optical sophistication.
Versatility is the foundation of the 96LEDs series. Our optical architecture is precision-engineered to be fully compatible with industry-standard 3535 and 5050 LED packages.
3535 LEDs: Ideal for high-density, high-efficacy configurations where compact heat management is key.
5050 LEDs: Perfect for high-lumen output applications, providing the raw power needed for elite-level stadium requirements.
This cross-compatibility allows manufacturers to utilize their preferred LED brands—such as Osram, Cree, or Lumileds—within the same optical housing, providing ultimate flexibility in inventory management and technical specification.
The modularity of the 96LEDs lens is a game-changer for High-Mast and Sports Floodlight assembly. Instead of mounting hundreds of individual small lenses, manufacturers can use these modules to scale their power output rapidly.
Streamlined Assembly: A standard 600W or 1200W stadium light can be constructed using a pre-set number of our modules, significantly reducing labor time and minimizing the risk of optical misalignment.
Optimized Thermal and Waterproof Integration: Each module is designed to integrate seamlessly with standard heat sinks and features dedicated channels for high-grade silicone gaskets, ensuring the luminaire achieves a reliable IP66 rating.
One of the primary bottlenecks in sports lighting projects is the verification of light distribution. Asahi Optics eliminates this friction by providing ready-to-use, lab-verified IES photometric files.

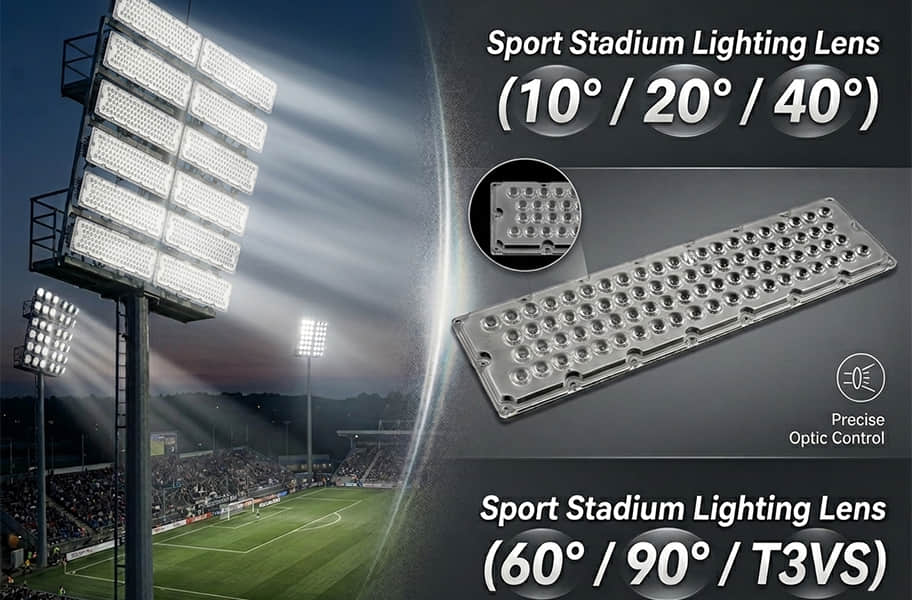

Pre-measured Beam Angles: We offer a comprehensive suite of files for our 10°, 20°, 40°, 60°, 90°, and Asymmetrical 50° lenses.
Design Accuracy: These files are generated through rigorous goniophotometer testing, ensuring that the digital simulation in DIALux matches the physical reality on the field.
The true power of the 96LEDs Stadium Lens is realized when the abstract physics of light meets the concrete demands of diverse sporting environments. By strategically selecting beam angles from our comprehensive toolkit, lighting designers can solve complex site-specific challenges.
For large-scale outdoor fields, the primary challenge is the "Throw." Poles are often set back from the sidelines, requiring light to travel up to 60 meters to the center circle.
The Strategy: Use a tiered beam approach. Top-mounted luminaires utilize 10° or 20° narrow-beam optics to project intensity into the middle of the pitch. Lower fixtures use 40° or 60° medium-angle lenses to wash the nearer sidelines.
The Outcome: This "layered" illumination ensures consistent vertical illuminance across the entire surface, eliminating the "dim center" syndrome.
In urban environments, sports lighting faces scrutiny regarding Light Trespass and Sky Glow.
The Strategy: The Asymmetric 50° (Batwing) lens is the hero. Traditional symmetrical lenses require high tilt angles, spilling light into neighboring homes. Our asymmetric optics allow the luminaire to remain mounted at a 0° to 10° tilt, using internal freeform geometry to push light forward while sharply cutting it off at the rear.
The Outcome: The facility can operate at full brightness while reducing light spill into residential zones by up to 70%.
Indoor sports require high visual comfort. Players often look directly upward, making the "point source" brightness of an LED potentially blinding.
The Strategy: Recommend 60° or 90° wide-angle lenses, often paired with specialized surface textures that diffuse the hot spots of the individual 96 LEDs.
The Outcome: A wider, softer distribution maximizes light reflected off the ceiling and walls, reducing glare and eye strain for both athletes and spectators.
While our standard 96LEDs library covers 90% of global project requirements, the most ambitious architectural and sporting projects often demand something unique. Asahi Optics distinguishes itself not just as a supplier, but as a full-scale Optical Research & Development partner.
For high-volume manufacturers or iconic stadium projects, a "modified" standard lens is sometimes insufficient. We offer a vertically integrated path to completely new, custom-tooled optical molds.
Optical Surface Synthesis: Our designers use advanced mathematical algorithms to create entirely new freeform surfaces tailored to your specific mechanical housing or a proprietary LED layout.
Target-Driven Design: If your project has a non-standard mounting height, we build the mold specifically to achieve the required uniformity at that exact angle.
Exclusive Ownership: Custom-developed molds can be proprietary, giving your brand a unique "optical signature" and a protected competitive advantage.
The journey from a concept to a steel mold is guided by rigorous software simulation. Before cutting any metal, our engineering team performs thousands of ray-tracing iterations using LightTools and TracePro.
Virtual Prototyping: We simulate the interaction of the light not just with the lens, but with the entire luminaire assembly, accounting for internal reflections that could cause unwanted glare.
Tolerance Analysis: We predict how small manufacturing variances will affect the final beam, engineering the mold to be "robust" against these variances.
Our engineering support extends beyond the physical tool to the digital twin of your lighting project.
LED-Specific IES Customization: We generate high-resolution photometric data specific to your chosen LED binning and drive current. This "Absolute Photometry" ensures a 98%+ correlation between DIALux simulation and real-world results.
Vertical Illuminance Optimization: We optimize the custom mold to enhance vertical illuminance—crucial for facial recognition in security and for the high-definition contrast needed in sports broadcasting.
We bridge the gap between high-end optical physics and industrial-scale manufacturing.
Rapid Optical Prototyping: Before committing to a multi-cavity steel mold, we utilize advanced 3D printing or CNC machining to provide functional samples for physical testing.
Precision Tooling: Our molds are crafted from high-grade S136 stainless steel, mirror-polished to a nanometer-scale finish, ensuring maximum light transmission and a "sharp" beam edge.
In the high-mast and stadium lighting sector, the luminaire is often judged by its wattage and its cost. However, the most successful manufacturers know that the lens is the true differentiator. By integrating our 96LEDs Stadium Lens series, you are investing in a system that maximizes every watt of electricity and every dollar of the client's budget.
For Luminaire Manufacturers: Simplify structural design and reduce assembly time with our 96LED modular platform.
For Lighting Engineers: Achieve the highest levels of uniformity and glare control with our lab-verified IES data and DIALux support.
For Municipalities & Clubs: Ensure a 10+ year lifespan and superior neighbor-friendly lighting with our UV-stabilized, high-precision materials.
Professional sports lighting is a game of millimeters. Don't let your project's success be compromised by "good enough" optics. Choose a partner who understands that in the stadium, every lumen counts.
