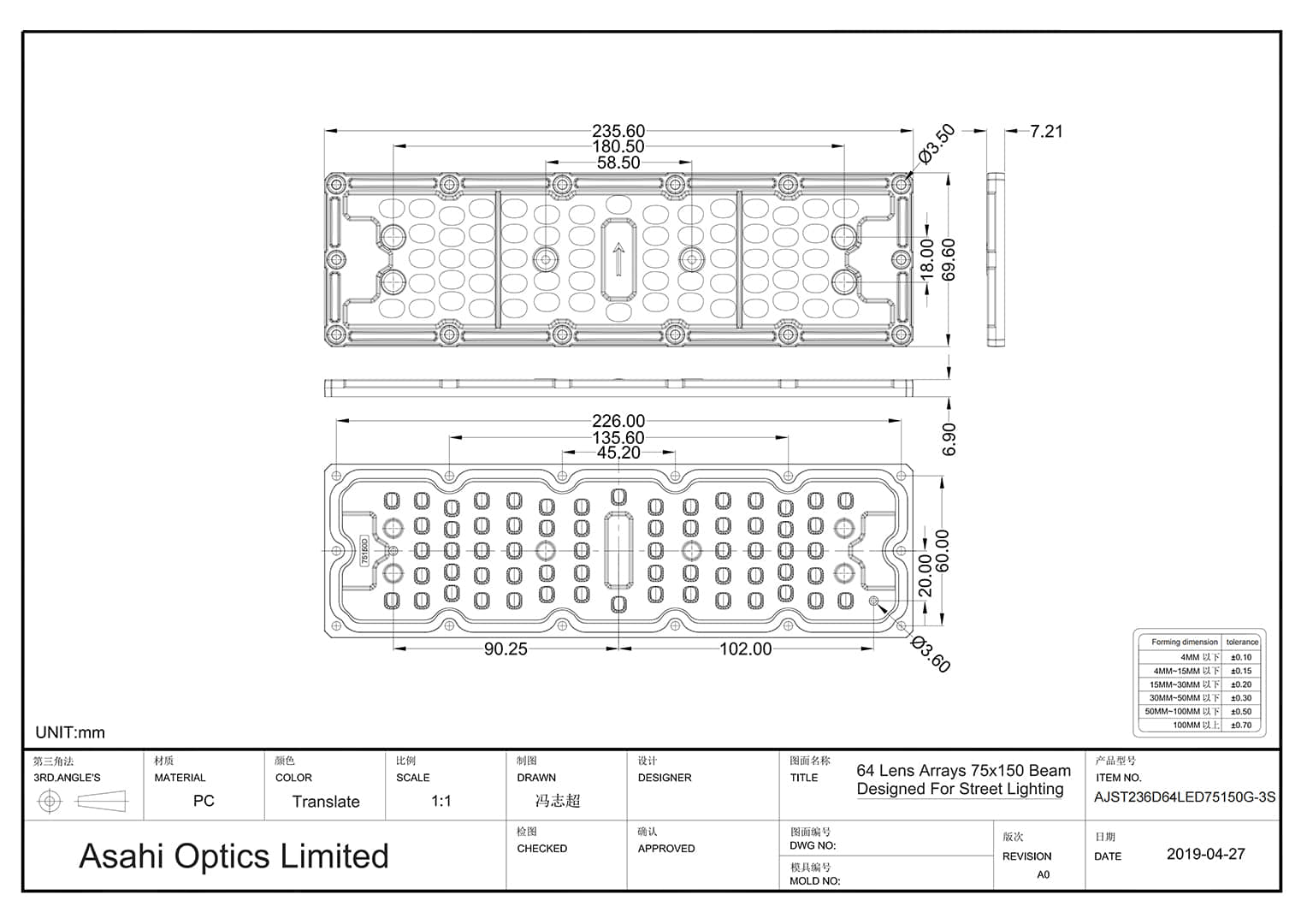

Model: AJST236D64LED75150G-3S
Diameter: 236mm
Height: 7.1mm
Angle: 75x150°
Material: PC-1250Z
Transmittance: >90%
LED Type: 2835/3030 LED
Lighting Applications: Street Lighting

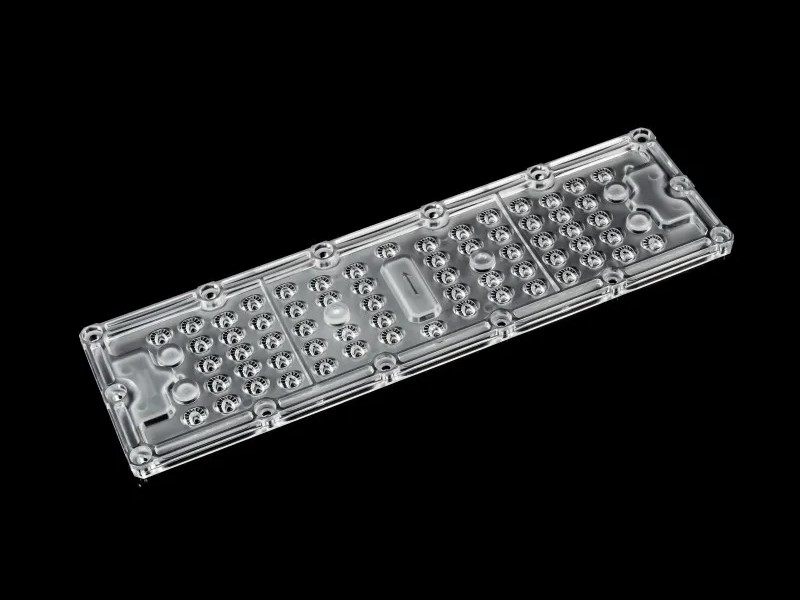

1.64-in-1 module lens with an optimized beam angle of 75x150°,provides a well-distributed light pattern.The even light distribution contributes to improved visibility, ensuring secure lighting conditions for vehicular use.
2.This item t is designed to simultaneously accommodate both 2835 and 3030 LEDs, catering to diverse budget requirements of customers.
3.With a transmittance exceeding 90%.This high light transmittance contributes to enhanced brightness and overall performance, making it an effective solution for various lighting applications.

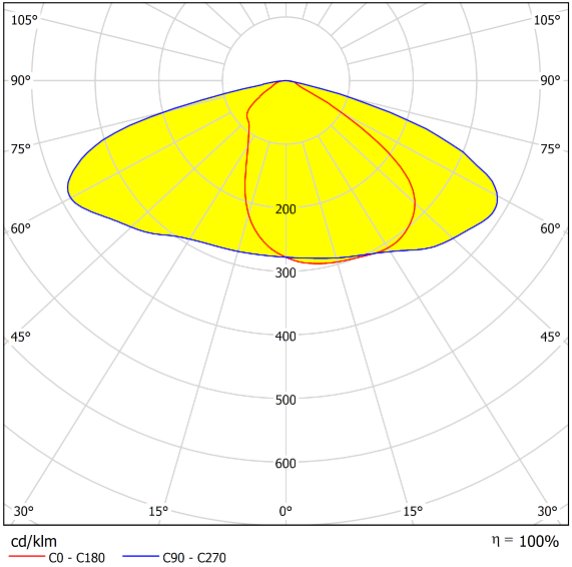

Distribution
Specifications
| Model: | AJST236D64LED75150G-3S |
| Diameter: | 236mm |
| Height: | 7.1mm |
| Angle: | 75x150° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 2835/3030 LED |
| Lighting applications | Street Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
