Model: ATV16D22X
Diameter: 15.5mm
Height: 4.91mm
Angle: 160°
Material: PMMA
Transmittance: >93%
LED Type: 2835/3030LED

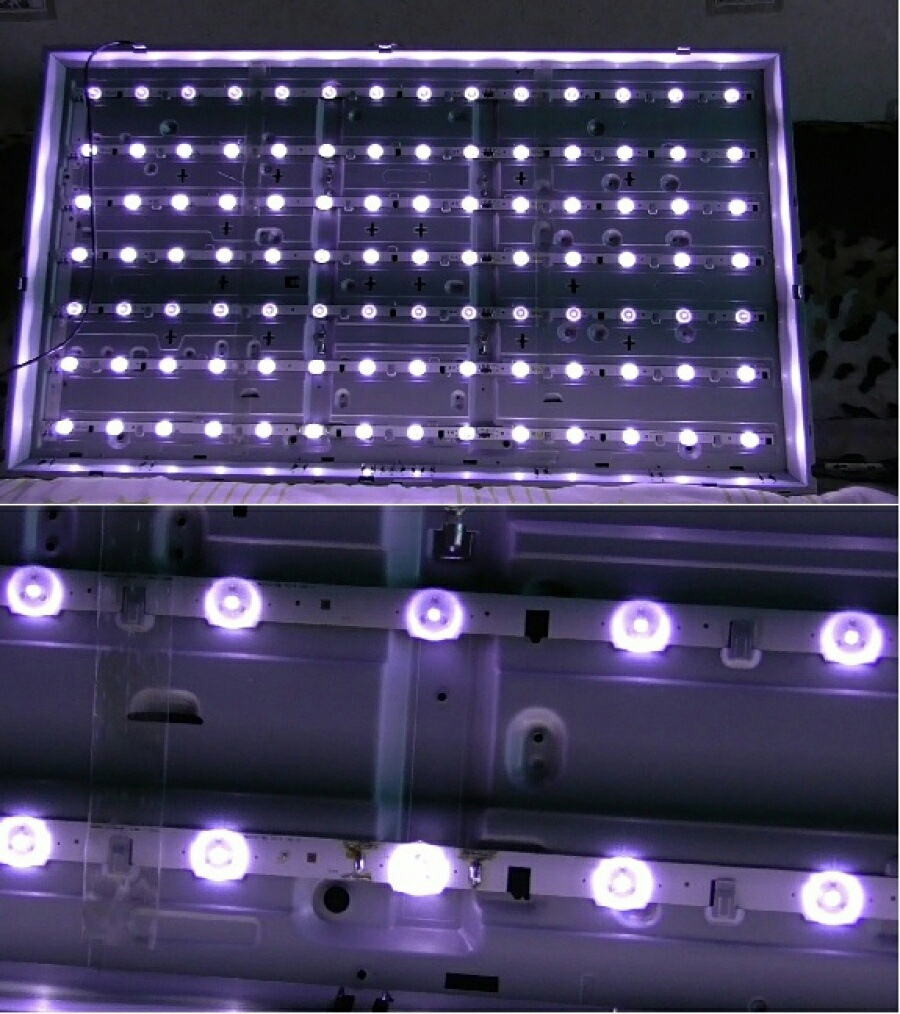

Lighting Applications: AD Board, Light Bar
1. TV back light lens is a specialized lens that is placed behind the LED lights to diffuse and evenly distribute the light across the screen surface.It can be used for AD light box or light bar.
2. The TV lens helps to create a more uniform and visually appealing backlighting effect, enhancing the overall viewing experience.
3. The lens is typically made of high-quality PMMA materials that are designed to withstand heat and provide long-lasting performance.
Specifications
| Model: | ATV16D22X |
| Diameter: | 15.5mm |
| Height: | 4.91mm |
| Angle: | 160° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 2835/3030LED |
| Lighting applications | AD Board, Light Bar |
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
Downloads
