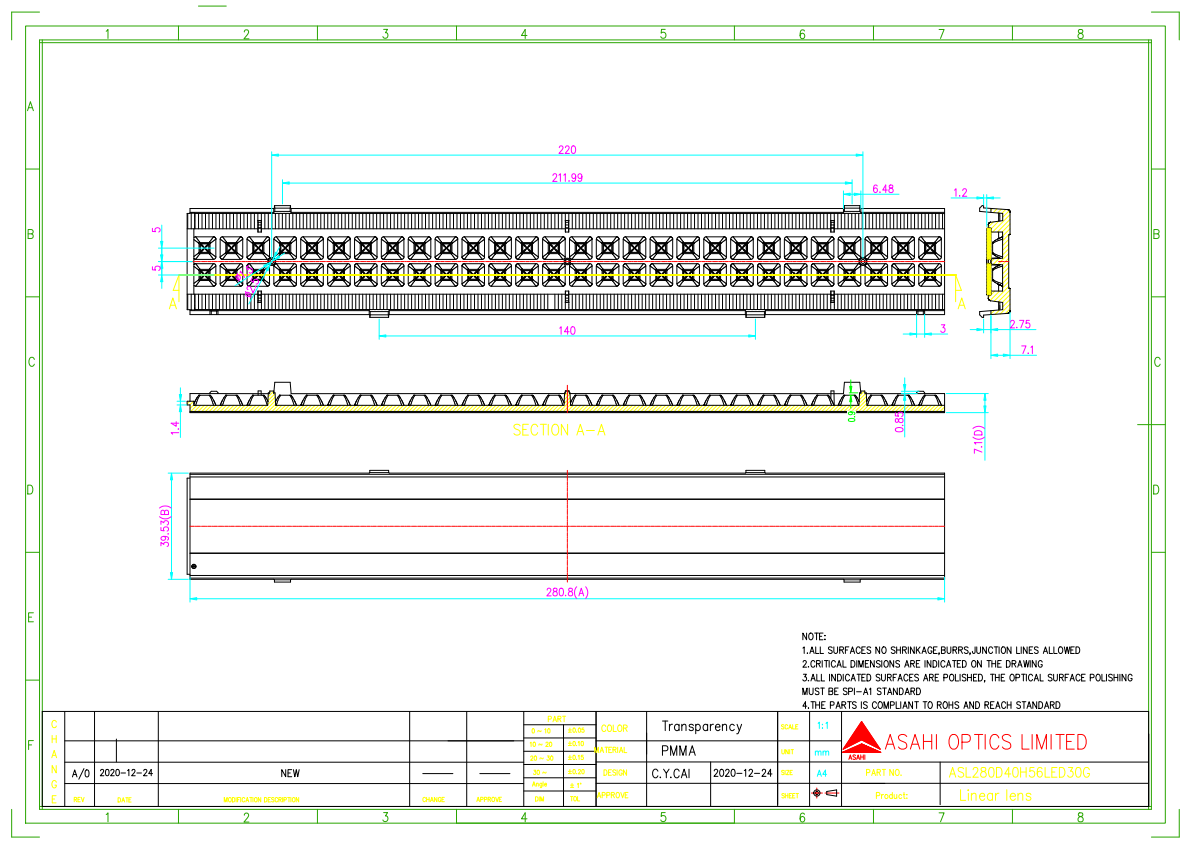

Model: ASL280D40H56LED30G
Diameter: 280.0mm
Height: 7.1mm
Angle: 30°
Material: PMMA
Transmittance: >93%
LED Type: 2835/3030/3016LED

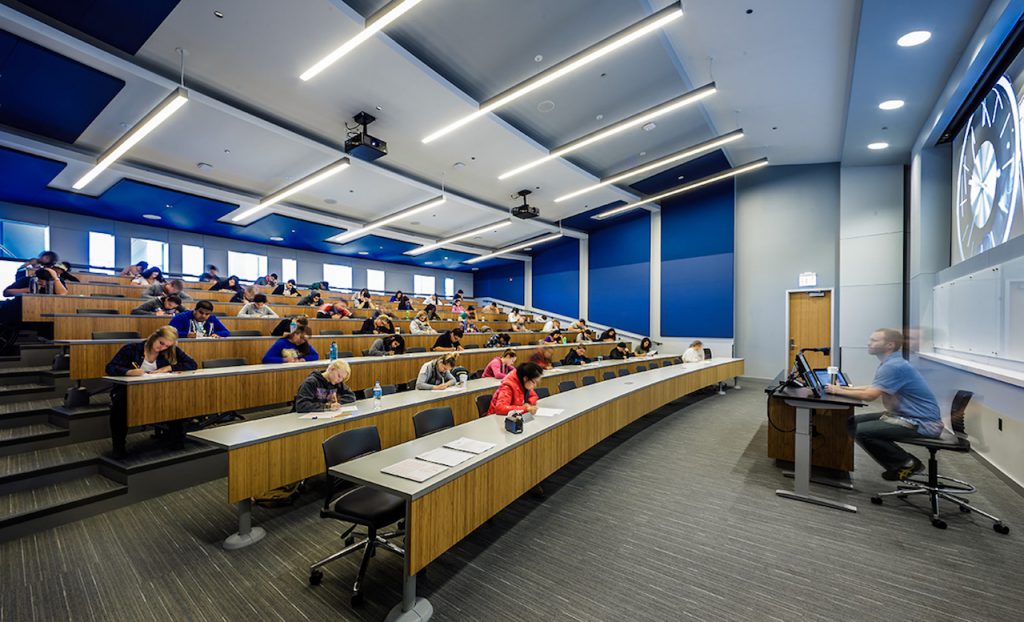

Lighting Applications: Linear Lighting
1. The lens is specifically designed to be compatible with a linear array or strip of 56 LEDs. It is engineered to match the spacing and arrangement of the LEDs to ensure optimal light distribution and performance.
2. The lens provides a fixed beam angle of 30 degrees. This means that the light emitted from the LEDs is focused and directed within a 30-degree cone-shaped pattern. It provides a narrow spread of light suitable for applications that require a more concentrated illumination.
3. The lens helps control the direction and spread of light emitted by the 56 LEDs, ensuring that the light is efficiently distributed in the desired area or surface within the 30-degree beam angle. It provides a controlled illumination pattern based on the specific beam angle.
4. The lens aids in distributing the light evenly across a specific area or surface within the 30-degree beam angle. It helps minimize hotspots or dark spots, ensuring a uniform and consistent illumination from the linear LED array.
Specifications
| Model: | ASL280D40H56LED30G |
| Diameter: | 280mm |
| Height: | 40mm |
| Angle: | 30° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/3030/3016LED |
| Lighting applications | Linear Lighting, Offie Lighting |

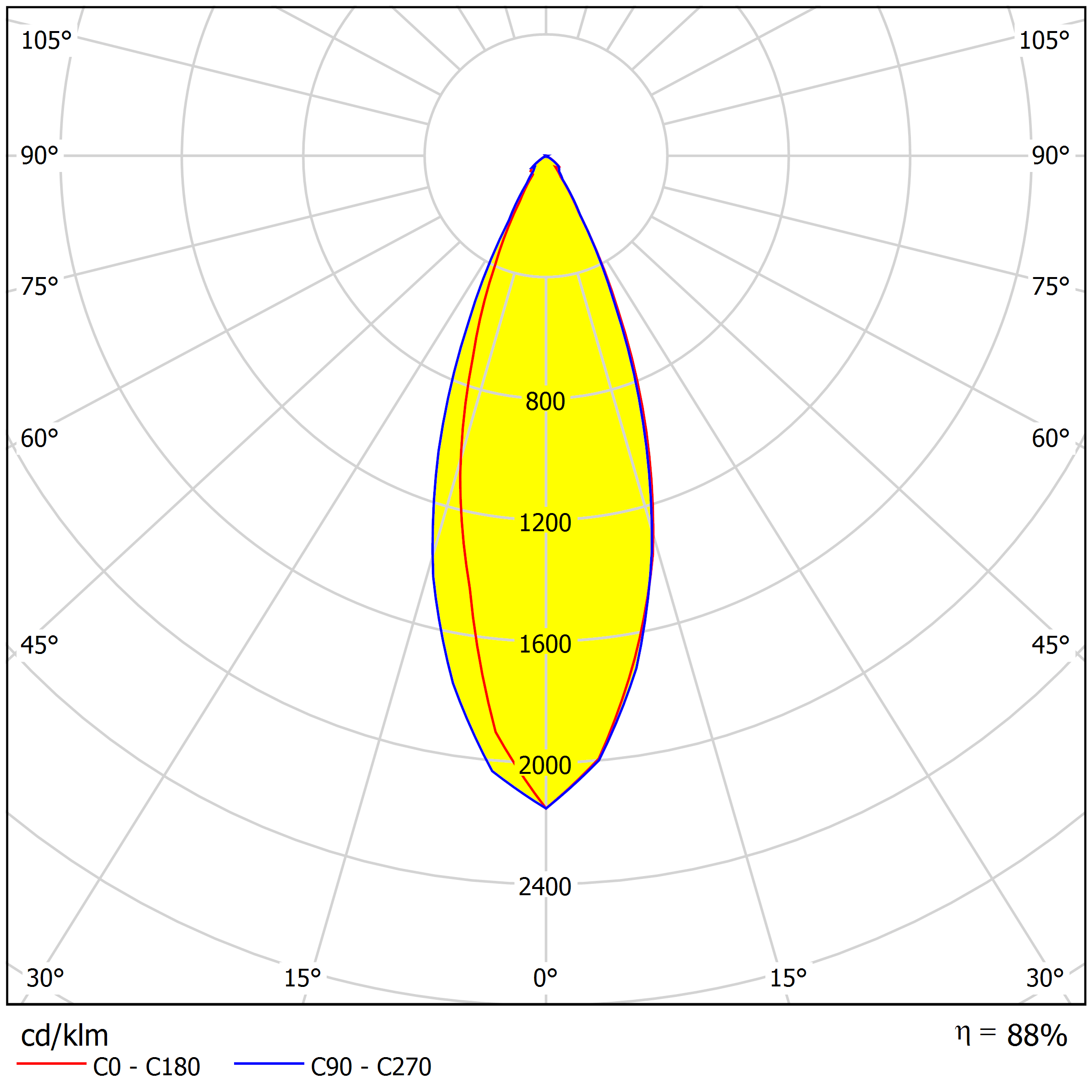

Light Distribution Curve
Array ( [contentid] => 156 [contentstatus] => 1 [contenttype] => 6 [catid] => 321 [sortorder] => 86 [urlpath] => 12x1-arrays-typeii-short-beam-roadway-lighting-optics [attrcat] => 1 [attr10] => 0 [attr9] => 0 [attr8] => 0 [attr7] => 0 [attr6] => 0 [attr5] => 0 [attr4] => 0 [attr3] => 0 [attr2] => 0 [attr1] => 0 [pubtime] => 2018-08-31 18:33:24 [contenttitle] => 12x1 Arrays TypeII Short Beam Roadway Lighting Optics [shorttitle] => ALST50D12LED3030T2S [tagids] => [tags] => [contentimage] => 12in1-lens/12IN1-lens-50mmx50mm-3030LED-T2S.jpg [contentimages] => [readpass] => [allowgroups] => [disallowgroups] => [uid] => 0 [adduser] => [addtime] => 2018-08-31 18:33:24 [updatetime] => 2025-05-07 18:55:45 [contenttpl] => [contentbrief] =>
1. The design of the 12X1 TYPE II-Short lens is tailored for directed illumination, concentrating the beam in a narrower horizontal area. It is suitable for scenarios that require lighting along roads or walkways.
2. Directed lighting helps efficiently utilize energy by ensuring that light is concentrated in the areas that require illumination, reducing unnecessary energy waste.
[metatitle] => [metakeywords] => [metadescription] => [othermetas] => [otherinfo1] => [otherinfo2] => [otherinfo3] => [otherinfo4] => [otherinfo5] => [otherinfo6] => [otherinfo7] => [otherinfo8] => [otherinfo9] => [otherinfo10] => [morecatids] => 250,339,321 [beamangle] => Type II Short [beamsize] => 50.0*50.0mm [attrmodel] => ALST50D12LED3030T2S [attrheight] => 7.85mm [attrmaterial] => PMMA [attrtransmittance] => >93% [attrapplications] => 3030 LED [attrlightapplications] => Area Lighting [attrname] => 12x1 Arrays TypeII Short Beam Roadway Lighting Optics [applicationids] => [relateprodids] => [dataid] => 2645 [catcontentsort] => 0 [customcss] => [customjs] => [content] =>
Specifications
| Model: | ALST50D12LED3030T2S |
| Dimeter: | 50*50mm |
| Height: | 7.85mm |
| Angle: | Type II Short |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 3030 LED |
| Lighting applications | Area Lighting,Street Lighting |
Light Distribution Curve
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
ASAHI OPTICS ALST50D12LED3030T2S Drawing.dwg
ASAHI OPTICS ALST50D12LED3030T2S Drawing.pdf
ASAHI OPTICS ALST50D12LED3030T2S Test Report.pdf
ASAHI OPTICS ALST50D12LED3030T2S lens IES.ies
[catattr] => [producttab1] =>
)
Array ( [contentid] => 495 [contentstatus] => 1 [contenttype] => 6 [catid] => 321 [sortorder] => 149 [urlpath] => 173mm-2x6-area-illumination-optics-5050led-type-medium [attrcat] => 1 [attr10] => 0 [attr9] => 0 [attr8] => 0 [attr7] => 0 [attr6] => 0 [attr5] => 0 [attr4] => 0 [attr3] => 0 [attr2] => 0 [attr1] => 0 [pubtime] => 2022-10-27 18:12:58 [contenttitle] => 173mm 2x6 Area Illumination Optics 5050LED TYPEⅢ Medium [shorttitle] => ALD173D12LEDT3M [tagids] => [tags] => [contentimage] => 173mm2x6-lens/ALD173D12LEDT3M/UbO1Kt_2x6-lens-173mmx71.4mm-5050LED-T3M..png [contentimages] => [["173mm2x6-lens\/ALD173D12LEDT3M\/7wi5SO_2x6-lens-173mmx71.4mm-5050LED-T3M.png","2x6 lens 173mmx71.4mm 5050LED T3M"],["173mm2x6-lens\/ALD173D12LEDT3M\/2x6-lens-173mmx71.4mm-5050LED-T3M.png","2x6 lens 173mmx71.4mm 5050LED T3M"],["173mm2x6-lens\/ALD173D12LEDT3M\/2x6-lens-173mmx71.4mm-5050LED-T3M..png","2x6 lens 173mmx71.4mm 5050LED T3M."]] [readpass] => [allowgroups] => [disallowgroups] => [uid] => 0 [adduser] => [addtime] => 2022-10-27 18:12:58 [updatetime] => 2025-05-07 18:58:10 [contenttpl] => [contentbrief] =>
1. 2x6-TypeIII-Medium lens suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.
2. The design of the 2x6 Type III-Medium lens provides wide horizontal illumination, suitable for streetlight applications that require even light distribution on wider roads or squares,ensuring effective lighting coverage across the entire region.
3. Constructed from polycarbonate materials,offering durability and resistance to weather, UV radiation, and impact.
[metatitle] => [metakeywords] => [metadescription] => [othermetas] => [otherinfo1] => [otherinfo2] => [otherinfo3] => [otherinfo4] => [otherinfo5] => [otherinfo6] => [otherinfo7] => [otherinfo8] => [otherinfo9] => [otherinfo10] => [morecatids] => 250,350,321 [beamangle] => T3M Asymmetric [beamsize] => 173.0mm+71.4mm [attrmodel] => ALD173D12LEDT3M [attrheight] => 10.85mm [attrmaterial] => PC [attrtransmittance] => >90% [attrapplications] => "3535"l"5050" LED [attrlightapplications] => Street lighting, Architecture lighting,High Bay lighting [attrname] => 173mm 2x6 Area Illumination Optics 5050LED TYPEⅢ Medium [applicationids] => [relateprodids] => [dataid] => 2837 [catcontentsort] => 0 [customcss] => [customjs] => [content] =>Specifications
| Model: | ALD173D12LEDT3M |
| Diameter: | 173*71.4mm |
| Height: | 10.85mm |
| Angle: | TypeIII-Medium |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | "5050" LED |
| Lighting applications | Street lighting |
Light Distribution Curve
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
ASAHI OPTICS ALD173D12LEDT3M Drawing.dwg
ASAHI OPTICS ALD173D12LEDT3M Drawing.pdf
ASAHI OPTICS ALD173D12LEDT3M lens - PC materila.ies
[catattr] => [producttab1] =>
)
Array ( [contentid] => 344 [contentstatus] => 1 [contenttype] => 6 [catid] => 321 [sortorder] => 241 [urlpath] => 90led-lens-module-3030led-for-street-light-beam-typeiii-medium [attrcat] => 1 [attr10] => 0 [attr9] => 0 [attr8] => 0 [attr7] => 0 [attr6] => 0 [attr5] => 0 [attr4] => 0 [attr3] => 0 [attr2] => 0 [attr1] => 0 [pubtime] => 2020-12-02 18:01:28 [contenttitle] => 90LED lens module 3030LED for street light beam TYPEIII Medium [shorttitle] => ARST256D90LEDT3M [tagids] => [tags] => [contentimage] => Product-Picture/T2W-T3W.1.jpg [contentimages] => [readpass] => [allowgroups] => [disallowgroups] => [uid] => 0 [adduser] => [addtime] => 2020-12-02 18:01:28 [updatetime] => 2025-05-07 19:01:45 [contenttpl] => [contentbrief] =>
1. The 90LED lens module (3030LED) is a high-performance optical component designed for TYPE III Medium beam street lights. With dimensions of L256.0mm x W78.5mm, a height of 7.35mm and a beam angle of T3M, it is able to meet the diverse needs of street lighting and architectural lighting.
2. The lens module is made of PC-1250Z material, with a transmittance of more than 93%, ensuring efficient light transmission. In addition, its IP66 protection rating makes it resistant to dust and moisture intrusion, suitable for long-term outdoor use.
[metatitle] => [metakeywords] => [metadescription] => [othermetas] => [otherinfo1] => [otherinfo2] => [otherinfo3] => [otherinfo4] => [otherinfo5] => [otherinfo6] => [otherinfo7] => [otherinfo8] => [otherinfo9] => [otherinfo10] => [morecatids] => 381,321,250 [beamangle] => T3M [beamsize] => L256.0mm*W78.5mm [attrmodel] => ARST256D90LEDT3M [attrheight] => 7.35mm [attrmaterial] => PC-1250Z [attrtransmittance] => >93% [attrapplications] => "3030"LED [attrlightapplications] => Street lighting,Architecture lighting [attrname] => 90LED lens module 3030LED for street light beam TYPEIII Medium [applicationids] => [relateprodids] => [dataid] => 2761 [catcontentsort] => 0 [customcss] => [customjs] => [content] =>Specifications
| Model: | ARST256D90LEDT3M |
| Diameter: | L256.0mm*W78.5mm |
| Height: | 7.35mm |
| Angle: | T3M |
| Material： | PC-1250Z |
| Transmittance： | >93% |
| LED Applications | "3030"LED |
| Lighting applications | Street lighting,Architecture lighting |
Light Distribution Curve
[downloadfiles] =>
ASAHI OPTICS ARST256D90LEDT3M Drawing.dwg
ASAHI OPTICS ARST256D90LEDT3M Drawing.pdf
ASAHI OPTICS ARST256D90LEDT3M lens IES.ies
[catattr] => [producttab1] =>
)
Name: ARST256D90LEDT3M
Diameter: L256.0mm*W78.5mm
Height: 7.35mm
Beam Angle: T3M
LED Type: "3030"LED
Array ( [contentid] => 528 [contentstatus] => 1 [contenttype] => 6 [catid] => 321 [sortorder] => 158 [urlpath] => 173mm-ip66-asymmetric-60-degree-sports-field-lens [attrcat] => 1 [attr10] => 0 [attr9] => 0 [attr8] => 0 [attr7] => 0 [attr6] => 0 [attr5] => 0 [attr4] => 0 [attr3] => 0 [attr2] => 0 [attr1] => 0 [pubtime] => 2023-06-06 17:29:49 [contenttitle] => 173mm IP66 Asymmetric 60 Degree Sports Field Lens [shorttitle] => ALSP173DXXLEDP60G [tagids] => [tags] => [contentimage] => asahi/product-detail/other/173mm-IP66-Asymmetric-60-Degree-Sports-Field-Lens.jpg [contentimages] => [readpass] => [allowgroups] => [disallowgroups] => [uid] => 0 [adduser] => [addtime] => 2023-06-06 17:29:49 [updatetime] => 2025-05-07 18:58:46 [contenttpl] => [contentbrief] =>
1. NEW ARRIVAL-173mm Mx Family Asymmtric 60 degree Stadium lighting lens Compatible with 2x6 ZHAGA Standard
2. 173mm MX series can simultaneously adapt to different types of LEDs, including 5050, 2835, and 3030 LEDs. This capability caters to diverse budget and performance requirements, providing greater flexibility and choice.
3. Coupled with the Asymmetric 60°， making it particularly suitable for stadium lighting. This design aids in precisely controlling the direction of the beam, ensuring uniform and effective illumination on the sports field, thereby enhancing visibility and the overall game experience.
[metatitle] => [metakeywords] => [metadescription] => [othermetas] => [otherinfo1] => [otherinfo2] => [otherinfo3] => [otherinfo4] => [otherinfo5] => [otherinfo6] => [otherinfo7] => [otherinfo8] => [otherinfo9] => [otherinfo10] => [morecatids] => 250,350,321 [beamangle] => 60° [beamsize] => 173mm+71.4mm [attrmodel] => ALSP173DXXLEDP60G [attrheight] => 10.38mm [attrmaterial] => PC-1250Z [attrtransmittance] => >90% [attrapplications] => "2835""3030""5050"LED [attrlightapplications] => high bay lighting [attrname] => 173mm IP66 Asymmetric 60 Degree Sports Field Lens [applicationids] => [relateprodids] => [dataid] => 2902 [catcontentsort] => 0 [customcss] => [customjs] => [content] =>Specifications
| Model: | ALSP173DXXLEDP60G |
| Diameter: | 173*71.4mm |
| Height: | 10.38mm |
| Angle: | 60° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 2835 3030 5050LED |
| Lighting applications | Stadium Lighting |
Light Distribution Curve
This lens' family are flexible for customers to place LEDs freely to meet different requirements.
[downloadfiles] =>
ASAHI Optics ALSP173DXXLEDP60G 3D Drawing.stp
ASAHI Optics ALSP173DXXLEDP60G.ies
[catattr] => [producttab1] =>
)
