Model: AY22D13H15G/25G/30G/45G
Diameter: 21.57mm
Height: 13.0mm
Angle: 6°,15°,25°,30°,45°
Material: PMMA(lens)+PC(holder)
Transmittance: >93%
LED Type: 3535LED

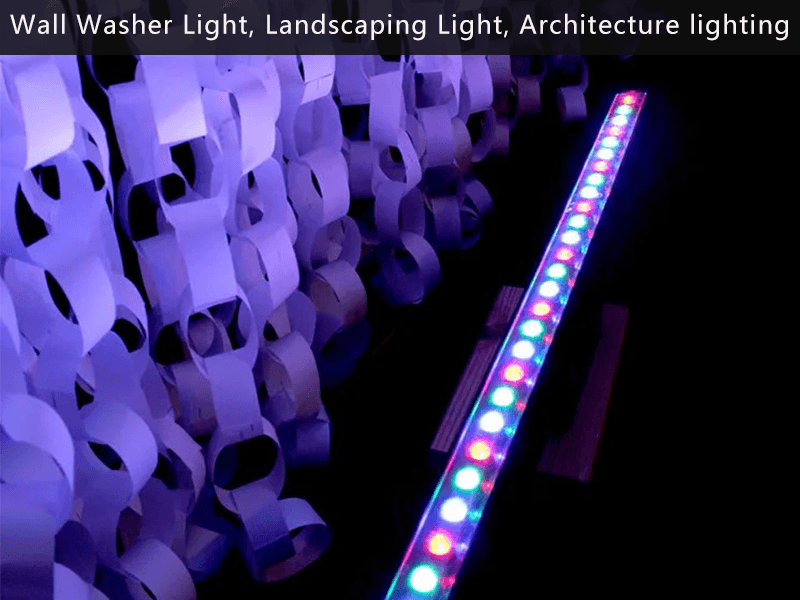

Lighting Applications: Wall Washer Light, Landscaping Light, Architecture Lighting
1. The AY series 22mm lens, designed specifically for 3535 LEDs, utilizes a PMMA lens and PC bracket combination, achieving a light transmittance exceeding 93%.
2. This series offers various beam angles, including 6°, 15°, 25°, 30°, and 45°. It has a diameter of 21.57mm and a height of 13.0mm.
3. Widely used in wall washers, landscape lighting, and architectural lighting, its precise optical control and high-quality materials provide a stable and reliable solution for various outdoor lighting applications.

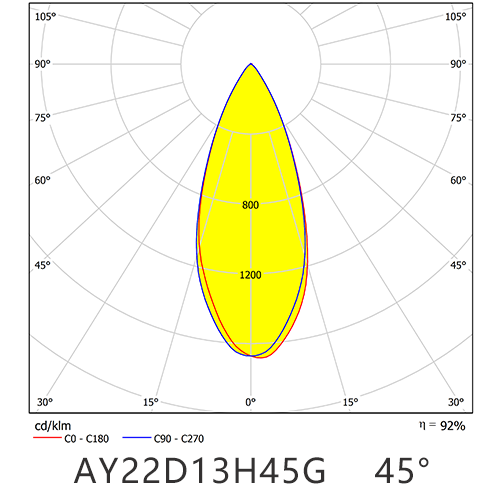

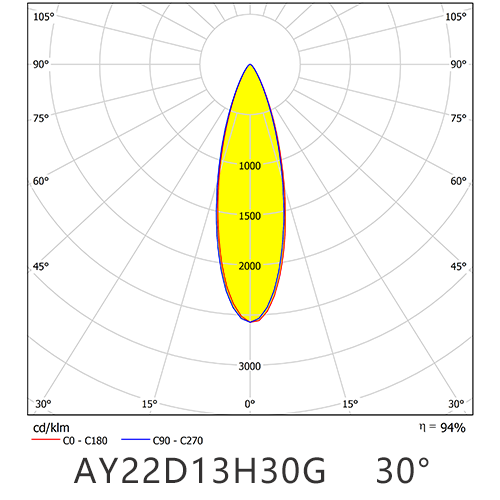

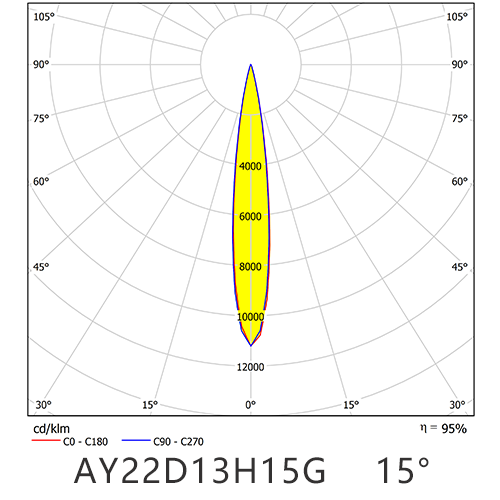

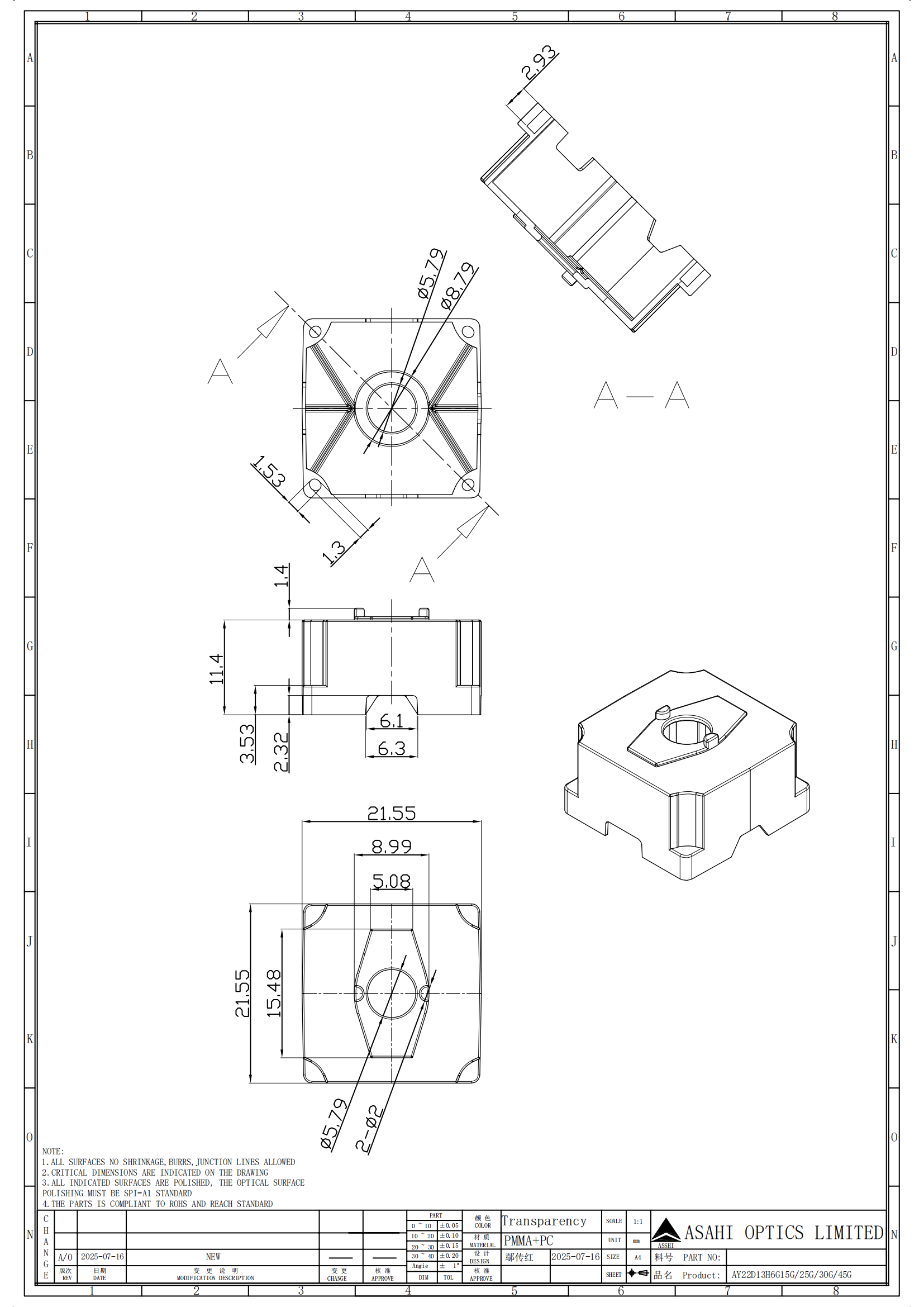

Distribution
Specifications
| Model: | AY22D13H15G/25G/30G/45G |
| Diameter: | 21.57mm |
| Height: | 13.0mm |
| Angle: | 6°,15°,25°,30°,45° |
| Material： | PMMA(lens)+PC(holder) |
| Transmittance： | >93% |
| LED Type | 3535LED |
| Lighting applications | Wall Washer Light, Landscaping Light, Architecture Lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
