Model: ALST50D16LEDT2M-A
Diameter: 50x50mm
Height: 2.0mm
Angle: T2M Asymmetric
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 3030LED

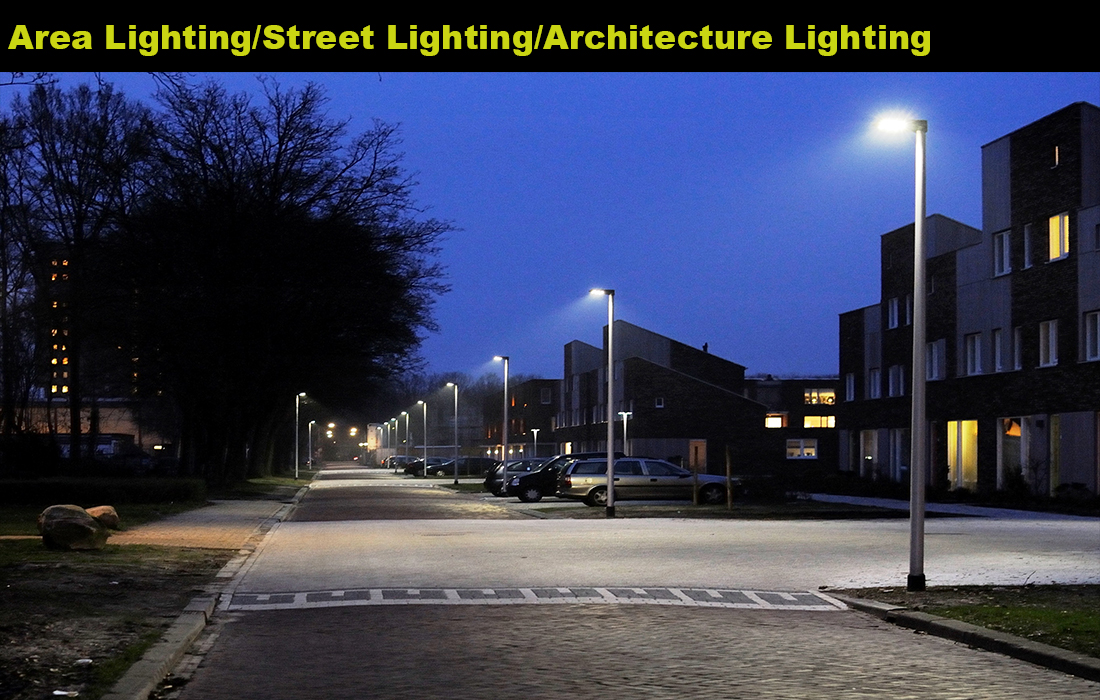

Lighting Applications: Street lighting,Architecture lighting
1. ALHB series 16LED T2M-A beam angle. its characterized by LED spacing, please note that this spacing is 12.5mm, in order to be suitable for different customers' PCB boards.
2. Type II medium beam angle usually used in street lighting. But its flexibility allows the lens to be applied to different environments and scenes, providing personalized lighting solutions.

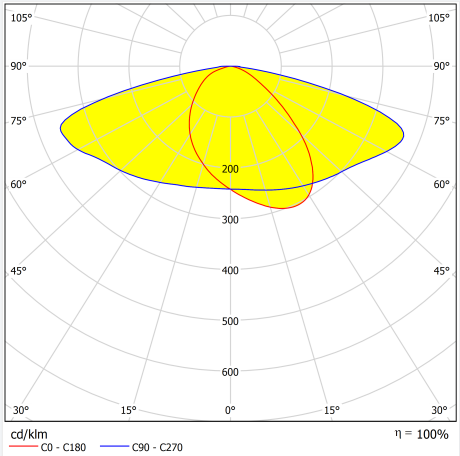

Distribution
Specifications
| Model: | ALST50D16LEDT2M-A |
| Diameter: | 50x50mm |
| Height: | 2.0mm |
| Angle: | T2M Asymmetric |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | Street lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

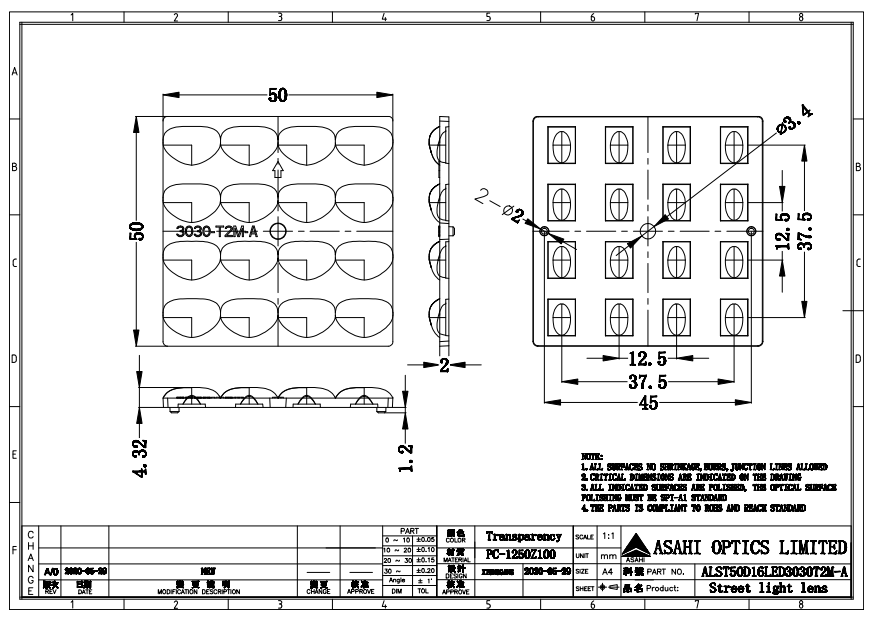

ASAHI OPTICS ALST50D16LEDT2M-A Drawing.pdf
ASAHI OPTICS ALST50D16LEDT2M-A Test Report.pdf
ASAHI OPTICS ALST50D16LEDT2M-A lens IES.ies
