Model: ALS23D1560G
Diameter: 23mm
Height: 11.16mm
Angle: 15x60°
Material: PMMA
Transmittance: 90%
LED Type: 3535/ 5050LED
Lighting Applications: Architecture light, wall wash light
1. 23mm XML RGBW LED lens with an oval beam angle of 15x60°.
2. This type of beam angle is ideal for applications that require a long and narrow spread of light, such as architectural lighting, landscape lighting, or accent lighting.

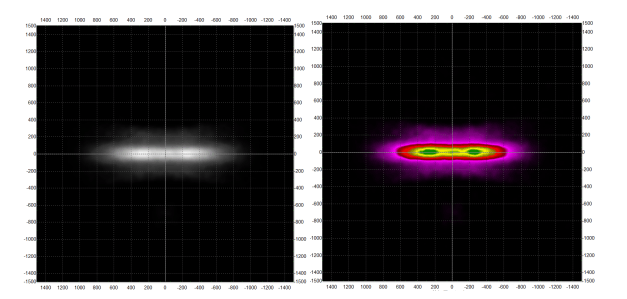

Distribution

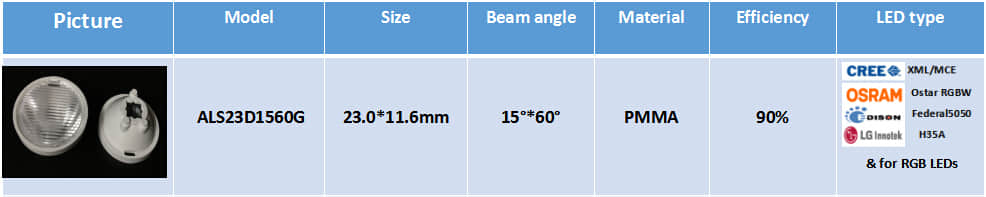

Specifications
| Model: | ALS23D1560G |
| Diameter: | 23mm |
| Height: | 11.16mm |
| Angle: | 15x60° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 3535/ 5050LED |
| Lighting applications | Architecture light, wall wash light |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
The lens is specially designed for CREE XML-Color RGBW LED for wall washer lighting with a narrow and long beam angle 15°X60°
