Model: ASL20D8HT2

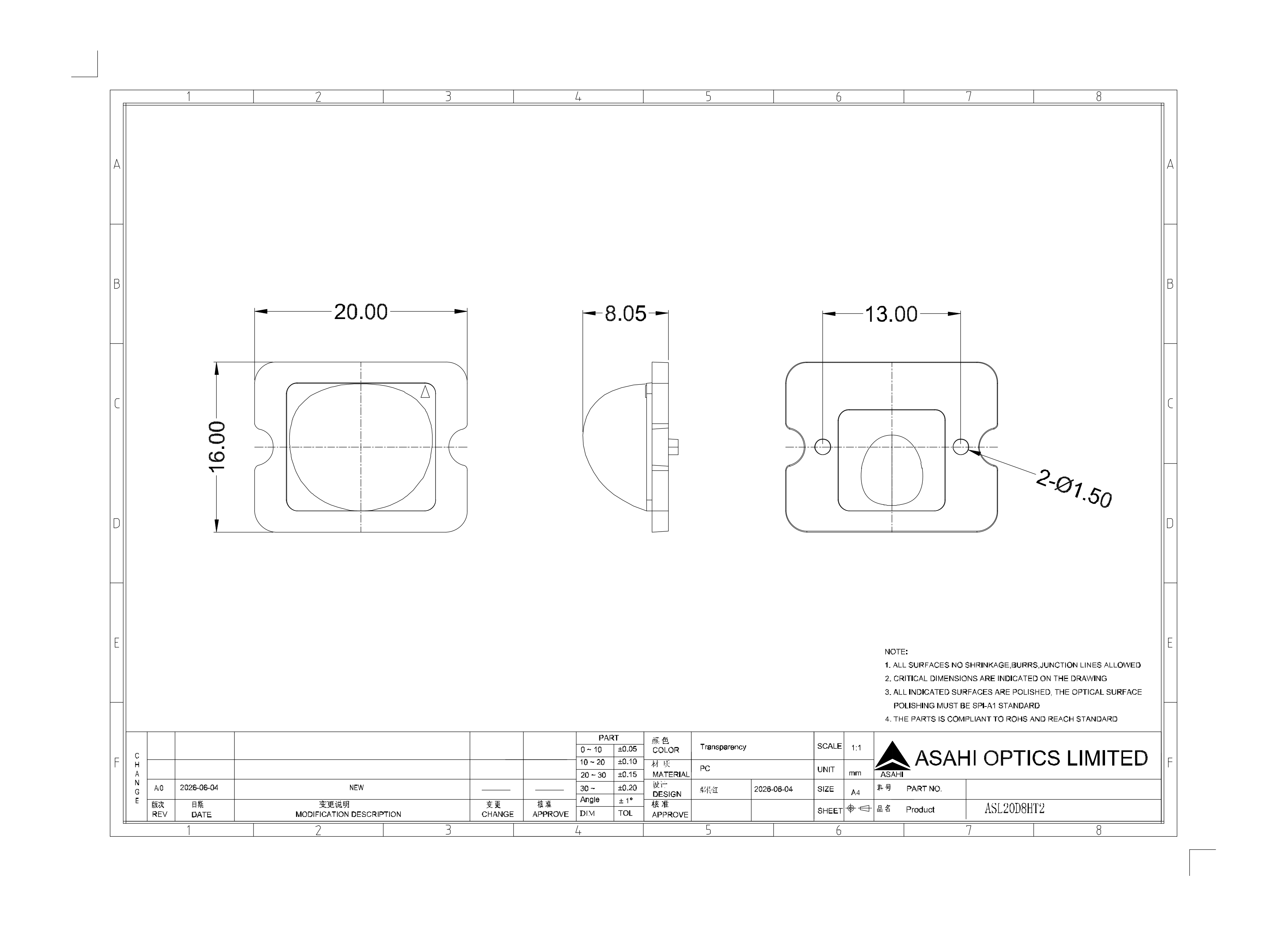

Size: 20x16(mm)
Height: 8.05mm
Angle: Type II
Material: PC
Transmittance: >88%
LED Type: 2835/ 3030LED
Lighting Applications: guardrail light
1. Adopts Type II light distribution, producing a beam that is biased to one side, precisely illuminating the roadside or bridge guardrail area while reducing light spillage.
2. Made of PC material with >88% transmittance, compatible with 2835/3030 LEDs. Dimensions: 20×16mm, height 8.05mm.

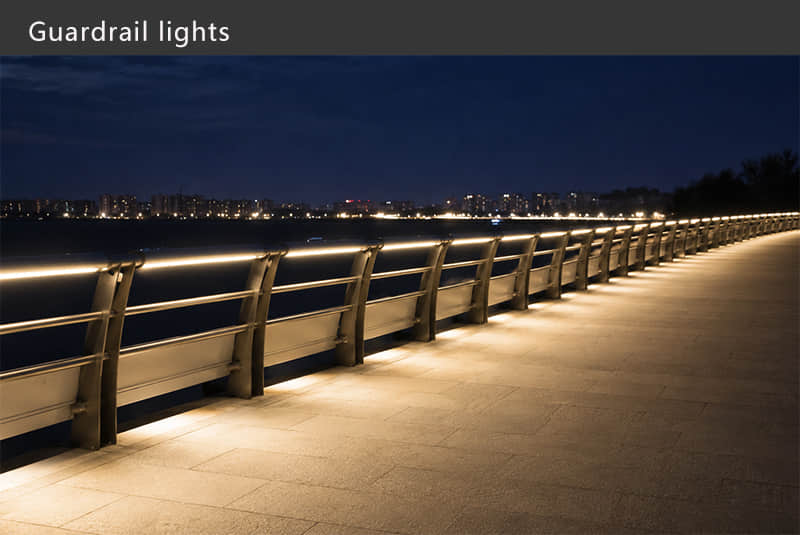

3. Compact structure facilitates embedding into guardrail luminaires, enhancing nighttime driving safety and landscape aesthetics.
Distribution
Specifications
| Model: | ASL20D8HT2 |
| Size: | 20x16(mm) |
| Height: | 8.05mm |
| Angle: | Type II |
| Material： | PC |
| Transmittance： | >88% |
| LED Type | 2835/ 3030LED |
| Lighting applications | guardrail light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
