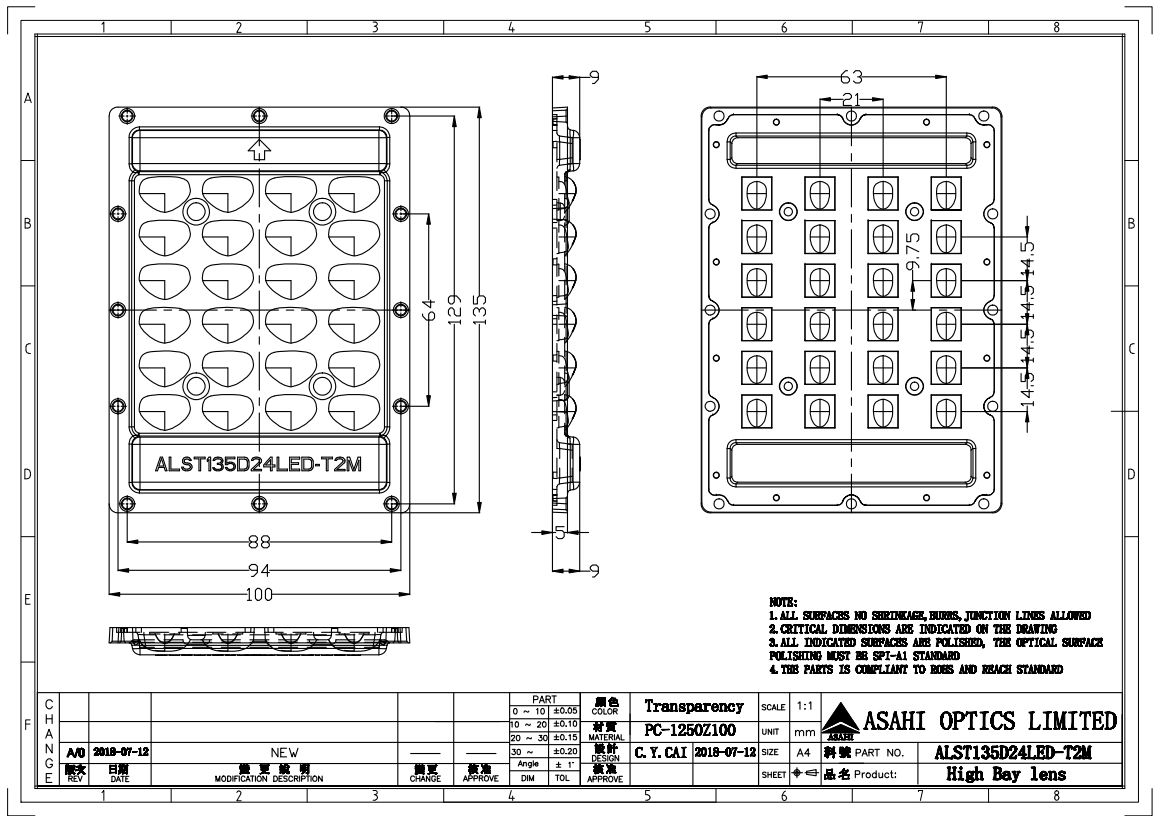

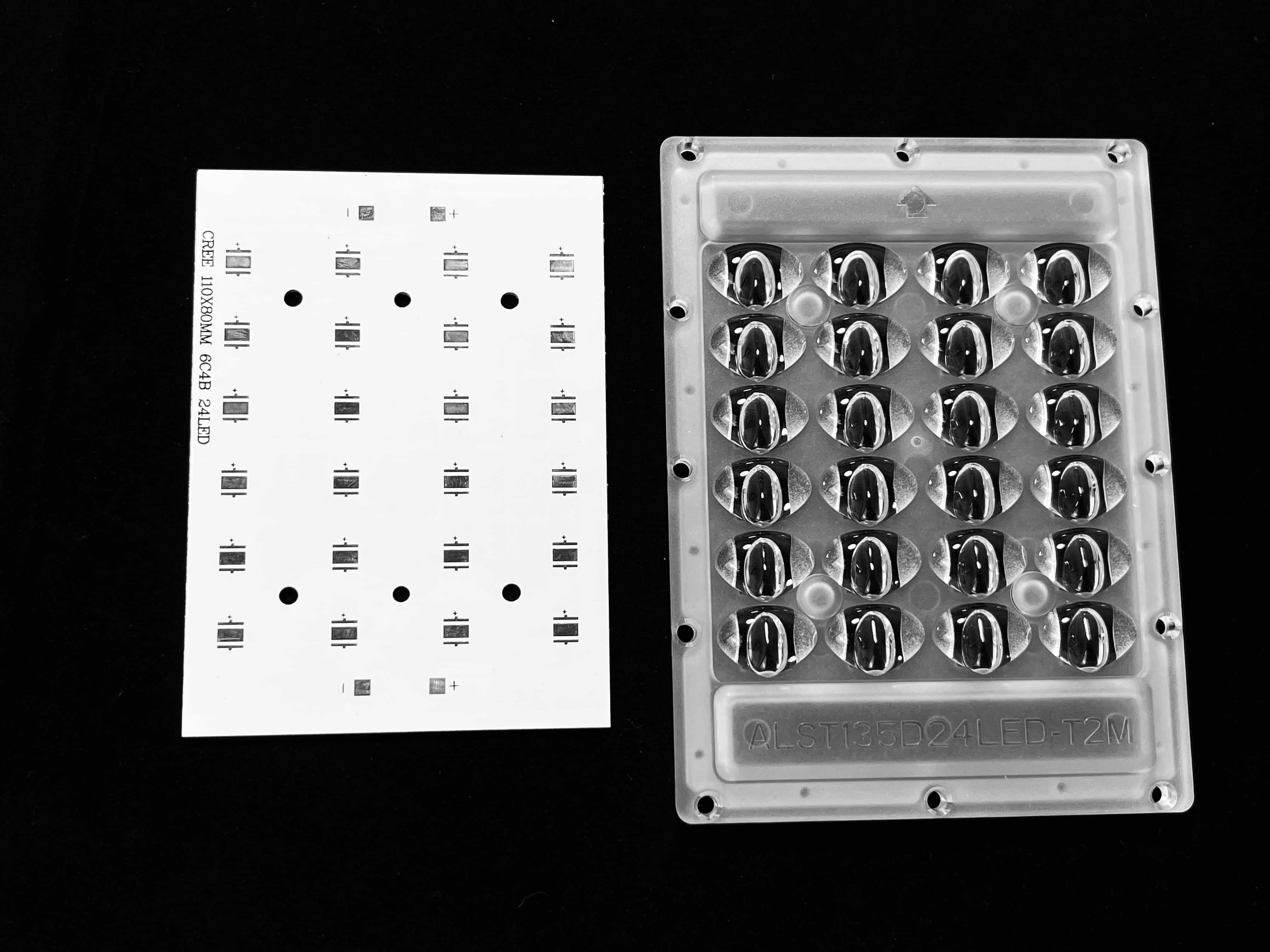

4x6 TypeII-Medium Cutoff IP66 Roadway Lighting Lens

Model: ALST135D24LEDT2M-cutoff

Diameter: 135.0mm+100.0mm

Height: 9.0mm

Angle: T2M-CUTOFF

Material: PC-1250Z

Transmittance: >90%

LED Type: 5050 LED

Lighting Applications: Street Lighting

1. The 4x6 lens module designed with a T2M-cut off beam angle and for BUG standard,.The cut-off angle ensures controlled and directed illumination, minimizing light pollution and optimizing the distribution of light on roadways.

2. The lens holds an IP66 rating, with a high level of protection against dust and water ingress. This makes it suitable for outdoor street lighting applications, ensuring reliable performance in various weather conditions.

The 4X6 lens module is developed for TYPEII-Medium(T2M) CUT-OFF and BUG standard, which ensures that the luminaires have a better road lighting effect.

The 4x6 lens high power lens module is widely used for large areas such as outdoor sports lighting, tower crane lighting, harbor terminal lighting, industrial lighting, etc.
The 4x6 lens beam angle is available from a narrow beam to a wide beam 30°~60°~90°, 30*90° to match with the different heights of lighting installation
The 4x6 lens is with IP66 water-proof solution & IK08 test

Specifications

Model:	ALST135D24LEDT2M-cutoff
Diameter:	135*100mm
Height:	9.0mm
Angle:	T2M-CUTOFF
Material：	PC-1250Z
Transmittance：	>90%
LED Applications	5050 LED
Lighting applications	Street Lighting

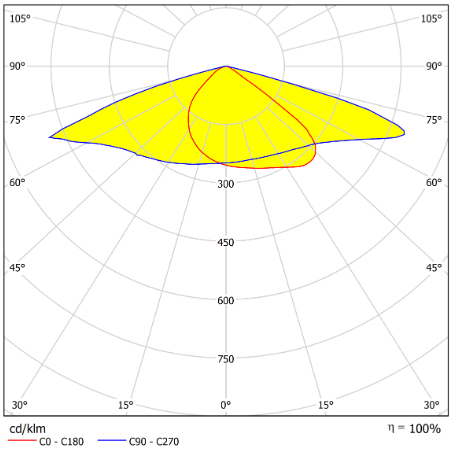

Light Distribution Curve

OSRAM S8 T2M CUTOFF

T2M cutoff.2

T2M cutoff.3

T2M cutoff.1

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
