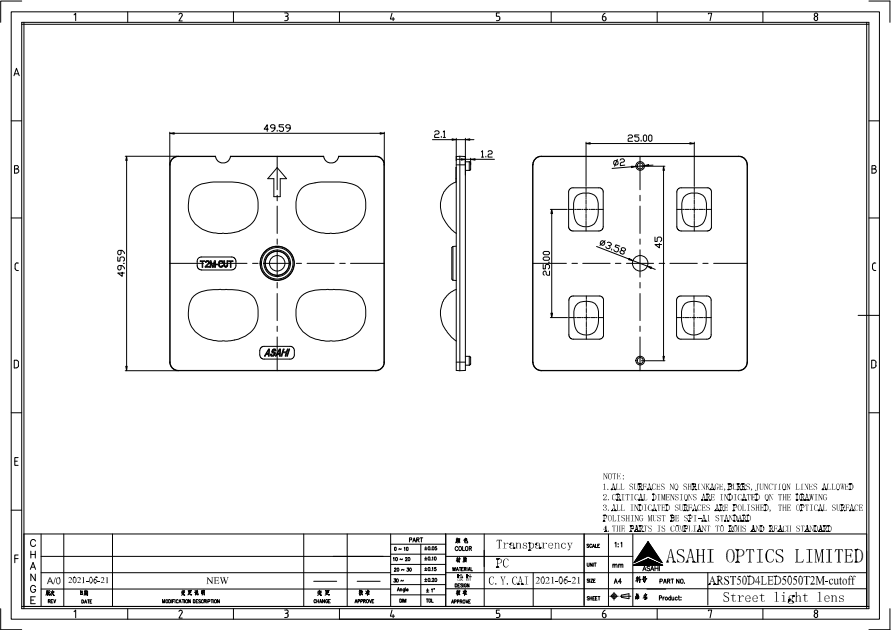

2x2 TypeII-M Street Light Lens With Excellent Cutoff

Model: ARST50D4LED5050T2M-cutoff

Diameter: 50x50mm

Height: 7.48mm

Angle: T2M-cutoff

Material: PC-1250Z

Transmittance: >90%

LED Type: 5050LED

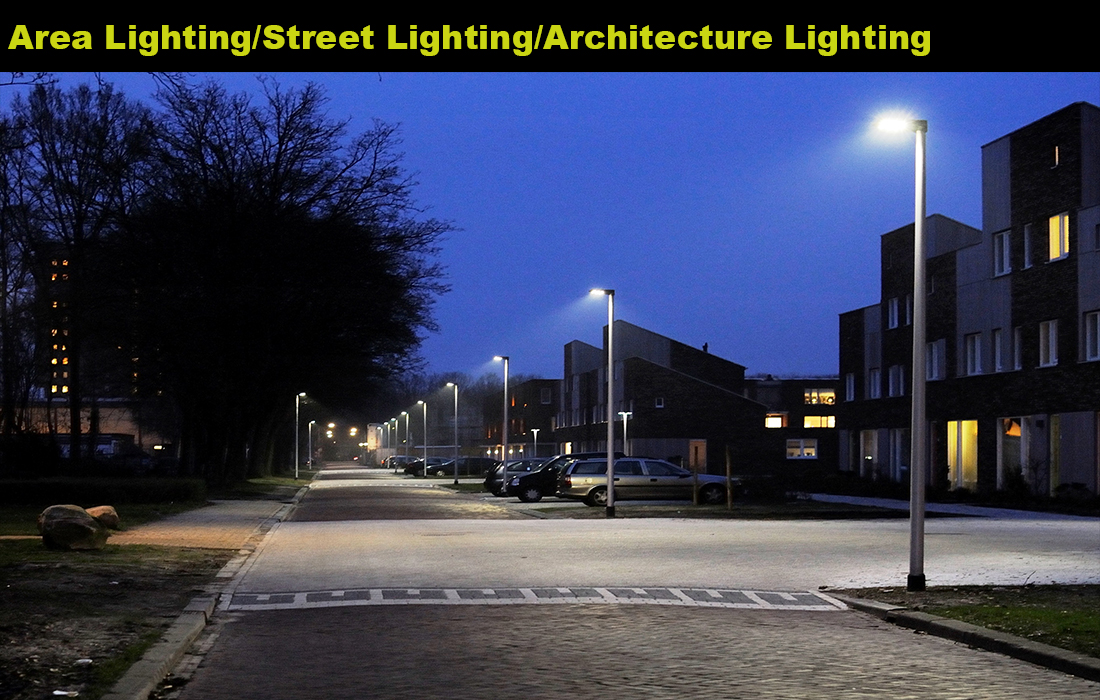

Lighting Applications: Street Lighting

1. This 2X2 lens is developed for TYPE II-Medium(T2M) CUT-OFF and BUG standard, which ensures that the luminaires with excellent backlight control, illuminance uniformity, and cutoff light distribution.

2. The street light optical diagram T2M-cutoff is strictly required by Brazil government have to pass IMMETRO certification.

3. This lens is compatible with different LEDs Brands such as OSRAM S8, NICHIA488, LUMILEDS5050, SEOUL5050.

2. The street light optical diagram T2M-cutoff is strictly required by Brazil government have to pass IMMETRO certification.

3. This lens is compatible with different LEDs Brands such as OSRAM S8, NICHIA488, LUMILEDS5050, SEOUL5050.

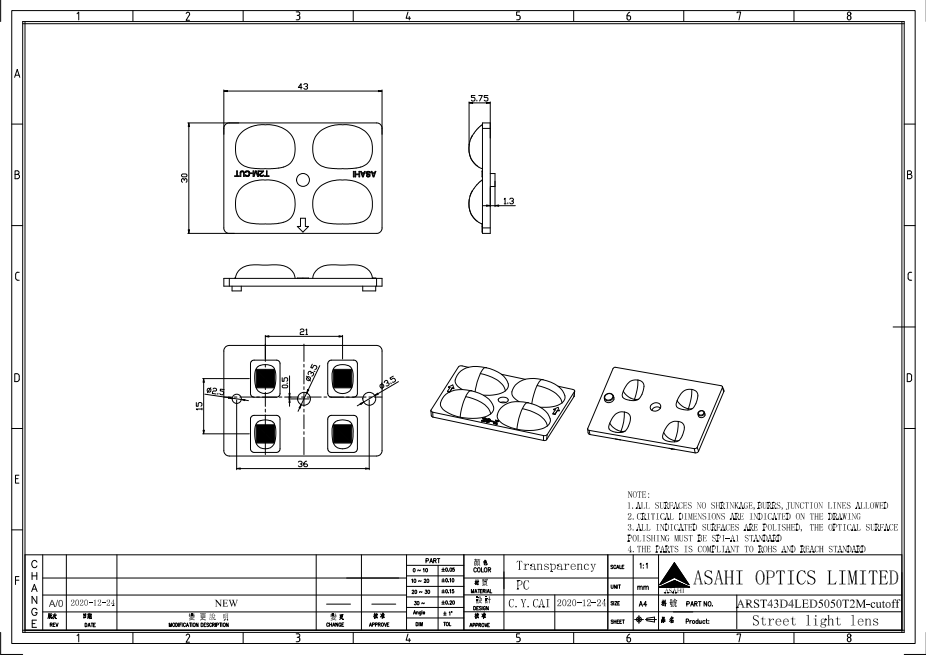

The new design of 2x2 lens 5050T2M-cutoff has been optimized in size 43mm

with the lamp housing remains the same, more LEDs can be added to increase the power of the lamp

The 2x2 lens T2M Cut-off is designed and tested with a glass cover for the IP66 water-proof solution
The 2x2 lens T2M Cut-off is compatible with different LEDs Brands such as OSRAM S8, NICHIA488, LUMILEDS5050, SEOUL5050

Specifications

Model:	ARST50D4LED5050T2M-cutoff
Diameter:	50x50mm
Height:	7.48mm
Angle:	T2M-Cutoff
Material：	PC-1250Z
Transmittance：	>93%
LED Type	5050LED
Lighting applications	Street Lighting

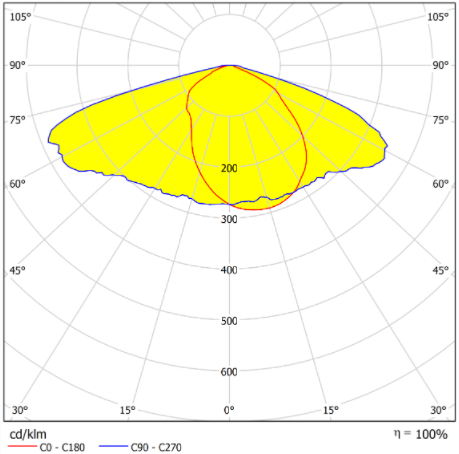

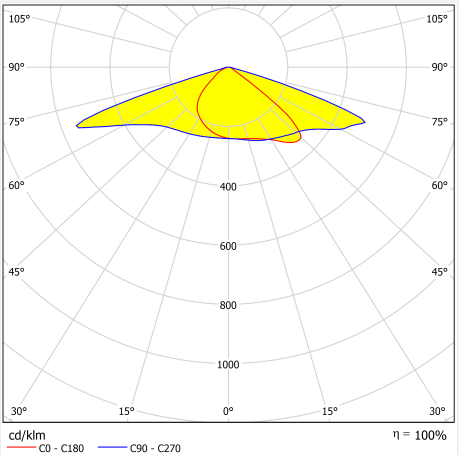

Light Distribution Curve

ALST42D4LED5050T2M Cutoff

OSRAM S8 T2M CUTOFF T2M cutoff.2 T2M cutoff.1 T2M cutoff.3 6+4

2x2 lens module 5050T2M-cutoff 2x2 lens + 2x3 lens module 5050T2M-cutoff

6+4leds

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
