Model: ALST50D24LEDT2M-D
Diameter: 50x50mm
Height: 1.85mm
Angle: T2M-D
Material: PC
Transmittance: >93%
LED Type: 3030LED
Lighting Applications:
1. ALST50D24LEDT2M-B, T2M-C,T2M-D, T2M-E were of the same series
2. It’s not a strict 4X6 arrangement. It is an upgraded version.
3. Although this series is a Type II medium beam Angle, but the light distribution is still slightly different to meet the needs of different customers.

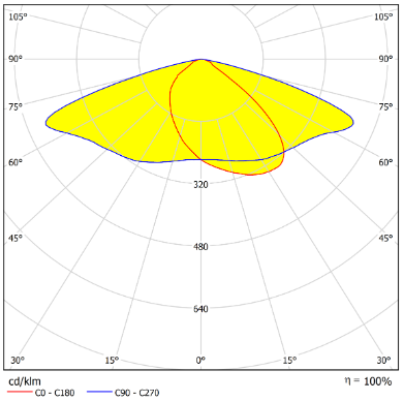

Distribution
Specifications
| Model: | ALST50D24LEDT2M-D |
| Diameter: | 50x50mm |
| Height: | 1.85mm |
| Angle: | T2M-D |
| Material： | PC |
| Transmittance： | >93% |
| LED Applications | 3030LED |
| Lighting applications | Street lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

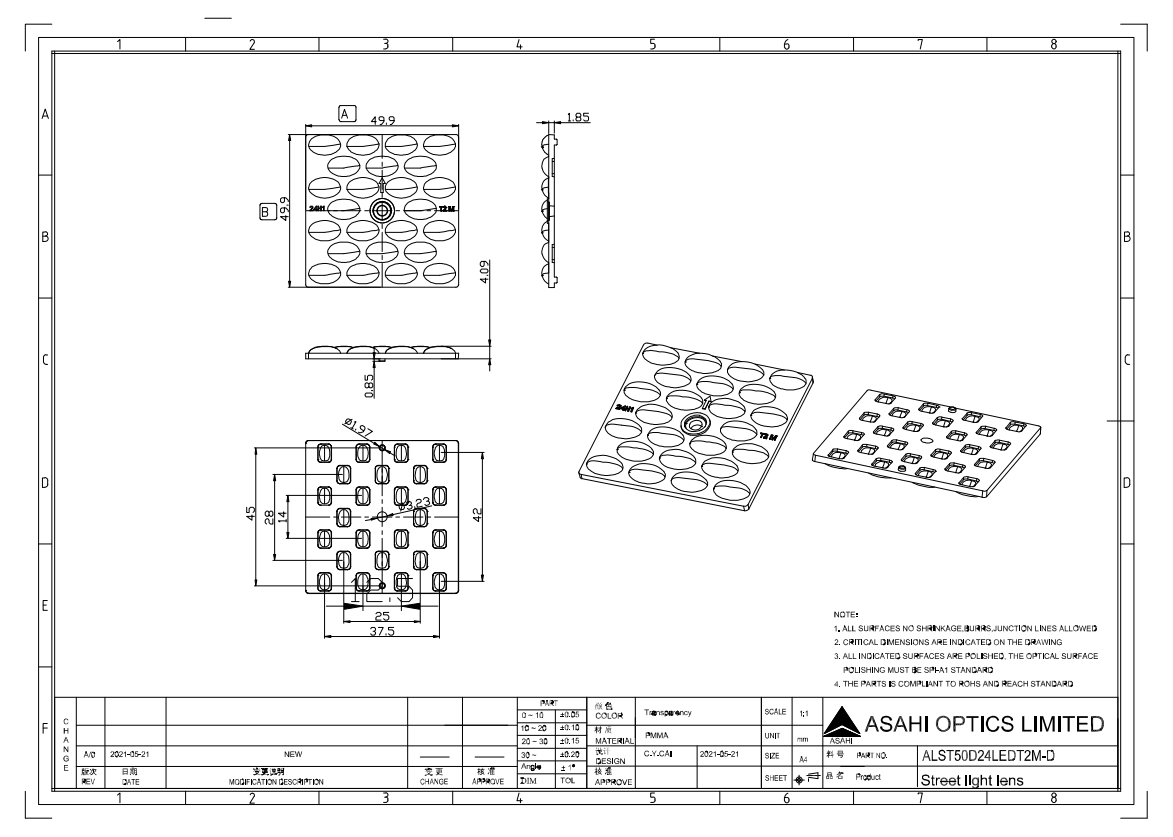

ASAHI OPTICS ALST50D24LEDT2M-D lens 3D Drawing.stp
ASAHI OPTICS ALST50D24LEDT2M-D Drawing.dwg
ASAHI OPTICS ALST50D24LEDT2M-D Drawing.pdf
ASAHI OPTICS ALST50D24LEDT2M-D lens IES.ies
ASAHI OPTICS ALST50D24LEDT2M-D 2835LED lens IES.ies
