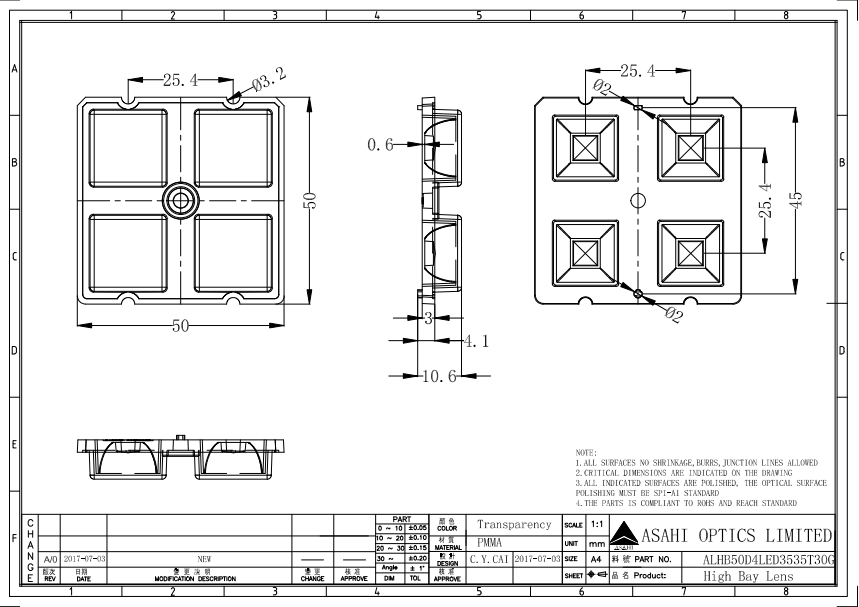

Model: ALHB50D4LED3535T30G
Diameter: 50x50mm
Height: 7.95mm
Angle: 30°
Material: PMMA
Transmittance: >93%
LED Type: 3535LED

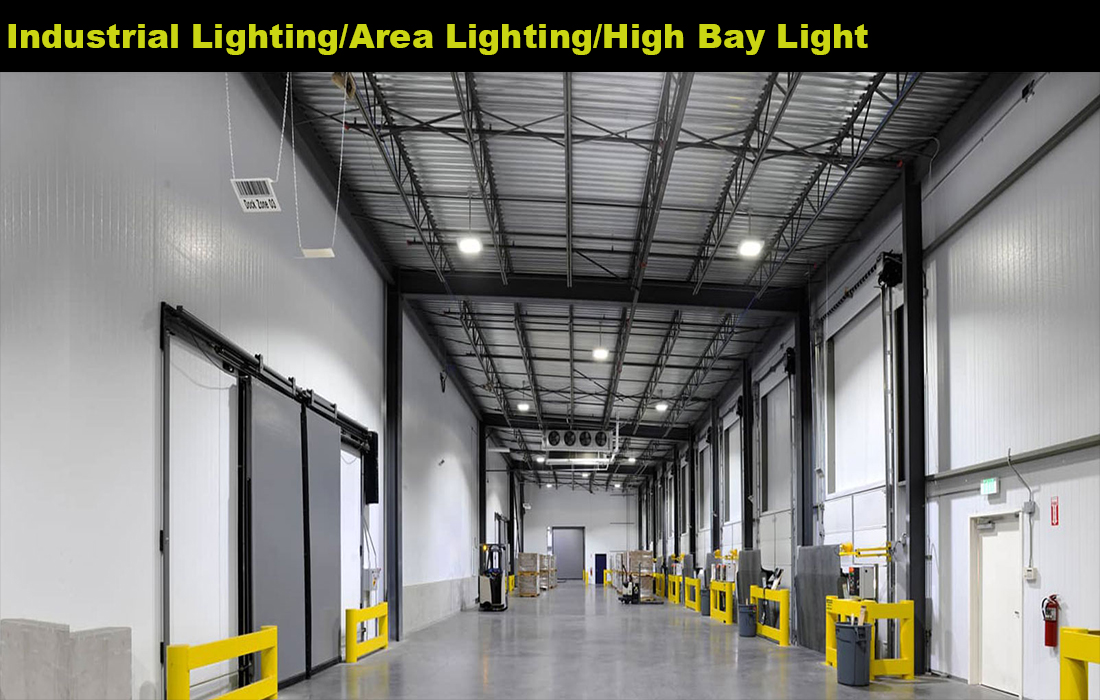

Lighting Applications: High Bay Lighting
1. The 2x2 lens with a 30° small beam angle, designed for use with 3535 LEDs.
2. It's made of PMMA material with high light transmittance.
3. Offering a versatile, energy-efficient, and cost-effective solution across flood lighting, high bay lighting, and stadium lighting applications.

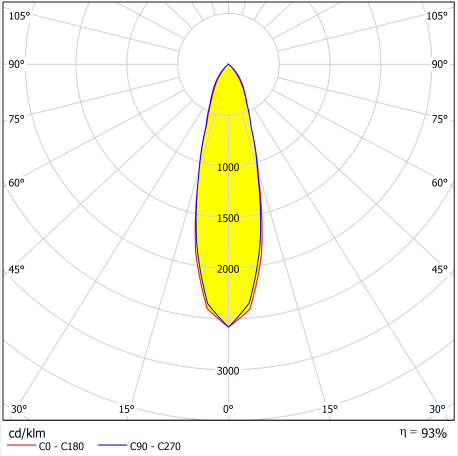

Distribution
Specifications
| Model: | ALHB50D4LED3535T30G |
| Diameter: | 50x50mm |
| Height: | 7.95mm |
| Angle: | 30° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Type | 3535LED |
| Lighting applications | High Bay Lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 2x2 lens with a 30° small beam angle, designed for use with 3535 LEDs. 2. It's made of PMMA material with high light transmittance. 3. Offering a versatile, energy-efficient, and cost-effective solution across flood lighting, high bay lighting, and stadium lighting applications.
