Model: ALST173D24LED5050T2M-cutoff
Size: 173x71.5(mm)
Height: 9.3mm
Angle: T2M-cutoff
Material: PMMA, PC
Transmittance: >93%
LED Type: 5050LED
Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. 3x8 IP lens, 24 LEDs, same dimensions as the 2x6 lens, 173mm x 71.4mm.
2. Uses Philips 5050 LED chips for light distribution testing, and is compatible with, for example, 2 x 2835/2 x 3030, 3 x 2835/3 x 3030, and 4 x 2835/4 x 3030 LEDs.
3. Features an IP66 high protection rating. The IP66 rating ensures excellent water and dust resistance, making this lens suitable for outdoor street lighting in various weather conditions.

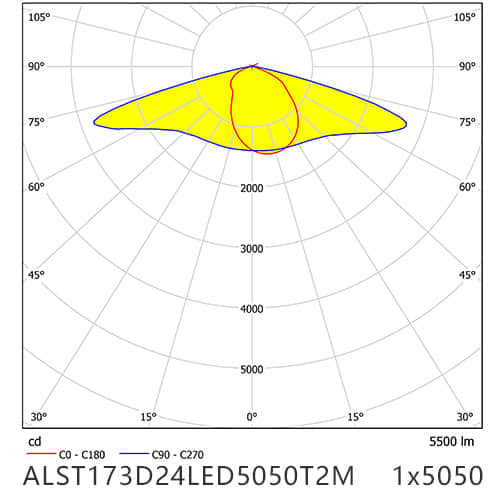

Distribution
Specifications
| Model: | ALST173D24LED5050T2M-cutoff |
| Size: | 173x71.5(mm) |
| Height: | 9.3mm |
| Angle: | T2M-cutoff |
| Material： | PMMA, PC |
| Transmittance： | >93% |
| LED Applications | 5050LED |
| Lighting applications | Street lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ALST173D24LED5050T2M-cutoff Philips5050LED.ies
ALST173D24LED5050T2M-cutoff Lumileds5050LED.ies
ALST173D24LED5050T2M-cutoff Lumileds5050LED.pdf
ASAHI OPTICS ALST173D24LED5050T2M-cutoff Drawing.dwg
ASAHI OPTICS ALST173D24LED5050T2M-cutoff Drawing.pdf
ALST173D24LED5050T2M-cutoff Datasheet.pdf
