Model: AJHB265D234T90G
Diameter: 265mm
Height: 9.58mm
Angle: 90°
Material: PC
Transmittance: >88%
LED Type: 2835/ 3030LED
Lighting Applications: High bay light

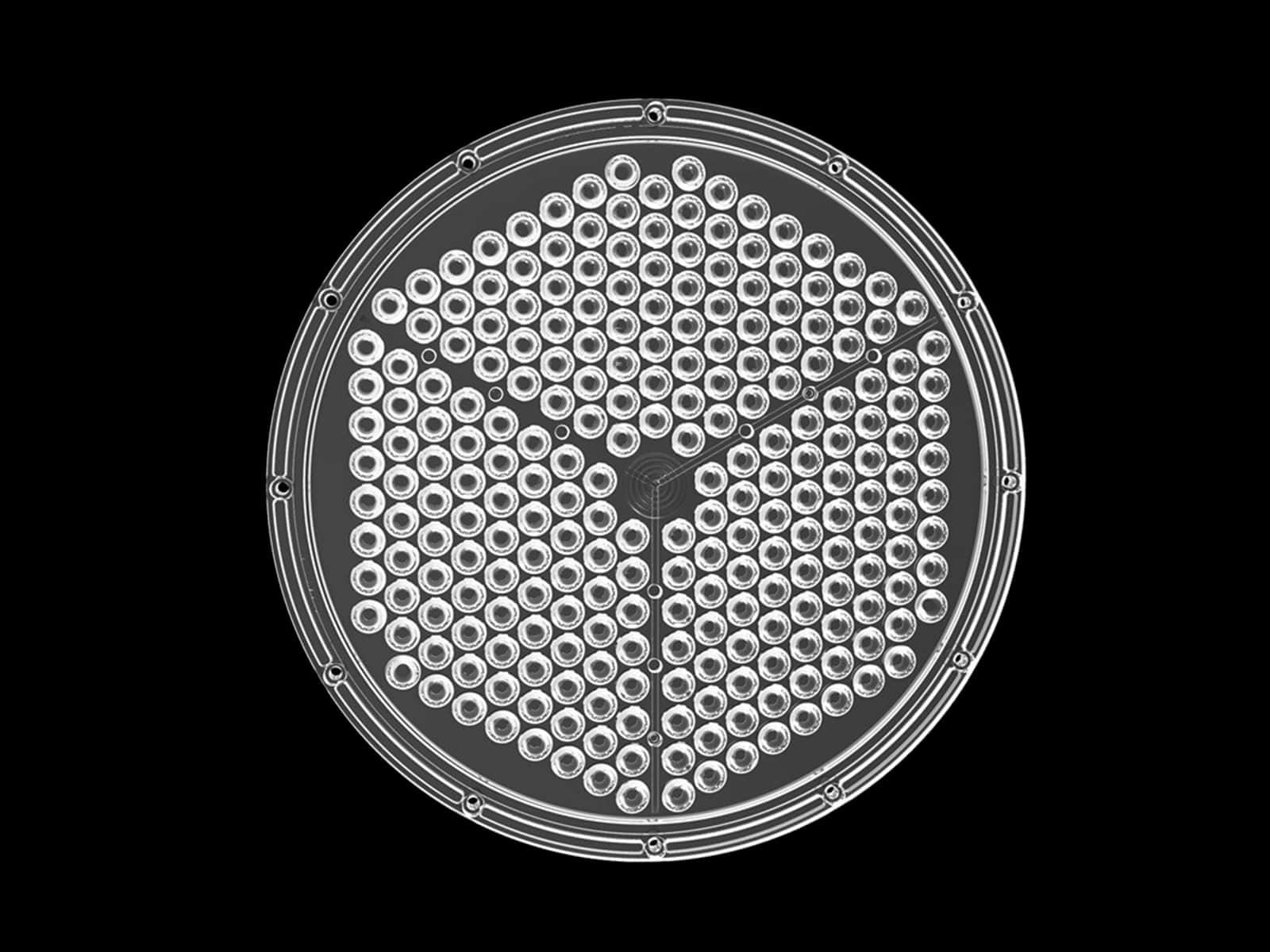

1. The 234-in-1 90° Industrial lighting Lens is a high-efficiency optical lens designed for robust lighting solutions in industrial and outdoor environments.
2. Featuring a 234-chip integrated LED array, this lens delivers uniform illumination with a wide 90-degree beam angle, ensuring optimal light distribution for large-area applications.
Distribution
Specifications
| Model: | AJHB265D234T90G |
| Diameter: | 265mm |
| Height: | 9.58mm |
| Angle: | 90° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | High bay light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 234-in-1 90° Industrial lighting Lens is a high-efficiency optical lens designed for robust lighting solutions in industrial and outdoor environments.
2. Featuring a 234-chip integrated LED array, this lens delivers uniform illumination with a wide 90-degree beam angle, ensuring optimal light distribution for large-area applications.
AJHB265D234T90G 2D Drawing.dwg
AJHB265D234T90G 2D Drawing.pdf
AJHB265D234T90G-PCB 2D Drawing.dwg
