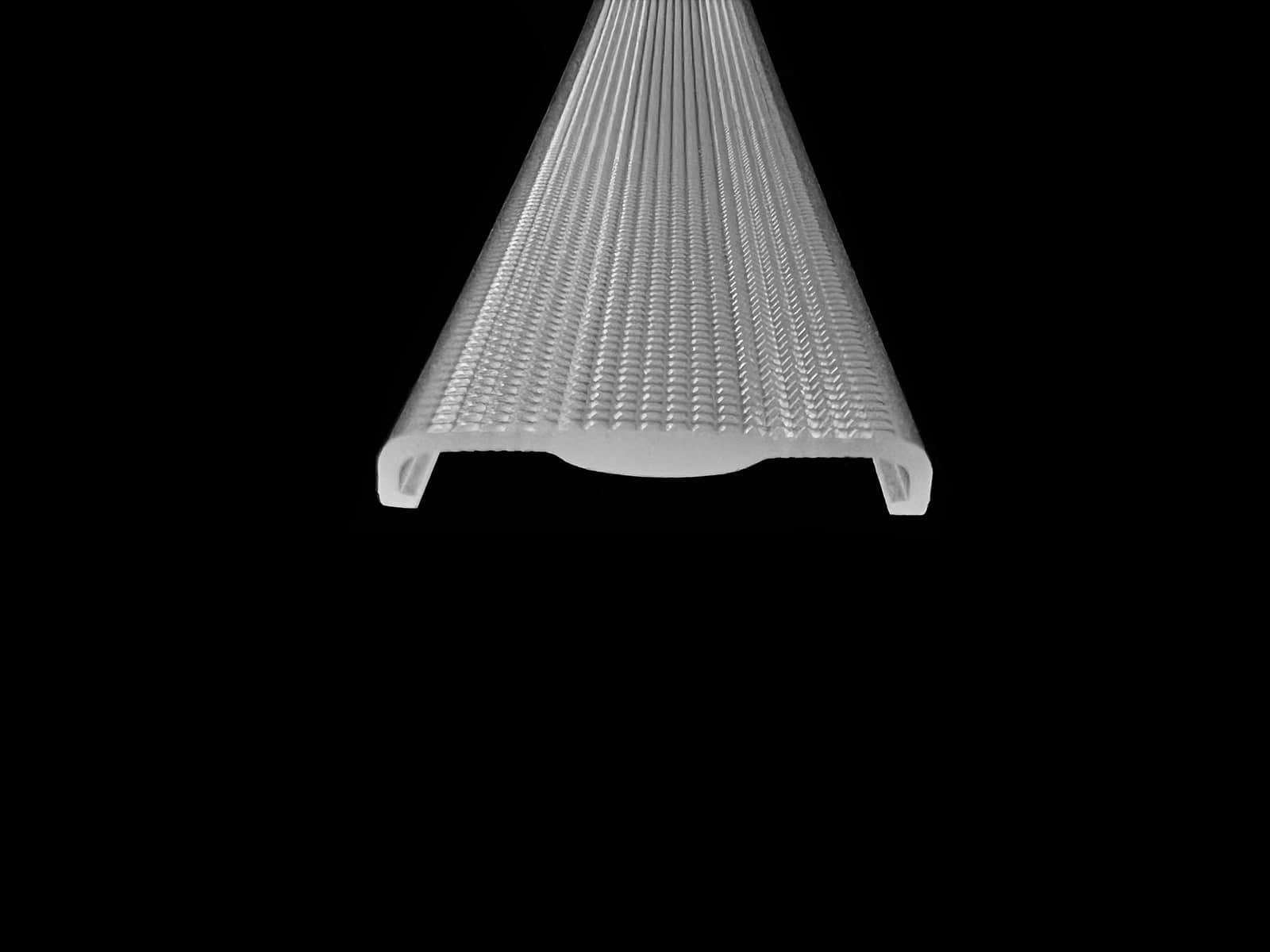

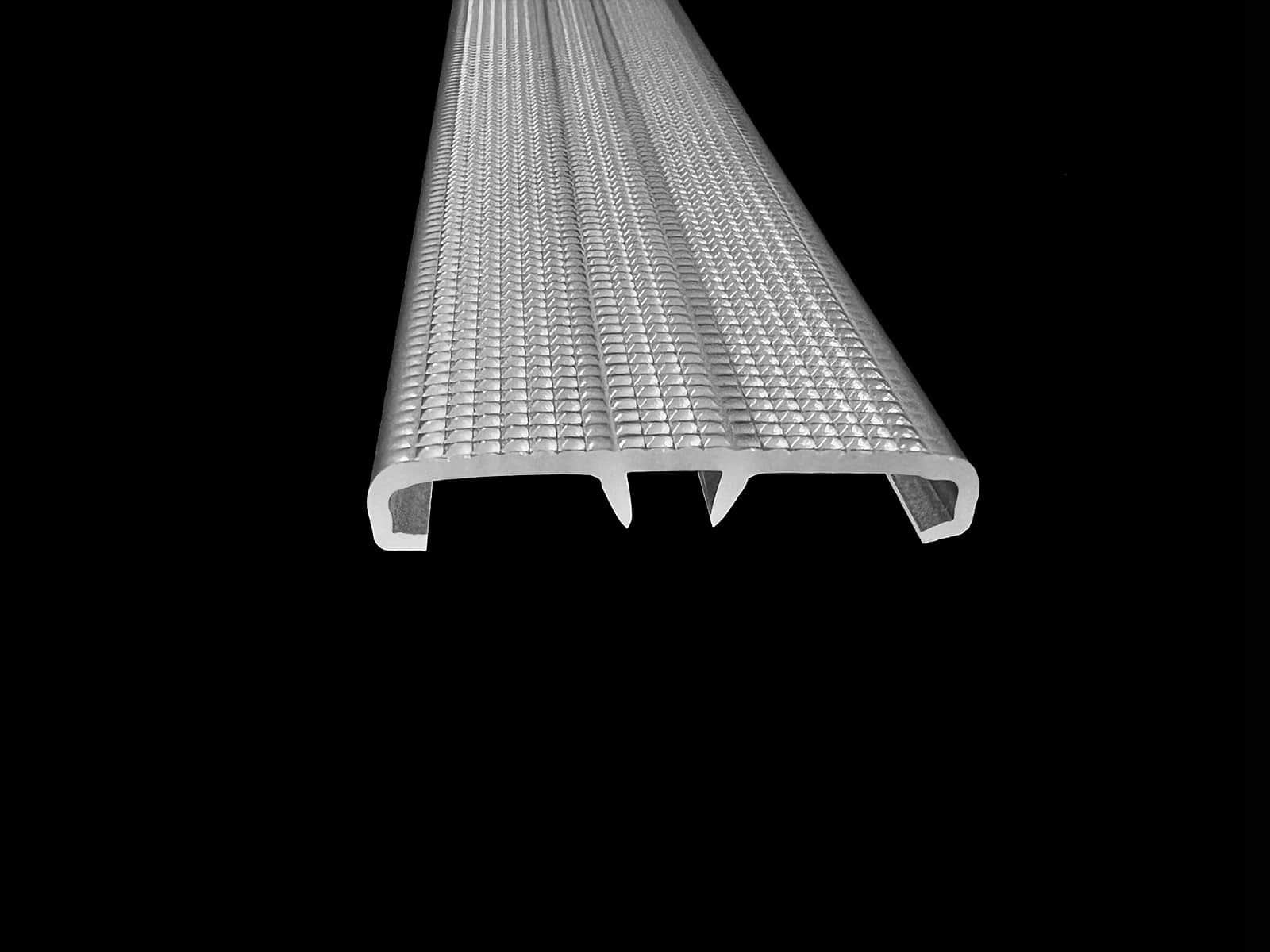

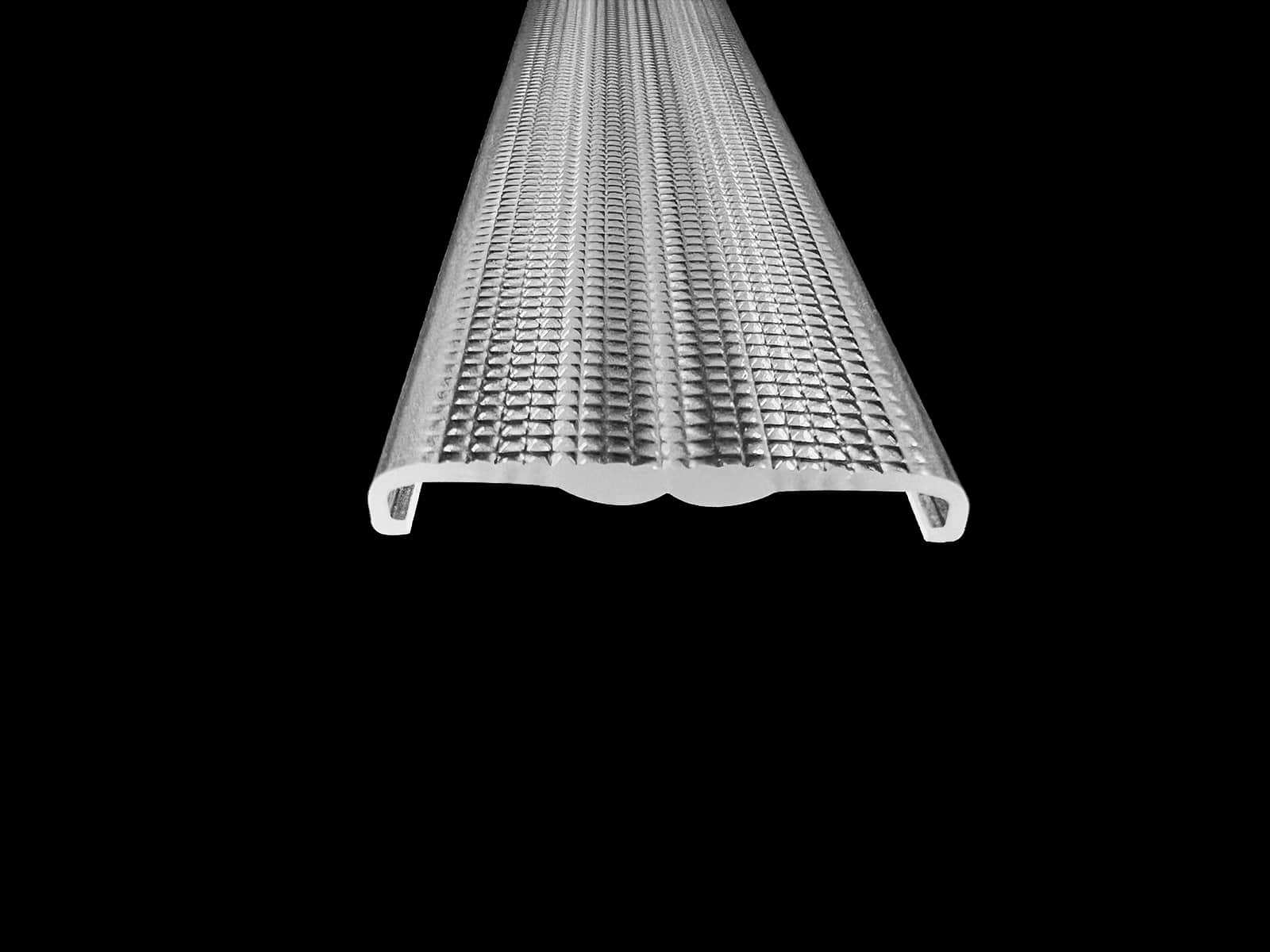

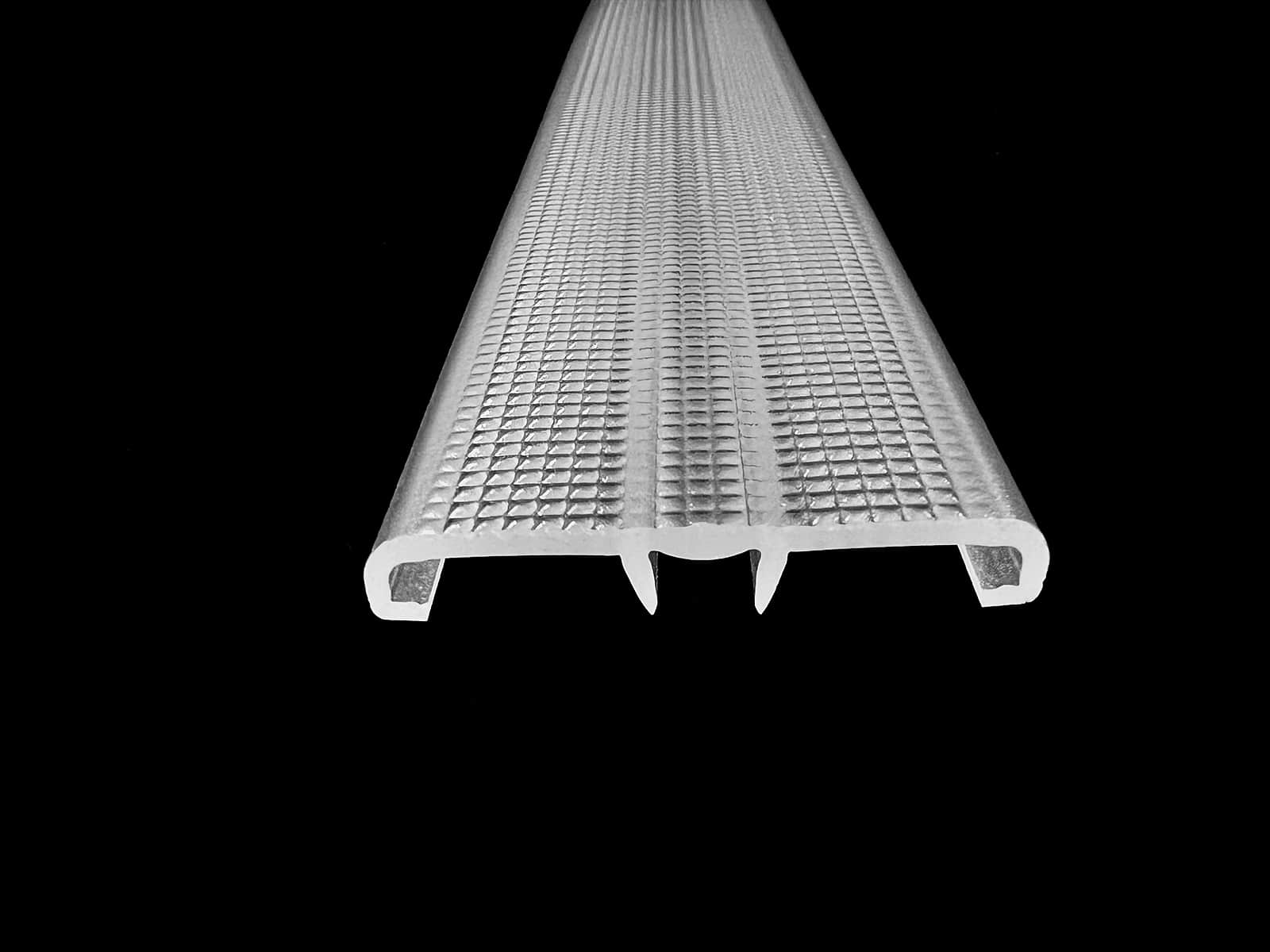

ASXX40H Series Extruded Linear Lens

Model: ASXX40H Series

Size: 40mm Width

Height: -

Angle: ~40x86°,~60x100°,~80x100°,DA30°

Material: 6063 T5 Aluminum + PMMA lens + Plastic Endcap

Transmittance: >90%; UGR<19

LED Type: 2835/3030/3535LED

Lighting Applications: Linear Lighting, Reatail ,corridor and shelf lighting

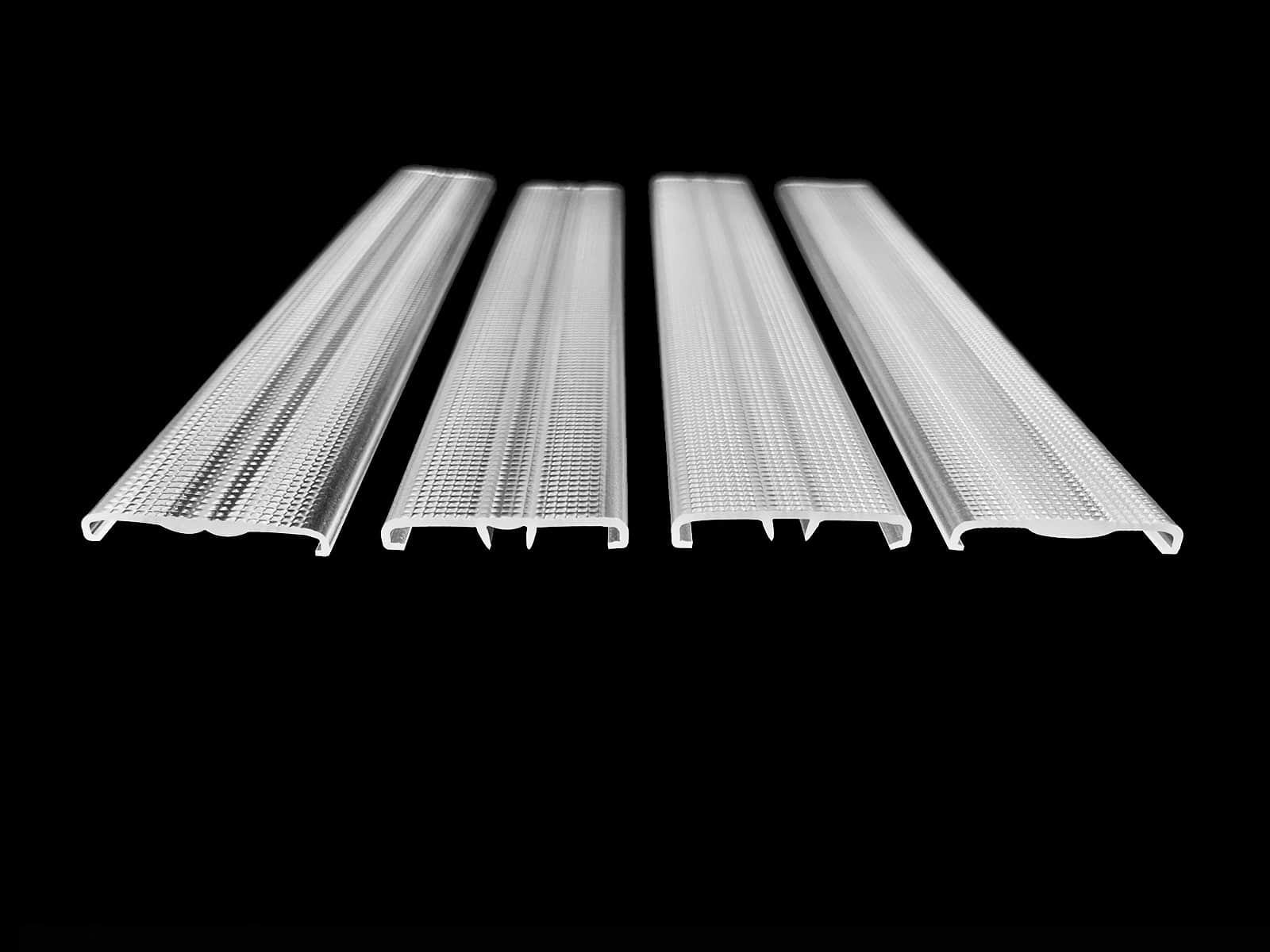

1. This extrusion series linear light features a 6063 T5 aluminum housing paired with a PMMA high-transmittance cover. It supports SMD2835/3030/3535 LED chips and offers customizable color temperatures from 2700K to 6500K. With a UGR value below 19, the light output is soft and uniform.

2. The ultra-slim design measures just W40×H45mm, with an anodized or customizable black/white surface finish. A single row of medium-power LEDs delivers high luminous flux and smooth light distribution, while the screwless end caps contribute to a clean, minimalist appearance.

3. The combination of a high-transmittance PMMA cover and high-quality aluminum ensures seamless light transition, creating a comfortable visual environment. Both surface finish and color temperature can be customized to seamlessly integrate into a variety of design aesthetics.

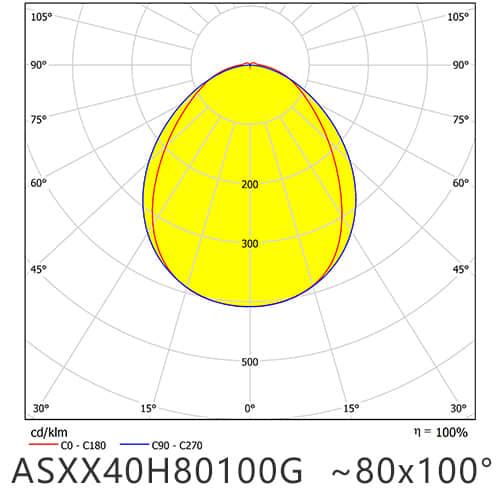

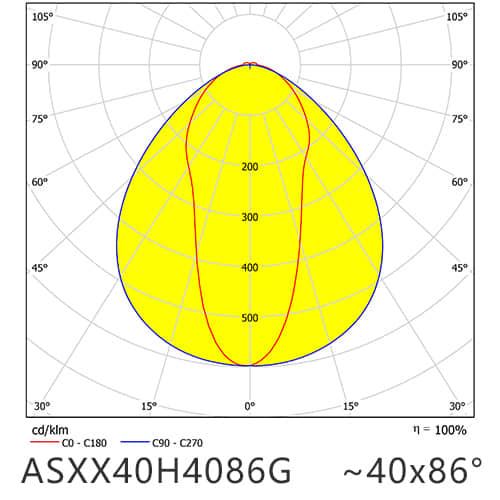

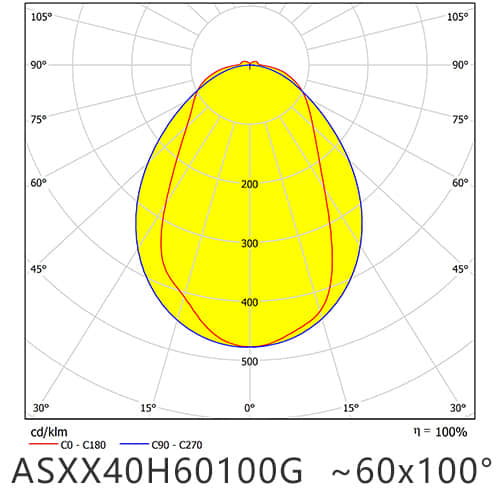

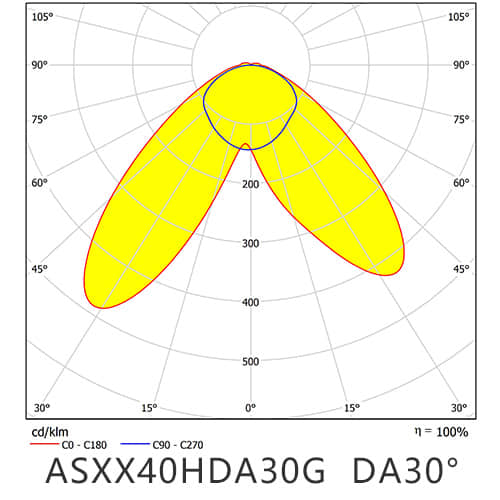

Distribution

Specifications

Model:	ASXX40H Series
Size:	40mm Width
Height:	-
Angle:	~40x86°,~60x100°,~80x100°,DA30°
Material：	6063 T5 Aluminum + PMMA lens + Plastic Endcap
Transmittance：	>90%; UGR<19
LED Applications	2835/3030/3535LED
Lighting applications	Linear Lighting, Reatail ,corridor and shelf lighting
