Model: UFO263D60G,90G-150W-B26
Diameter: 263mm
Height: 10.3mm
Angle: 60°,90°
Material: PC-1250Z TEIJIN
Transmittance: >88%
LED Type: 2835/ 3030LED

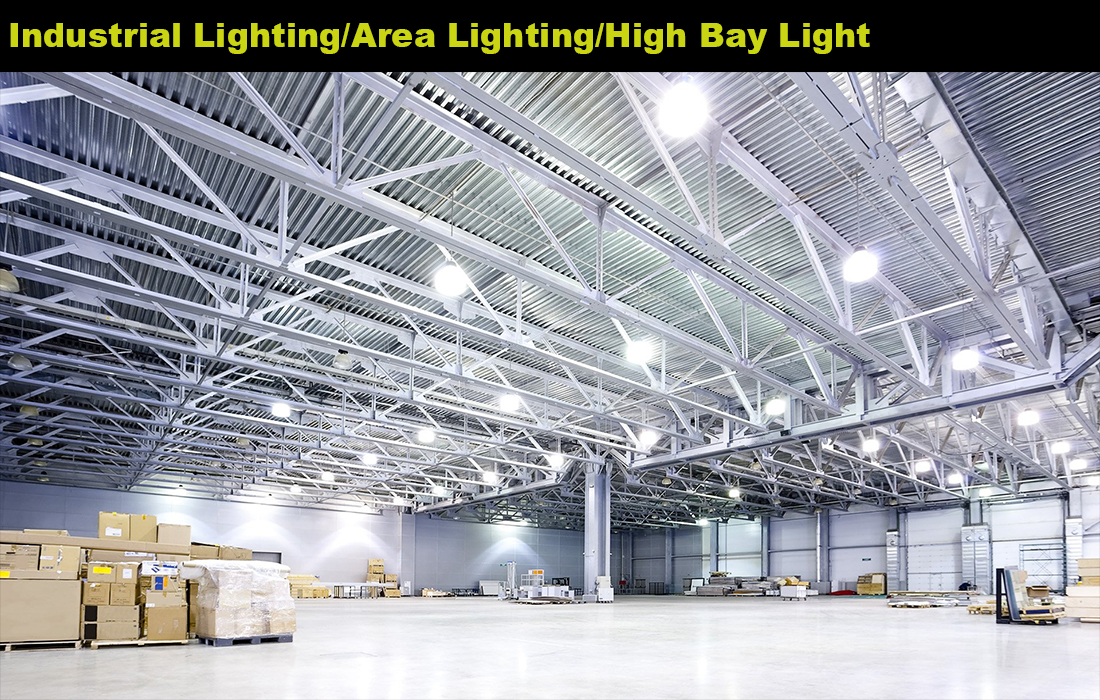

Lighting Applications: High Bay Lighting, Area Lighting
1.An anti-glare UFO lens with a 60° ，90°beam angle is designed to provide focused illumination while reducing glare.
2.It can be suitable for applications where more precise lighting control is desired, such as in warehouses, manufacturing facilities, or large retail spaces.
3.UFO lenses usually have better light control capabilities, which can more accurately control the distribution and direction of light. This helps to achieve uniform and shadow -free lighting effects, and ensure that the entire lighting area is appropriately lighting.

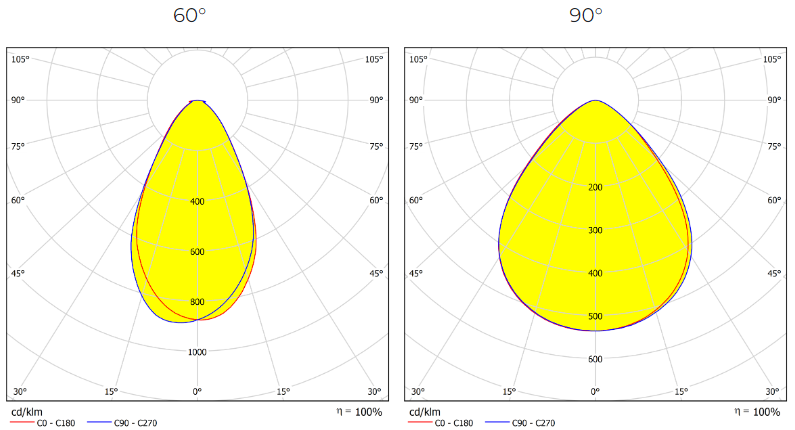

Distribution
Specifications
| Model: | UFO263D60G,90G-150W-B26 |
| Diameter: | 263mm |
| Height: | 10.3mm |
| Angle: | 60°,90° |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | warehouses lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS UFO263D60G,90G-150W-B26 lens 3D drawing.STP

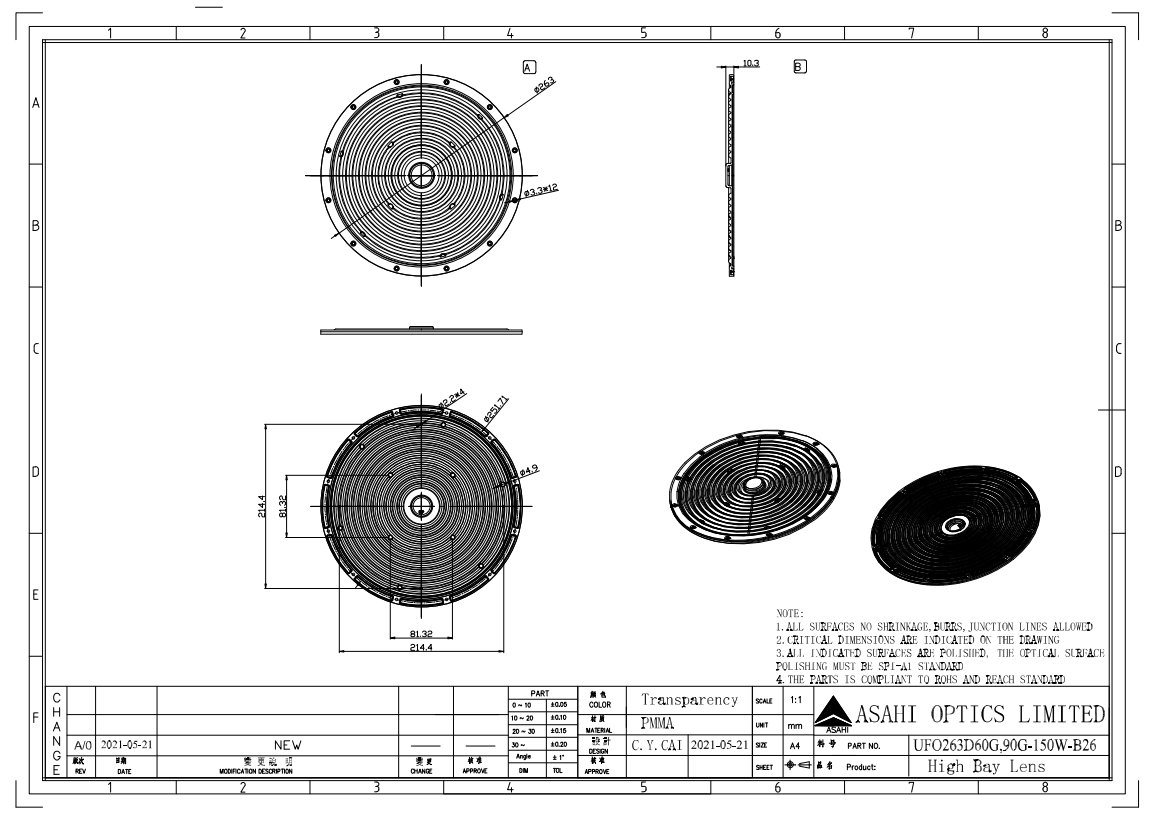

ASAHI OPTICS UFO263D60G,90G-150W-B26 Drawing.dwg
ASAHI OPTICS UFO263D60G,90G-150W-B26 Drawing.pdf
ASAHI OPTICS UFO263D60G-150W-B26 lens IES.ies
ASAHI OPTICS UFO263D90G-150W-B26 lens IES.ies
