Model: AYS35D25G
Diameter: 35.0
Height: 16.35
Angle: 25°
Material: PMMA
Transmittance: 90%
LED Type: CREE XML
Lighting Applications: PAR lighting,Spot Light,Down Light
1, 35mm Optical Lens design For PAR Lighting 25 Degree
2, The par lighting lens helps to gather and direct the light emitted by the LEDs, maximizing the efficiency and output of the fixture.
3, The optics in LED PAR fixtures are often designed to maximize efficiency and minimize light loss. They are carefully engineered to optimize light output, color mixing, and beam control while reducing glare and unwanted spill light.

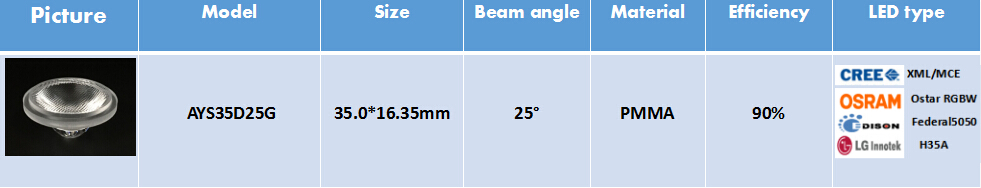

Specifications
| Model: | AYS35D25G |
| Diameter: | 35.0mm |
| Height: | 16.35mm |
| Angle: | 25° |
| Material： | PMMA |
| Transmittance： | >90% |
| LED Applications | CREE XML |
| Lighting applications | PAR lighting,Spot Light，Down Light |
Light Distribution Curve
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
