  3. ALHB321D66LED90GIP

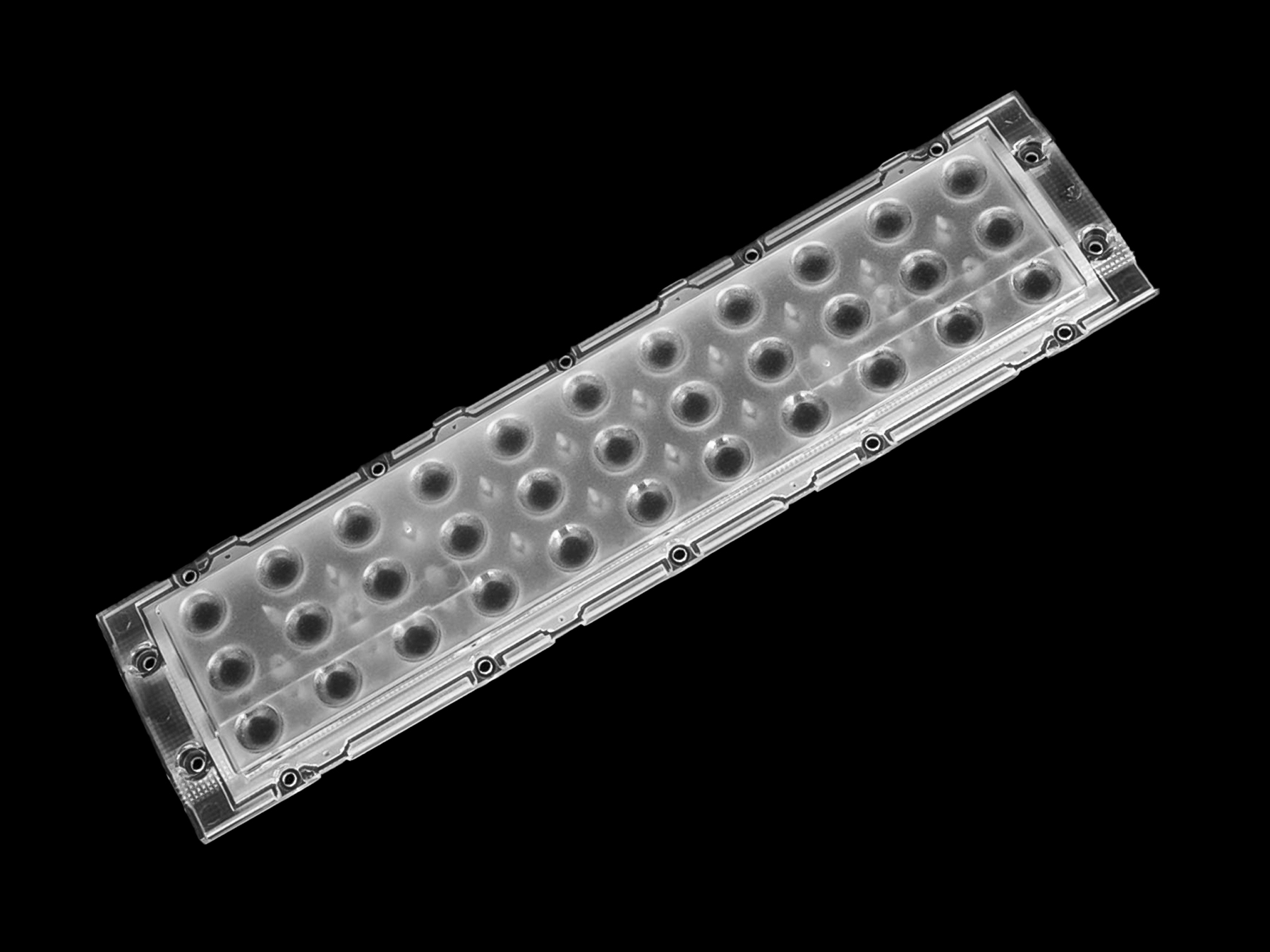

11x3 lens array 90° with IP66 protection and for IK08 test
11x3 lens array 90° with IP66 protection and for IK08 test

11x3 lens array 90° with IP66 protection and for IK08 test

Model: ALHB321D66LED90GIP

Diameter: 321mm

Height: 79mm

Angle: 90°

Material: PC-1250Z

Transmittance: >90%

LED Type: 3535/ 5630/ 5050LED

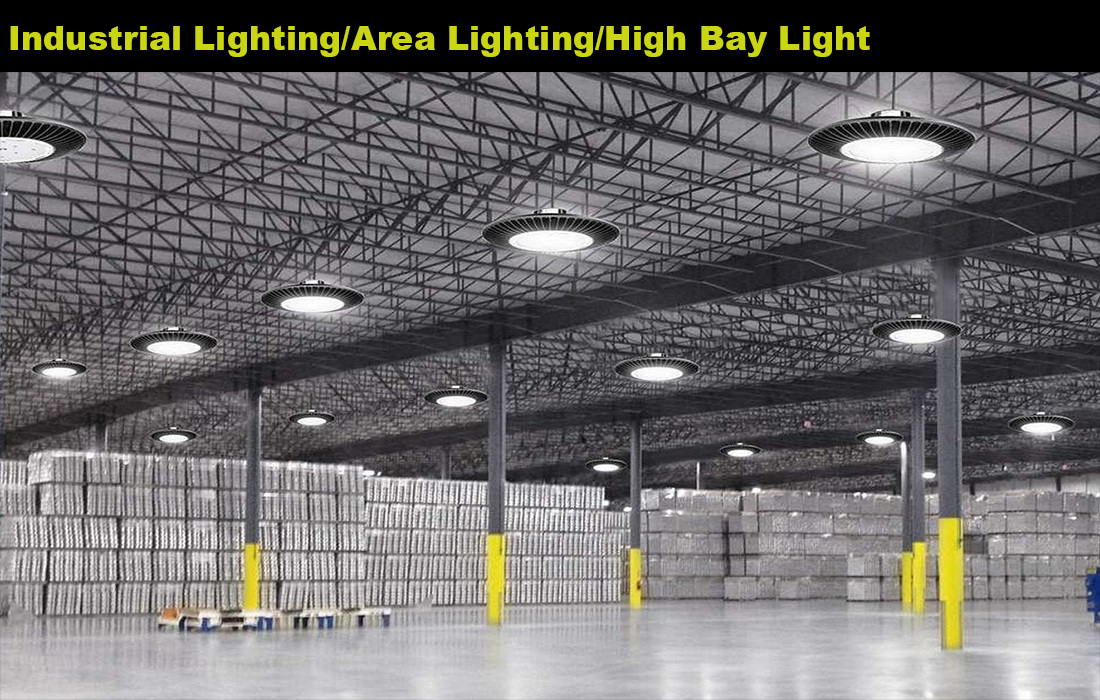

Lighting Applications: High Bay lighting, Linear Lighting

1. The 3X11 lens array is designed for Mid Power LEDs which is compatible with “3030”''5050''and“5630”LEDs.

2. With IK08 test zhaga standard, the lens array is highly durable and resistant to damage from vandalism or accidental impacts.

3. With IP66 protection rating,the lens array is fully protected against dust ingress and powerful water jets, making it suitable for outdoor use in harsh environmental conditions.



Distribution

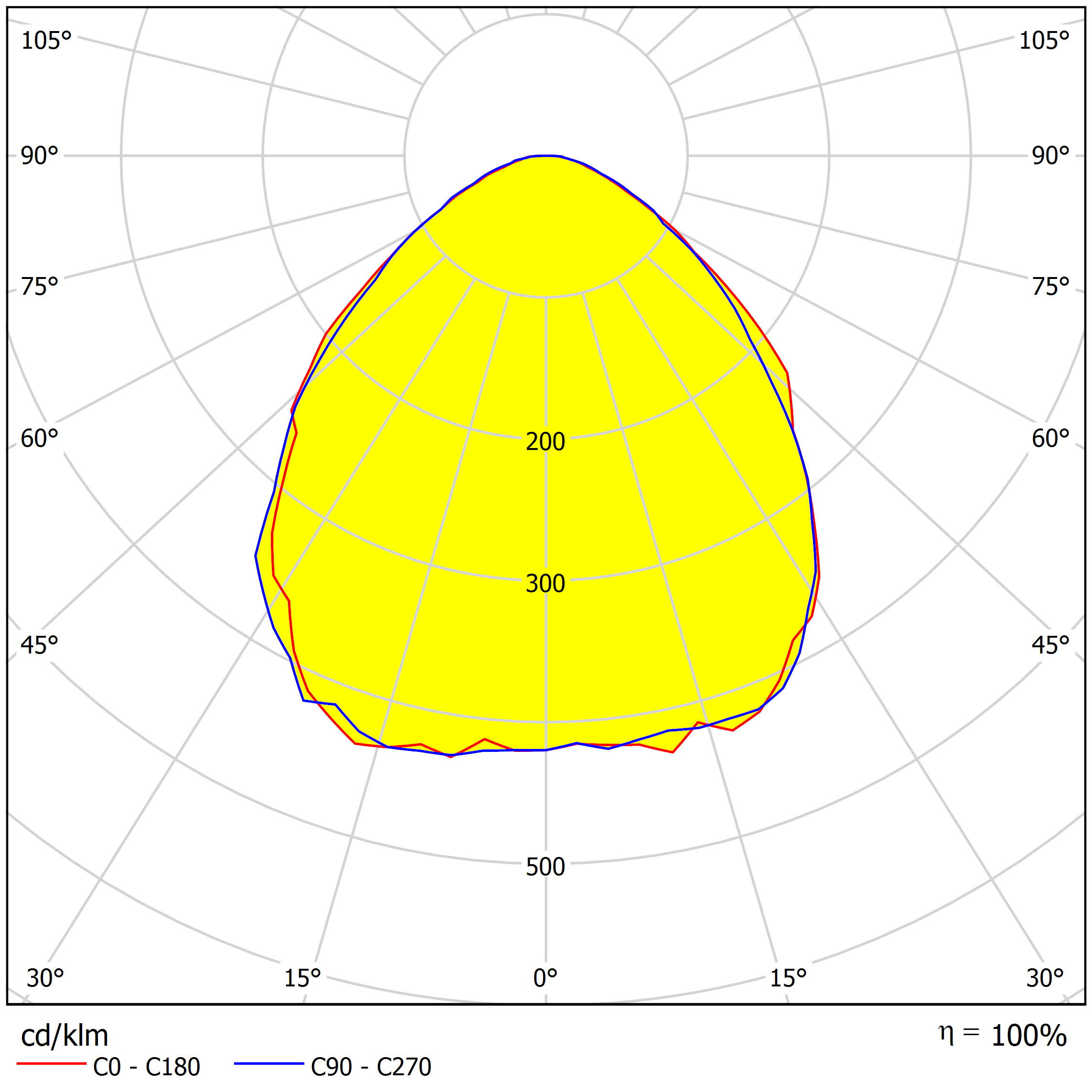

11x3 lens array 90° with IP66 protection and for IK08 test distribution


Specifications

Model: ALHB321D66LED90GIP
Diameter: 321mm
Height: 79mm
Angle: 90°
Material： PC-1250Z
Transmittance：  >90%
LED Applications 3535/ 5630/ 5050LED
Lighting applications High Bay lighting, Linear Lighting

LED Type

CREE 5050 series cree

JR5005C 6-V E

OSRAM 5050 series osram

DURIS S 8

LUMILEDS 5050 series lumileds

LUXEON 5050 Square

Nichia 5050 series nichia

NVAW144AR

NVAW144AM

EVERLIGHT 5050 series everlight_logo

Xl5050LED

HONGLI 5050 Series honglizhihui

EMC5050LED

Packaging

---

Material Information

pmma temperature
pc temperature
pmma rti
pc rti
glove 1
no chemical

  • Lens Material

    L06: PMMA 8N/ L46: PC 1250Z

  • Operating Temperature

    PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C

  • UL Flammability

    PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm

  • UL RTI Elec

    PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]

  • Light Transmission Rate

    400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.





The 3X11 lens array is designed for Mid Power LEDs which is compatible with “3030”''5050''and“5630”LEDs.

For each optical surface, it is not only suitable for a single LED, but also can be matched with two LEDs to get higher lumens.

Instructions as below

30x80° pcb & led type

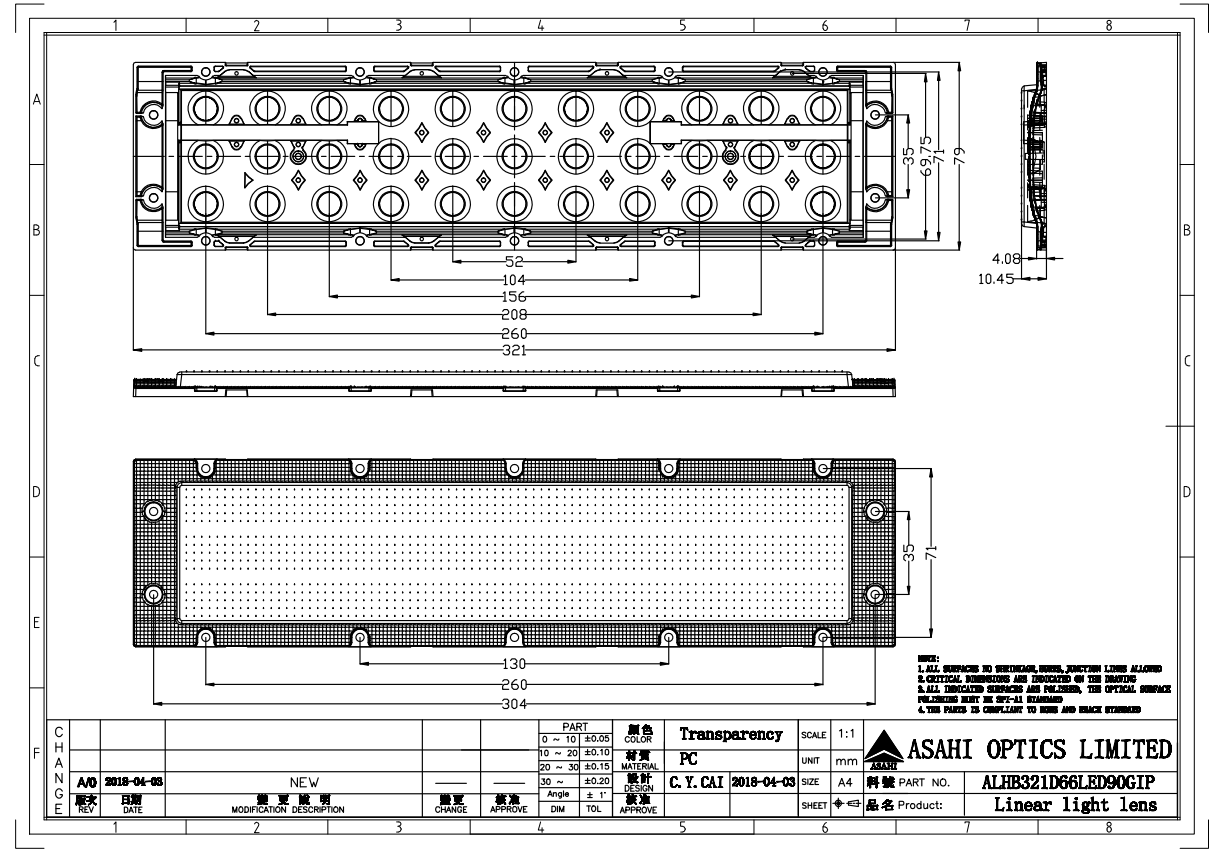

11x3 lens array 90° with IP66 protection and for IK08 test distribution11x3 lens array 90° with IP66 protection and for IK08 test Drawing11x3 lens array 90° with IP66 protection and for IK08 test Application
