Model: AZHB50D8LEDT90G
Diameter: 50x50mm
Height:
Angle: 90°
Material: PMMA
Transmittance: 93%
LED Type: 5050LED
Lighting Applications: High bay lighting
1. Standard 2x4 lens layout designed by 5050LED with high lighting efficiency.
2. Standard 50mm 2x4 lens with beam angle 90° designed for area lighting.

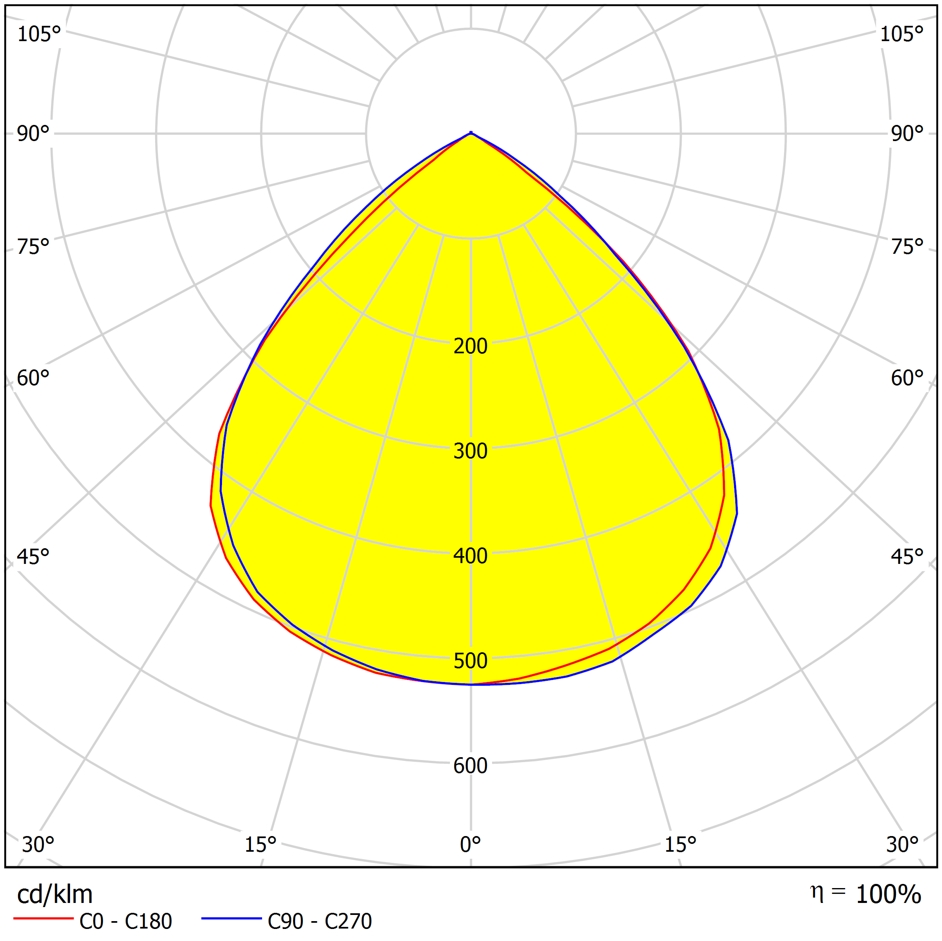

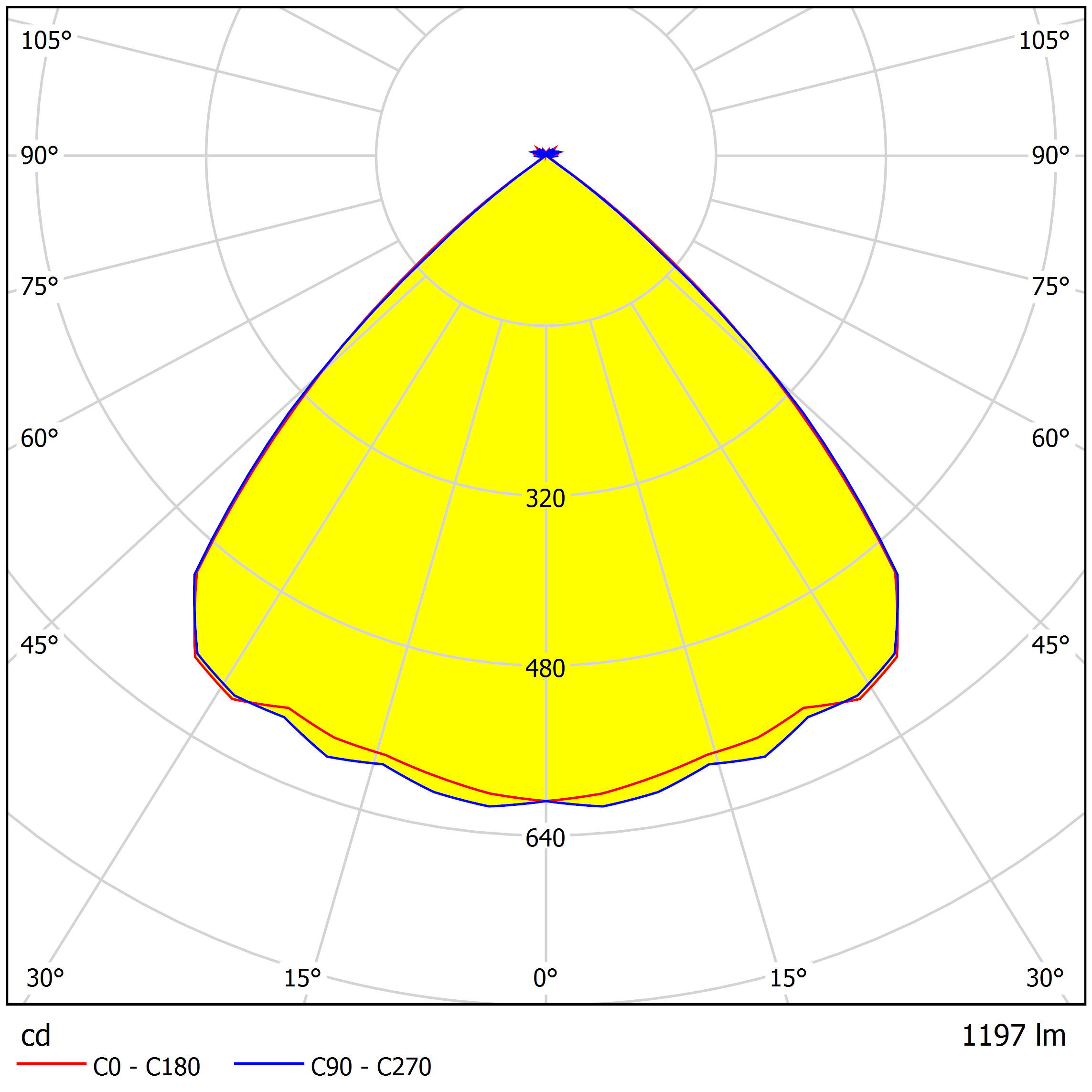

Distribution
Specifications
| Model: | AZHB50D8LEDT90G |
| Diameter: | 50x50mm |
| Height: | |
| Angle: | 90° |
| Material： | PMMA |
| Transmittance： | ＞93% |
| LED Applications | 5050LED |
| Lighting applications | High bay lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The lens array design of 8LEDs with high efficiency is suitable for 5050LED light source, with a 90-degree beam angle.
2. Well-suited for a variety of outdoor floodlighting applications, including sports arenas, architectural facades, and large open spaces.
3. The design of the lens array can provide a larger illumination area and disperse the light evenly in the target area.

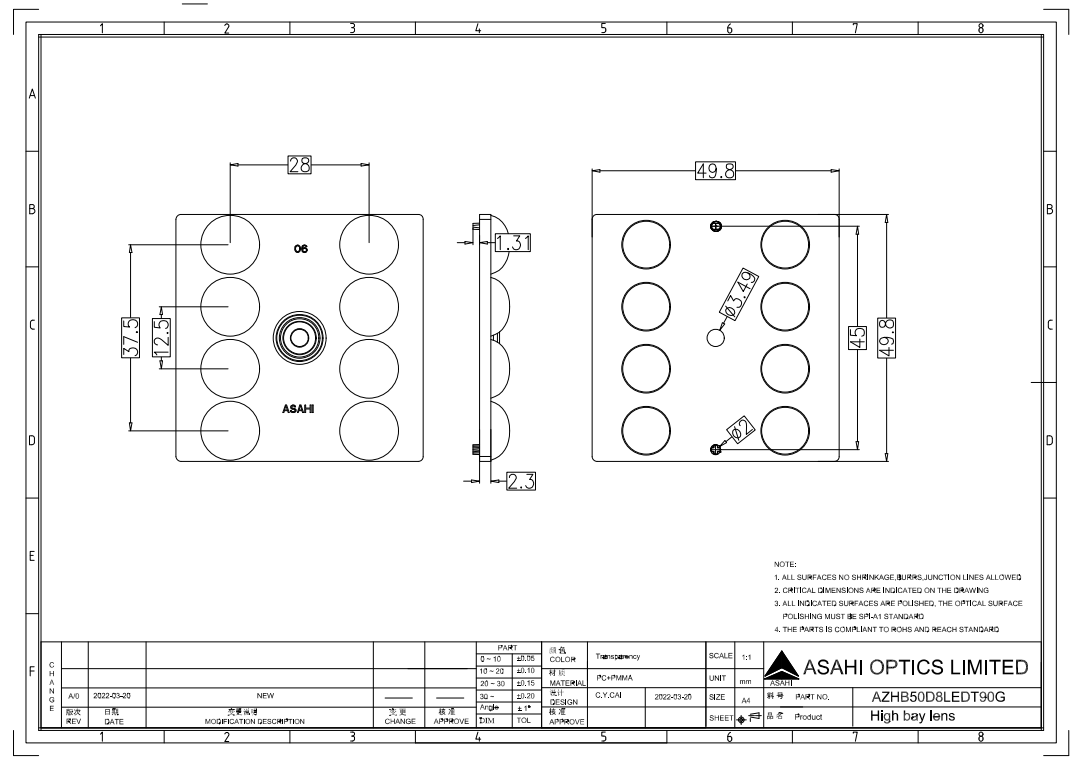

Asahi Optics AZHB50D8LEDT90G Drawing.dwg
Asahi Optics AZHB50D8LEDT90G Drawing.pdf
Asahi Optics AZHB50D8LEDT90G.ies
Asahi Optics AZHB50D8LEDT90G 3Drawing.stp
