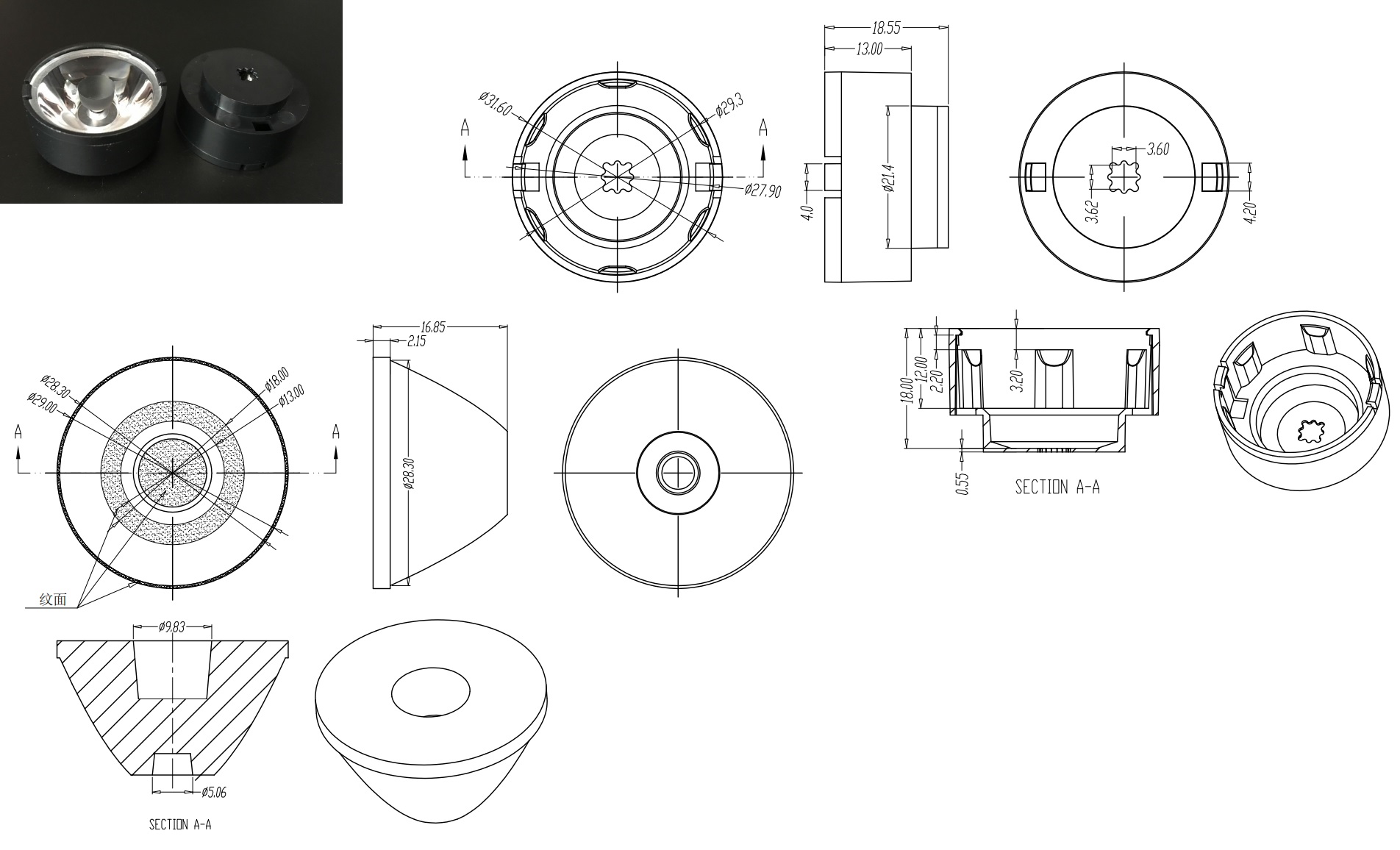

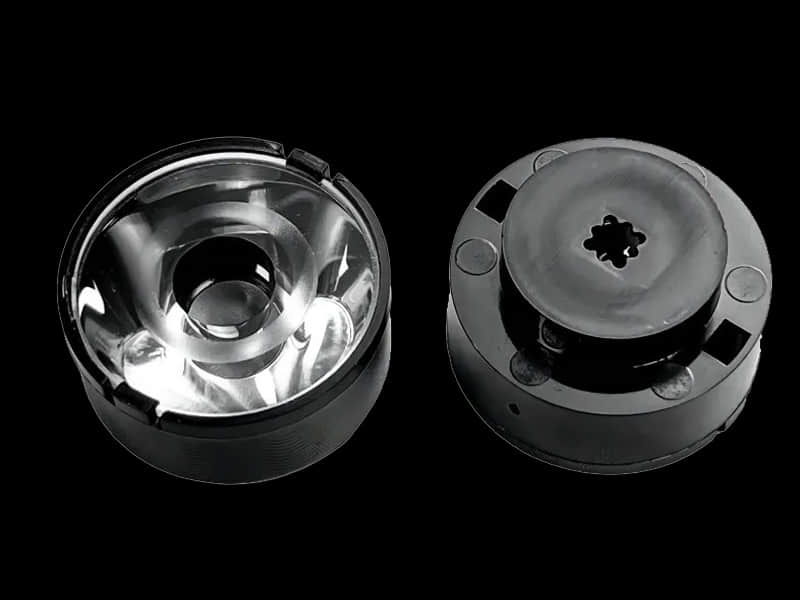

Model: AYS29DH17-5G-HOLDER
Diameter: 29.1mm
Height: 17mm
Angle: 5°
Material: PMMA
Transmittance: 90%
LED Type: 3535/ 5050LED
Lighting Applications: Architecture light, flash light,stage light
1, This LED lens is designed with a tight 5° beam.
2, LED Applications: "3535" "5050" LED standard.
3, Lighting applications: surgery, dental light, torchlight, wall washer light, and other technical lighting requirements

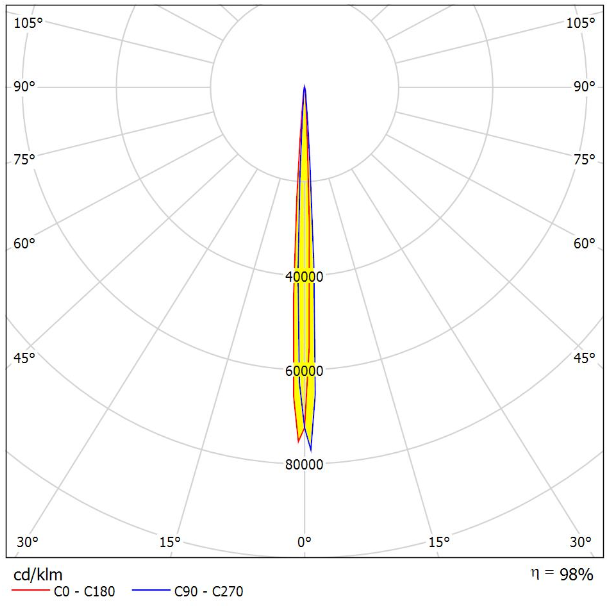

Distribution
Specifications
| Model: | AYS29DH17-5G-HOLDER |
| Diameter: | 29.1mm |
| Height: | 17mm |
| Angle: | 5° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 3535/ 5050LED |
| Lighting applications | Architecture light, flashlight, stage light |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

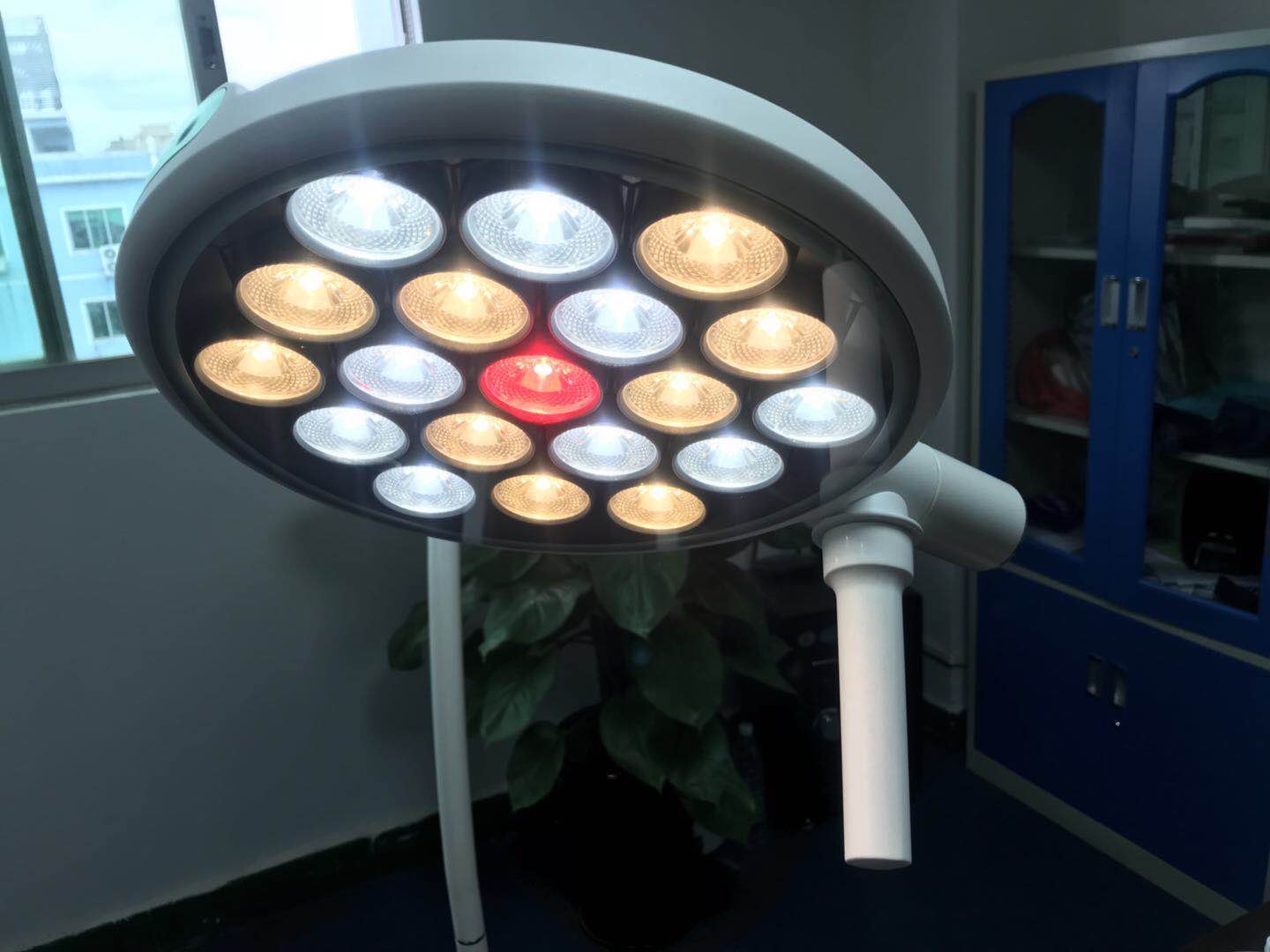

Narrow beam LED lens is designed for surgery, dental light, torch light, wall washer light and other technical lighting requirements with a tight 5° beam.
