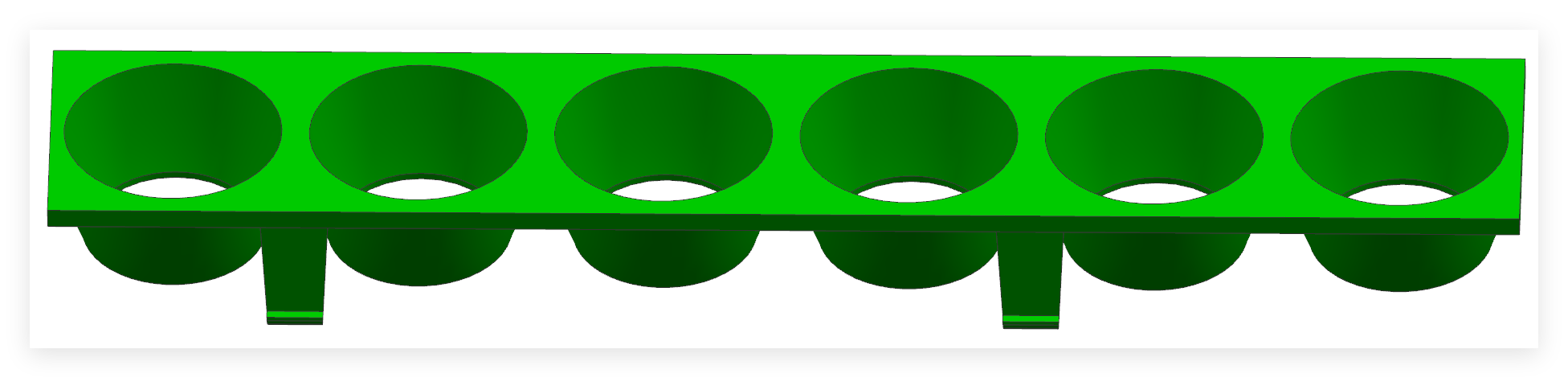

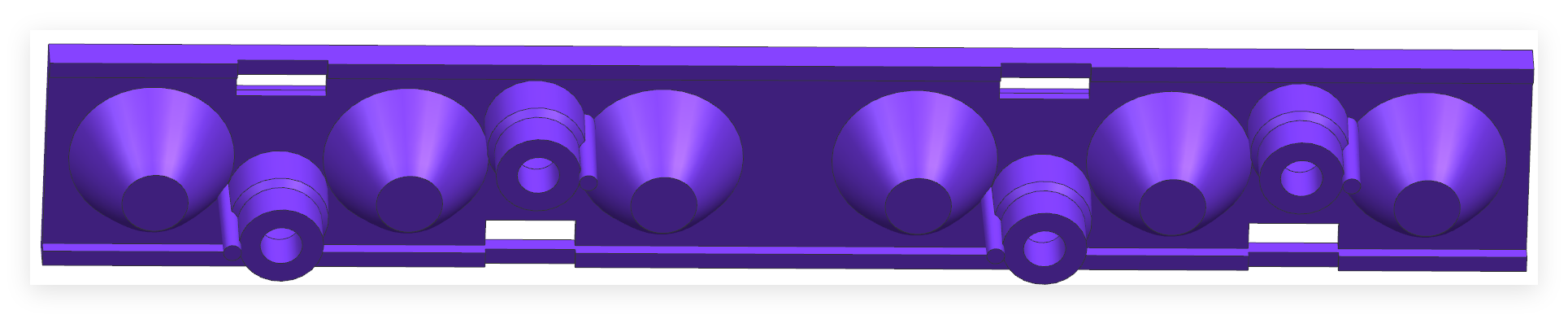

Model: ASM-847
Diameter: 108mm
Height: 19mm
Angle: 24°, 36°
Material: PC/PMMA
Transmittance: 90%
LED Type: 3030/ 3535LED
Lighting Applications: linear light , Magnetic Track Lighting, Indoor lighting

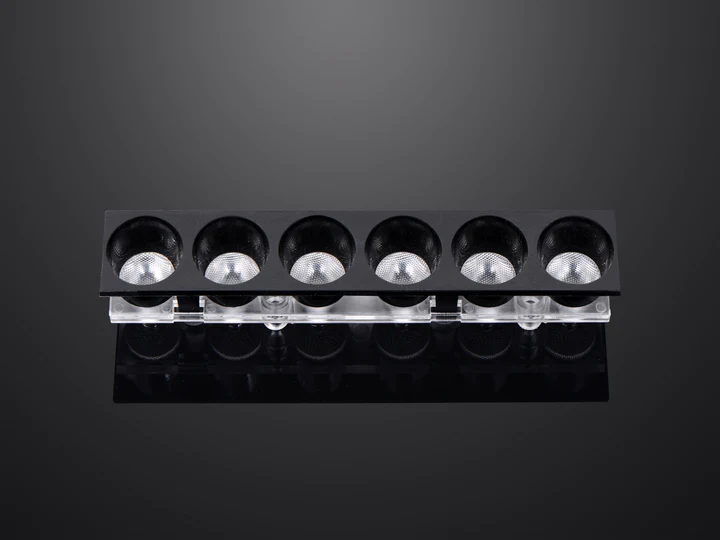

1.This magnetic track light lens, featuring a professional light distribution design with 24°/36° beam angles, has gained popularity in the market.
Distribution
Specifications
| Model: | ASM-847 |
| Diameter: | 108mm |
| Height: | 19mm |
| Angle: | 24°, 36° |
| Material： | PC/PMMA |
| Transmittance： | 90% |
| LED Applications | 3030/ 3535LED |
| Lighting applications | linear light , Magnetic Track Lighting, Indoor lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

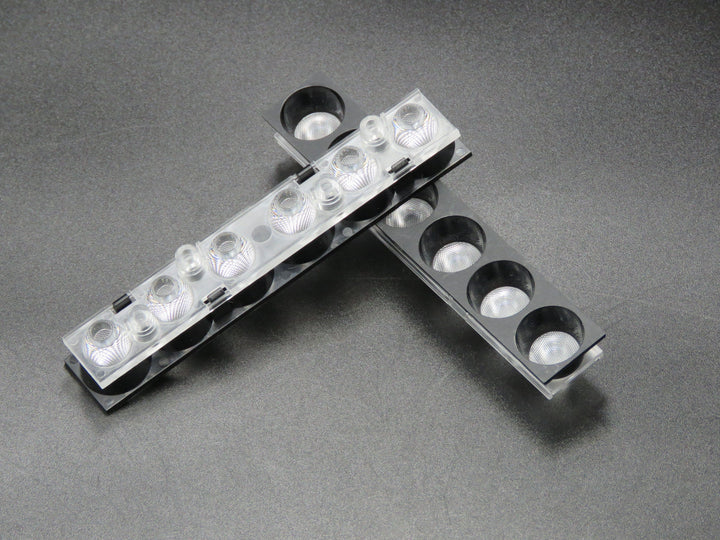

1. This lens is one of our new products, it can be use for magnetic track light with complete dimensions and beam angles.
2. This magnetic track light lens with professional light distribution design, which is populared in the market.
