Model: AHCOB6838D
Diameter: 68mm
Height: 38.5mm
Angle: 24°,38°,60°
Material: PMMA
Transmittance: 90%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light

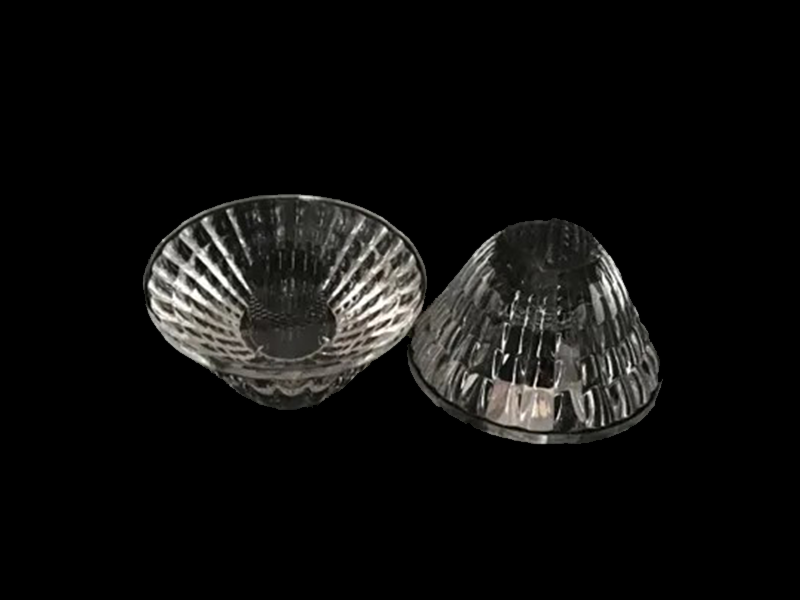

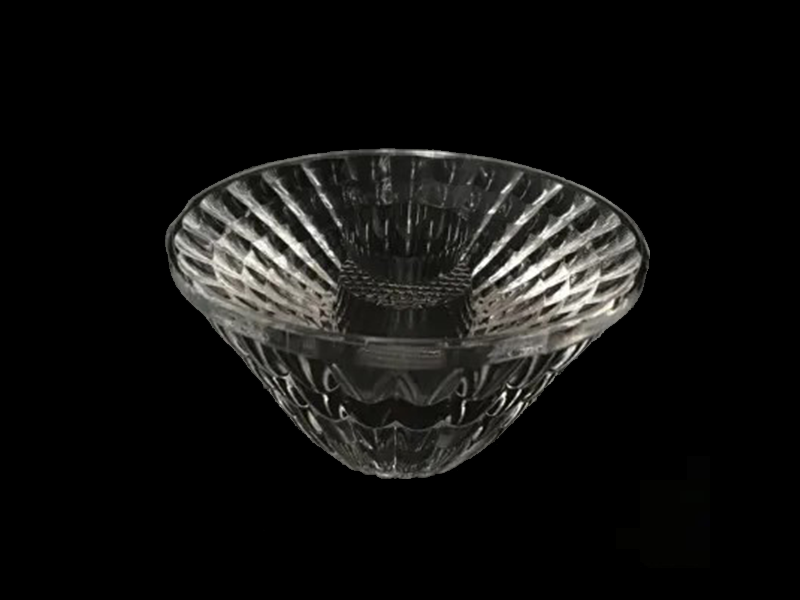

1, 68mm Diameter Lens For COB LED Applications
2, COB lenses can help create a smooth and uniform beam by reducing hotspots or uneven light distribution.
3, COB lenses are used in retail and display lighting to highlight products and create attractive visual displays. The lenses help shape the light beam and ensure uniform illumination of merchandise in showcases, shelves, or other display areas. The controlled lighting provided by COB lenses enhances the appearance of products and draws attention to specific areas.

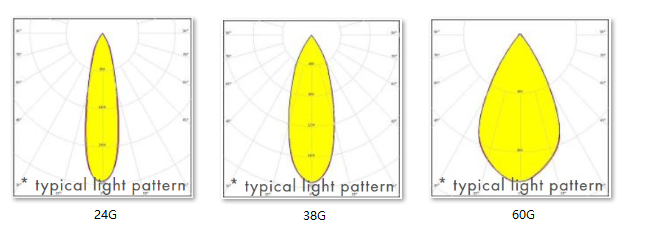

Distribution
Specifications
| Model: | AHCOB6838D |
| Diameter: | 68mm |
| Height: | 38.5mm |
| Angle: | 24°,38°, 60° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |

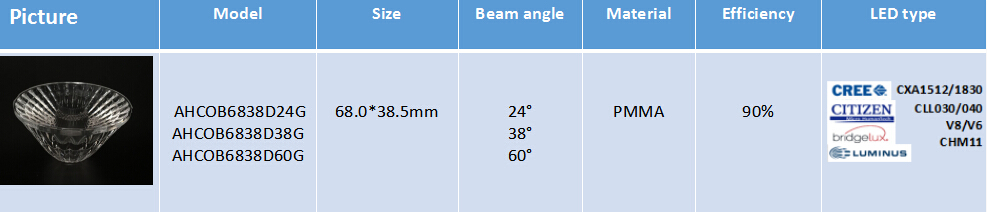

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
