Model: ALST50D12LED3030T3M
Diameter: 50.0mm+50.00mm
Height: 4.02mm
Angle: T3M
Material: PC-1250Z
Transmittance: >90%
LED Type: "3030"LED

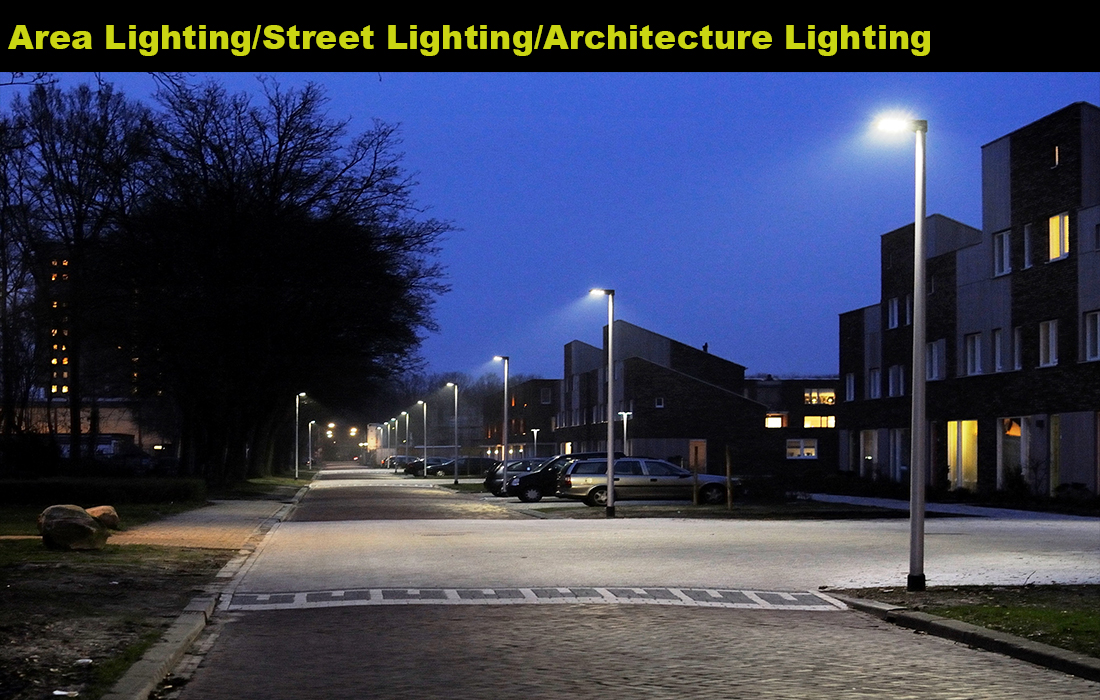

Lighting Applications: Street lighting,Architecture lighting
1. The 50x50mm 12LED Lens T3M was designed by 3030LED for street lighting.
2. This 12LED lens is the most cost-effective lens among all 50mmx50mm lens range.
Specifications
| Model: | ALST50D12LED3030T3M |
| Diameter: | 50.0mm+50.00mm |
| Height: | 4.02mm |
| Angle: | T3M |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | Street Lighting,Architecture lighting |

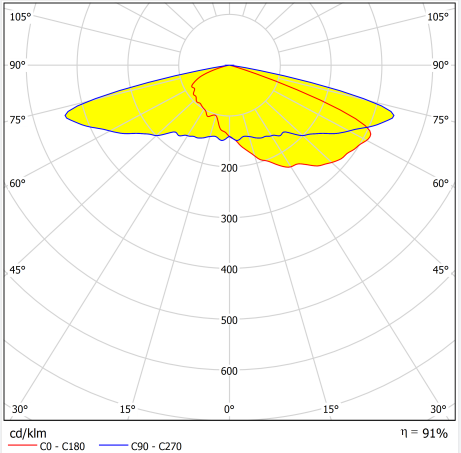

Light Distribution Curve
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
Downloads
