Model: AJST236D48LED70160G
Diameter: 236mm
Height: 6.9mm
Angle: 70x160°
Material: PC
Transmittance: >88%
LED Type: 3030LED
Lighting Applications: Street Lighting
The 70×160° asymmetric light distribution design is particularly suitable for the following scenarios due to its wide horizontal coverage and precise vertical light control:
1.Roadway lighting (city roads, highways)
2.Sidewalk and bicycle path lighting

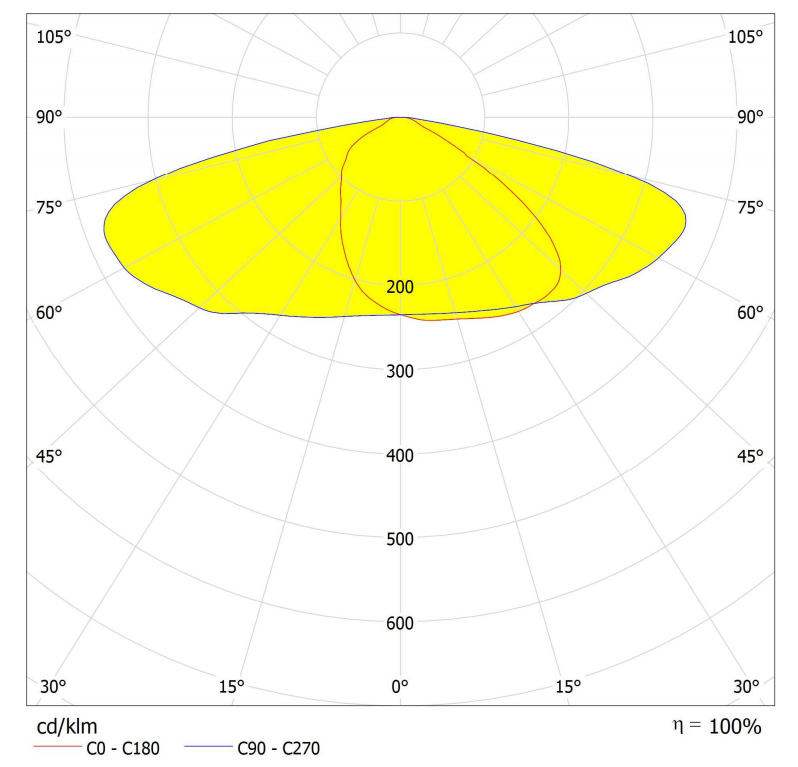

Distribution
Specifications
| Model: | AJST236D48LED70160G |
| Diameter: | 236mm |
| Height: | 6.9mm |
| Angle: | 70x160° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 3030LED |
| Lighting applications | Street Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

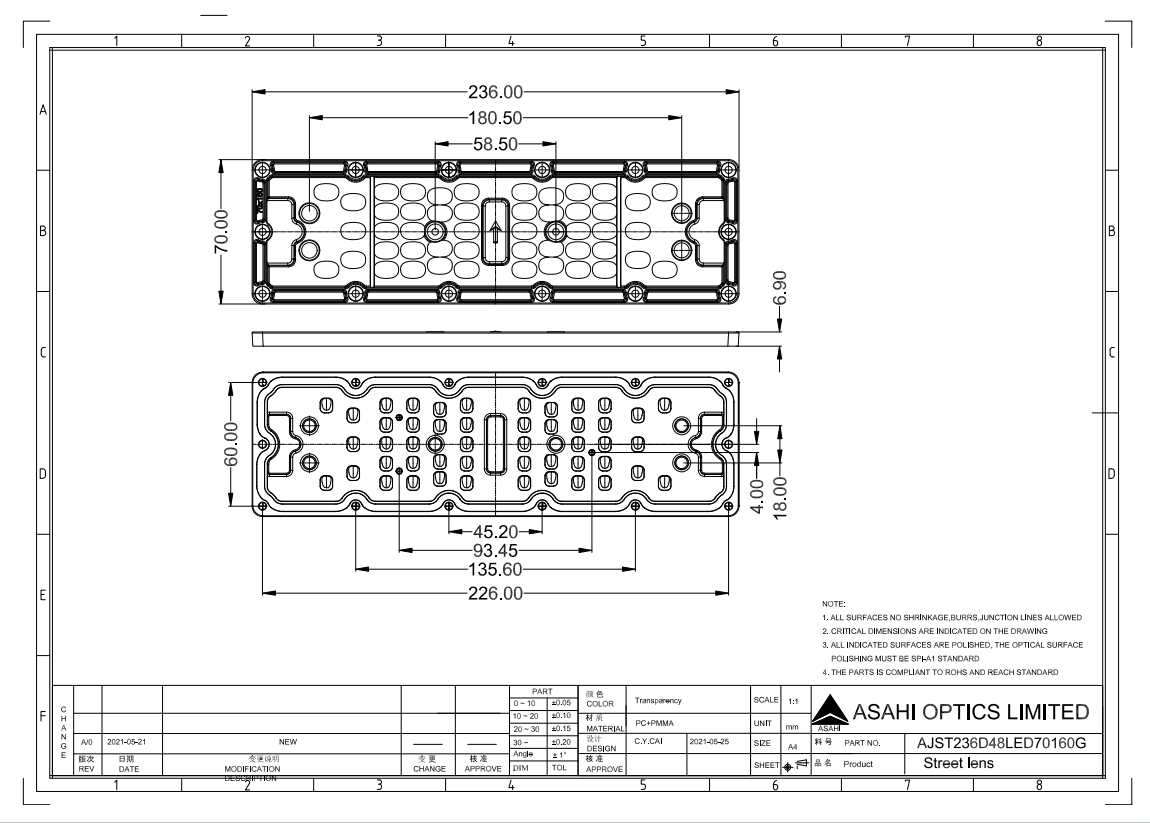

Asahi Optics AJST236D48LED70160G Drawing.dwg
Asahi Optics AJST236D48LED70160G Drawing.pdf
Asahi Optics AJST236D48LED70160G.ies
Asahi Optics AJST236D48LED70160G PCB Drawing.dwg
Asahi Optics AJST236D48LED70160G PCB Drawing.pdf
