Model: ALHB255D64LED90G
Diameter: 255x75mm
Height: 11.4mm
Angle: 90°
Material: PC-1250Z
Transmittance: >88%
LED Type: 3030 LED
Lighting Applications: High Bay Lighting
1. The 64LEDs lens 90°is a durable and reliable option that provides bright, even illumination for a variety of applications.

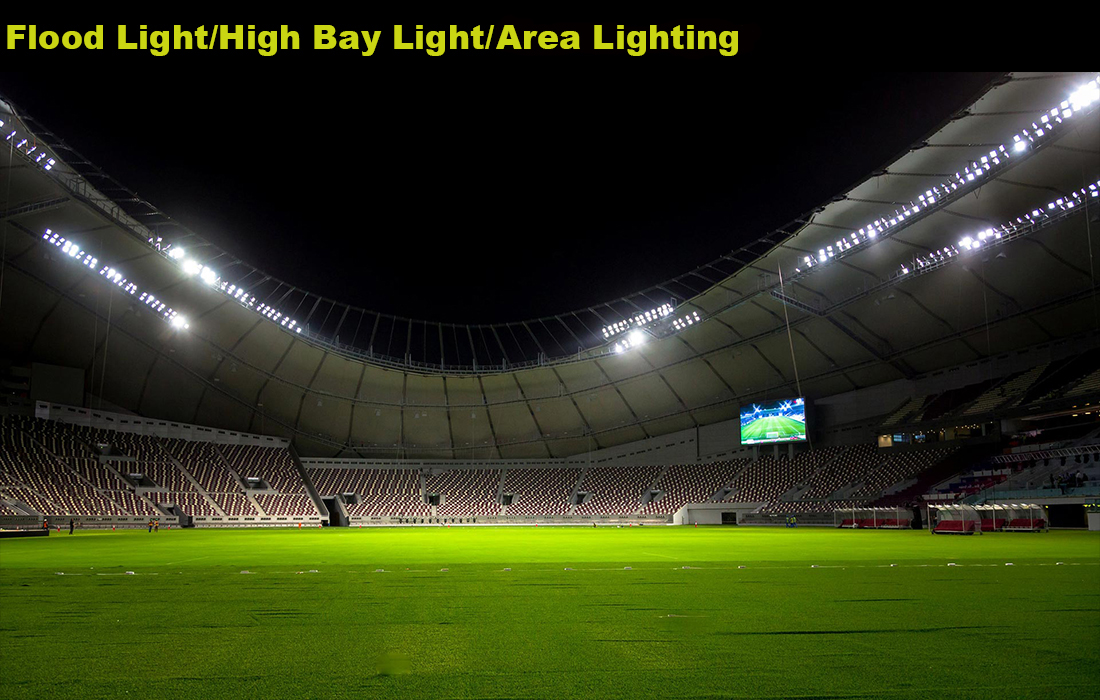

2. Lighting applications: such as warehouses, and gymnasiums, where high-quality lighting is required for safety, productivity, and visibility.

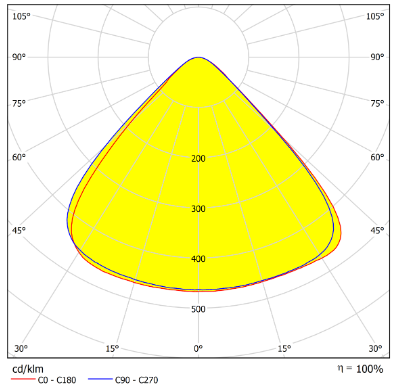

Distribution

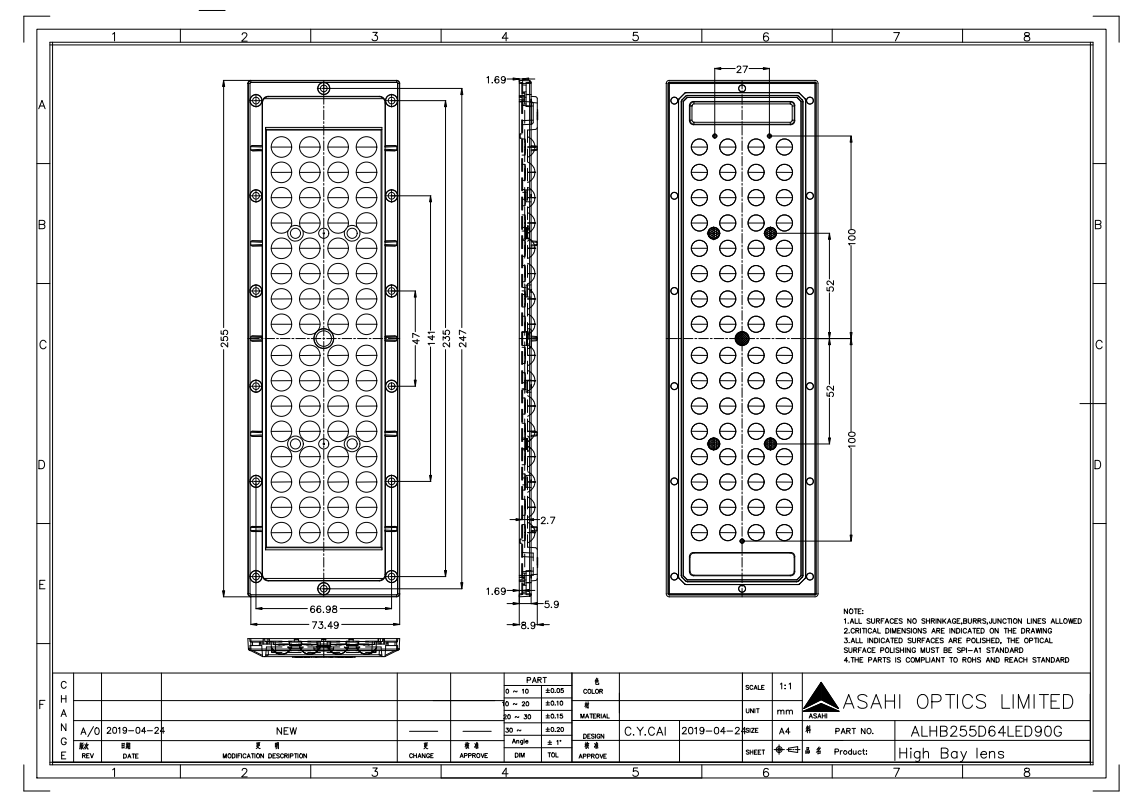

Specifications
| Model: | ALHB255D64LED90G |
| Diameter: | 255x75mm |
| Height: | 11.4mm |
| Angle: | 90° |
| Material： | PC-1250Z |
| Transmittance： | >88% |
| LED Applications | 3030 LED |
| Lighting applications | high bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
