Model: UFO344D60G, 90G, 120G-200W-K176
Diameter: 344mm
Height: 6.5mm
Angle: 60°,90°,120°
Material: PC-1250Z
Transmittance: 88%
LED Type: 2835/ 3030LED
Lighting Applications: High Bay Lighting, Area Lighting
1.344mm large diameter UFO lens design, can accommodate large-size sensors.
2.The 120-degree plane UFO lens design allows the LED to be freely placed on a flat surface. You can achieve a more uniform light distribution, optimize lighting effects, and meet the requirements of different environments and applications.

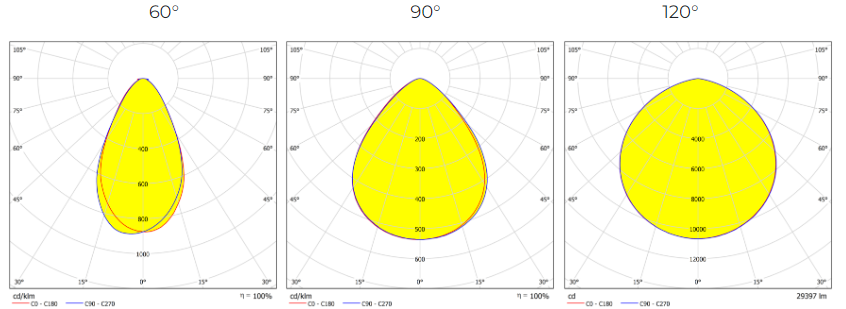

Distribution
Specifications
| Model: | UFO344D60G, 90G, 120G-200W-K176 |
| Diameter: | 344mm |
| Height: | 6.5mm |
| Angle: | 60°,90°,120° |
| Material： | PC-1250Z |
| Transmittance： | 88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | Warehouse lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

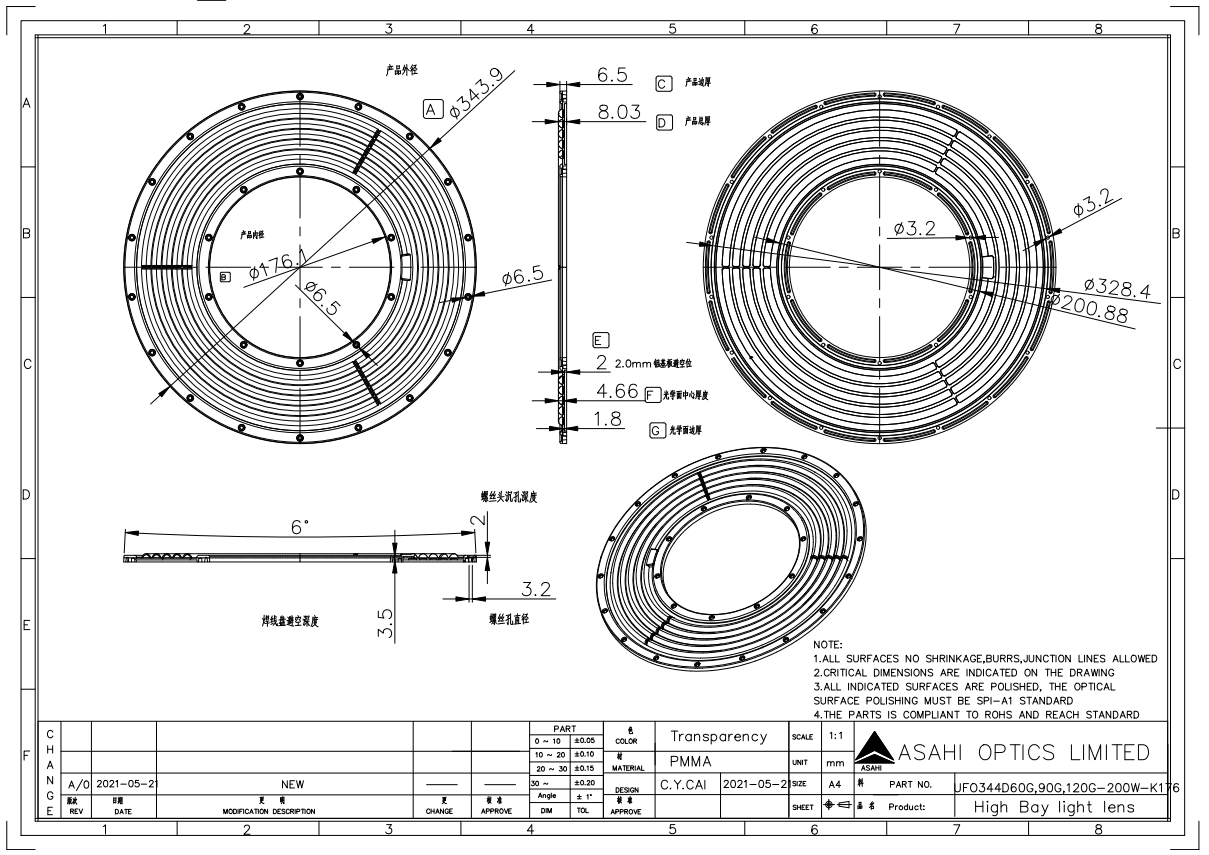

ASAHI OPTICS UFO344D60G,90G,120G-200W-K176 Drawing.dwg
ASAHI OPTICS UFO344D60G,90G,120G-200W-K176 Drawing.pdf
ASAHI OPTICS UFO344D-200W-K176 lens IES.ies
