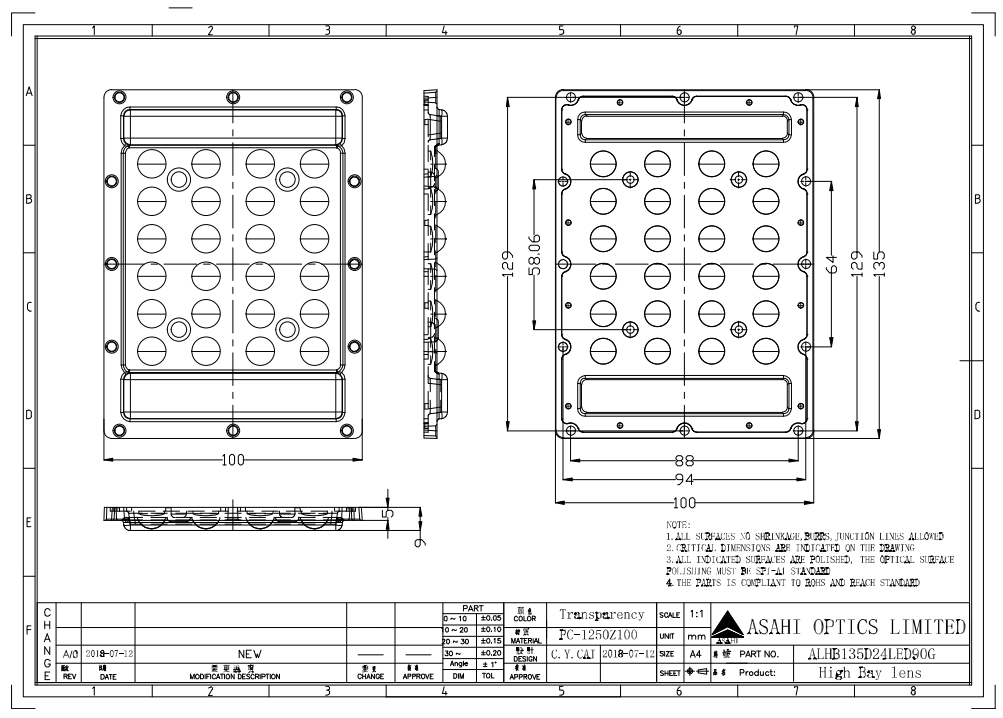

Model: ALHB135D24LED90G
Diameter: 135x100mm
Height: 11.4mm
Angle: 90°
Material: PC-1250Z
Transmittance: >90%
LED Type: 5050LED

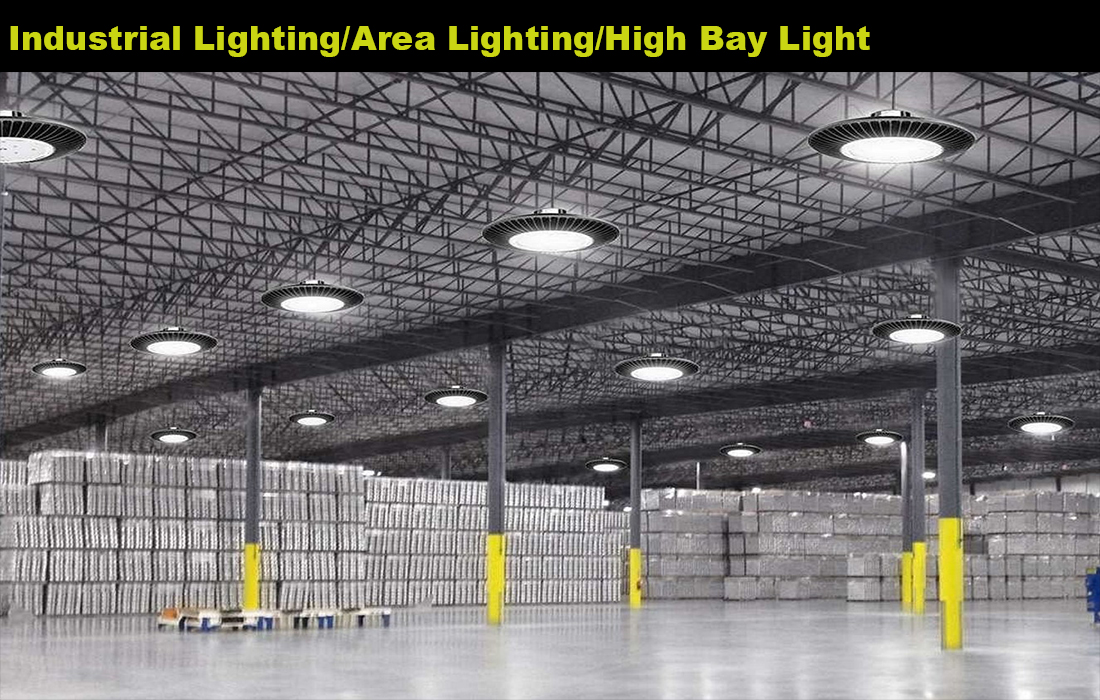

Lighting Applications: High Bay Lighting, Area Lighting
1. 4x6 lens with 90° wide beam angle，ensures expansive coverage and effective illumination in floodlighting scenarios, making it well-suited for various outdoor lighting needs.
2. The lens holds an IP66 rating, with a high level of protection against dust and water ingress. This makes it suitable for outdoor applications where exposure to challenging weather conditions is a concern, ensuring reliable performance in various environments.

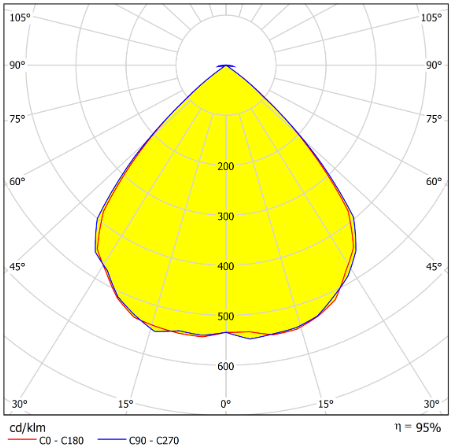

Distribution
Specifications
| Model: | ALHB135D24LED90G |
| Diameter: | 135x100mm |
| Height: | 11.4mm |
| Angle: | 90° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 5050LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ALHB135D24LED90G - Luxeon5050.ies
ALHB135D24LED90G-Seoul5050.ies
ALHB135D24LED90G-NICHIA NFMW488.ies
ALHB135D24LED90G-NICHIA NVSA119BT.ies
ALHB135D24LED90G-OSRAM SQUARE.ies
