[contenttitle] => IK10 2x6 Lens T2M 3535LED IP66 Road Lighting Optics
[shorttitle] => ALST173D12LED3535T2M
[tagids] =>
[tags] =>
[contentimage] => 173mm2x6-lens/2x6-lens-173mmx71.4mm-3535LED-T2M.jpg
[contentimages] => Array
(
)
[readpass] =>
[allowgroups] =>
[disallowgroups] =>
[uid] => 0
[adduser] =>
[addtime] => 2018-01-02 23:33:17
[updatetime] => 2025-05-07 18:58:18
[contenttpl] =>
[contentbrief] => 1. 2x6 3535 street lighting lens is made of Teijin PC Material with excellent hardness and can pass IK10.
2. This lens is tailored specifically for 3535 LED,ensures optimal optical performance and efficient utilization of the LED.
3. The high IP66 rating ensures exceptional resistance against dust and water, allowing the lens to operate reliably in diverse and challenging weather and environmental conditions.
[metatitle] => IK10 2x6 Lens T2M 3535LED IP66 Road Lighting Optics - Asahi Optics
[metakeywords] =>
[metadescription] =>
[othermetas] =>
[otherinfo1] =>
[otherinfo2] =>
[otherinfo3] =>
[otherinfo4] =>
[otherinfo5] =>
[otherinfo6] =>
[otherinfo7] =>
[otherinfo8] =>
[otherinfo9] =>
[otherinfo10] =>
[morecatids] => 350,250,321
[customcss] =>
[customjs] =>
[content] => Specifications
Model:
ALST173D12LED3535T2M
Diameter:
173*71.4mm
Height:
9.10mm
Angle:
T2M
Material：
PMMA
Transmittance：
>93%
LED Applications
"3535" LED
Lighting applications
Street lighting

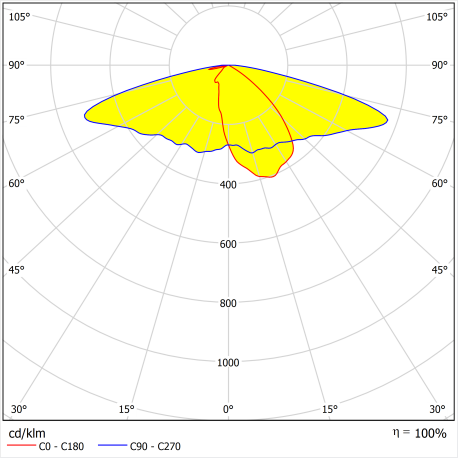

Light Distribution Curve
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.

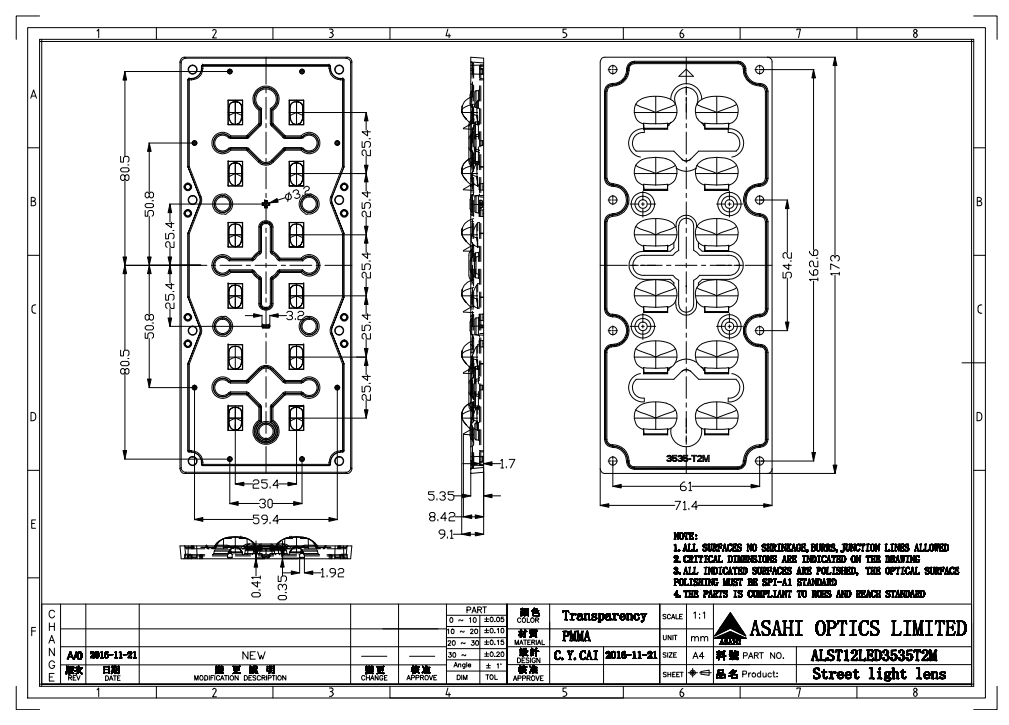

[downloadfiles] => ASAHI OPTICS ALST173D12LED3535T2M Drawing.dwg
ASAHI OPTICS ALST173D12LED3535T2M Drawing.pdf
ASAHI OPTICS ALST173D12LED3535T2M lens IES.ies
[catattr] =>
[producttab1] =>
[attrs] => Array
(
[contentid] => 116
[beamangle] => T2M
[beamsize] => 173.0mm+71.4mm
[attrmodel] => ALST173D12LED3535T2M
[attrheight] => 9.10mm
[attrmaterial] => PMMA
[attrtransmittance] => >93%
[attrapplications] => "3535" LED
[attrlightapplications] => Street lighting, Architecture lighting
[attrname] => IK10 2x6 Lens T2M 3535LED IP66 Road Lighting Optics
[applicationids] =>
[relateprodids] =>
)
)
Model: ALST173D12LED3535T2M
Diameter: 173.0mm+71.4mm
Height: 9.10mm
Angle: T2M
Material: PMMA
Transmittance: >93%
LED Type: "3535" LED
Lighting Applications: Street lighting, Architecture lighting
1. 2x6 3535 street lighting lens is made of Teijin PC Material with excellent hardness and can pass IK10.
2. This lens is tailored specifically for 3535 LED,ensures optimal optical performance and efficient utilization of the LED.
3. The high IP66 rating ensures exceptional resistance against dust and water, allowing the lens to operate reliably in diverse and challenging weather and environmental conditions.
| Model: | ALST173D12LED3535T2M |
| Diameter: | 173*71.4mm |
| Height: | 9.10mm |
| Angle: | T2M |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | "3535" LED |
| Lighting applications | Street lighting |
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
Downloads
