50mm Ourdoor Street Lighting 16LED T2M-D Asymmetric

Model: ALST50D16LEDT2M-D

Diameter: 50.0mm+50.00mm

Height: 5.68

Angle: T2M Asymmetric

Material: PC-1250Z TEIJIN

Transmittance: >90%

LED Type: "3030"LED

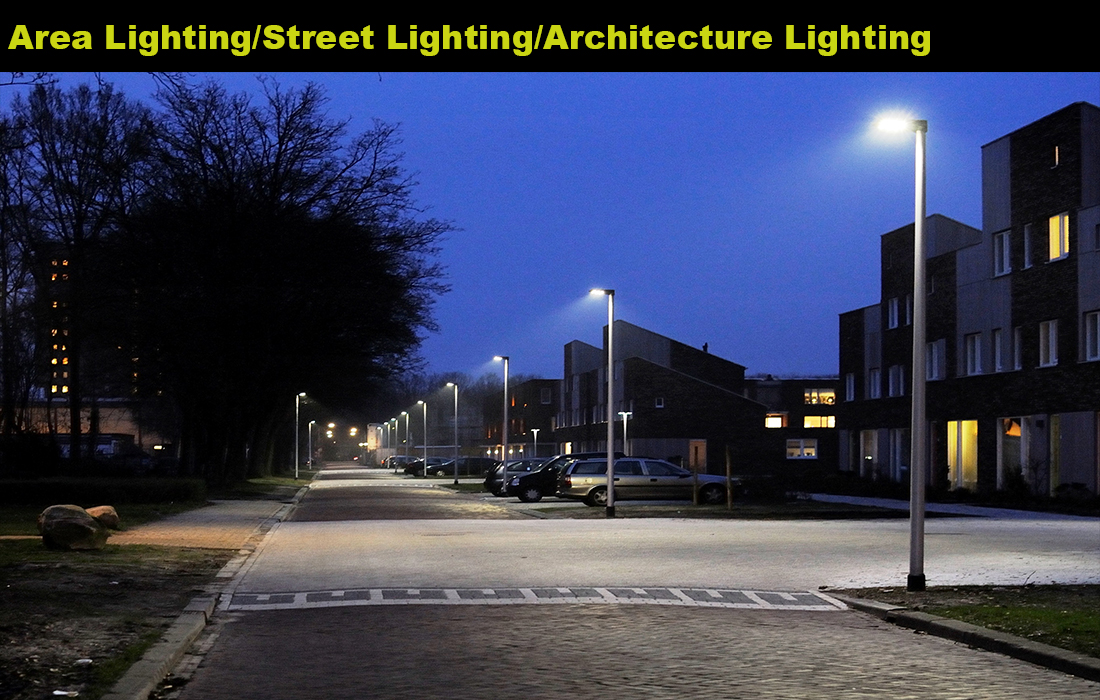

Lighting Applications: Street lighting,Architecture lighting

1. 50mm Ourdoor Street Lighting 16LED T2M-D Asymmetric, LED spacing is 12.5mm.

2. The lens is structured with a baffle that reduces the Backlight.,

3. By blocking the light behind the pole, adding a baffle can improve the utilization of light, effectively guide and project more light to the target area, and provide a higher lighting effect.

Specifications

Model:	ALST50D16LEDT2M-D
Diameter:	50.0mm+50.00mm
Height:	5.68mm
Angle:	T2M Asymmetric
Material：	PC-1250Z TEIJIN
Transmittance：	>90%
LED Applications	3030 LED
Lighting applications	Street lighting

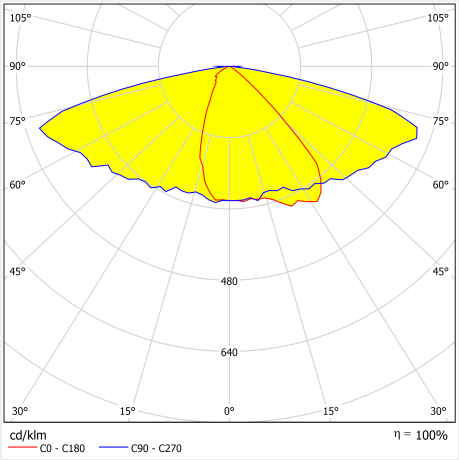

Light Distribution Curve

Street Lighting Lens 1 1

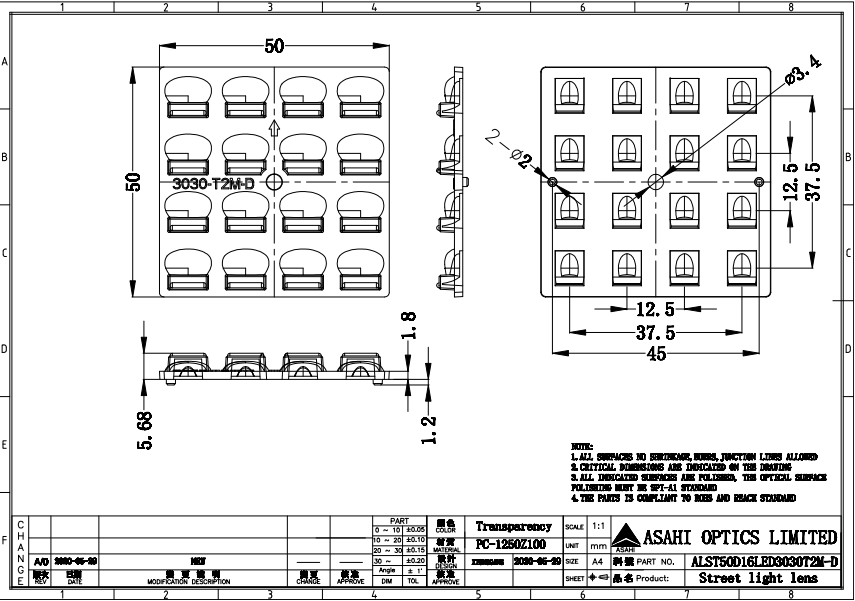

ALST50D16LEDT2M D Drawing

T2M D.1

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
