Model: UFO265D528LED60,90G-200W
Size: Ø264mm
Height: 12mm
Angle: 60°,90°
Material: PC
Transmittance: >88%
LED Type: 2835/ 3030LED
Lighting Applications: High bay light

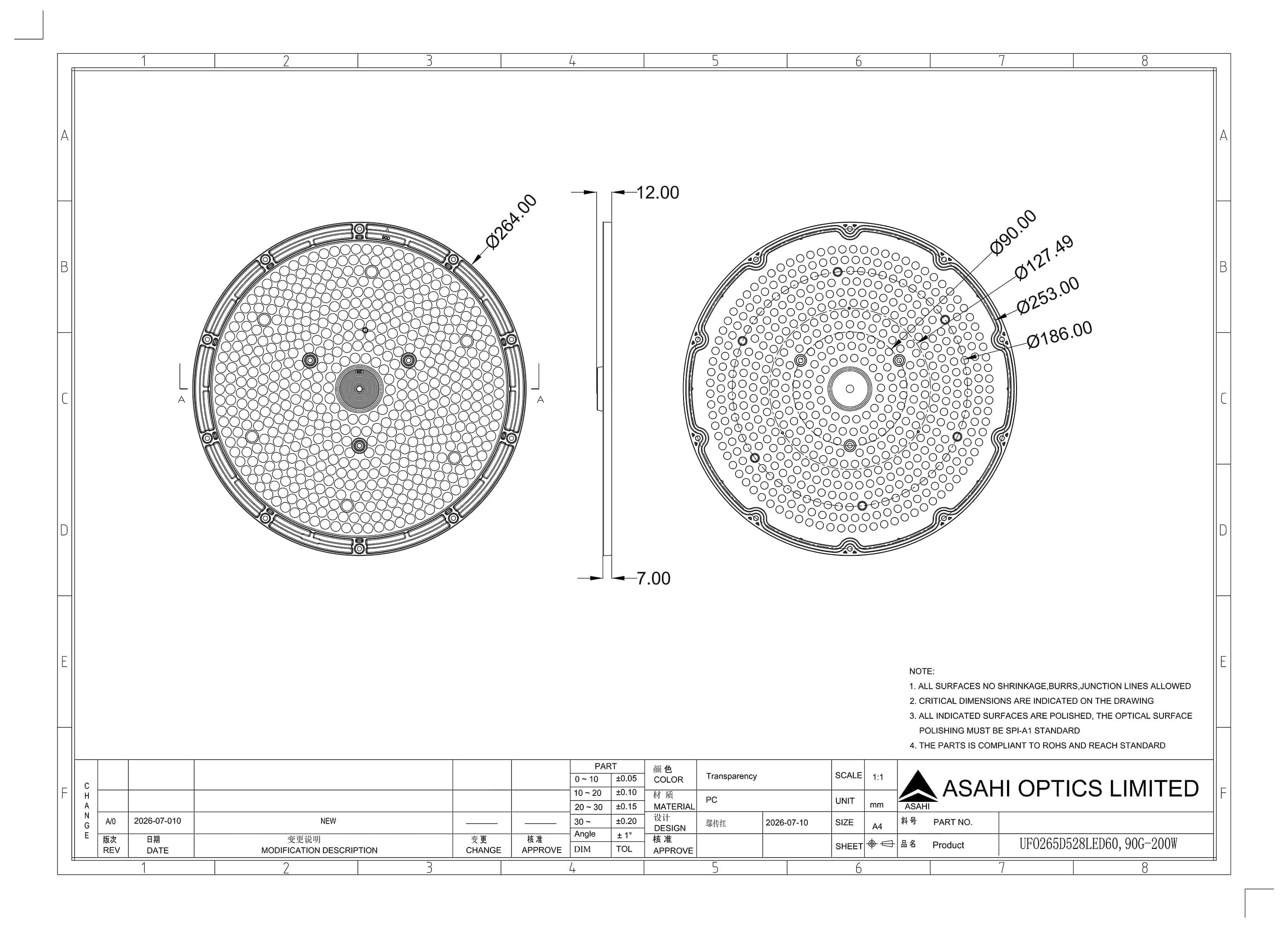

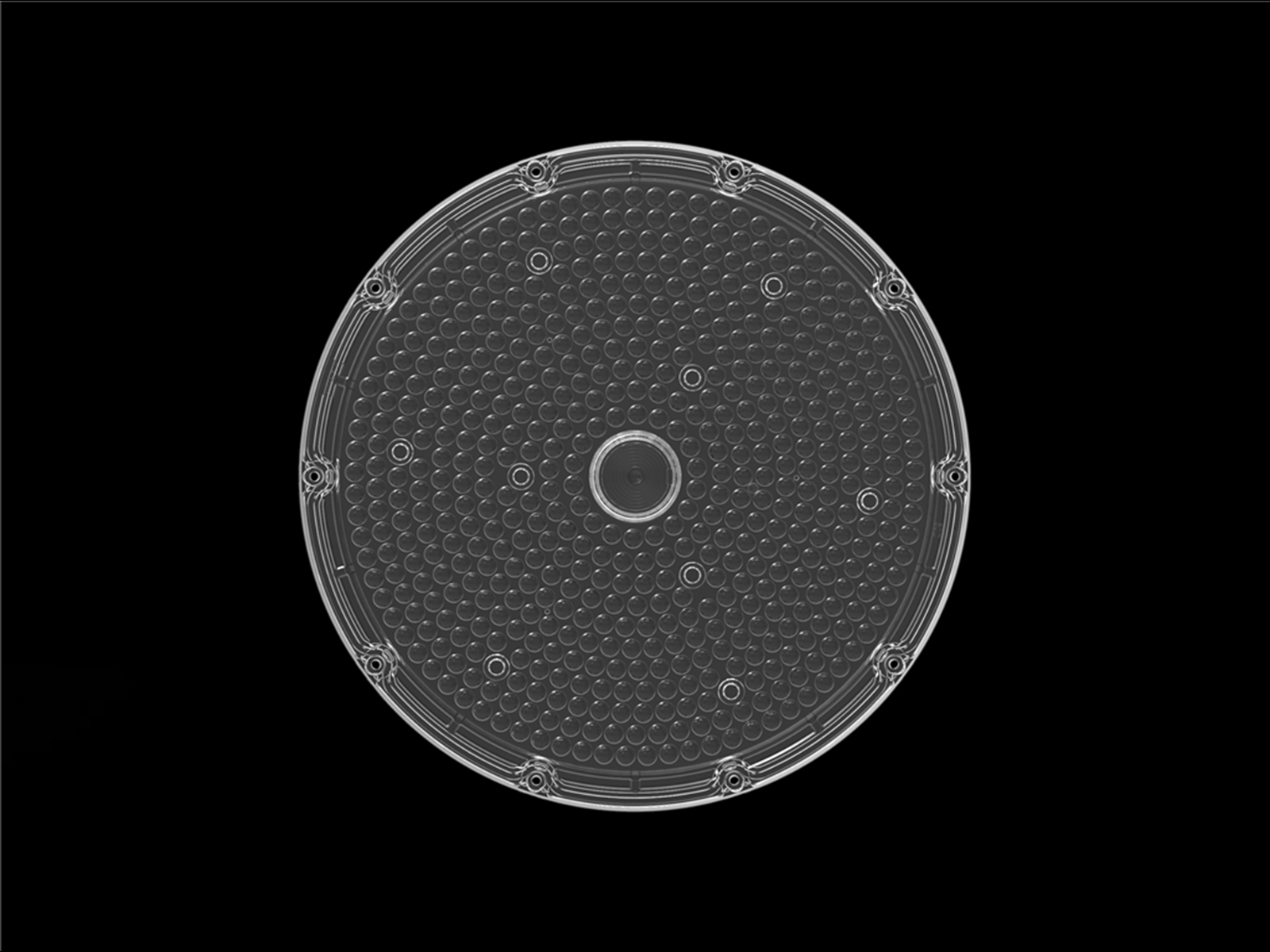

1. Designed for UFO high bay lights, a 264mm diameter round integrated lens.
2. Compatible with 2835/3030 LEDs, available in two beam angles: 60° (for long distance spot focus in high mounting spaces) and 90° (for wide area light distribution in medium to high spaces).
3. Made of PC material with >88% transmittance, height 12mm. The ultra thin structure combined with a high density LED array delivers uniform and bright high bay lighting for large spaces such as factories, warehouses, and gymnasiums.

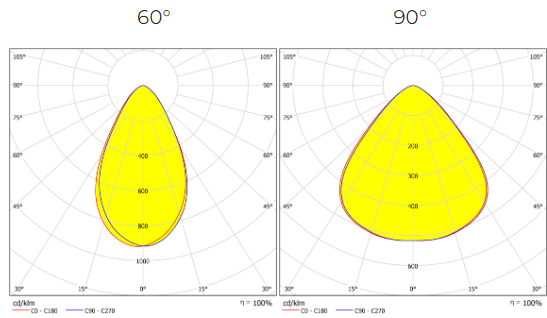

Distribution
Specifications
| Model: | UFO265D528LED60,90G-200W |
| Size: | Ø264mm |
| Height: | 12mm |
| Angle: | 60°,90° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | High bay light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
