Model: ASL280D40HXXLEDA25G
Diameter: 280mm
Height: 40mm
Angle: Asymmetric 25°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 2835/ 3030LED
Lighting Applications: Linear Lighting, Area Lighting
1. It's compatible with Zhaga standard PCB.
2. Excellent lighting performance for indoor lighting.
3. Lower UGR to protect human eyes.
4. The lens enables precise control over the direction of the light output. This can be advantageous in applications where specific areas or objects need to be illuminated while minimizing light spill in unwanted directions.

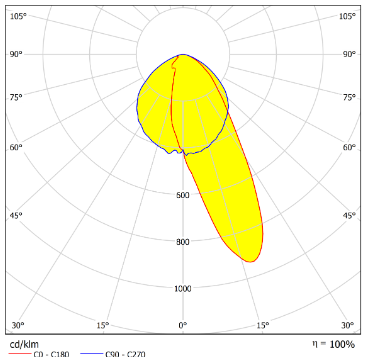

Distribution
Specifications
| Model: | ASL280D40HXXLEDA25G |
| Diameter: | 280mm |
| Height: | 40mm |
| Angle: | asymmetric 25° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/ 3030LED |

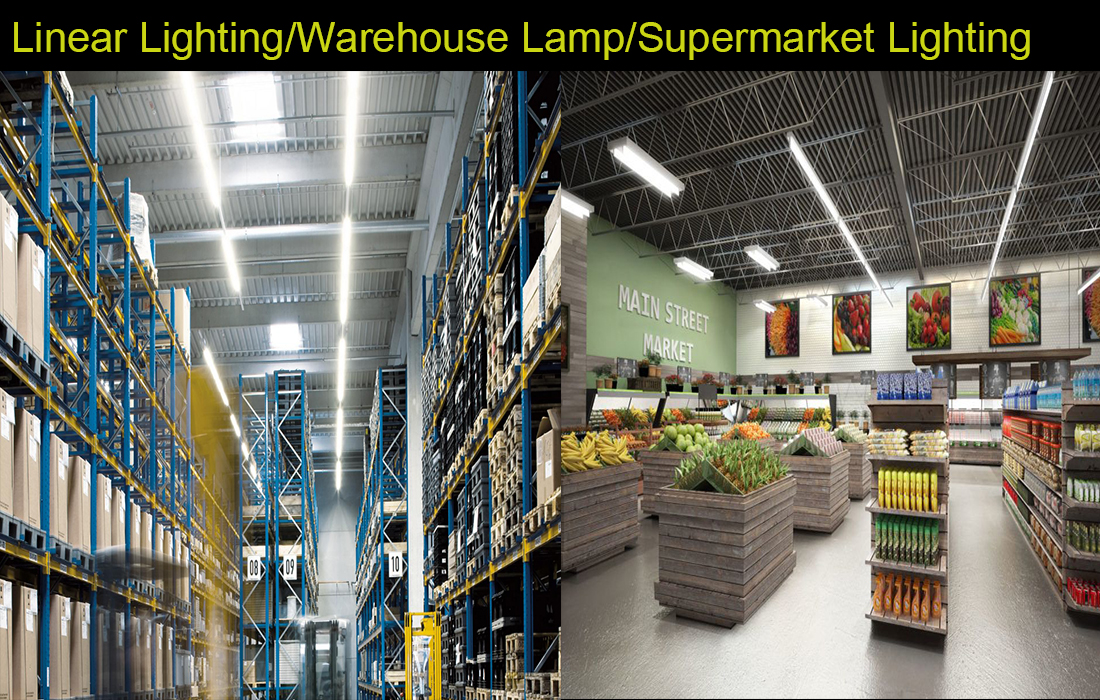

| Lighting applications | Office Lighting, Supermarket Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
This linear lens adopts a snap-on type, which makes the assembly of the lamp more simple and elegant.
ASAHI OPTICS ASL280D40HXXLEDA25G lens 3D Drawing.stp

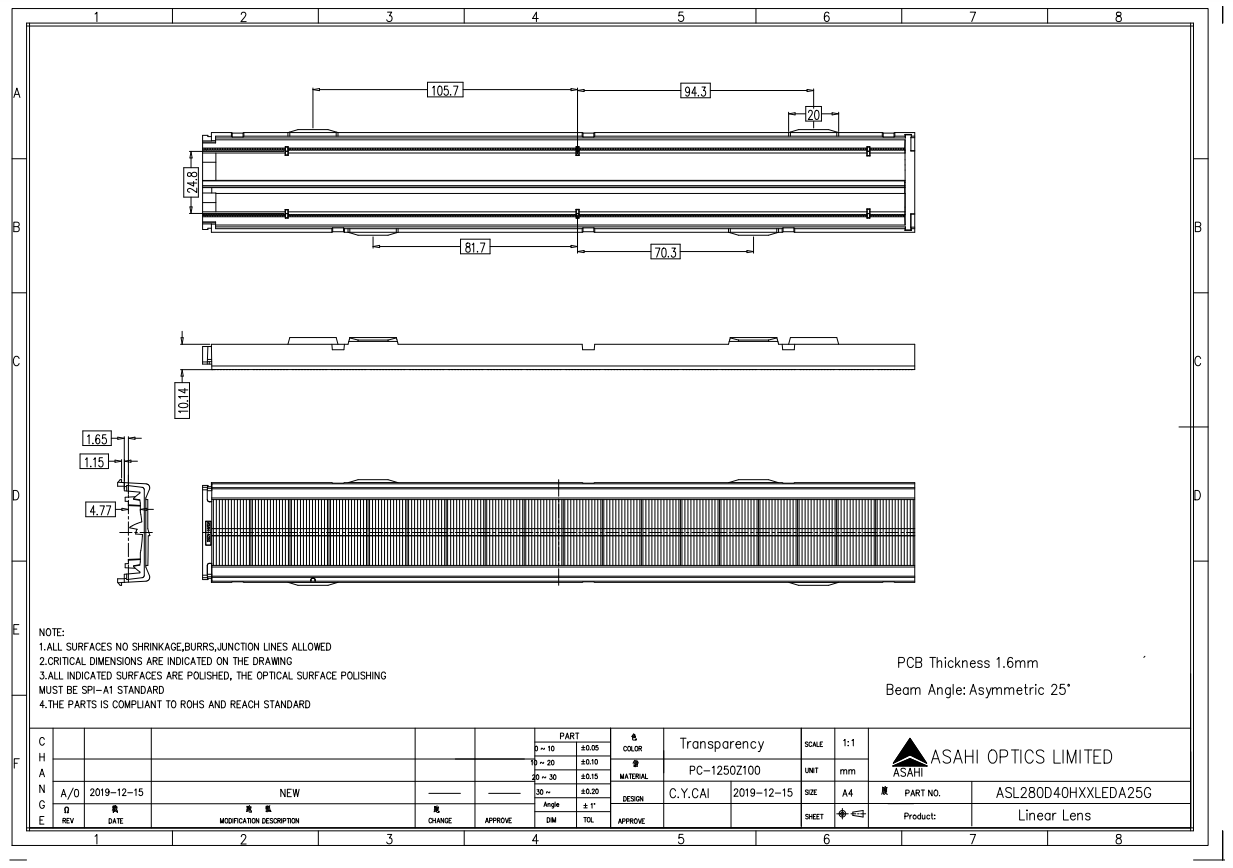

ASL280D40HXLEDA25G.PDF Drawing
