360×172mm 336LEDs Floodlight Lens series
360×172mm 336LEDs Floodlight Lens series

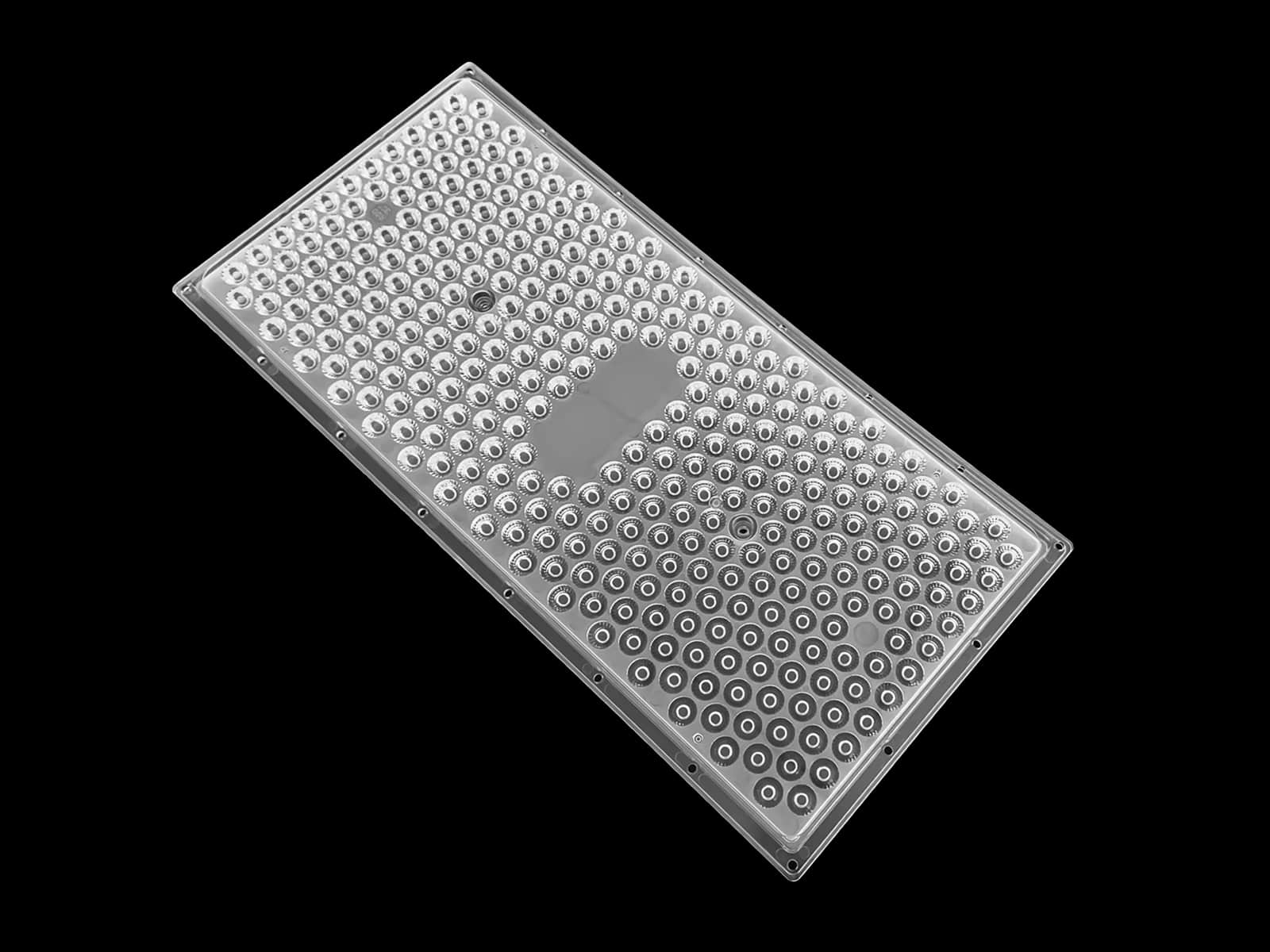

360x172mm 336 led floodlight lens 15 degree

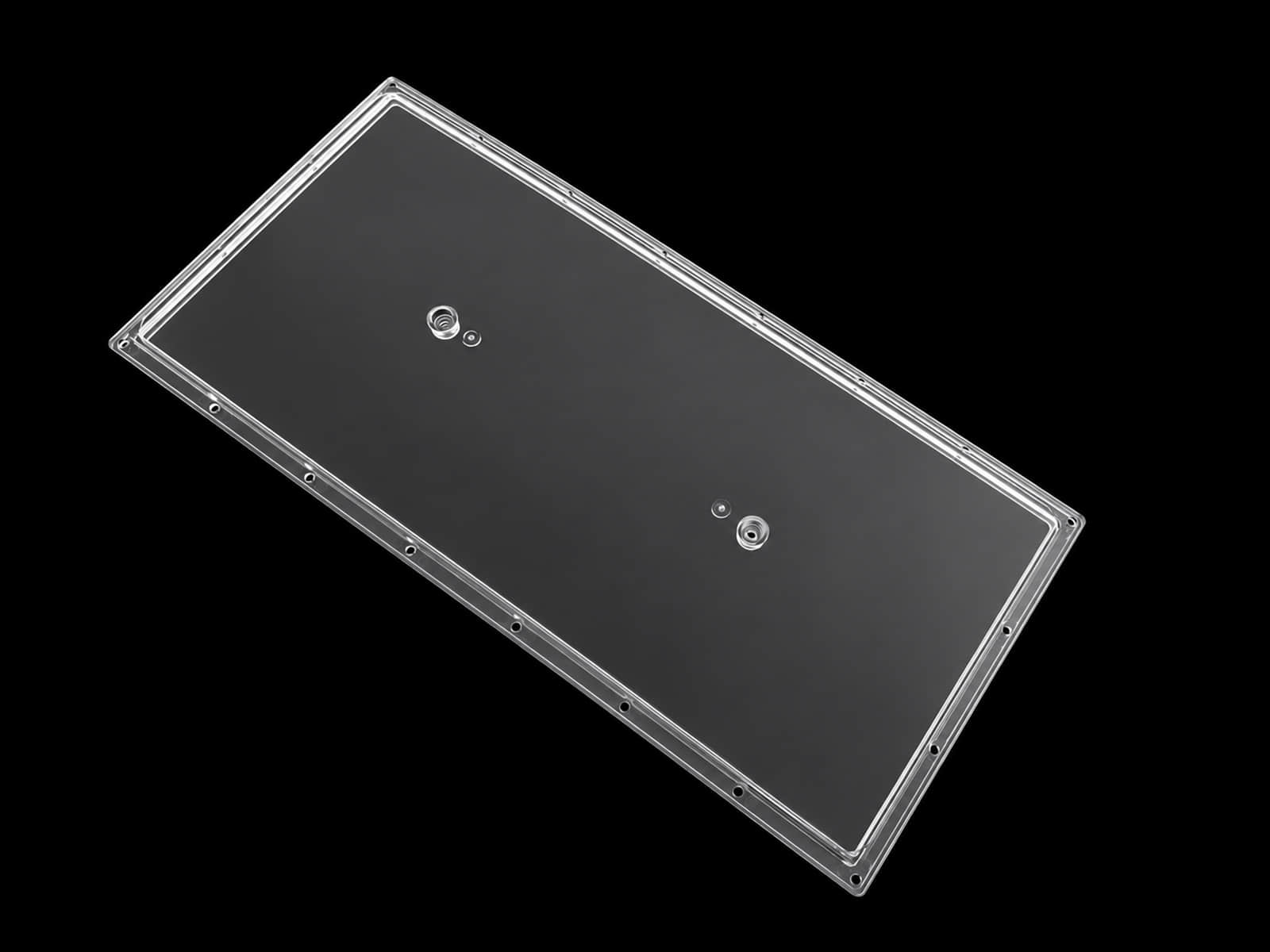

360x172mm 336 led floodlight lens 120 degree

360×172mm 336LEDs Floodlight Lens series

Model: ARHB360D336LED

Size: 360x172 (mm)

Height: 10.6mm

Angle: 15°,30°,45°,60°,120°

Material: PC

Transmittance: >88%

LED Type: 2835/3030 LED

Lighting Applications: Floodlights, Stadium lights

1. Specifically designed for floodlights and stadium lights, the 360×172mm large-size lens panel integrates 336 lens units.

2. Available in five beam angles – 15°, 30°, 45°, 60°, and 120° – flexibly covering diverse needs from long-distance precision projection to wide-angle floodlighting.

3. With a height of only 10.6mm, its ultra-thin structure facilitates modular integration, providing an efficient and uniform lighting solution for large venues, plazas, and architectural lighting.

Distribution

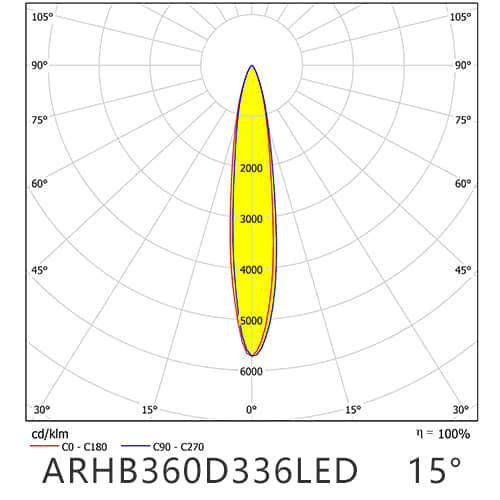

ARHB360D336LED15G distribution

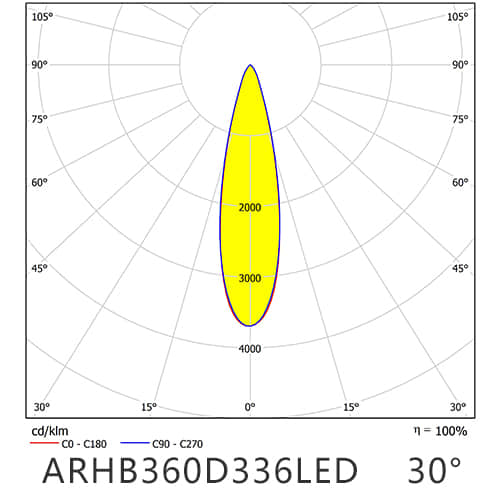

ARHB360D336LED30G distribution

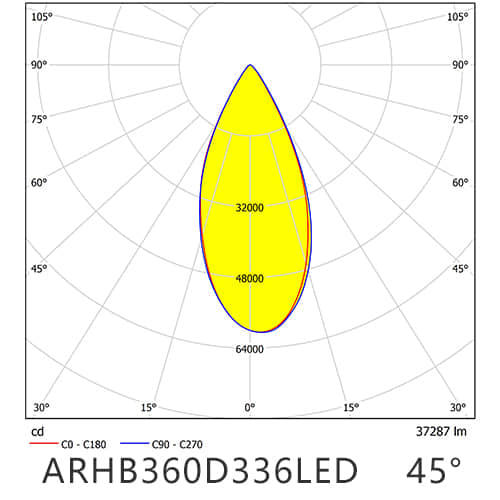

ARHB360D336LED45G distribution

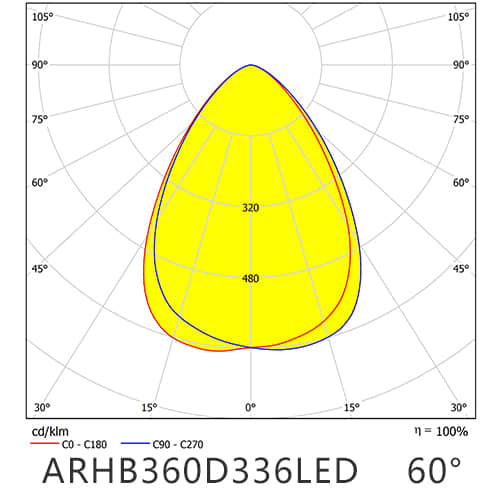

ARHB360D336LED60G distribution

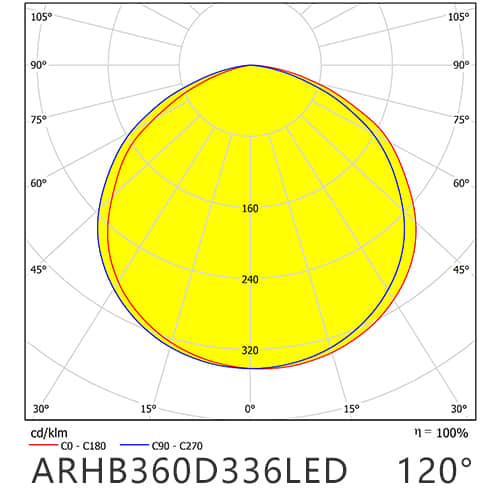

ARHB360D336LED120G distribution

Specifications

Model: ARHB360D336LED
Size: 360x172 (mm)
Height: 10.6mm
Angle: 15°,30°,45°,60°,120°
Material： PC
Transmittance： >88%
LED Type 2835/3030 LED
Lighting applications Floodlights, Stadium lights

LED Type

OSRAM OSCONIQ® P 3030 osram

OSRAM OSCONIQ® P

Lumileds LUXEON 3030 HE lumileds

LUXEON 3030 HE

Nichia NFSW 3030 series nichia

NFSW 3030 series

EVERLIGHT XI3030 C0150 everlight_logo

XI3030 series

HONGLIZHIHUI EMC 3030 series honglizhihui

EMC 3030 series

Packaging

---

Material Information

pmma temperature
pc temperature
pmma rti
pc rti
glove 1
no chemical

  • Lens Material

    L06: PMMA 8N/ L46: PC 1250Z

  • Operating Temperature

    PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C

  • UL Flammability

    PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm

  • UL RTI Elec

    PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]

  • Light Transmission Rate

    400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

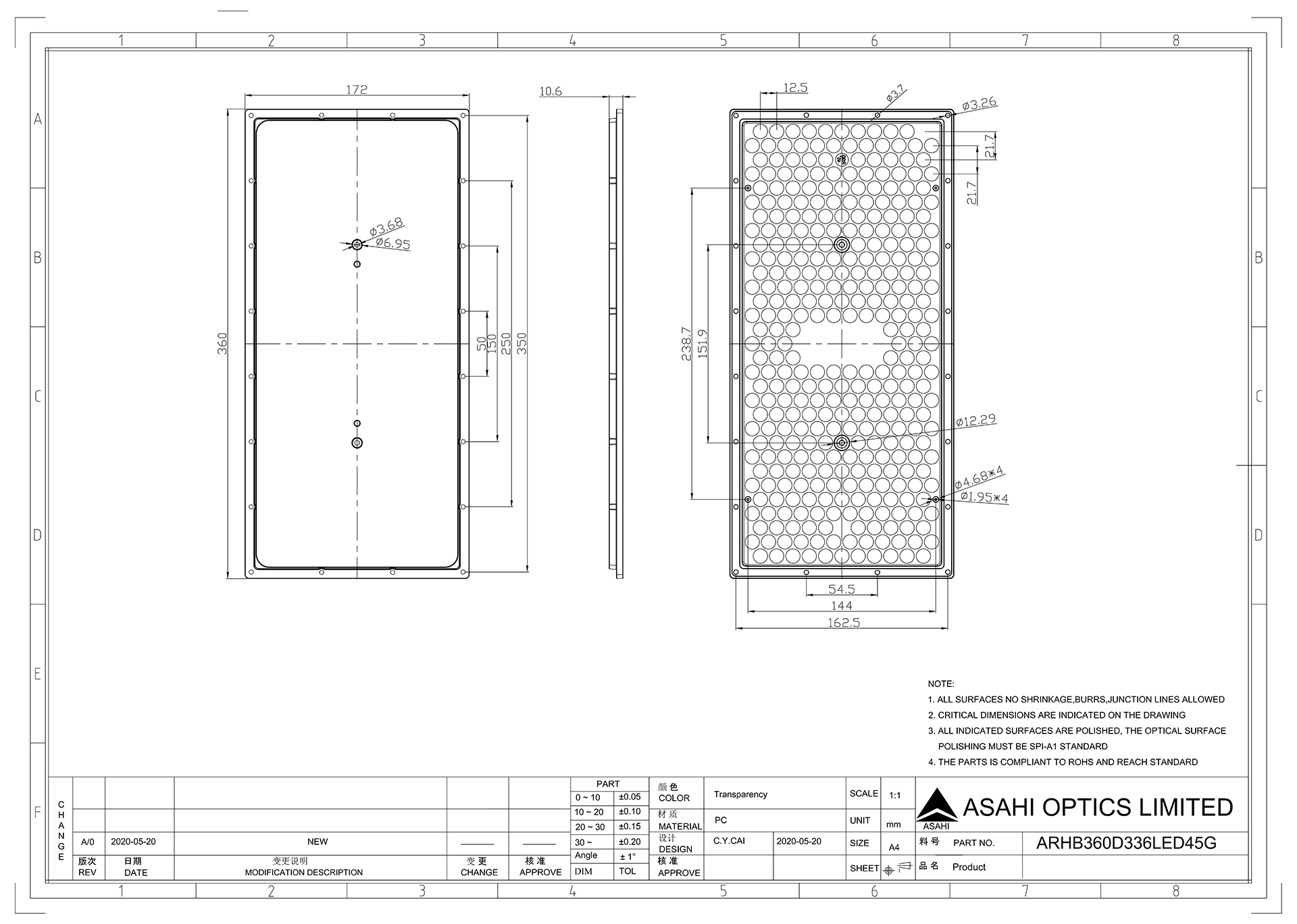

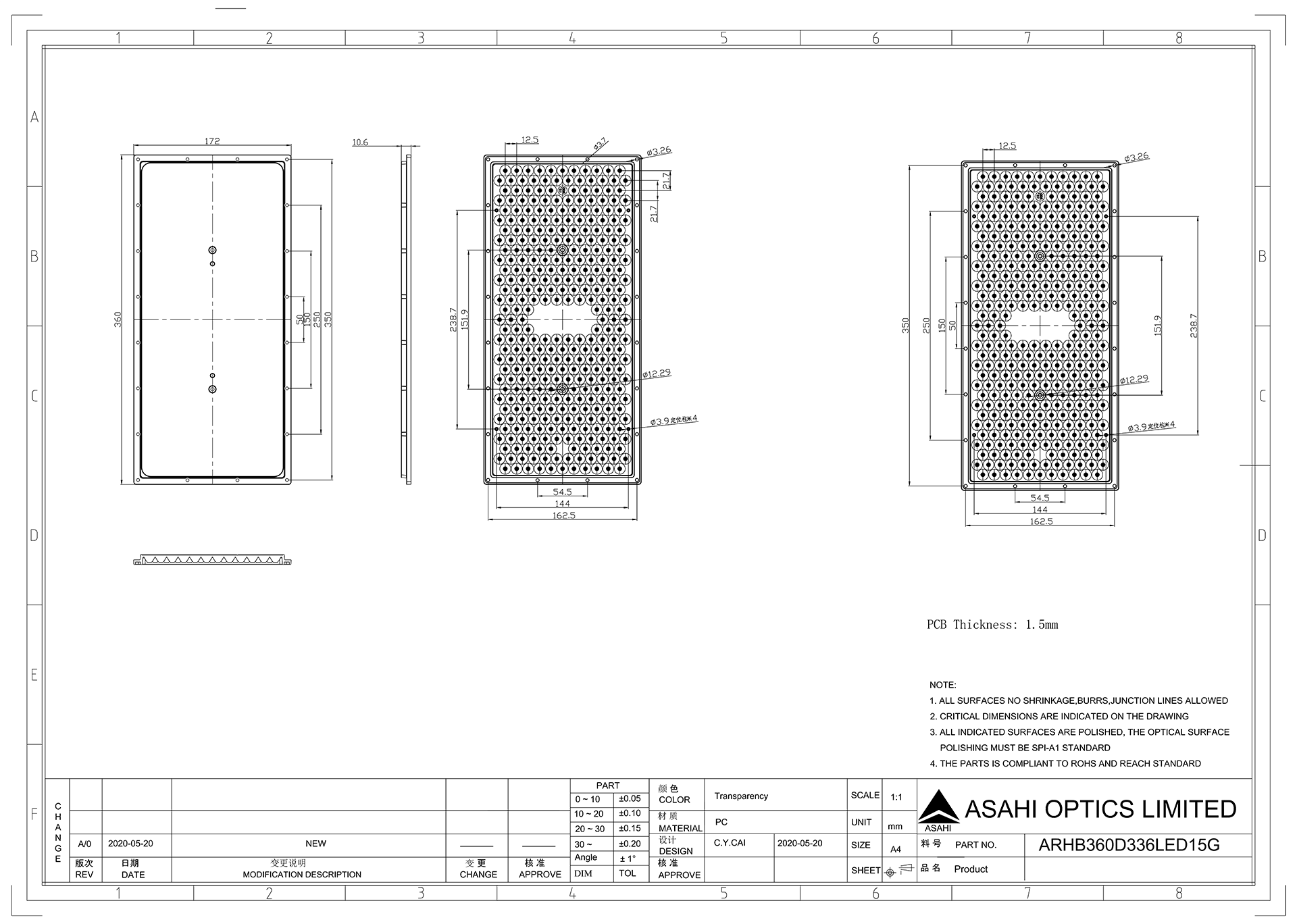

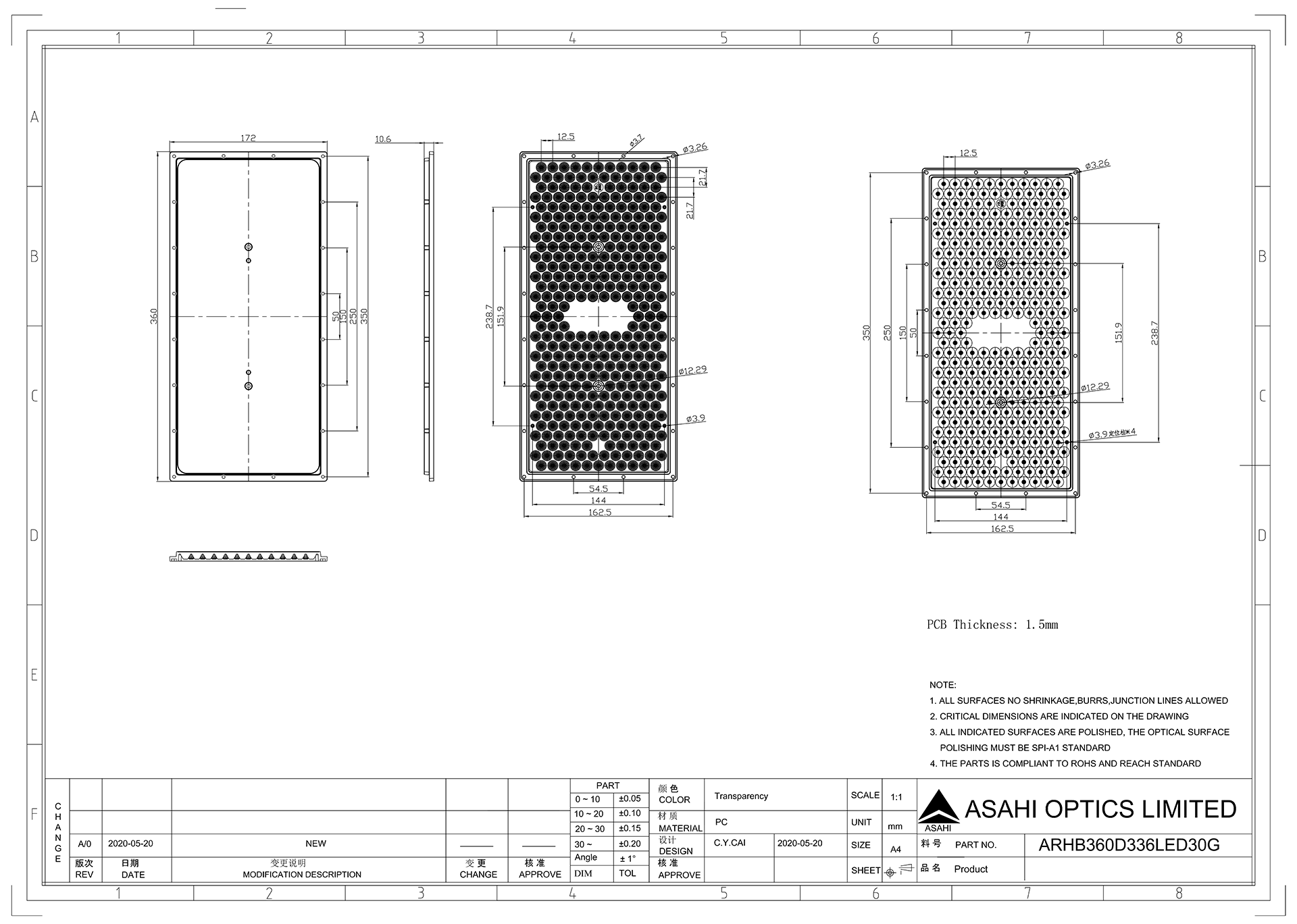

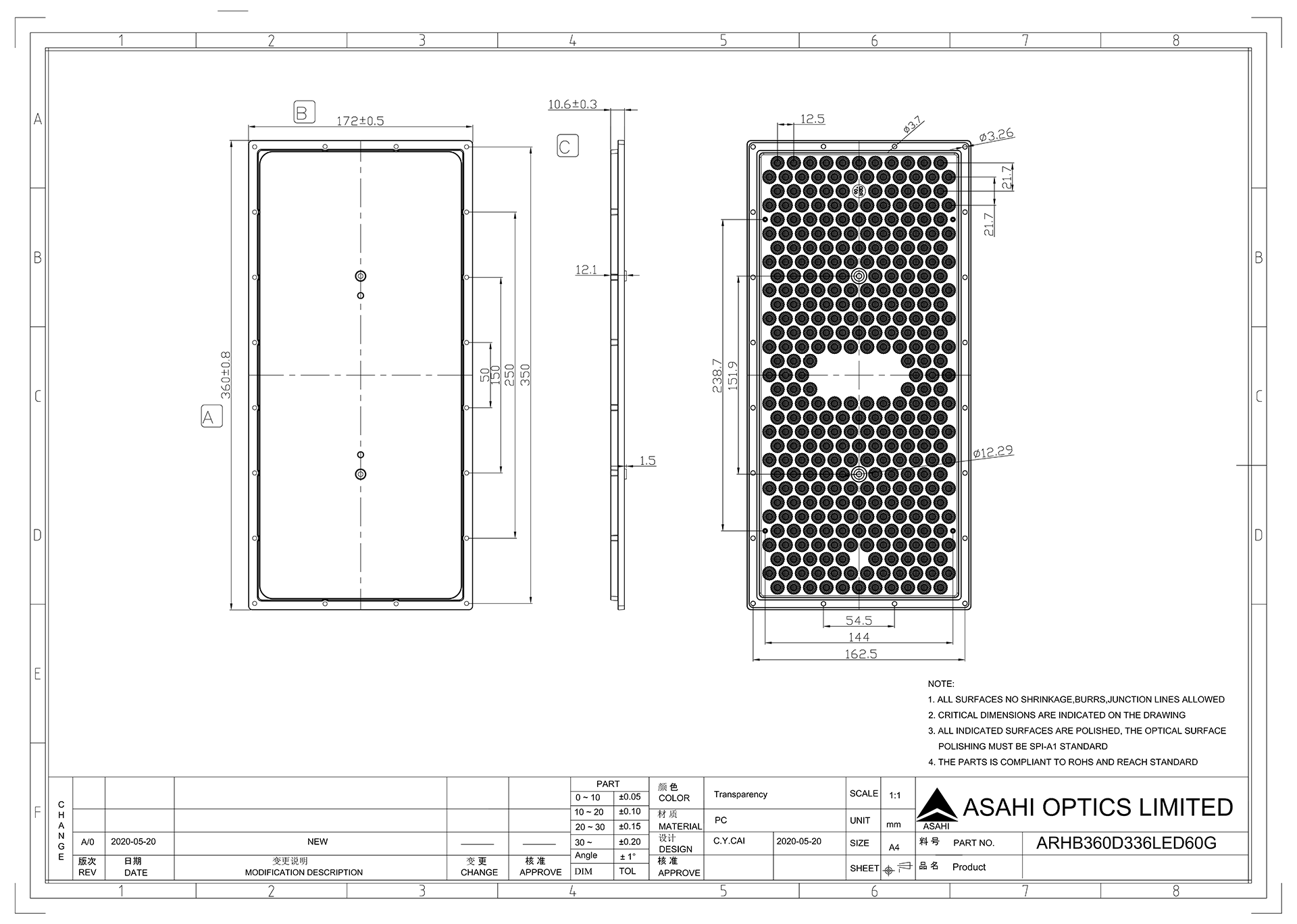

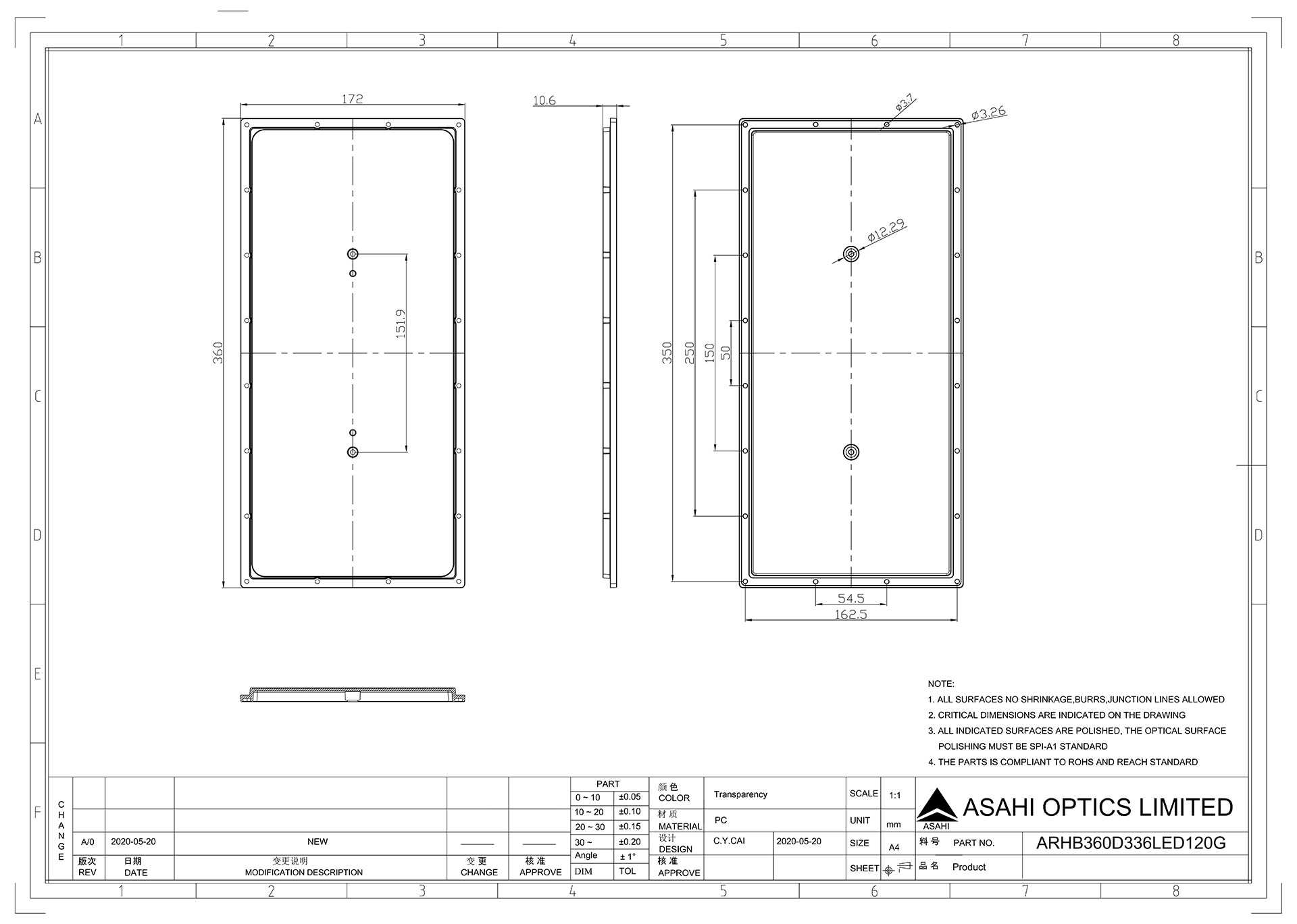

ARHB360D336LED15G DrawingARHB360D336LED30G DrawingARHB360D336LED45G DrawingARHB360D336LED60G DrawingARHB360D336LED120G Drawing
