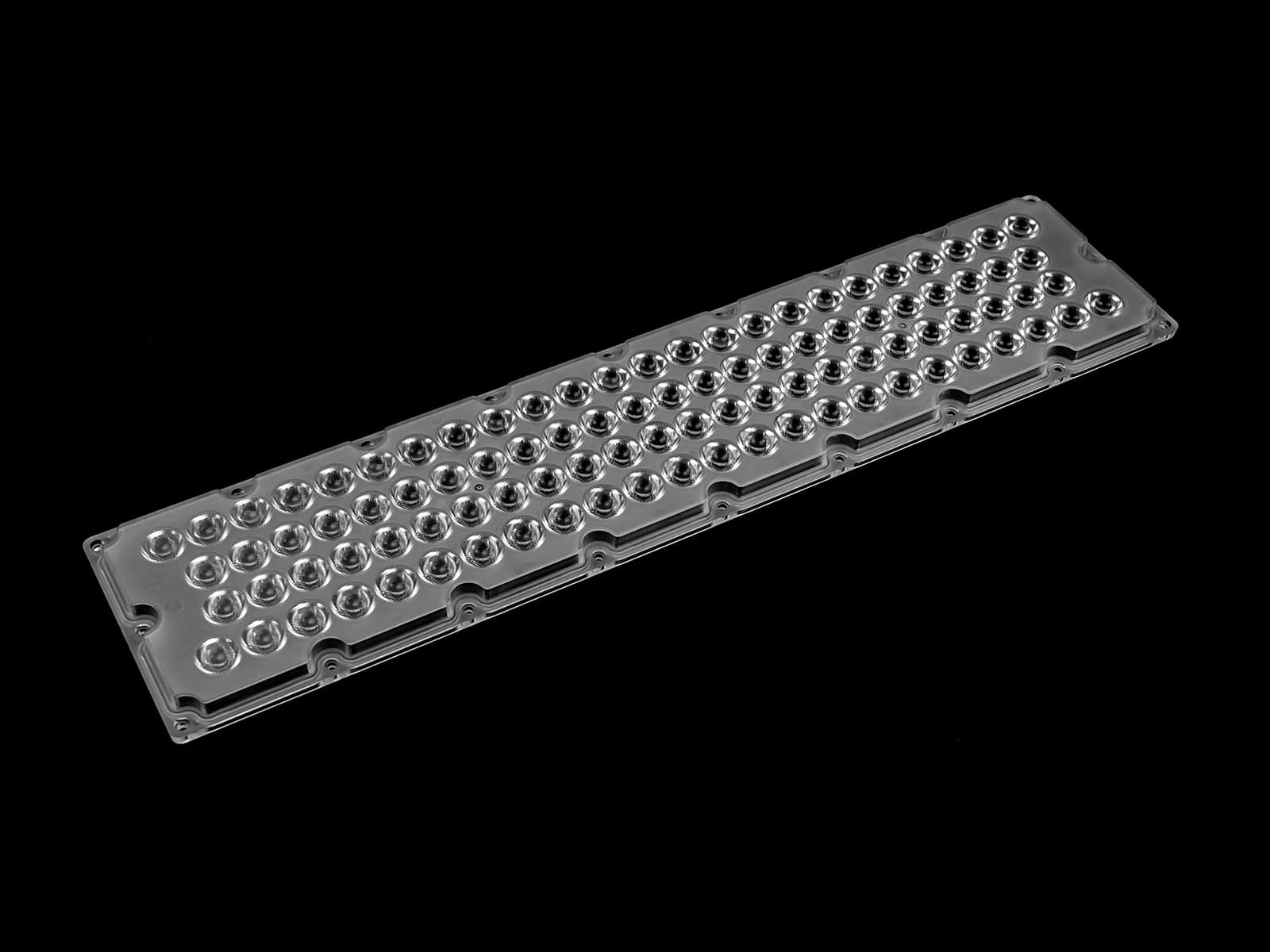

96LEDs lens with 40 degree beam Rectangular shape stadium lighting

96LEDs lens with 40 degree beam Rectangular shape stadium lighting

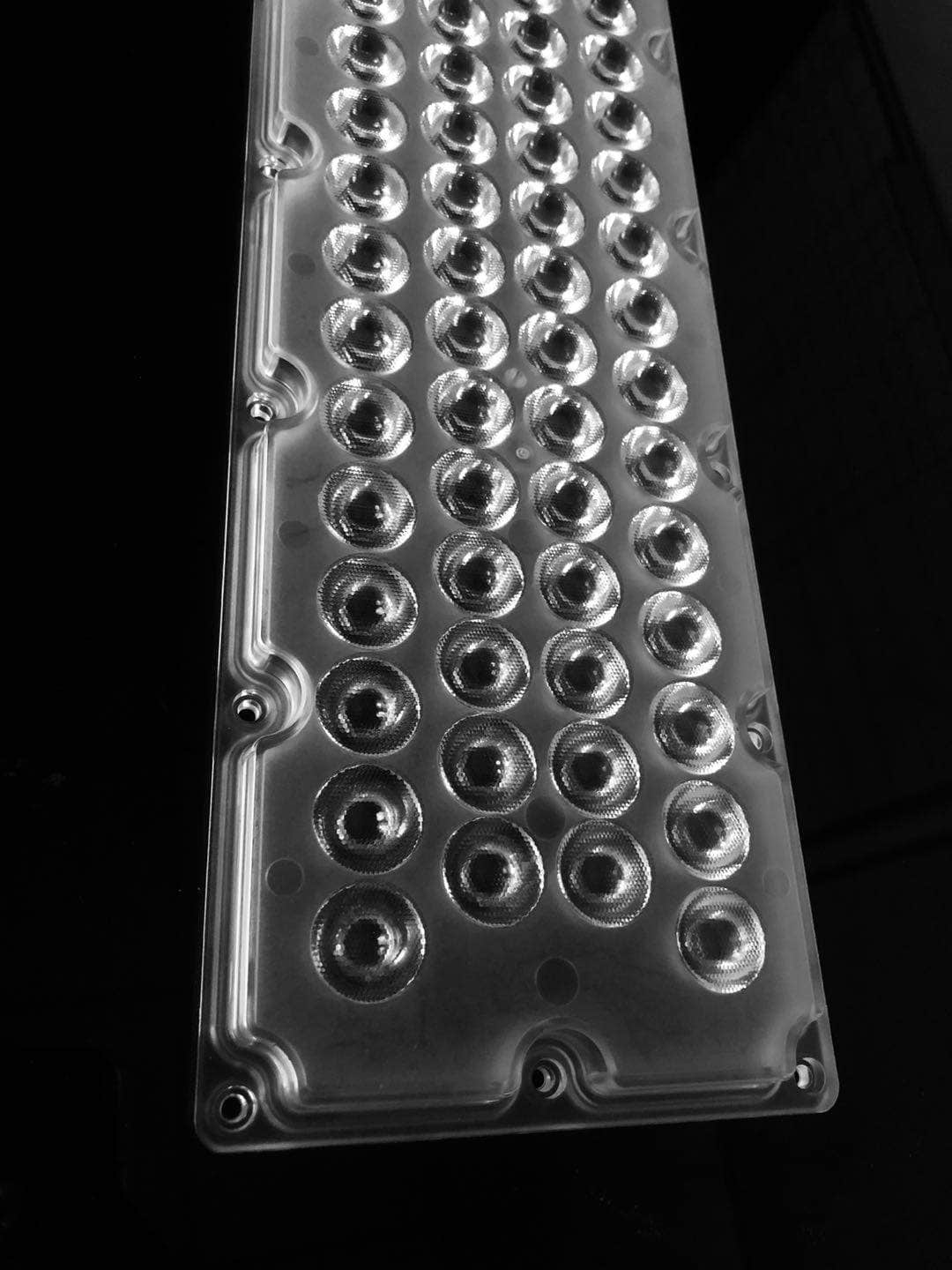

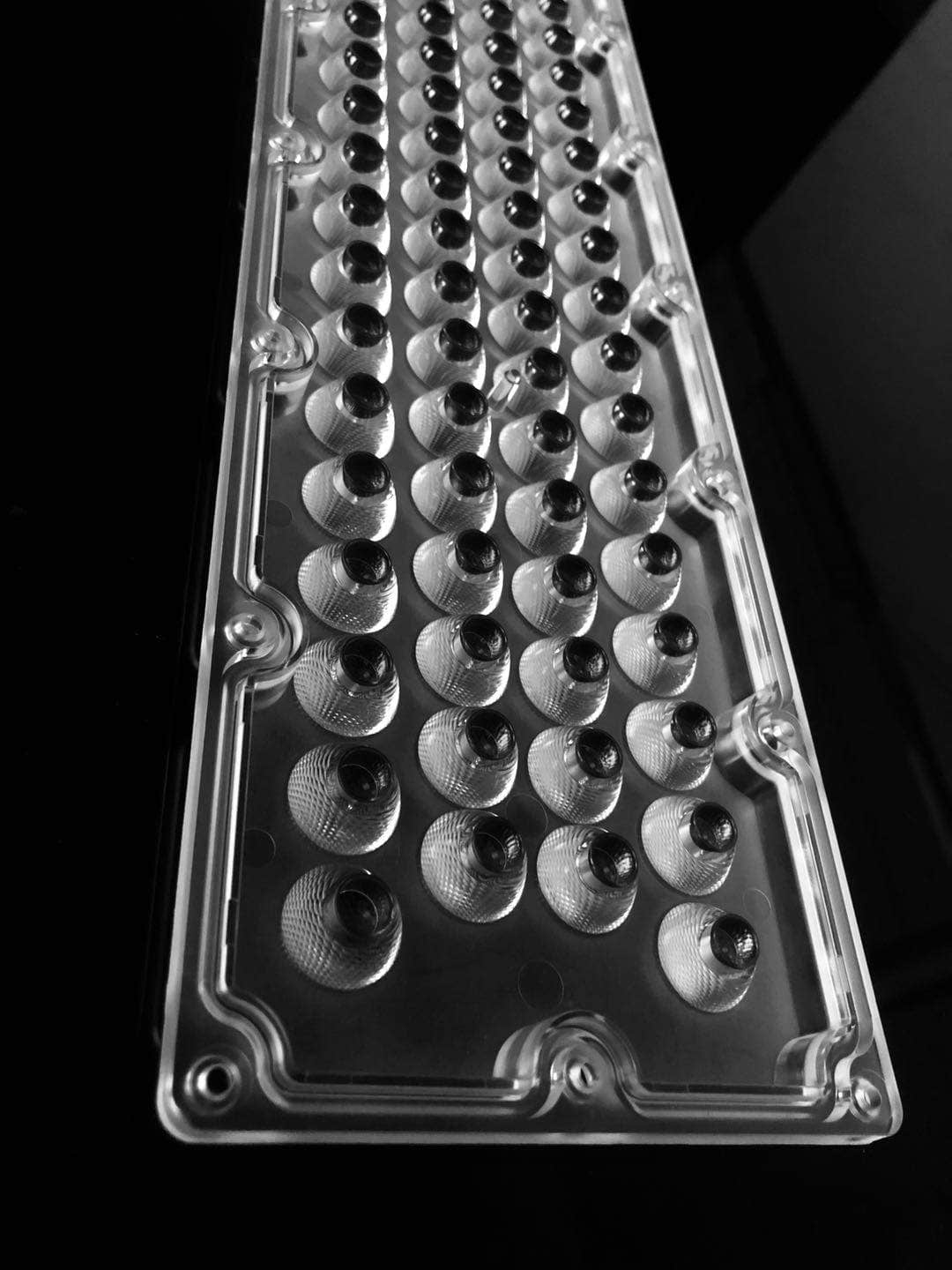

Model: ARHB520D96LED40G

Diameter: 520mm

Height: 116mm

Angle: 40°

Material: PC-1250Z

Transmittance: >90%

LED Type: 3535/ 5050LED

Lighting Applications: High Bay lighting,Stadium lighting

1.Power range: We offer high power lens modules for stadium lighting and flood lights up to 250W, 500W and up to 1500W. This high power design can provide a strong lighting effect to meet the needs of large areas of lighting.

2.The high-power lens modules are designed for 5050LED size with IP66 gasket waterproof and it can be reached to IK10 grade.

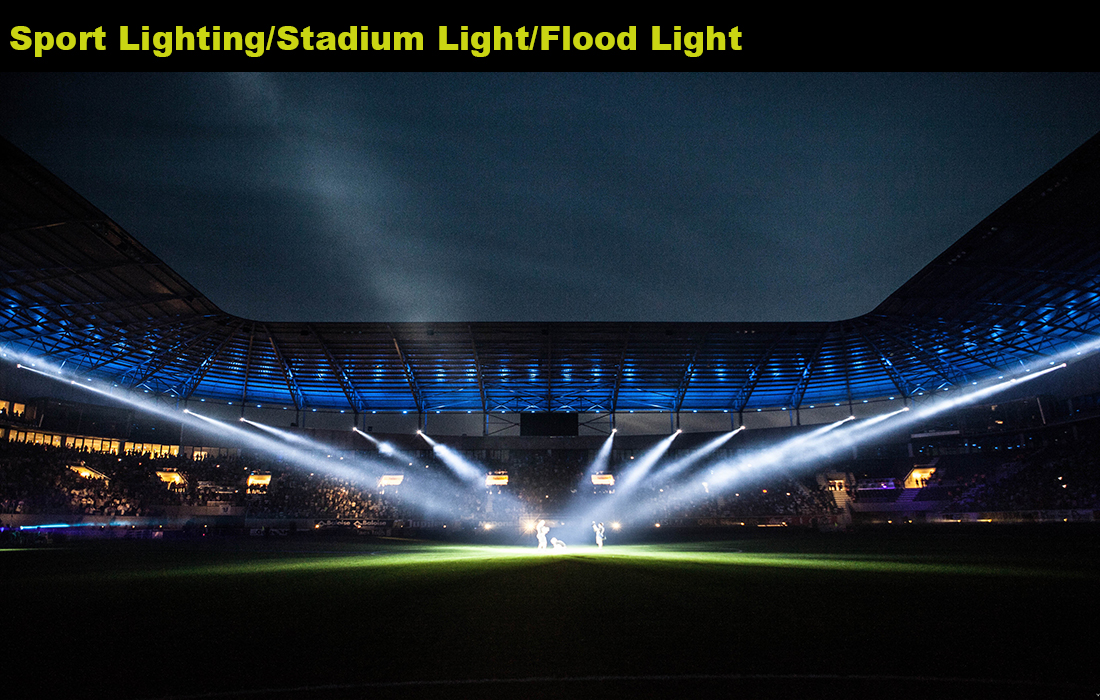

3.The high-power lens modules are widely used for large areas such as outdoor sports lighting, tower crane lighting, harbor terminal lighting, industrial lighting, etc.

4.The optical beam angle is available from a narrow beam to a wide beam 20°, 40°, 60°, and 90°to match the different heights of lighting installation.

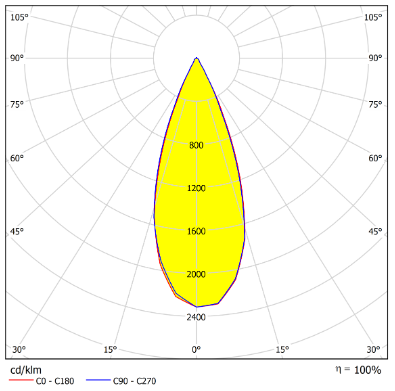

Distribution

Specifications

Model:	ARHB520D96LED40G
Diameter:	520mm
Height:	116mm
Angle:	40°
Material：	PC-1250Z
Transmittance：	>90%
LED Applications	3535/ 5050LED
Lighting applications	High Bay lighting, Stadium lighting

LED Type

XPE

XPE2

XP-G2

XP-G3

OSLON SSL80

SQUARE

LUXEON HL4Z

NVSW219GL

PK2E-2LVE-B2R8N

PK2N-4LVE-SBVR8

Packaging

---

Material Information

Lens Material

L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature

PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability

PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec

PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate

400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

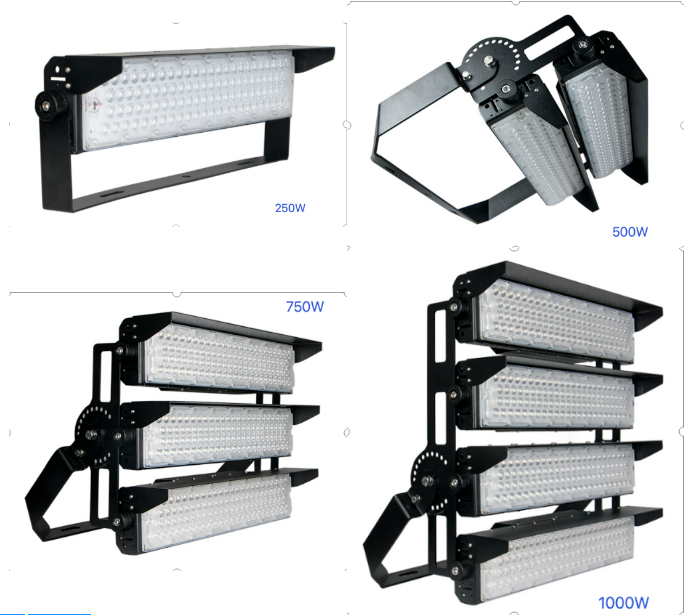

High Power lens module for Stadium lighting and Floodlight 250W/500W/up to 1500W with different optical beam angles 10°, 20°, 40°，60°, 90°

The high-power lens modules are designed for 5050LED size with IP66 gasket waterproof and it can be reached to IK10 grade.
The high power lens modules are widely used for large areas such as outdoor sports lighting, tower crane lighting, harbor terminal lighting, industrial lighting, etc.
The optical beam angle is available from a narrow beam to a wide beam 10°, 20°, 40°, 60°, 90°to match the different heights of lighting installation.

96led lens 250 1000W.jpg
