Model: AJS45DRGBW15G

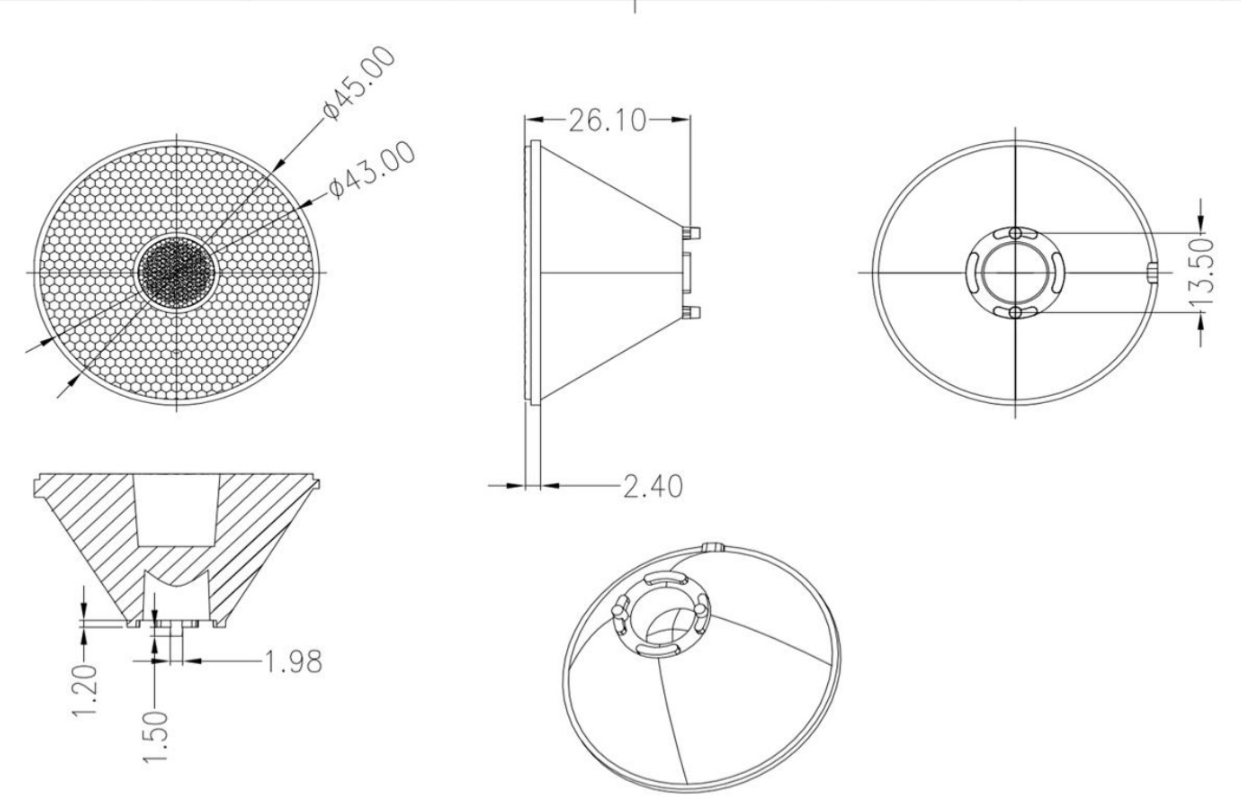

Diameter: 45mm
Height: 26.4mm
Angle: 15°
Material: PMMA
Transmittance: >93%
LED Type: CREE XML-RGBW

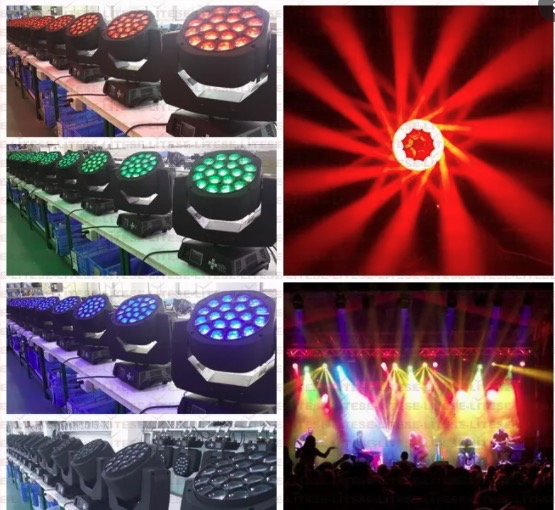

Lighting Applications: stage light
1. This type of lens is commonly used in the entertainment industry for creating dynamic and colorful lighting displays.
2. The narrow beam angle of 15° is ideal for applications that require concentrated lighting or highlighting of specific features.

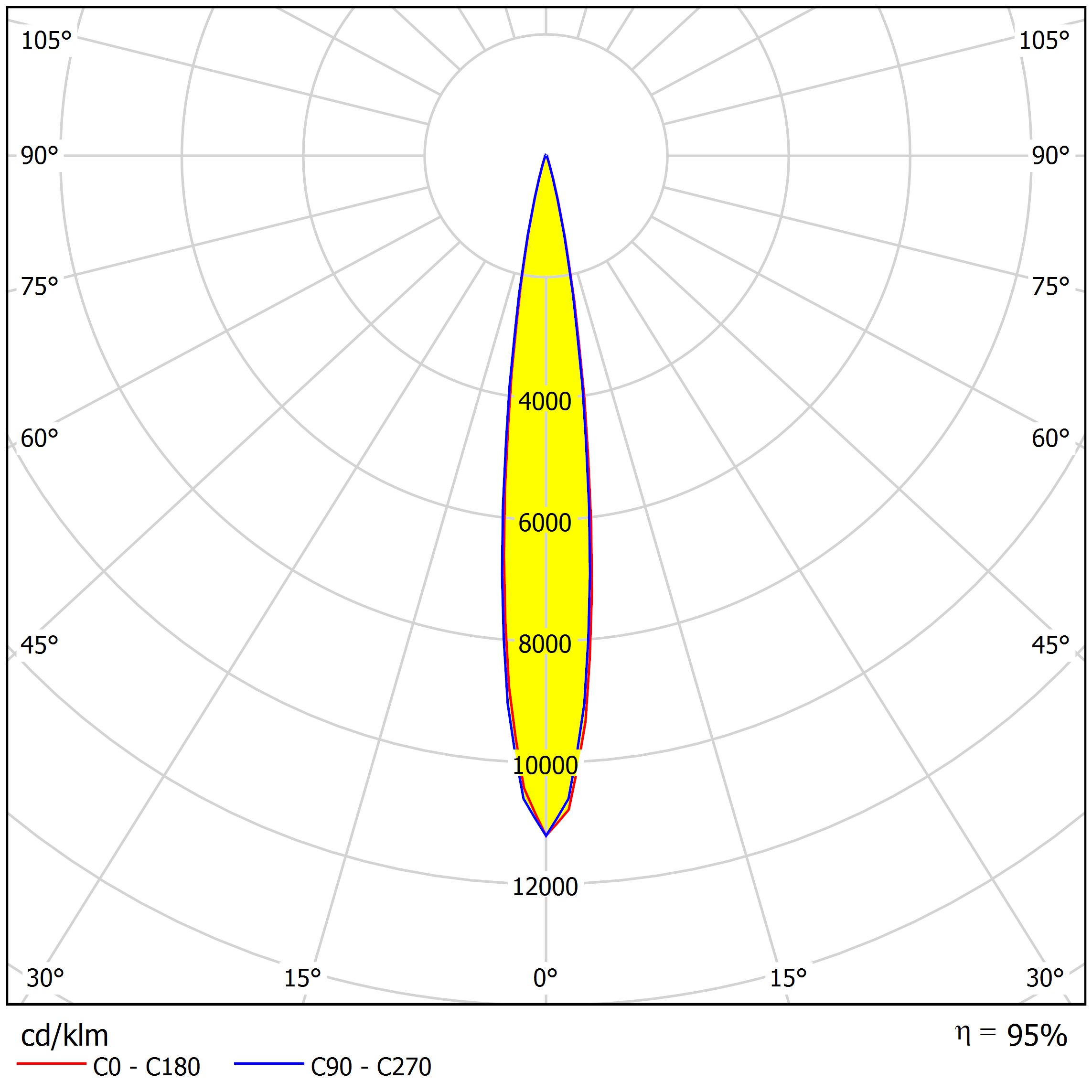

Distribution
Specifications
| Model: | AJS45DRGBW15G |
| Diameter: | 45mm |
| Height: | 26.4mm |
| Angle: | 15° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | CREE XML-RGBW |
| Lighting applications | stage light |
LED Type
XPE/XPG2
CLQ6
XML
S5/2835/3030
SSL 80/120/150
P3737
5050
C/CZ/4in1
RUBIX
SPB05F0D
SPFOAFOA
SZ5-M4
15W/40W/60W
PBLA
PBLD
PBEE
PBEB
PBEF
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
