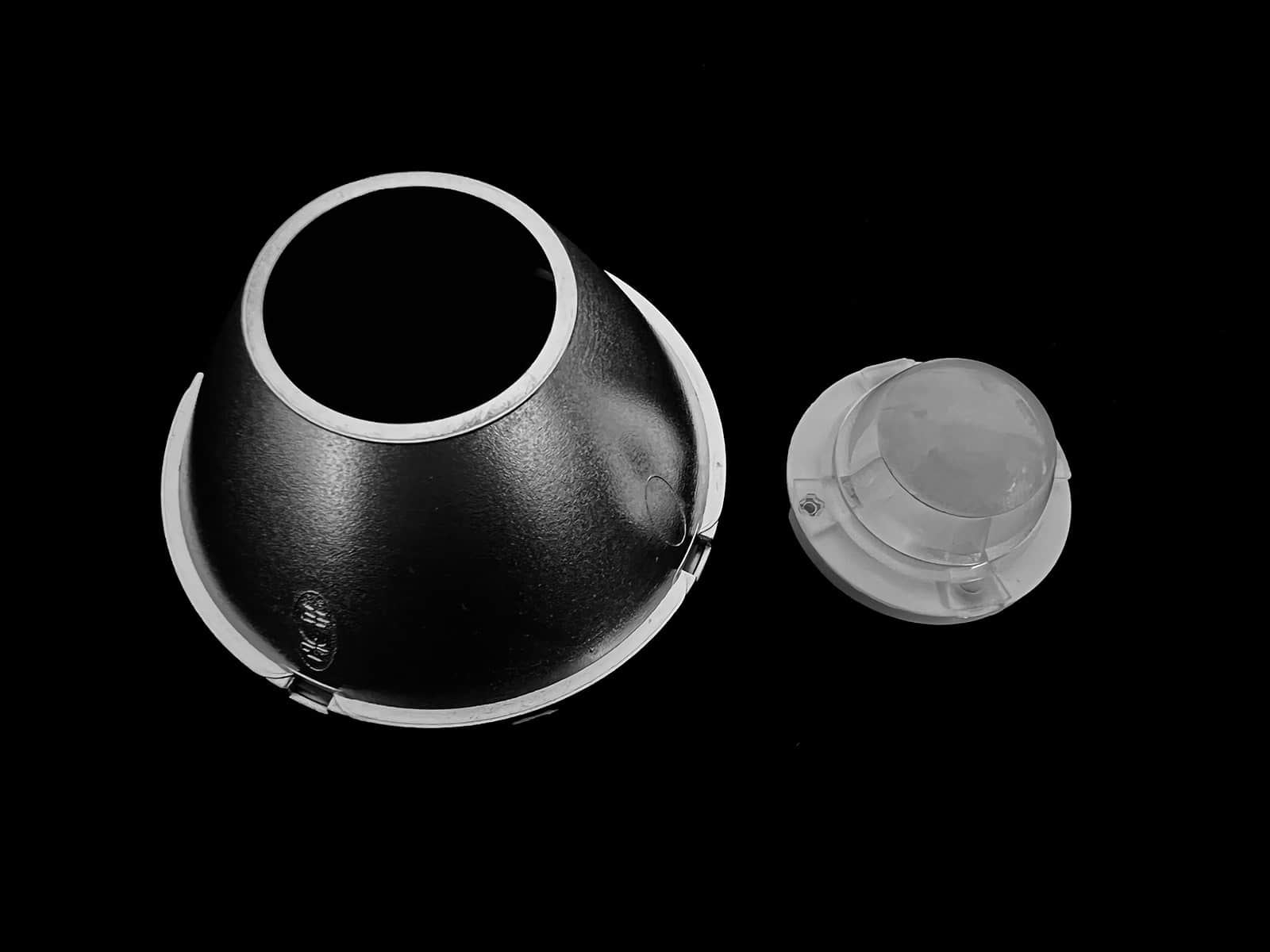

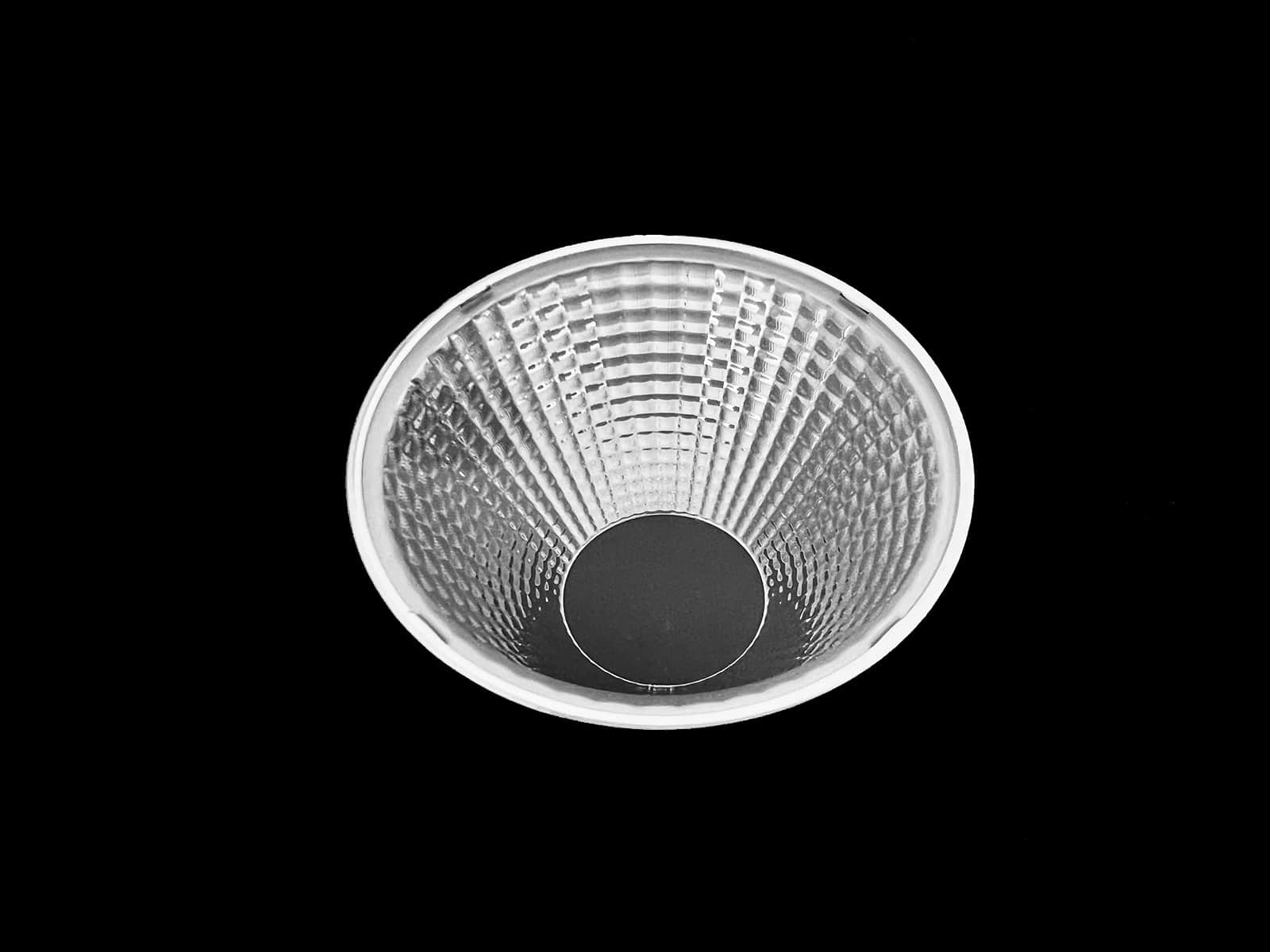

Model: AR8542T
Diameter: 85.0mm,31.0mm
Height: 42mm
Angle: 15°, 25°, 38°
Material: PC+Aluminum Coating
Transmittance: >88%

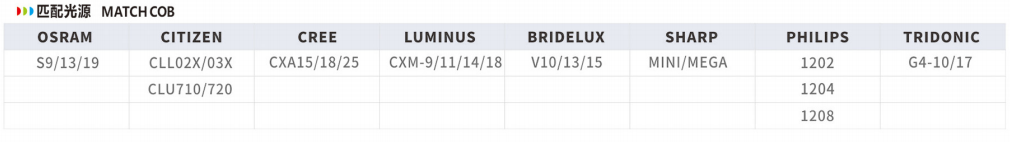

LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light
1, COB lenses are designed specifically for compact Chip-on-Board LED, 85mm LED Reflectors For the range of Downlight Applications, packages.

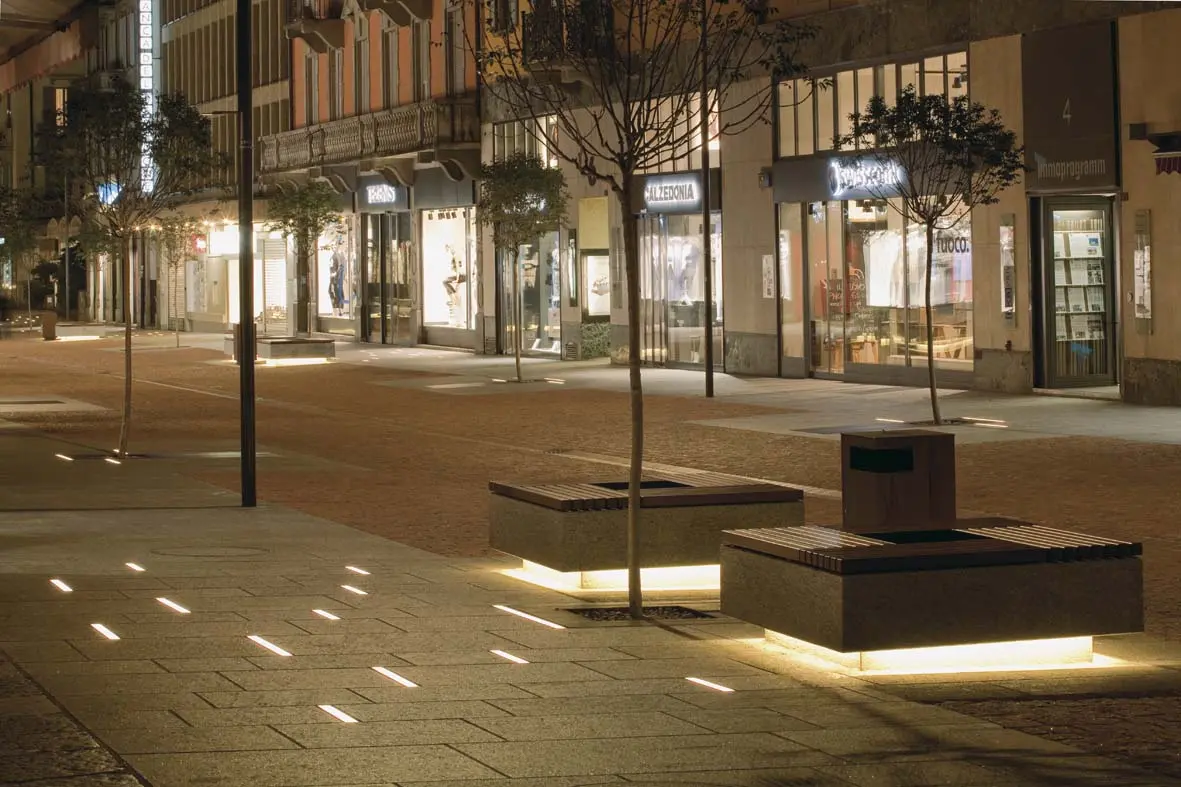

2, COB LED reflectors are utilized for lighting up bridges, monuments, and architectural landmarks. The reflectors can be strategically positioned to highlight the unique design features and create a visually stunning effect, enhancing the nighttime aesthetics of these structures.
3, The versatility, energy efficiency, and compact design of COB LEDs make them suitable for various lighting requirements across different industries and settings.
Specifications
| Model: | AR8542T |
| Diameter: | 85.0mm |
| Height: | 42.0mm |

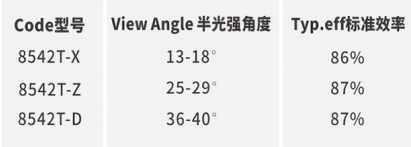

| Angle: | 15°, 24°, 38° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |

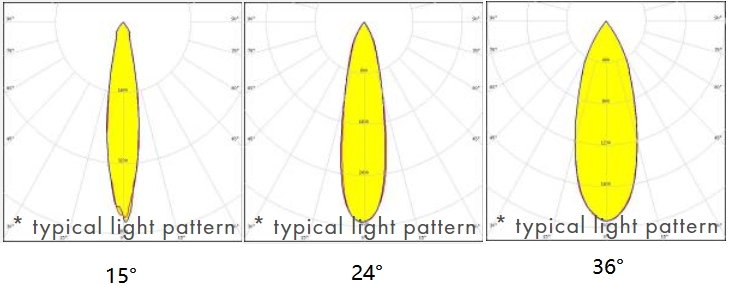

Light Distribution Curve
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
