Model: ALHB173D12LED8G
Diameter: 173x71.4mm
Height: 11.4mm
Angle: 8°
Material: PMMA
Transmittance: >93%
LED Type: 3535LED
Lighting Applications: High Bay Lighting
1. 2x6-8degree lens is made of high-quality PMMA material,allowing for high light transmission and minimal light dispersion, ensuring efficient illumination.
2. With an narrow beam angle of 8°,the narrow angle ensures precise beam control, delivering focused and uniform lighting suitable for sports arenas.

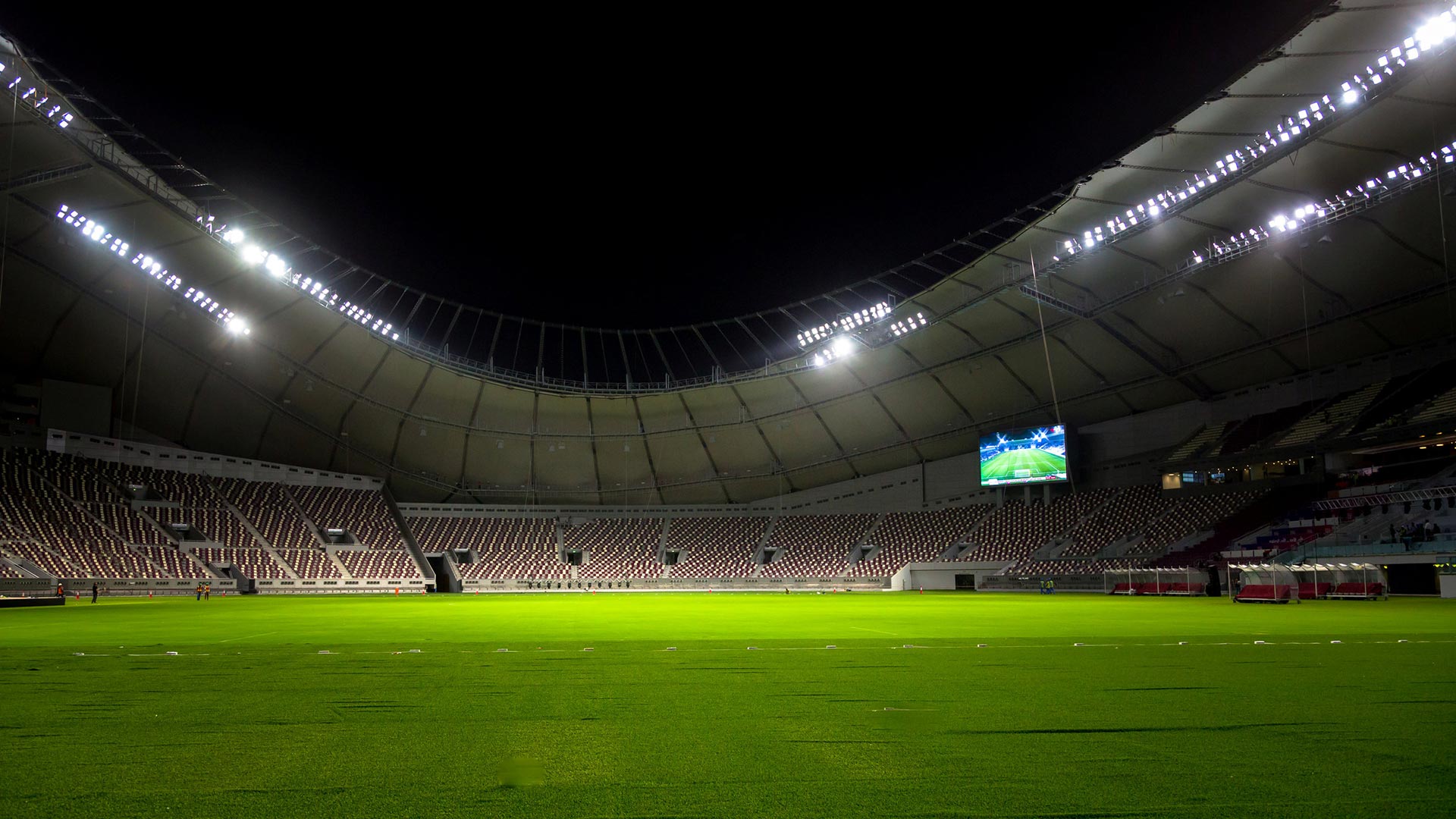

3. Designed to minimize shadows and glare, improving visibility on sports fields and enhancing the overall gaming experience.

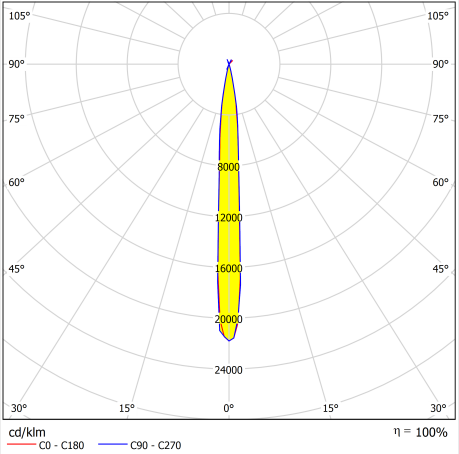

Distribution
Specifications
| Model: | ALHB173D12LED8G |
| Diameter: | 173x71.4mm |
| Height: | 11.4mm |
| Angle: | 8 ° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 3535 LED |
| Lighting applications | High Bay Lighting,Sport Lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
~ 8° narrow spot beam for "3535" LED
The 2x6 lens is available for both PC and PMMA material
ASAHI OPTICS ALHB173D12LED8G lens 3D Drawing.stp

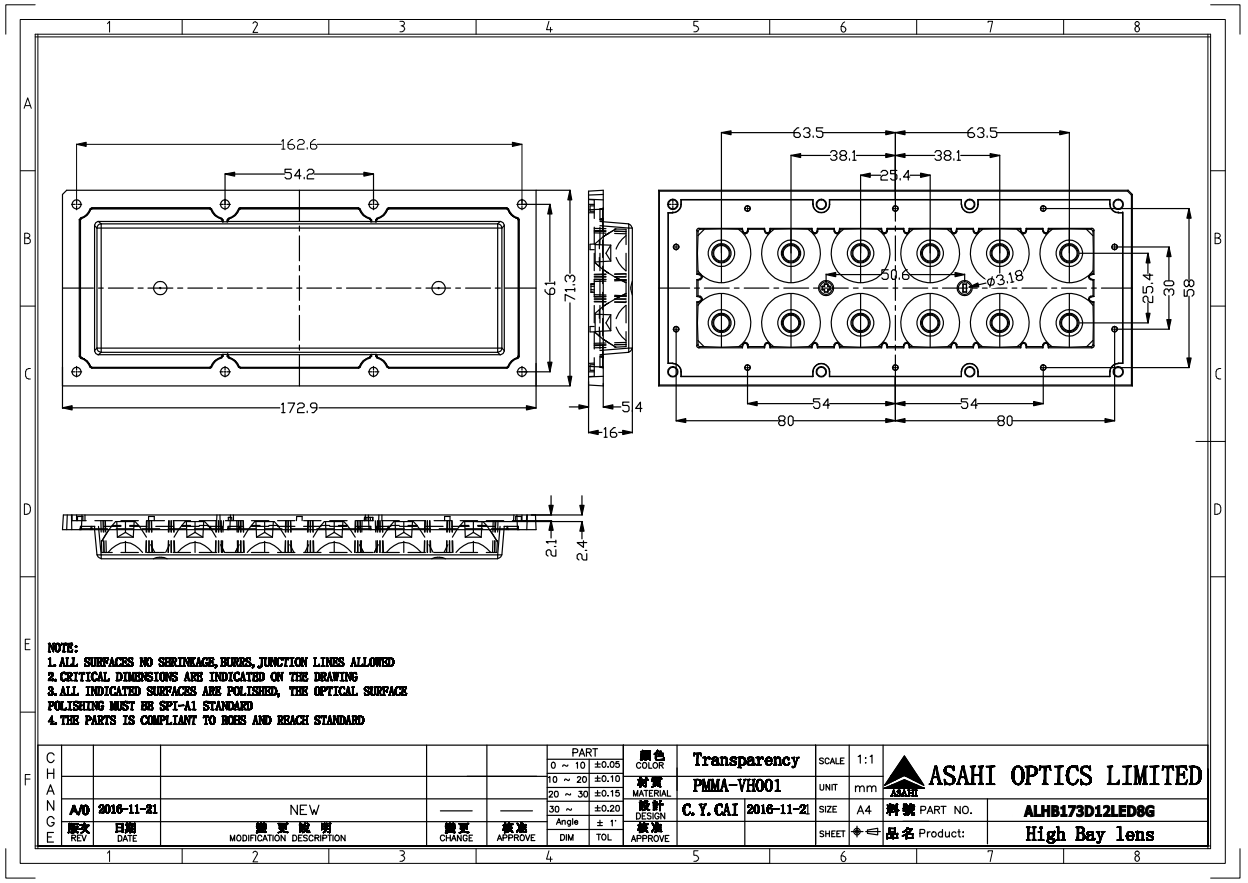

ASAHI OPTICS ALHB173D12LED8G Drawing.pdf
