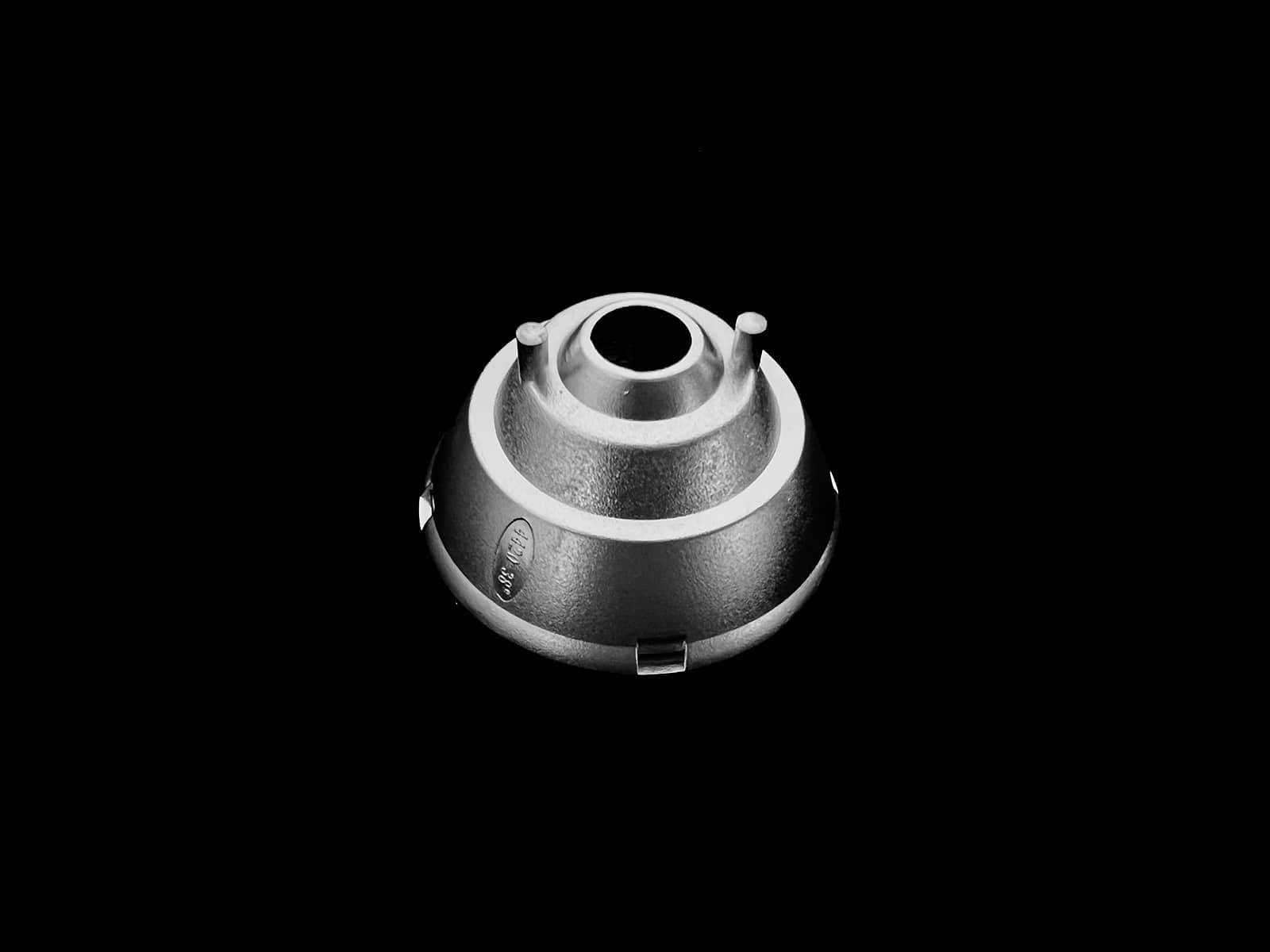

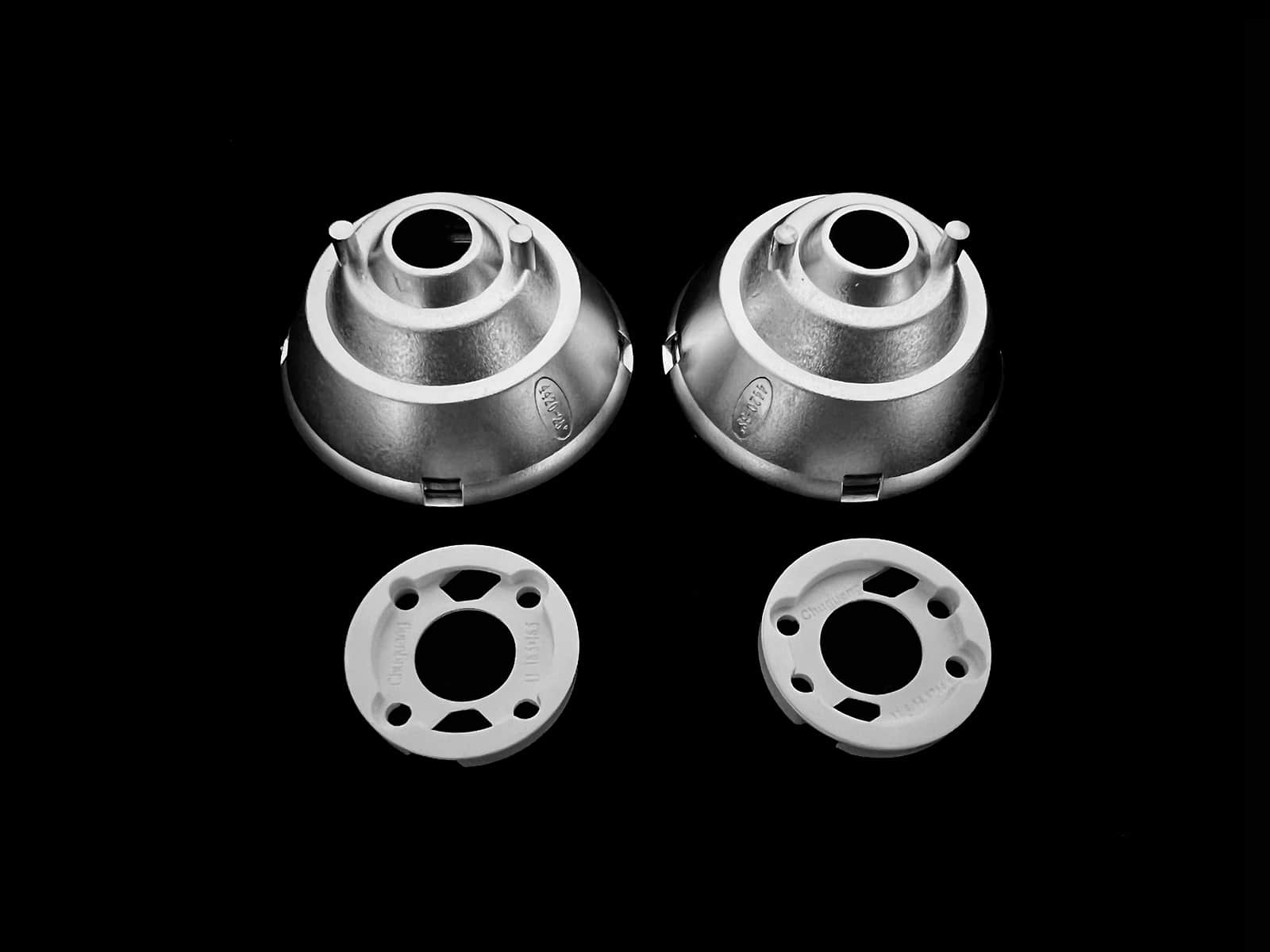

Model: AR4420
Diameter: 44mm, 8.5mm
Height: 20.2mm

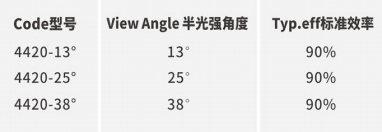

Angle: 13°, 25°, 38°
Material: PC
Transmittance: 88%
LED Type: COB LED

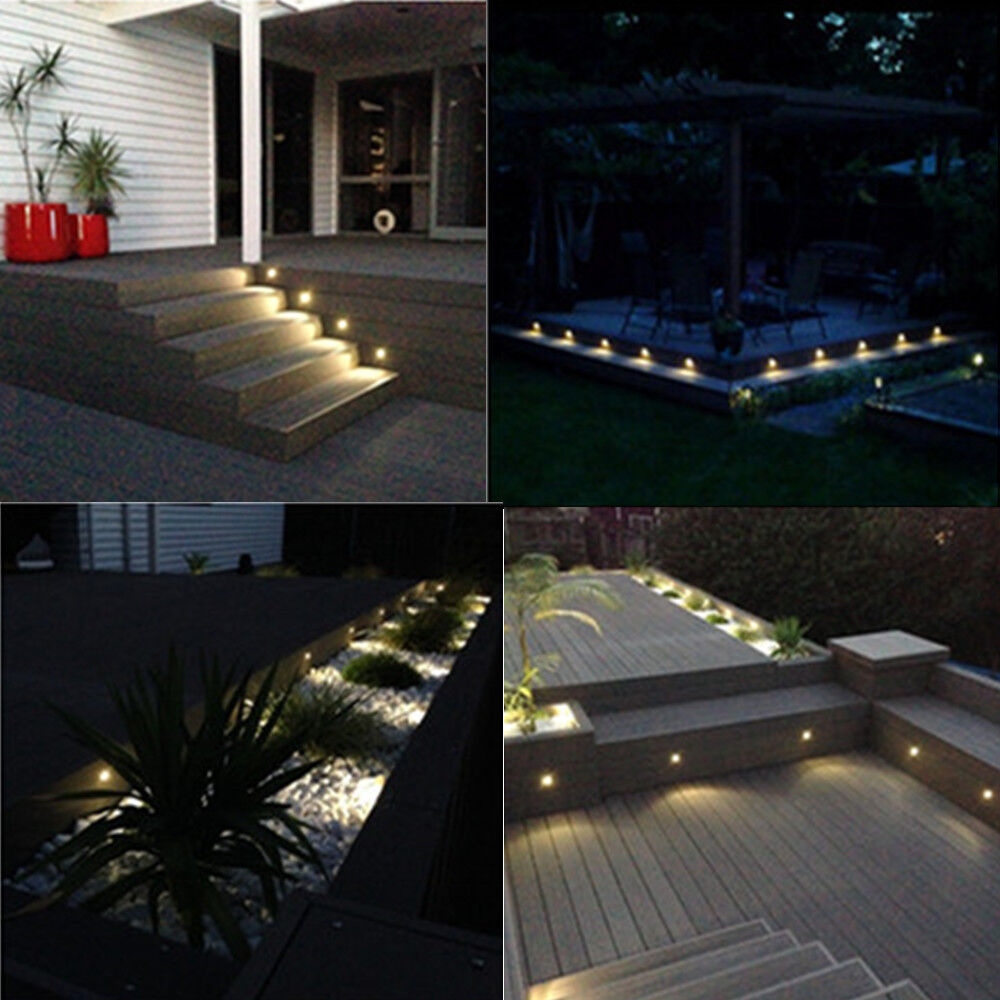

Lighting Applications: PAR lighting,Spot Light,Down Light

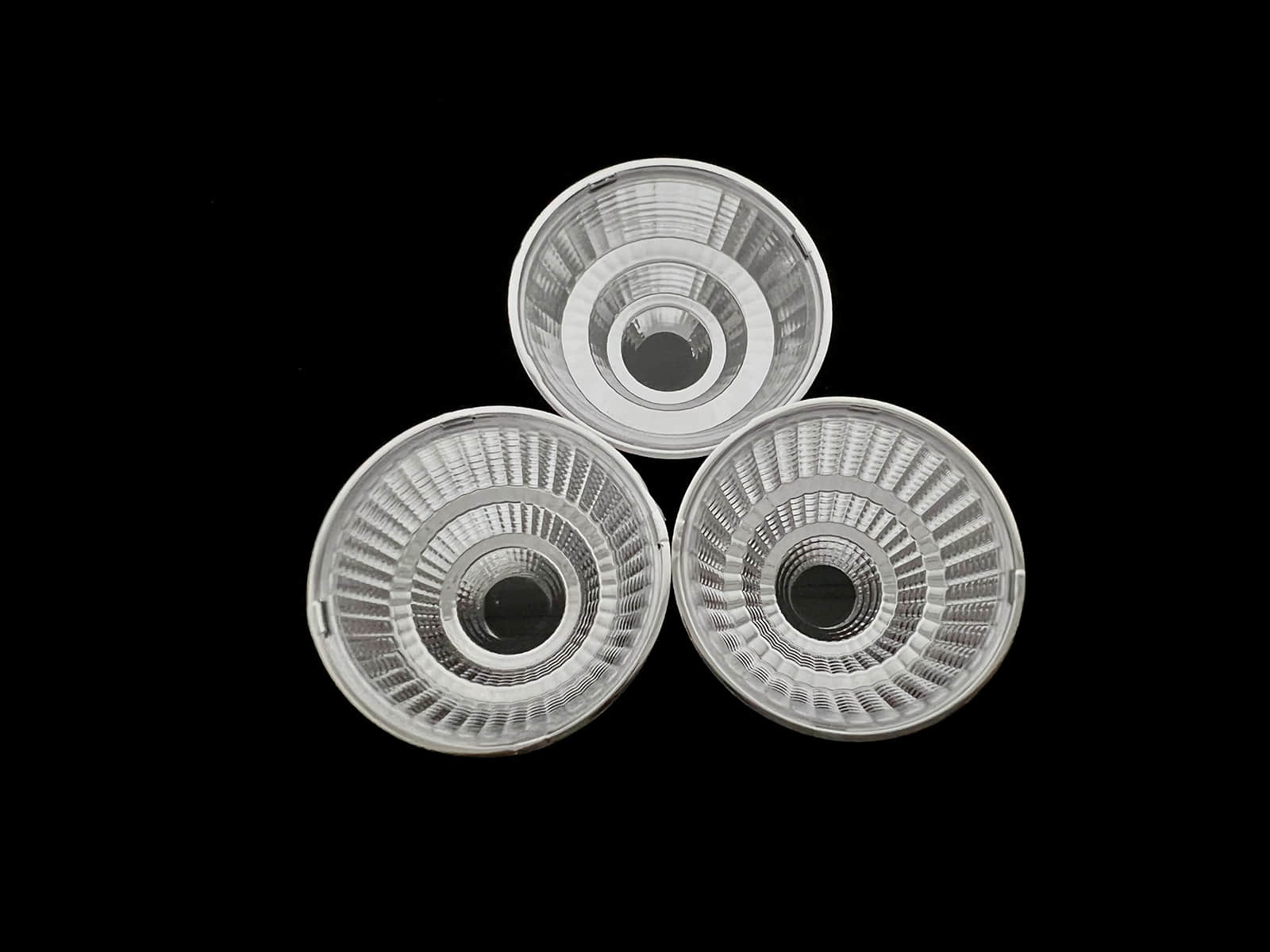

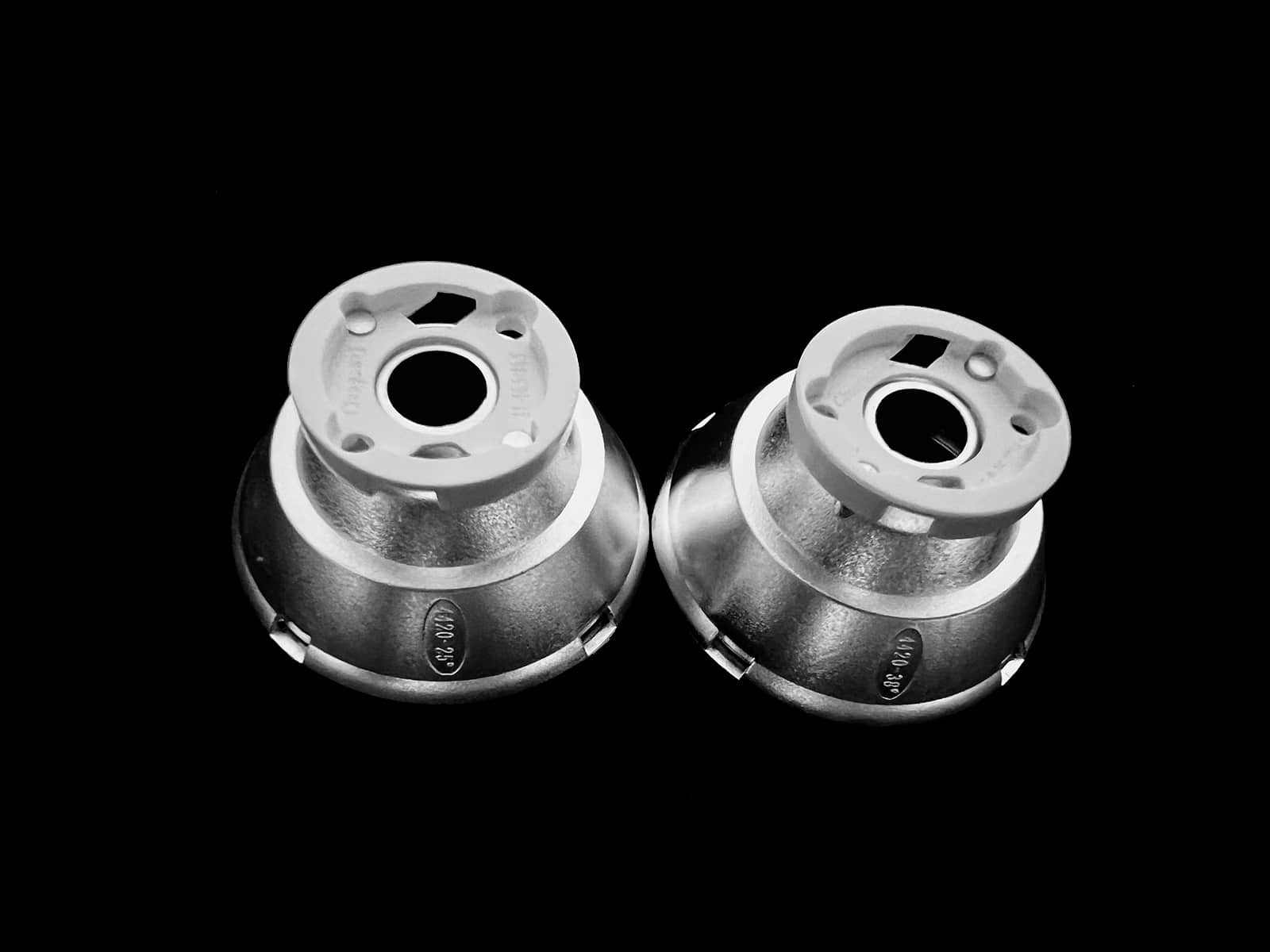

1, 44mm Diameter LED Reflector For Track Light
2, A COB LED (Chip-on-Board LED) reflector is a type of lighting fixture that combines multiple LED chips into a single module. The COB technology allows for a higher packing density of LED chips, resulting in a more powerful and efficient light source.
3, The reflector is designed to shape the light beam and reduce light loss by reflecting the emitted light towards the desired direction. It helps to minimize scattering and maximize the overall light output efficiency.

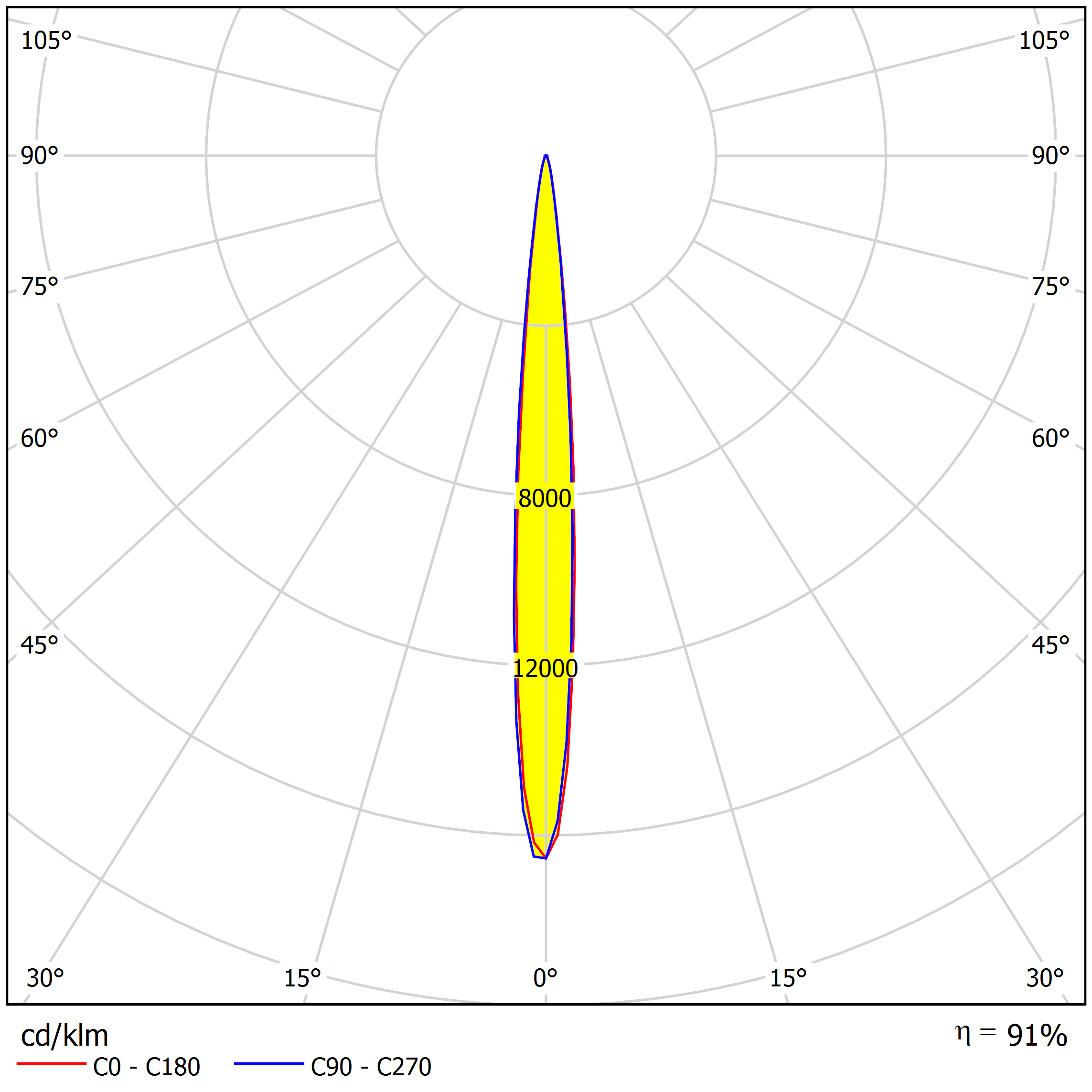

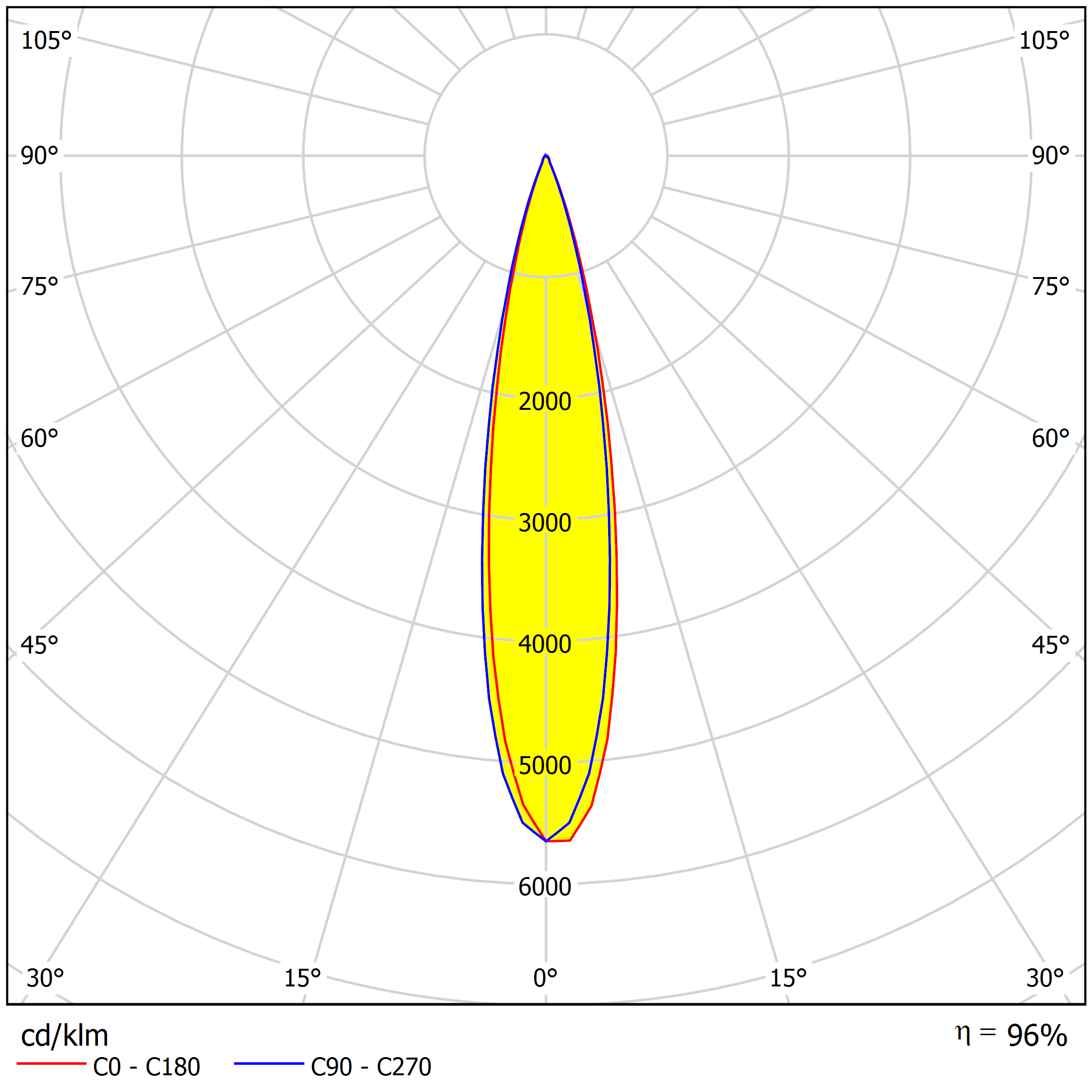

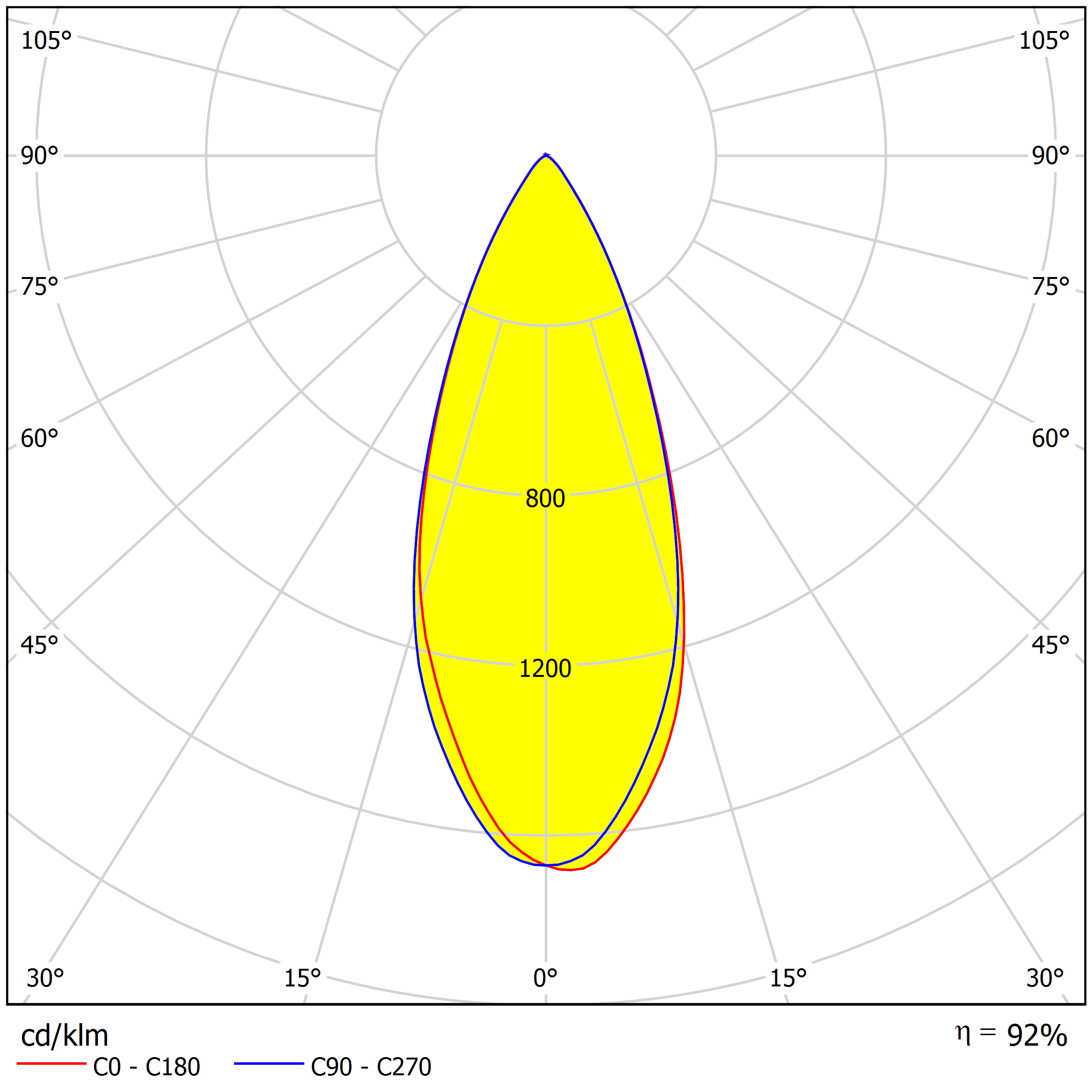

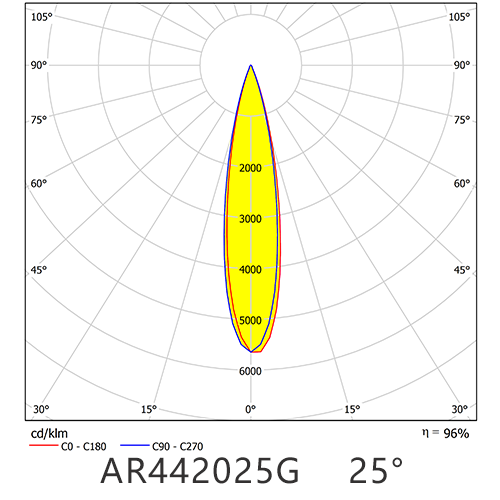

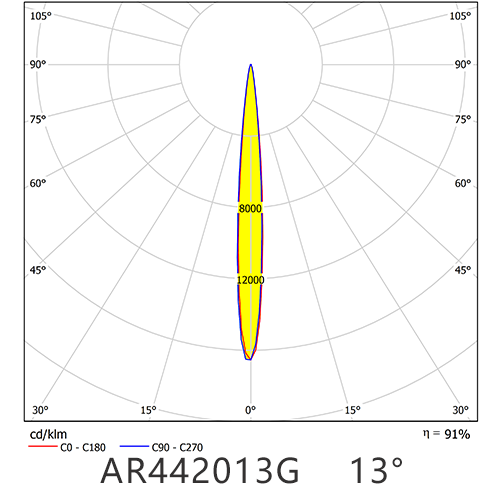

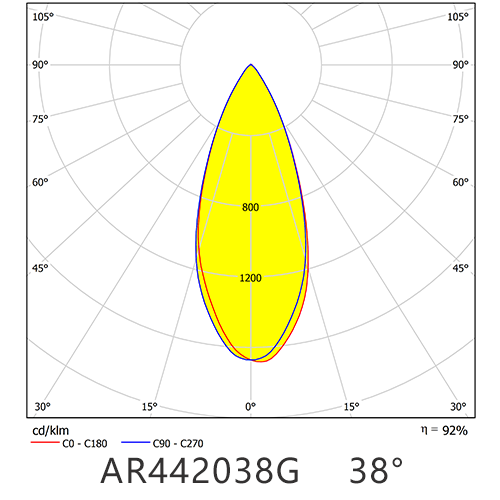

Distribution
Specifications
| Model: | AR4420 |
| Diameter: | 44mm, 8.5mm |
| Height: | 20.2mm |
| Angle: | 13°, 25°, 38° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |

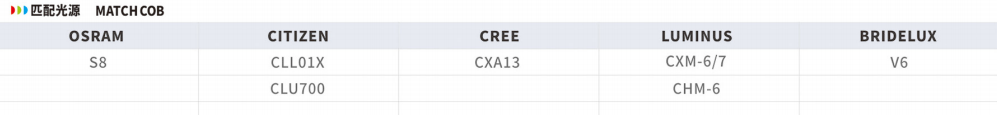

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
