Model: AJST155D40LEDT2/T3
Diameter: 155x150mm
Height: 7.23mm
Angle: Type II,Type III
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street lighting
1. 40-in-1 Multi-Lens Configuration – Versatile and adaptable, allowing for customizable light distribution to suit various urban and suburban lighting needs.
2. Durable & Weather-Resistant Construction – Designed for long-term outdoor use, ensuring stable performance under harsh environmental conditions.

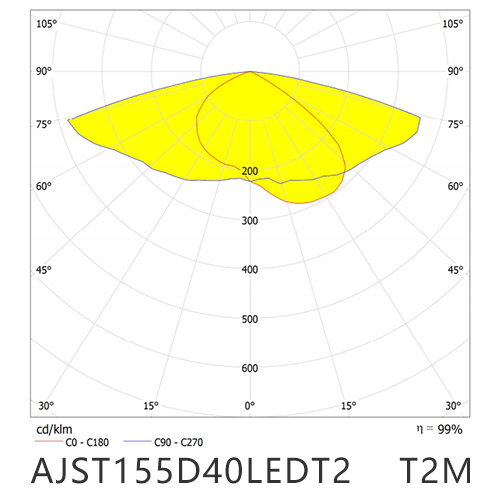

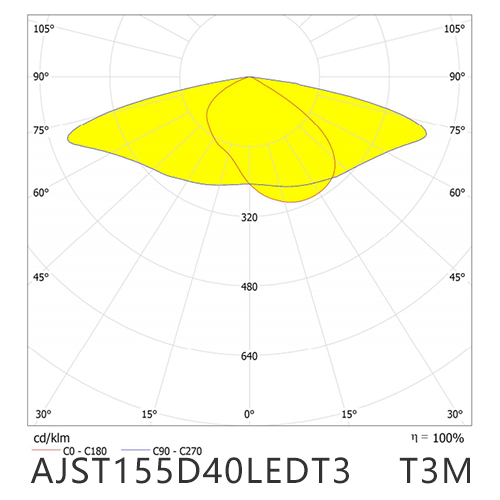

Distribution
Specifications
| Model: | AJST155D40LEDT2/T3 |
| Diameter: | 155x150mm |
| Height: | 7.23mm |
| Angle: | Type II,Type III |
| Material： | PC |
| Transmittance： | >88% |
| LED Type | 5050LED |
| Lighting applications | Street lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
