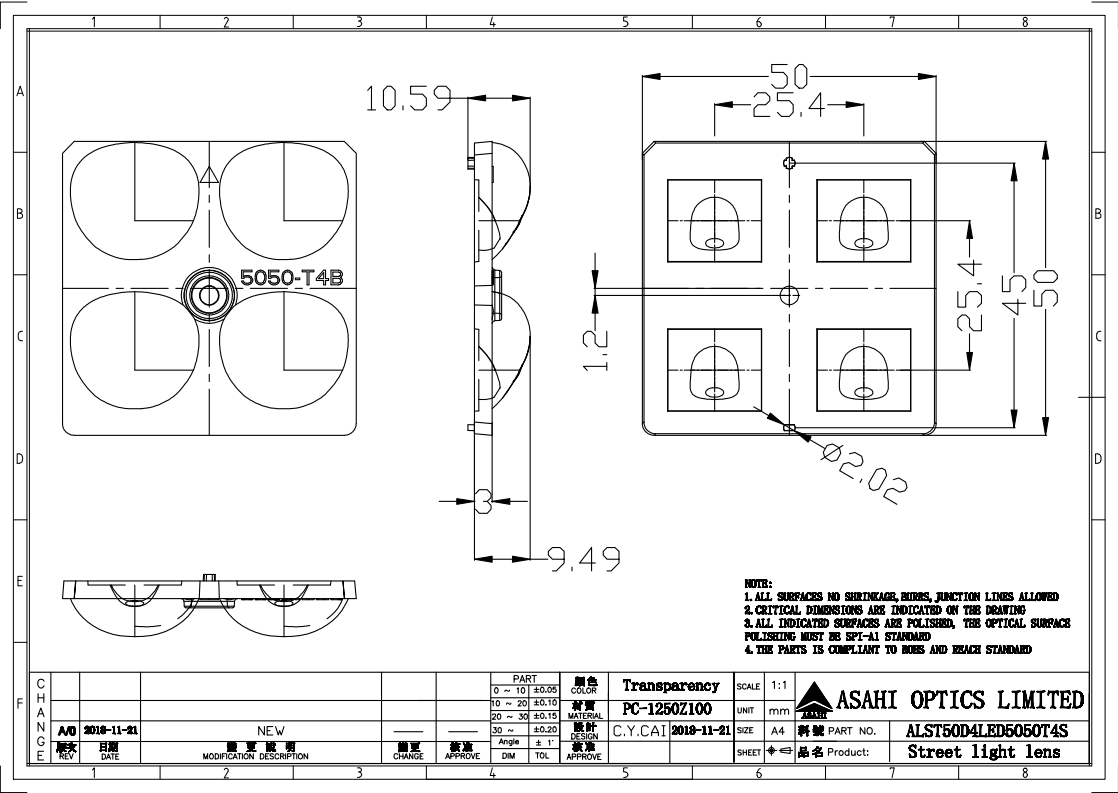

Model: ALST50D4LED5050T4B
Diameter: 50x50mm
Height: 9.49mm
Angle: T4-Very Short
Material: PC
Transmittance: >90%
LED Type: 5050LED
Lighting Applications: Area Lighting

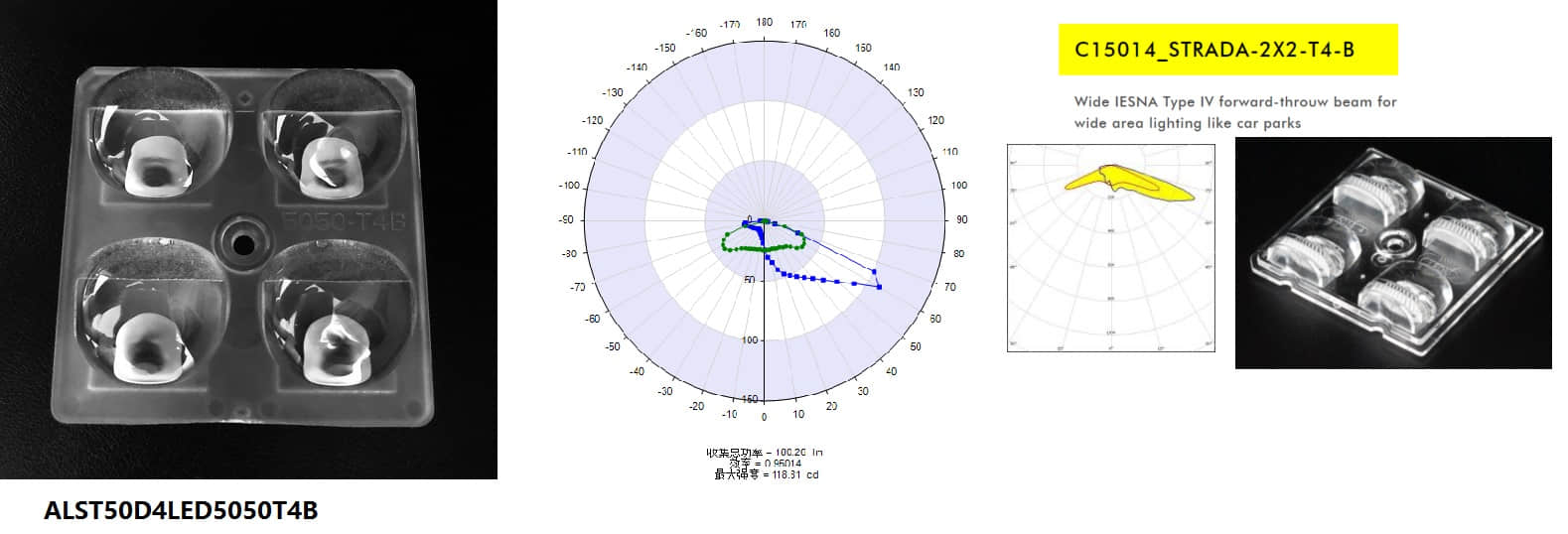

1. 2X2 Type IV forward-throw beam for wide area lighting like car parks. Variant with improved creepage distance for high voltage circuit designs.
2. It's made of high quality PC material,offering durability and resistance to weather, UV radiation, and impact.

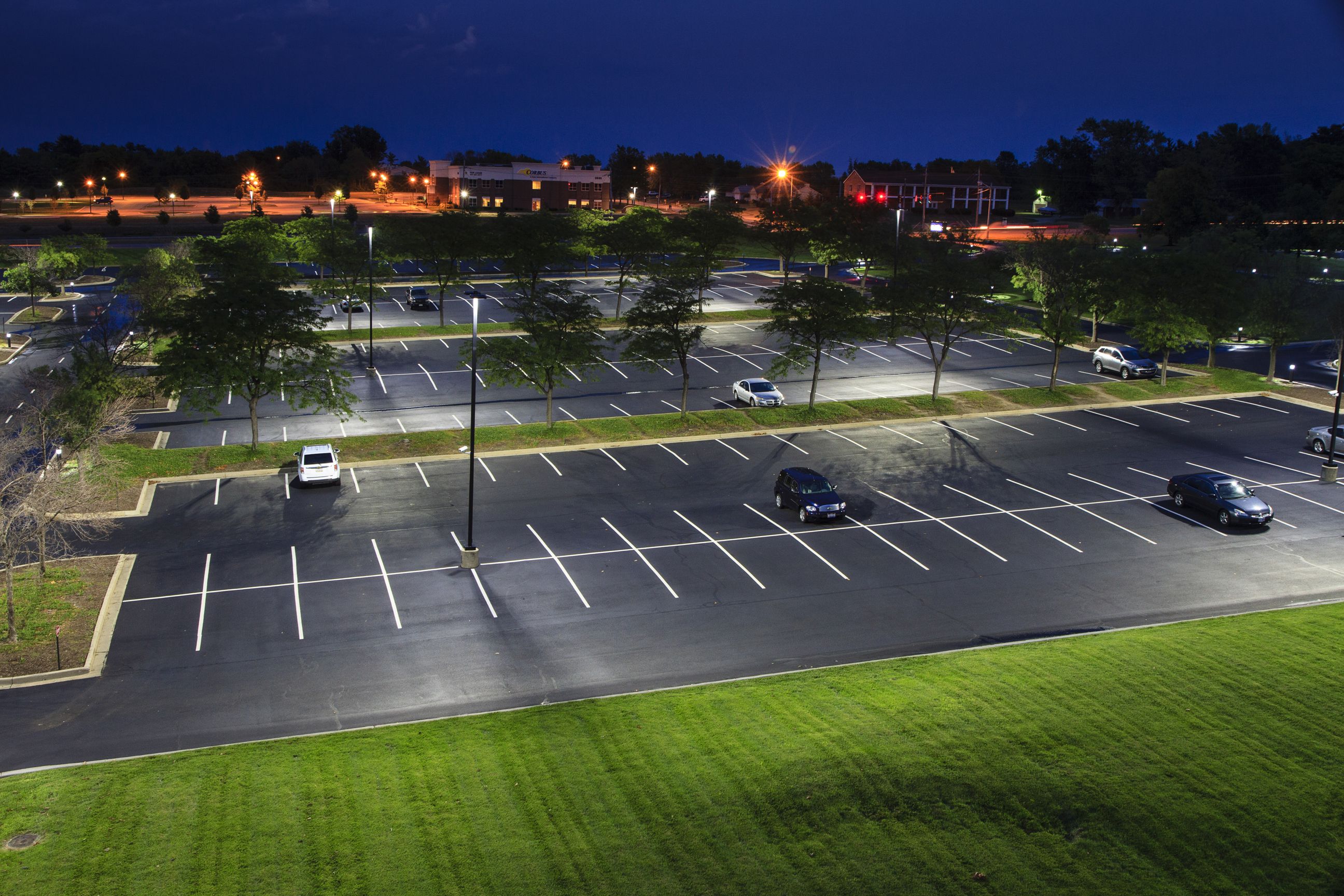

3. Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.

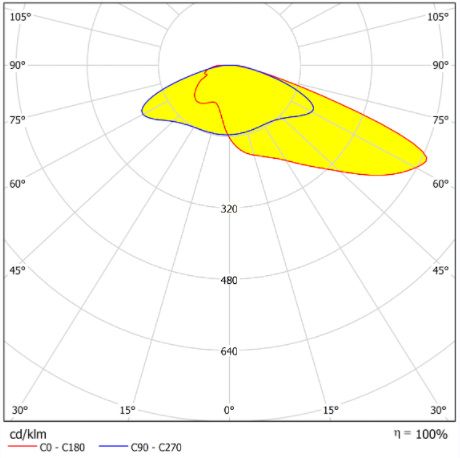

Distribution
Specifications
| Model: | ALST50D4LED5050T4B |
| Diameter: | 50x50mm |
| Height: | 9.49mm |
| Angle: | T4-Very Short |
| Material： | PC |
| Transmittance： | >90% |
| LED Type | 5050LED |
| Lighting applications | Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. 2X2 Type IV forward-throw beam for wide area lighting like car parks. Variant with improved creepage distance for high voltage circuit designs.
2. It's made of high quality PC material,offering durability and resistance to weather, UV radiation, and impact.
3. Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.
