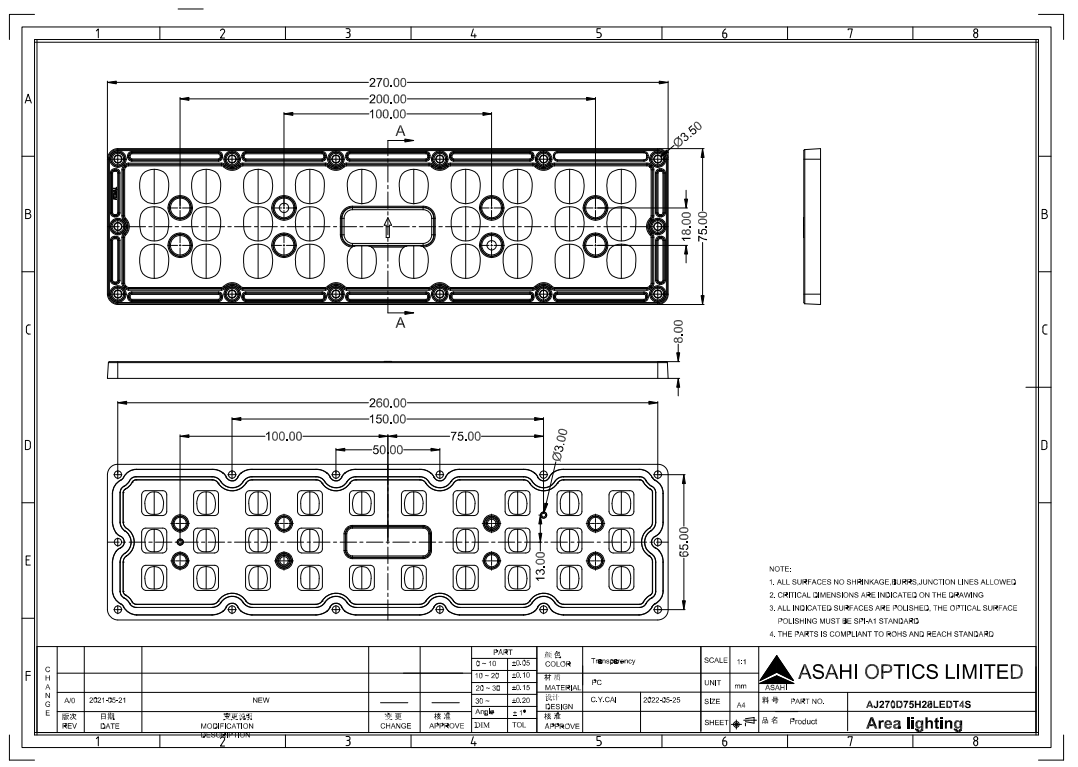

Model: AJST270D75H28LEDT4S
Diameter: 270mm
Height: 75mm
Angle: Type IV
Material: PC-1250Z
Transmittance: >90%
LED Type: 4x3030/ 5050LED
Lighting Applications: Street lighting
1. This 28 LEDs lens helps to evenly distribute the light across the street and sidewalk, providing optimal illumination.
2.The combination of the Type 4 lens and the 28 LEDs in this street lighting fixture helps to create a well-illuminated and safe environment for pedestrians and motorists alike.

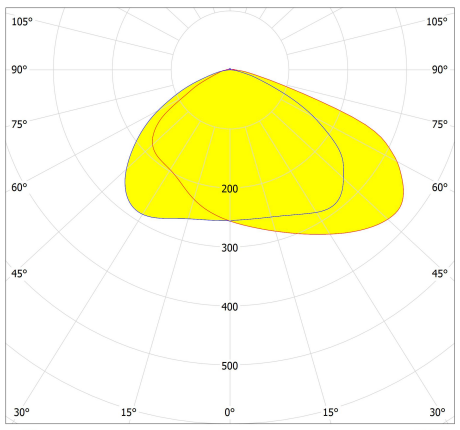

Distribution
Specifications
| Model: | AJST270D75H28LEDT4S |
| Diameter: | 270mm |
| Height: | 75mm |
| Angle: | Type IV |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 4x3030/ 5050LED |
| Lighting applications | Street lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
