25 LEDs Floodlight Lens 10° 15° 20° 30° 45° 60° 90x90° Beam Angle
25 LEDs Floodlight Lens 10° 15° 20° 30° 45° 60° 90x90° Beam Angle

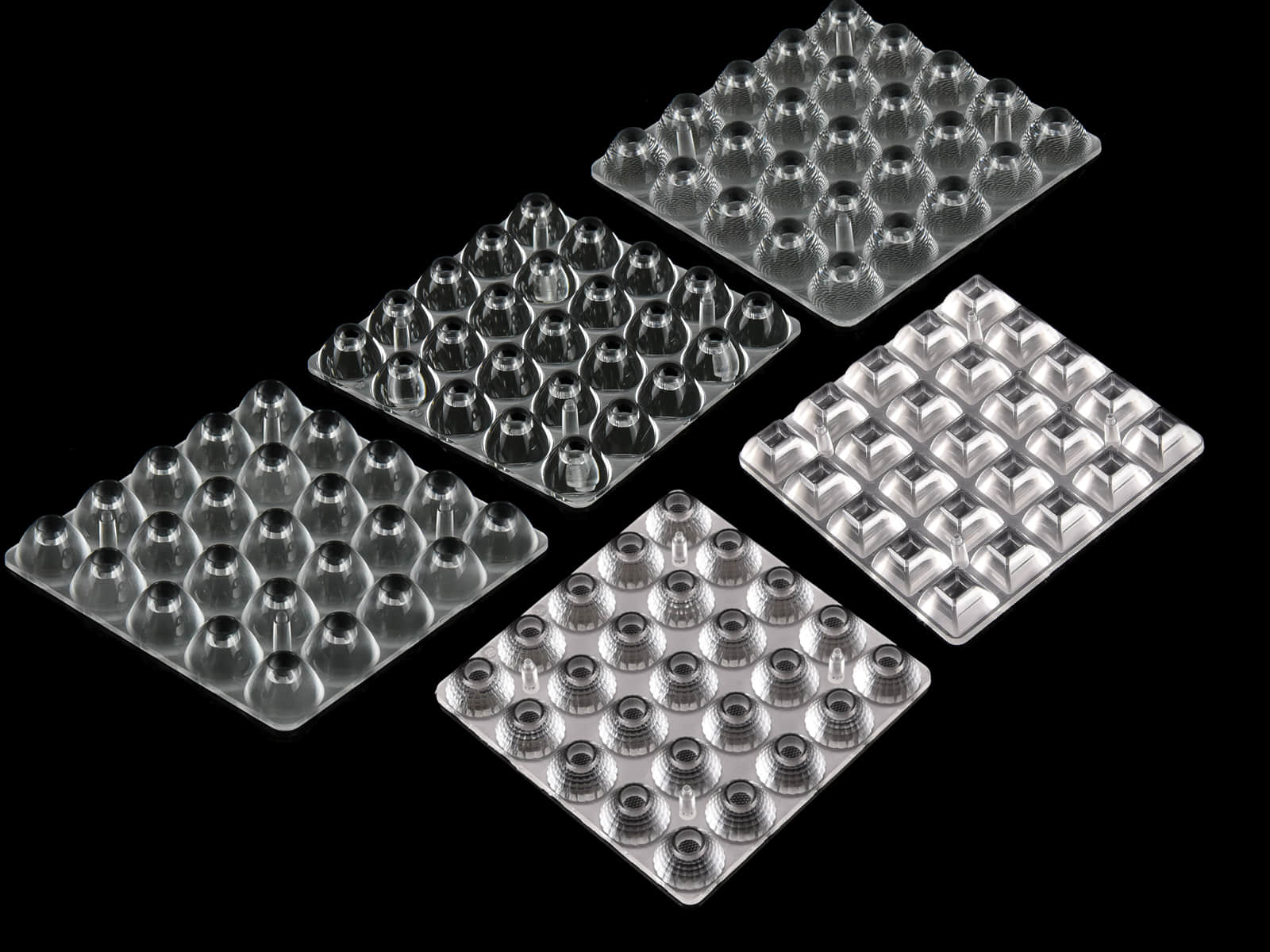

ALHB75D25LED series lens back

25 LEDs Floodlight Lens 10° 15° 20° 30° 45° 60° 90x90° Beam Angle

Model: ALHB75D25LED

Size: 74.8x74.8 (mm)

Height: 9.4mm

Angle: 10°,15°,20°,30°,45°,60°,90x90°

Material: PMMA

Transmittance: >93%

LED Type: 2835/3030/3535/5050 LED

Lighting Applications: Street Lighting, Floodlight

1. The ALHB75D25LED is a high-efficiency 25 LEDs optical lens designed for floodlight, street lighting, and other outdoor LED lighting applications.

2. This LED lens series supports multiple beam angle options, allowing lighting designers to optimize light distribution for different installation heights and lighting requirements.

3. For enhanced visual comfort and light uniformity, the 30° and 45° beam angle versions are available in two optical surface designs. Standard models provide clear optical surfaces, while models with the suffix "FR" feature a frosted surface that helps reduce glare and improve light diffusion.

Distribution

-

Specifications

Model: ALHB75D25LED
Size: 74.8x74.8 (mm)
Height: 9.4mm
Angle: 10°,15°,20°,30°,45°,60°,90x90°
Material： PMMA
Transmittance： >93%
LED Type 2835/3030/3535/5050 LED
Lighting applications Street Lighting, Floodlight

LED Type

OSRAM OSCONIQ® P 3030 osram

OSRAM OSCONIQ® P

Lumileds LUXEON 3030 HE lumileds

LUXEON 3030 HE

Nichia NFSW 3030 series nichia

NFSW 3030 series

EVERLIGHT XI3030 C0150 everlight_logo

XI3030 series

HONGLIZHIHUI EMC 3030 series honglizhihui

EMC 3030 series

Packaging

---

Material Information

pmma temperature
pc temperature
pmma rti
pc rti
glove 1
no chemical

  • Lens Material

    L06: PMMA 8N/ L46: PC 1250Z

  • Operating Temperature

    PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C

  • UL Flammability

    PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm

  • UL RTI Elec

    PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]

  • Light Transmission Rate

    400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

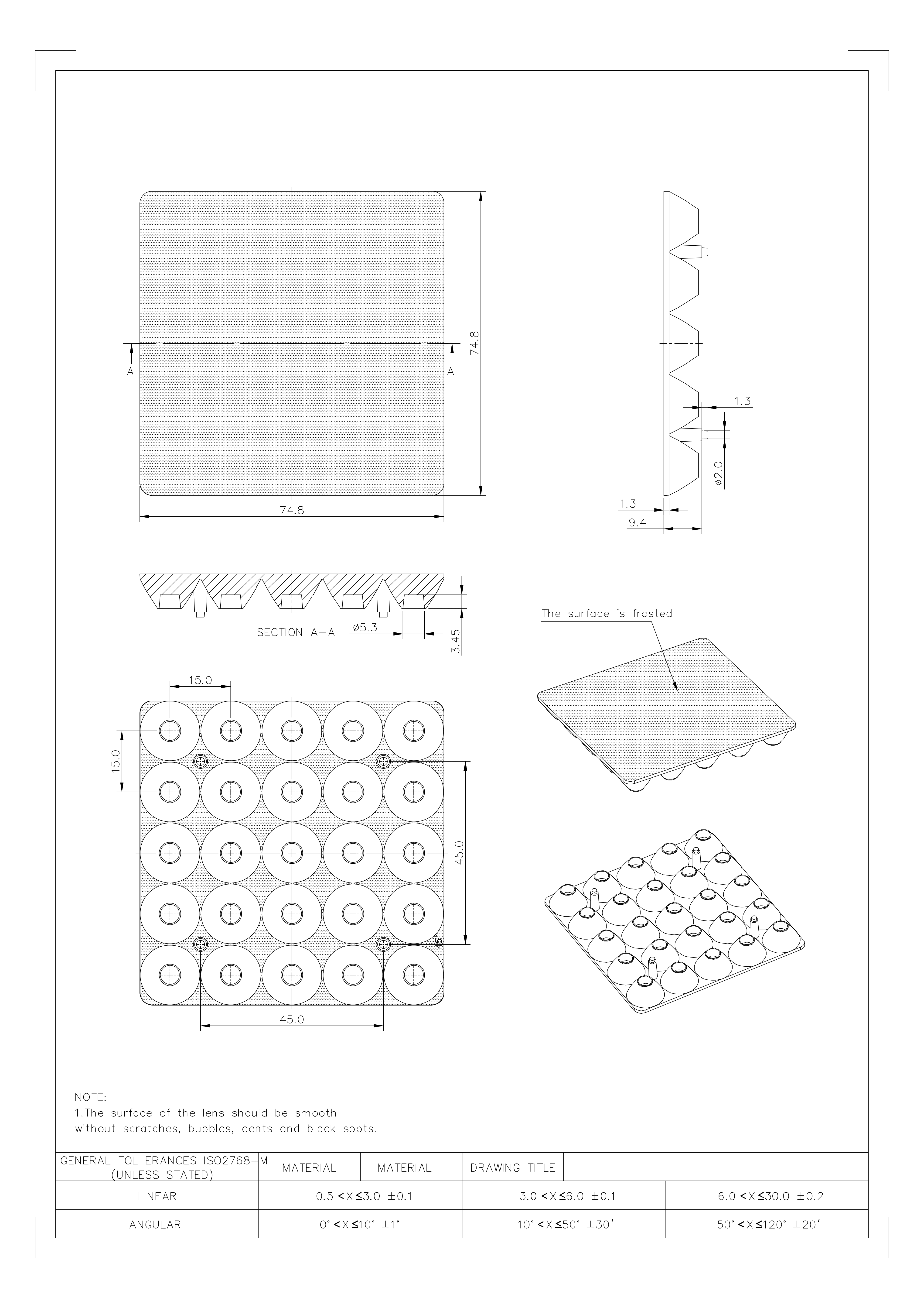

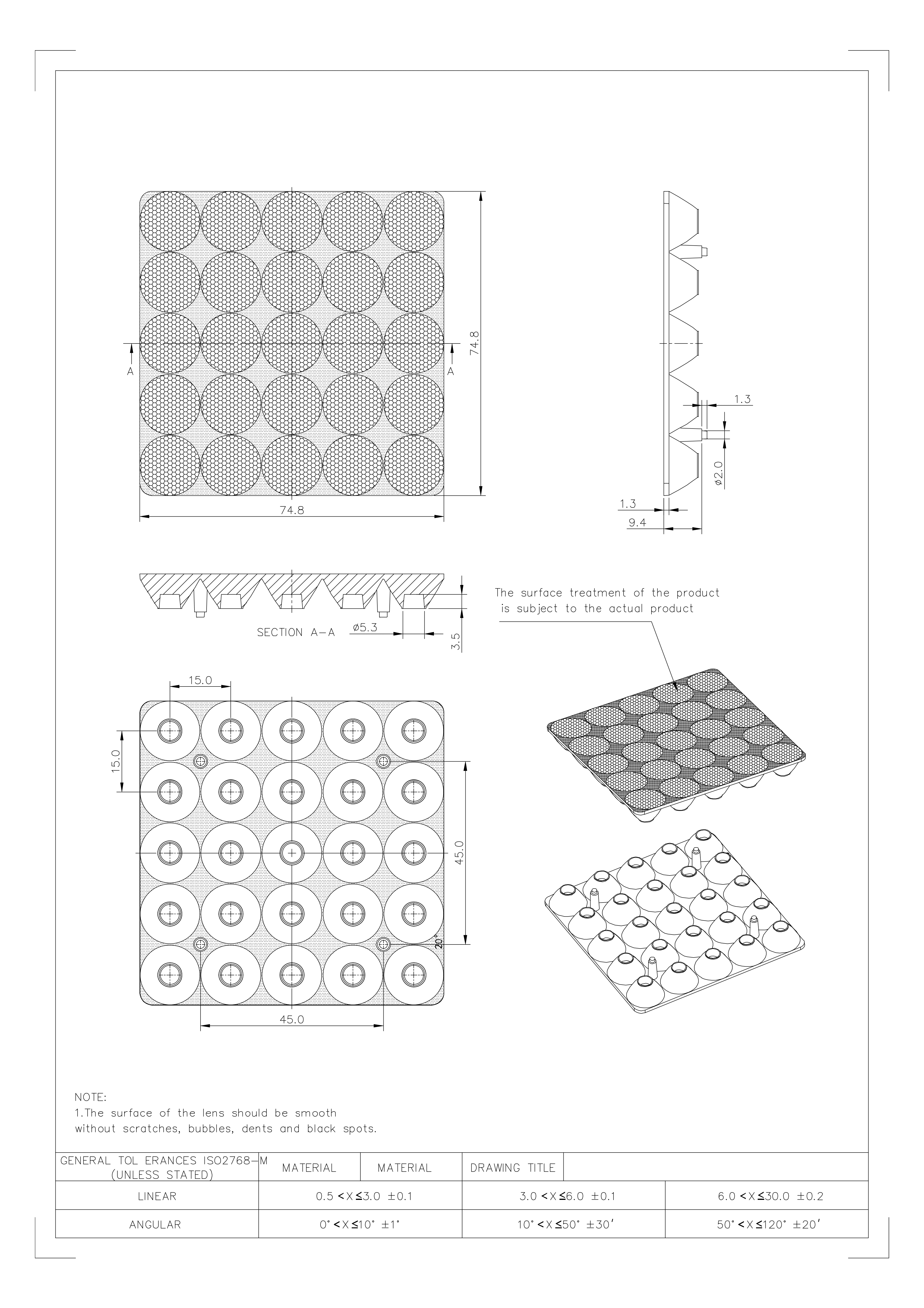

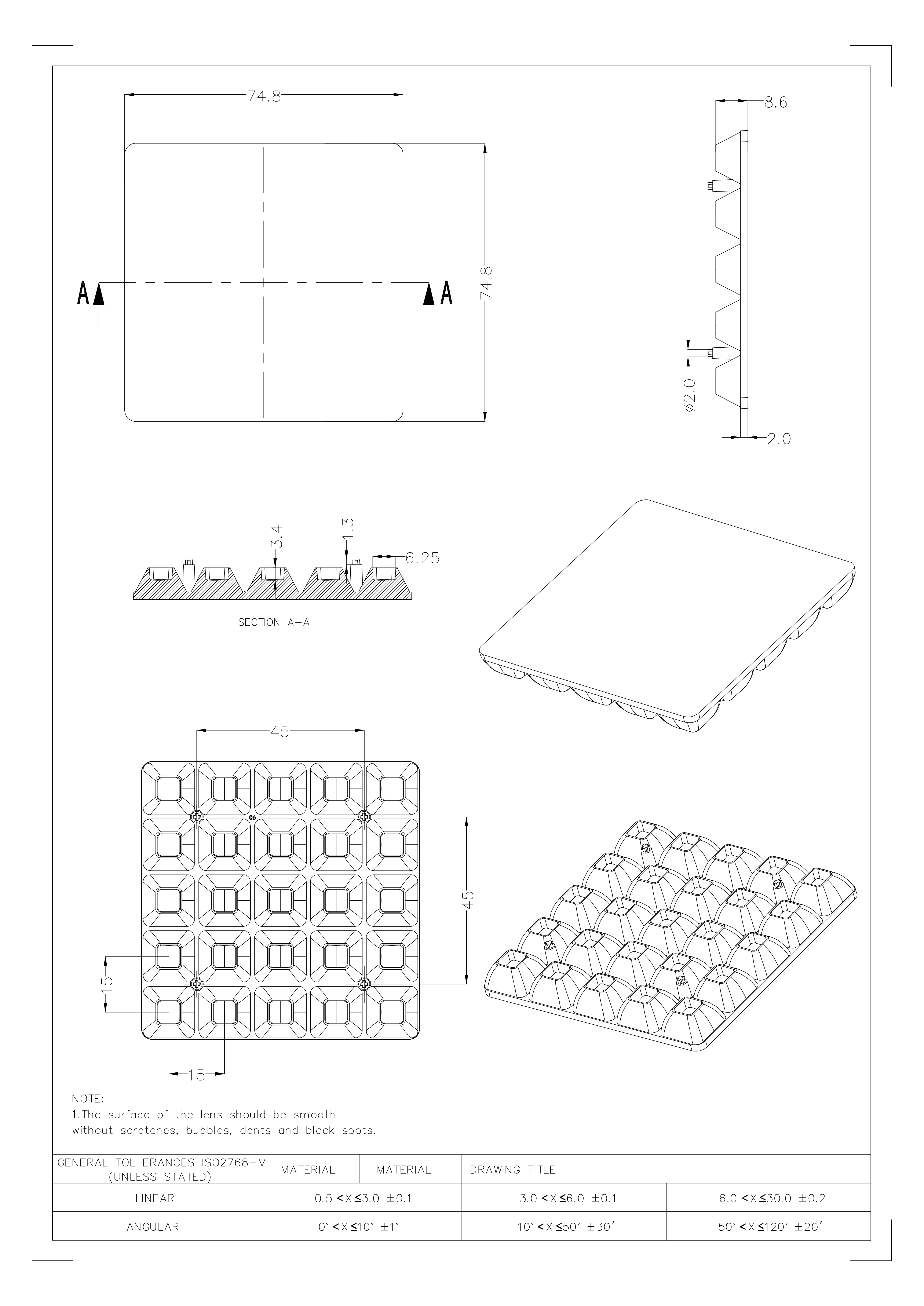

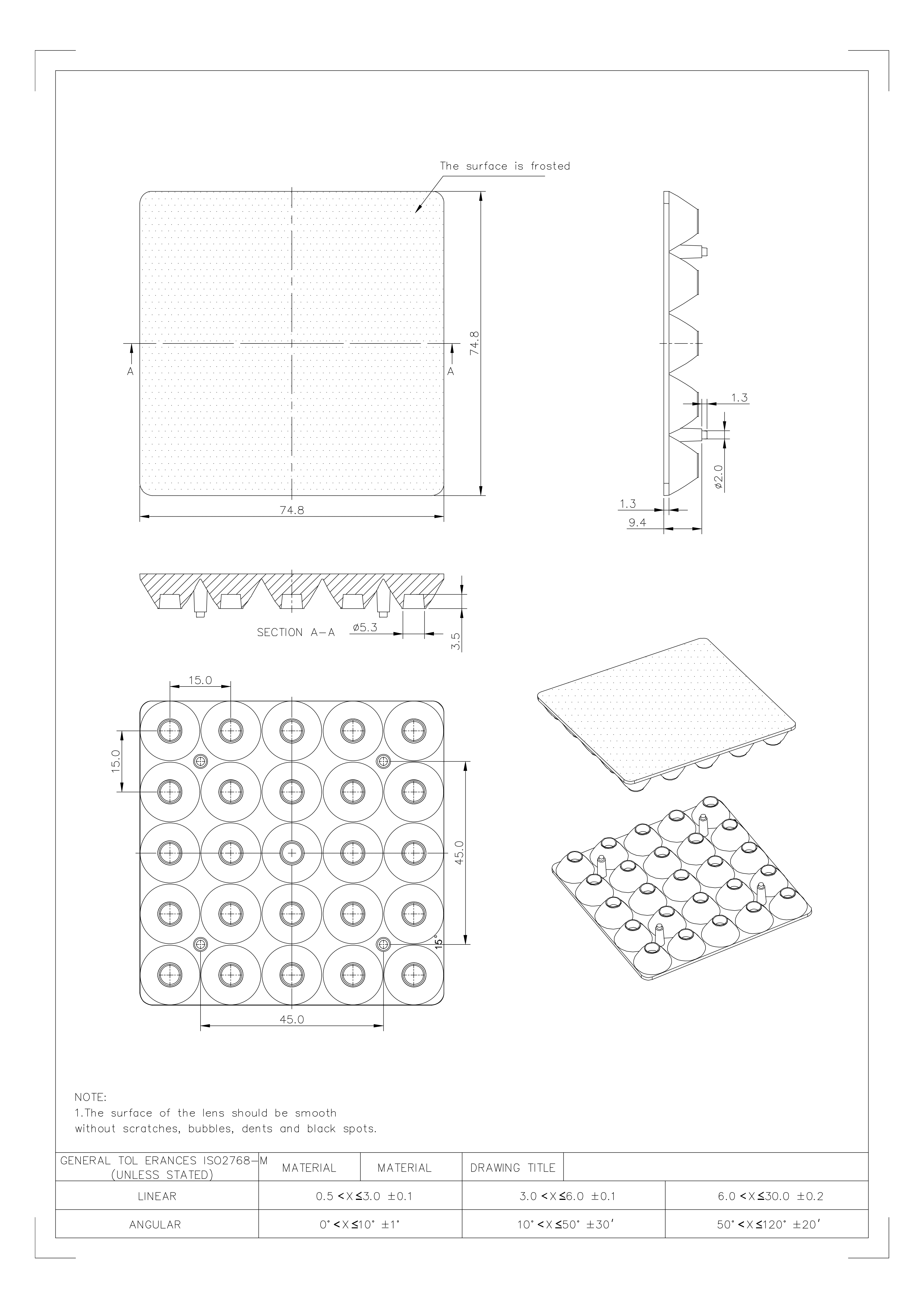

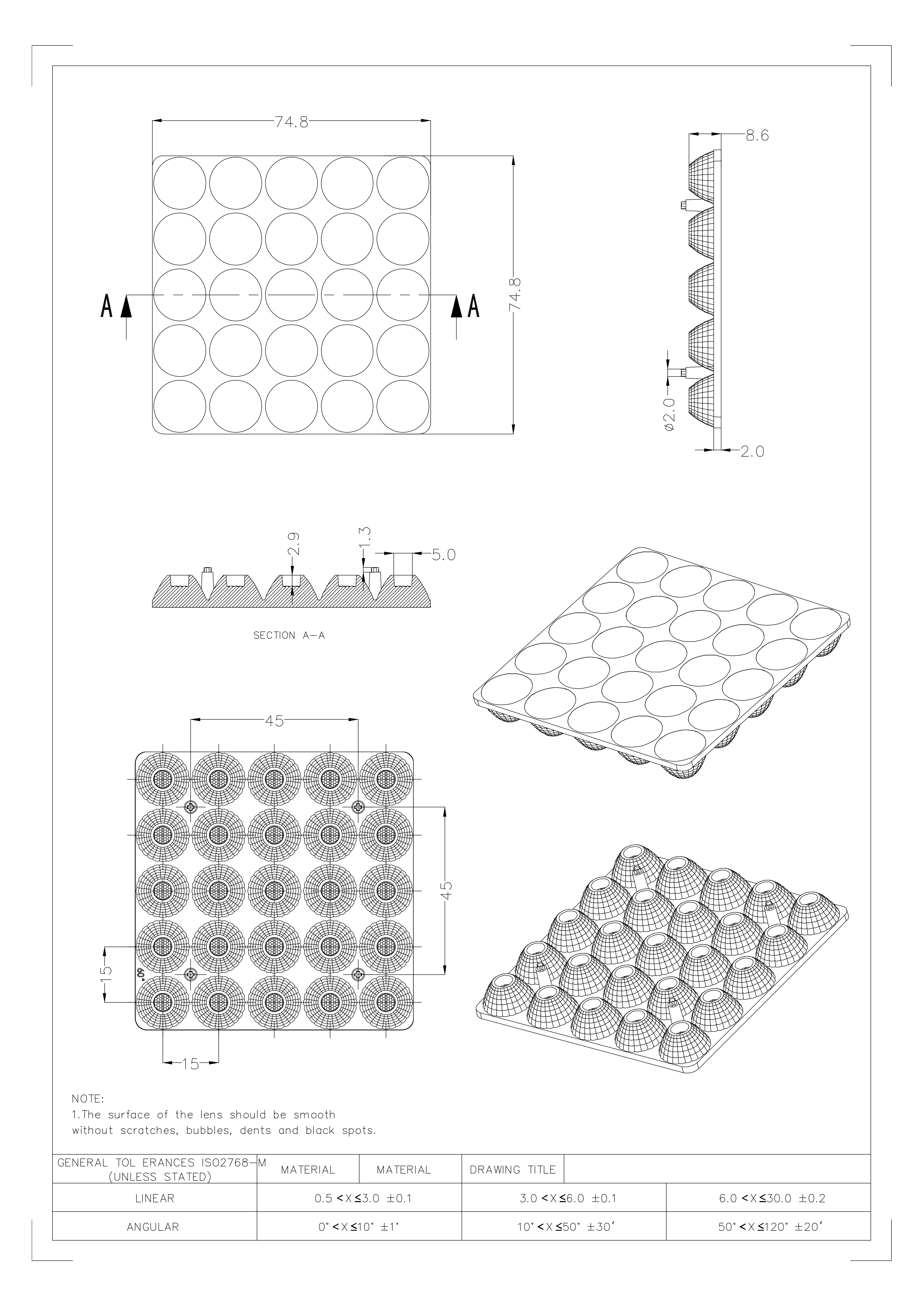

ALHB75D25LEDFR10G drawingALHB75D25LEDFR15G drawingALHB75D25LED20G drawingALHB75D25LED30G drawingALHB75D25LEDFR30G drawingALHB75D25LEDFR45G drawingALHB75D25LEDFR60G drawingALHB75D25LED45G drawingALHB75D25LED9090G drawing
