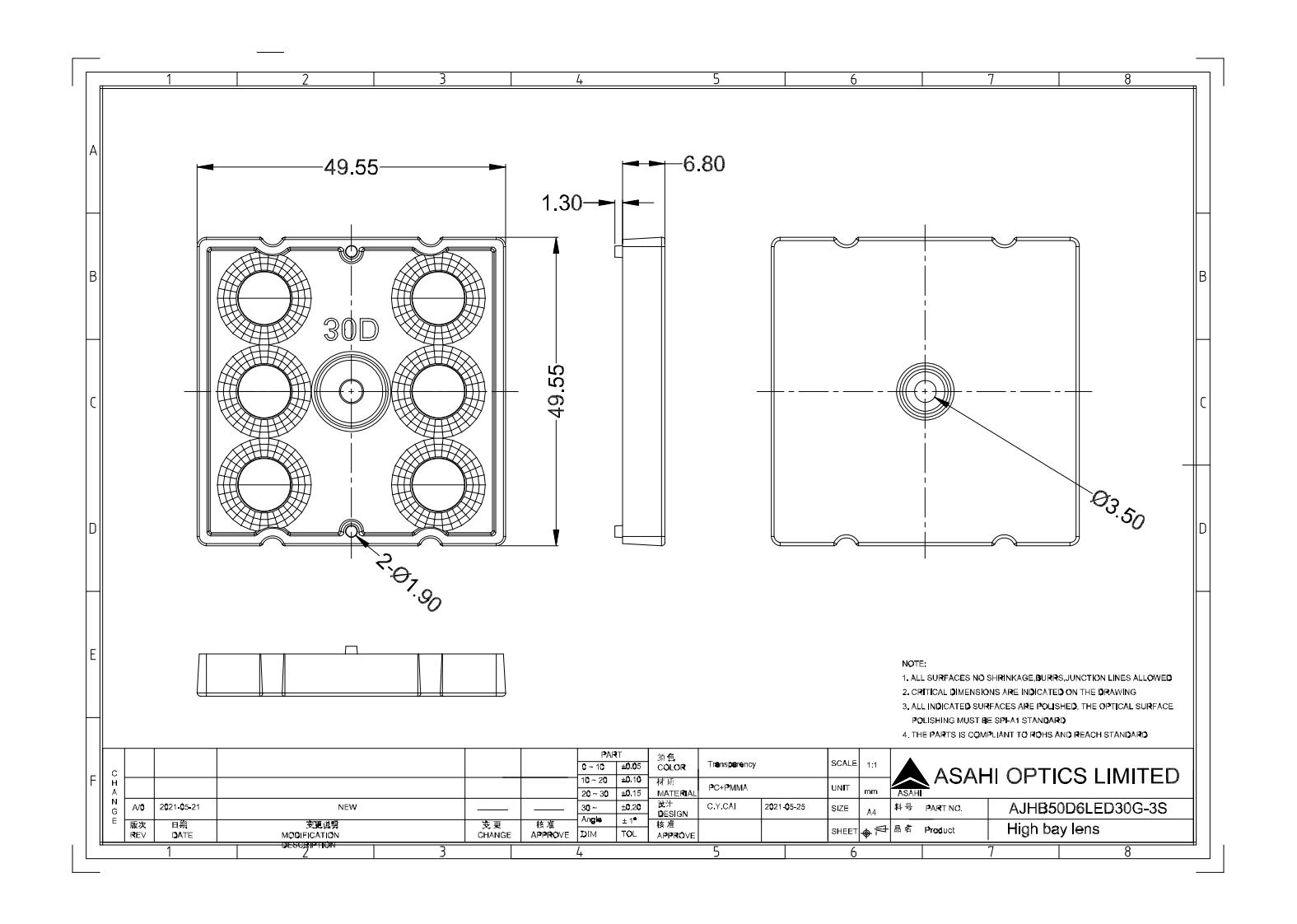

Model: AJHB50D6LED30G-3S
Diameter: 50x50mm
Height: 8.1mm
Angle: 30°
Material: PC-1250Z
Transmittance: >88%
LED Type: 5050 LED
Lighting Applications: High Bay Lighting, Area Lighting
1. The 2x3 lens 30° is specifically designed for 5050 LEDs, offering a narrow 30° beam angle for precise and focused illumination.
2. 2x3 lens was designed by PC material with high temperature resistance up to 120°

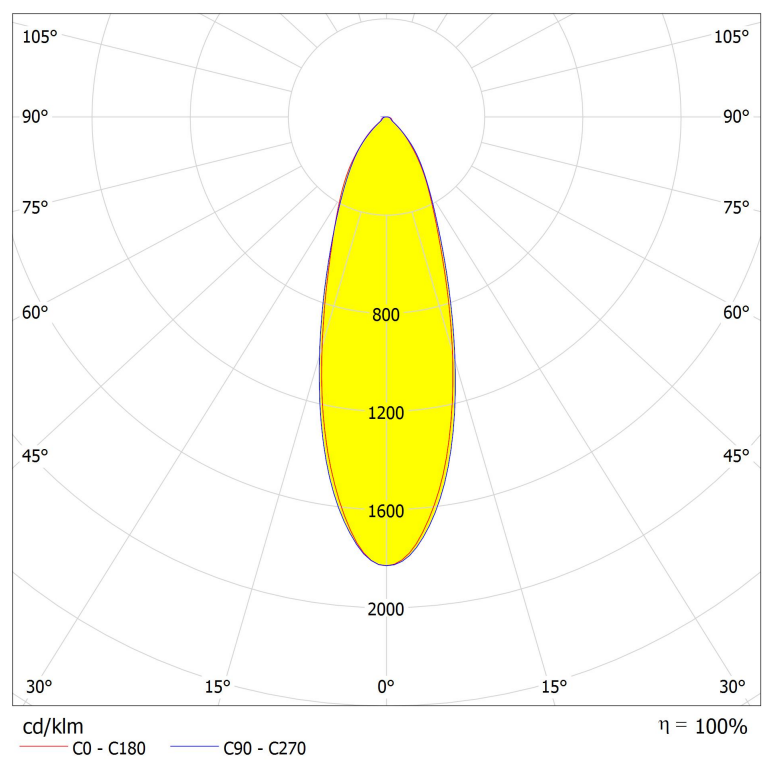

Distribution
Specifications
| Model: | AJHB50D6LED30G-3S |
| Diameter: | 50x50mm |
| Height: | 8.1mm |
| Angle: | 30° |
| Material： | PC-1250Z |
| Transmittance： | >88% |
| LED Type | 5050LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
The 2x2 lens T2M is designed for less backlight and reached for a wide street road. The Beam with excellent longitudinal luminance uniformity
1. The 2x3 lens 30° is specifically designed for 5050 LEDs, offering a narrow 30° beam angle for precise and focused illumination.
2. 2x3 lens was designed by PC material with high temperature resistance up to 120°
Asahi Optics AJHB50D6LED30G-3S .ies
Asahi Optics AJHB50D6LED60G-3S PCB Drawing.dwg
Asahi Optics AJHB50D6LED60G-3S PCB Drawing.pdf
