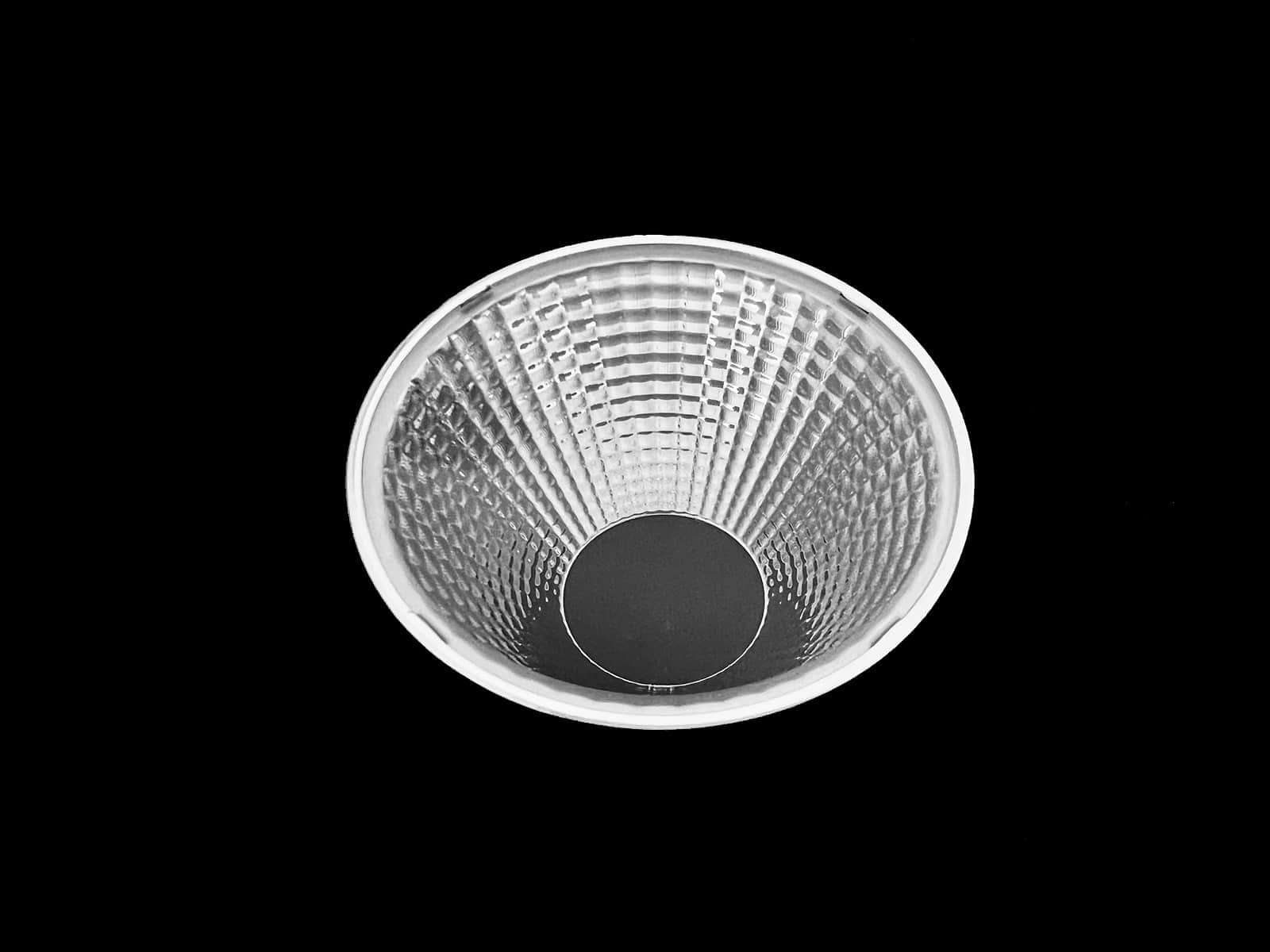

Model: AR6934T
Diameter: 69.0mm,28.4mm
Height: 34.2mm
Angle: 15°, 25°, 38°
Material: PC+Aluminum Coating
Transmittance: >88%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light

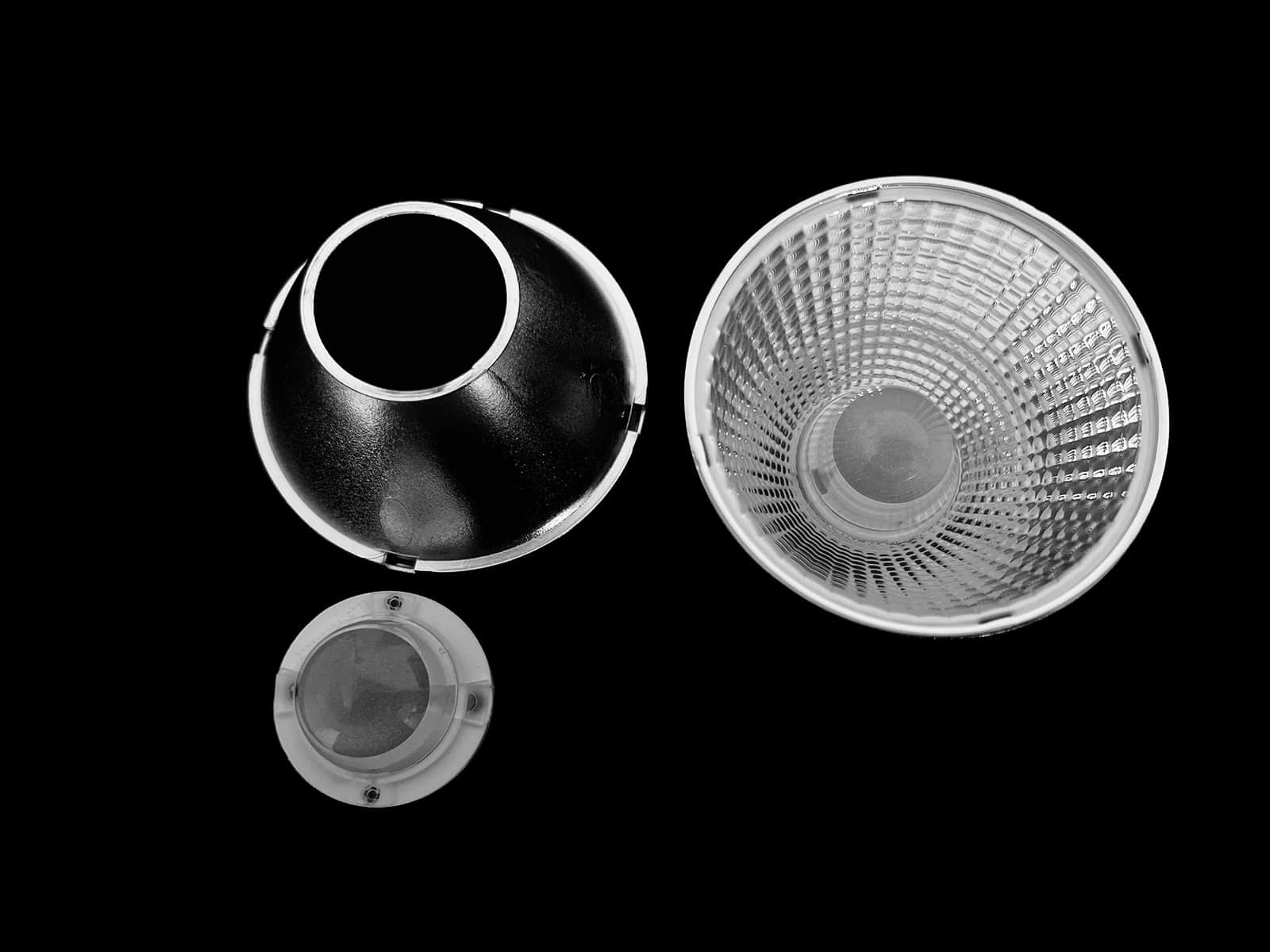

1, 69mm Spot Light Reflector 15° 25° 38° For Spot Lights. COB LED reflectors are commonly used for lighting parking lots.
2, The COB LED reflectors help to provide uniform and efficient illumination, ensuring visibility and safety for drivers and pedestrians.
3, They can be installed on poles or integrated into overhead lighting fixtures to achieve optimal lighting coverage.

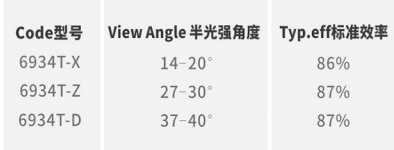

Distribution
Specifications
| Model: | AR6934T |
| Diameter: | 69mm,28.4mm |
| Height: | 34.2mm |
| Angle: | 15°, 24°, 38° |
| Material： | PC+Aluminum Coating |
| Transmittance： | >88% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |

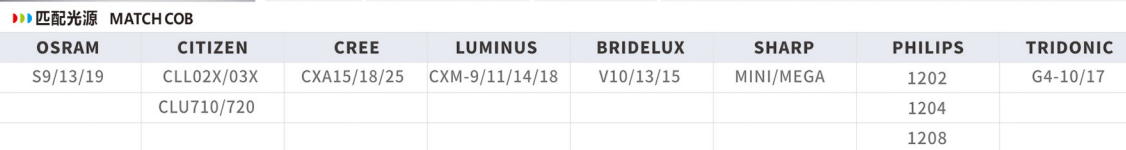

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
Downloads
