45mm PMMA Rgb Led Spotlight Lens 10 Degree
45mm PMMA Rgb Led Spotlight Lens 10 Degree

45mm PMMA Rgb Led Spotlight Lens 10 Degree

Model: AJS45DRGBW10G

Diameter: 45mm

Height: 21.6mm

Angle: 10°

Material: PMMA

Transmittance: >93%

LED Type: CREE XML-RGBW

Lighting Applications: Stage light

1, RGBW lenses are commonly used in lighting applications such as stage lighting, building facade lighting, and interior lighting.

2, By controlling the brightness and mixing ratio of LED lights of different colors, various color light effects can be achieved. Red, green, and blue LEDs can be mixed to produce various colored lights, while white LEDs can provide brighter overall lighting.

3, RGBW lenses find application in entertainment venues such as clubs, bars, and dance floors. These lenses enable lighting designers to create immersive lighting experiences, incorporating vibrant colors, moving patterns, and dynamic effects that synchronize with the music and atmosphere.

Distribution

---


Specifications

Model: AJS45DRGBW10G
Diameter: 45mm
Height: 26.1mm
Angle: 10°
Material: PMMA
Transmittance: >93%
LED Applications CREE XML-RGBW
Lighting applications Stage light

LED Type

CREE XML RGBW cree

XPE/XPG2

CLQ6

XML

OSRAM 5050 series osram

S5/2835/3030

SSL 80/120/150

P3737

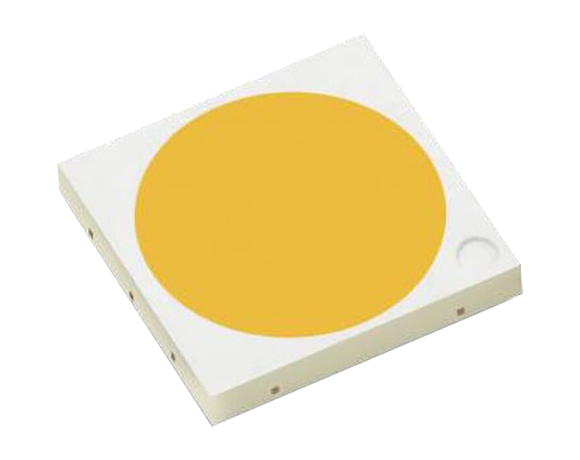

LUMILEDS RGBW lumileds

5050

C/CZ/4in1

RUBIX

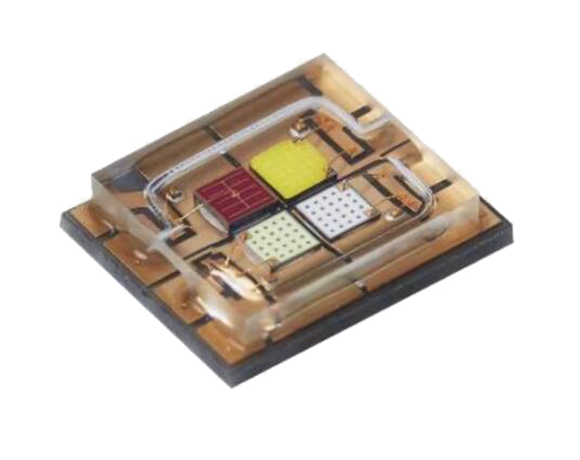

SEOUL RGBW SEOUL LOGO

SPB05F0D

SPFOAFOA

SZ5-M4

15W/40W/60W

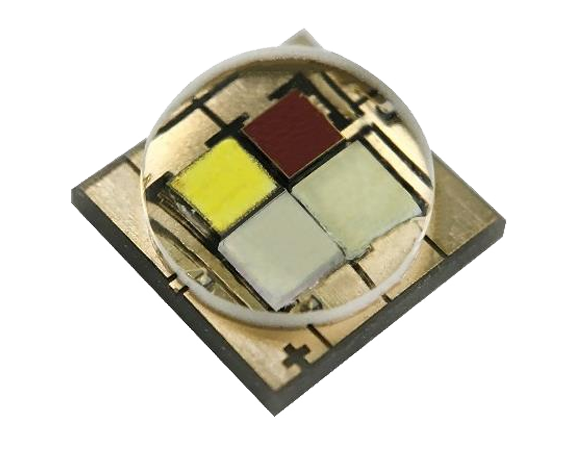

Prolight RGBW prolight

PBLA

PBLD

PBEE

PBEB

PBEF

Packaging

---

Material Information

pmma temperature
pc temperature
pmma rti
pc rti
glove 1
no chemical
  • Lens Material

    L06: PMMA 8N/ L46: PC 1250Z

  • Operating Temperature

    PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C

  • UL Flammability

    PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm

  • UL RTI Elec

    PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]

  • Light Transmission Rate

    400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

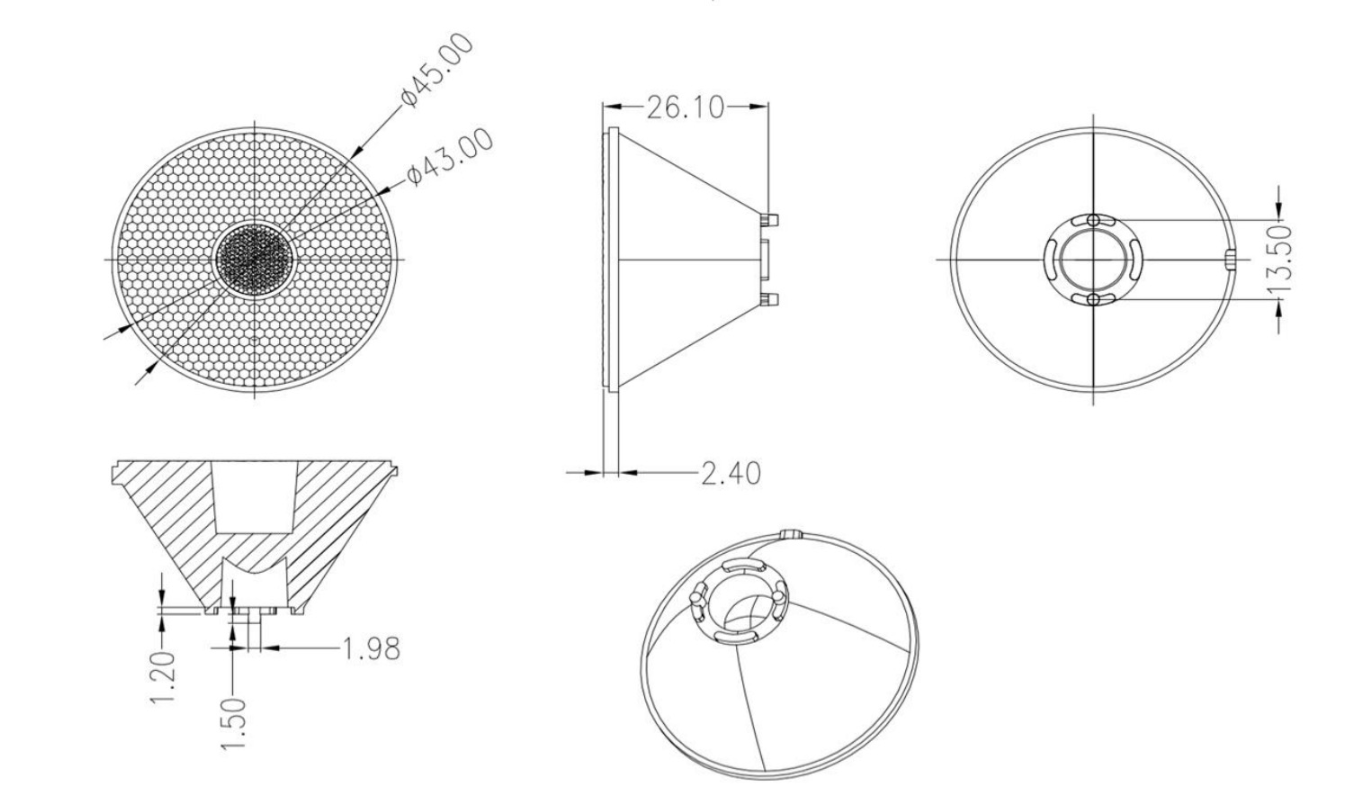

 45mm PMMA Rgb Led Spotlight Lens 25 Degree Drawing45mm PMMA Rgb Led Spotlight Lens 25 Degree Application
