Model: AJL280D40H36LED60G/90G
Size: 280x40(mm)
Height: 10.7mm
Angle: 60°,90°
Material: PC
Transmittance: >88%
LED Type: 2835/3030LED
Lighting Applications: Linear Lighting, Office Lighting, Shopping malls
1. AJL280D40H36LED series is a dual-row clip lens designed for linear light strips, compatible with 3030 and 2835 LEDs.

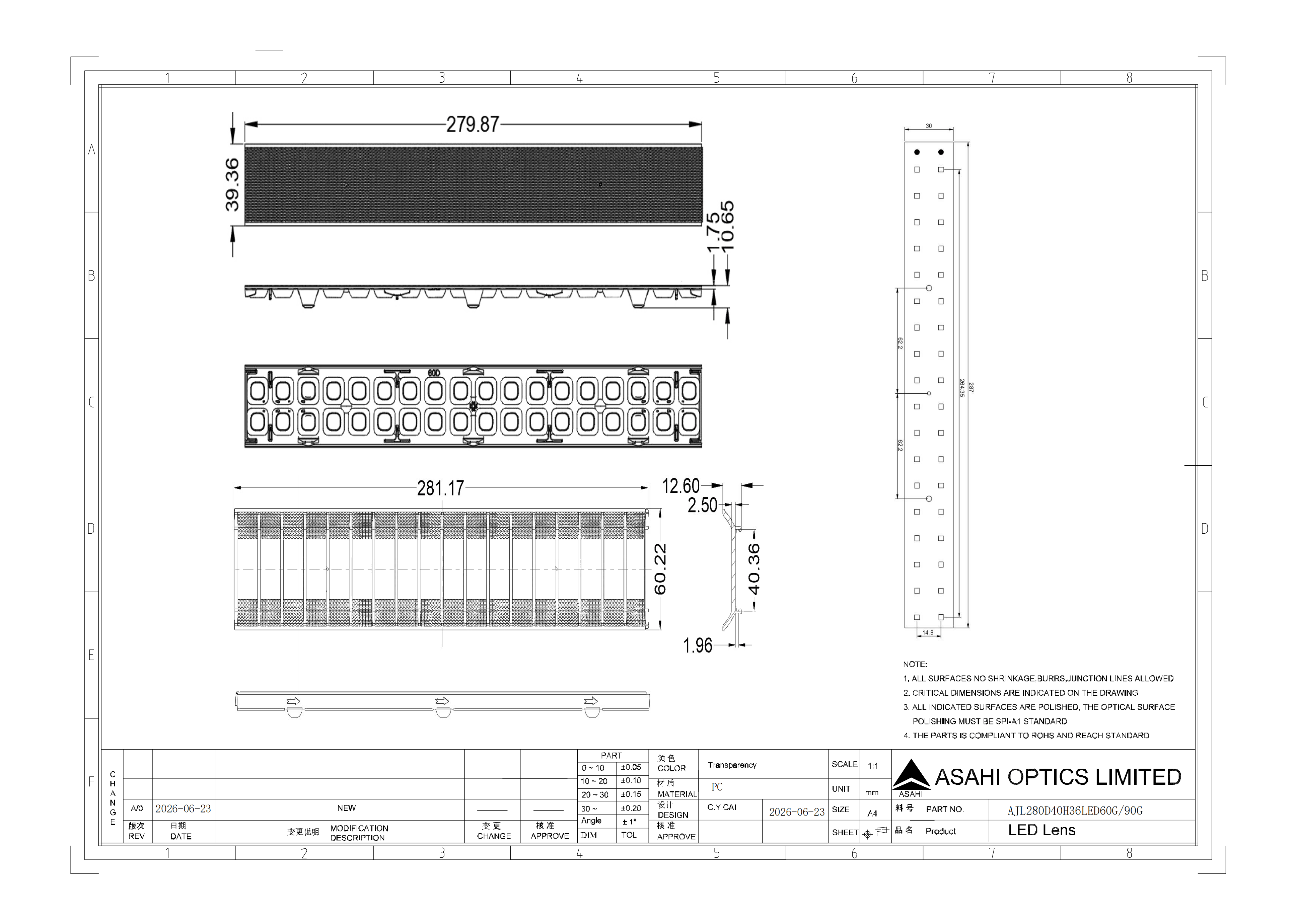

2. The lens is made of PC material and measures L279.9 x W39.4 x H10.7 mm, suitable for office lighting, shopping malls, supermarkets, warehouse aisles, and shelf lighting.
3. Its geometric optical surface design helps improve light efficiency while combining optical performance with structural reliability.

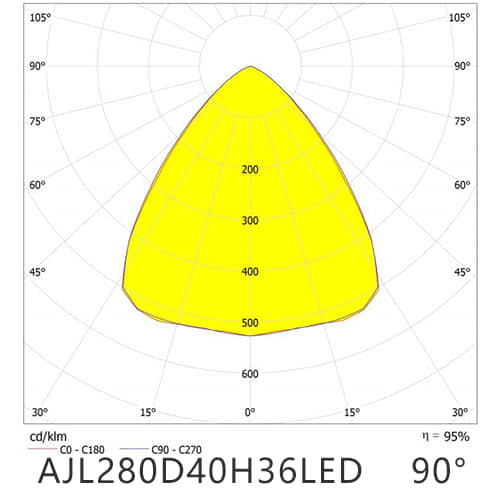

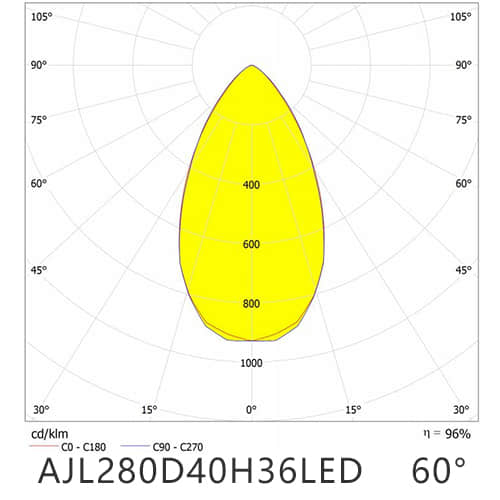

Distribution
Specifications
| Model: | AJL280D40H36LED60G/90G |
| Diameter: | 280x40(mm) |
| Height: | 10.7mm |
| Angle: | 60°,90° |
| Material： | PC |
| Transmittance： | 88% |
| LED Applications | 2835/3030LED |
| Lighting applications | Linear Lighting, Office Lighting, Shopping malls |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
